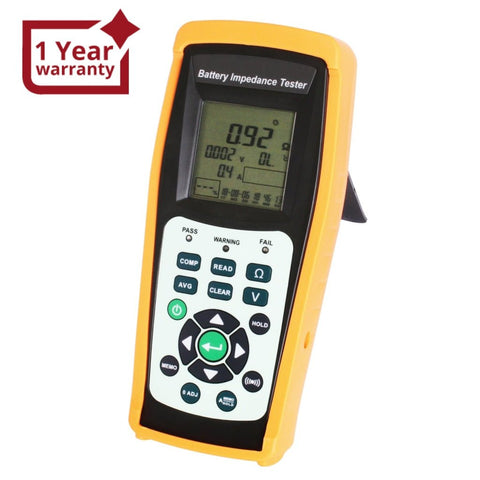

Battery Tester is designed for measuring the internal impedance and open circuit voltage of the secondary battery including Nickel-metal hydride battery (NiMH), Nickel-cadmium battery(NiCd), Lithium-ion battery(Li-ion), Alkaline battery and lead-Acid battery.

Application: Ideal tester for automotive, UPS maintenance and telecommunication applications.

Features:

Low battery indicator
Auto power off function
Clock function
Multi-display to show the internal impedance, voltage and clock of the battery simultaneously.
Has 99 sets of composite comparator function, which can be set at impedance and voltage values to get the reliable detection of battery deterioration
Pin type leads, which can easily contact the battery electrodes supplied as standard to get more accurate 4-terminal measurement

Specifications:

Measuring method: Impedance (AC four-terminal method)
A/D conversion: Dual slope method
Display: LCD display and LEDs (comparator output)
Sampling rate: 2 Second
Open-Circuit terminal voltage: 7.0Vp-p max
Input over range: the screen displays“OL”
Comparator settings: High and Low limits of the comparators impedance and voltage
Number of comparator settings: 99 set
Manual and auto continuous Data logging: 9999 set
Operating temperature and R.H. value: 5~40°C, 80%RH or less (non-condensation)
Storage temperature and R.H. value: -10~60°C, 70%RH or less (non-condensation)
Operating ambience: In-door use, under environmental pollution grades two
Operating attitude: Max 2000 meters above level
Power supply: 1.5V × 6 NEDA 15F IEC R6 JIS SUM-3(ALKALINE)
AC adapter: AC input Voltage is 100~240Vac 1.0A with input frequency of 60 HZ or 50HZ, Free Voltage DC output is 9VDC(8~12VDCMax)
Supply current: >1.0ADC
Socket: pin Ground Casing Positive External Diameter 5.5mm internal Diameter 2.1mm
Dimension and weight: 240mm(L) x 100mm (W) x 45mm(H) / approximate 700g (including batteries)
Fuse specification: 0.5A/250V, 3.6Øx 10mm

Set Includes

1 x Battery Impedance Tester
1 x Kevin Clip type leads with temperature sensor
1 x Pin type lead
1 x AC100~240V 9V/1A(5.5*2.1*1.0mm) switching transformer
6 x V – LR6 – AA – AM3 – MN 1500
1 x 5-pin USB cable
1 x Installation CD
English Instruction Manual
Carrying Case
