CM-1210A Coating Thickness Meter Gauge F & NF, Magnetic Induction Eddy Current 0~2000μm 0~80mil Non-Magnetic Non-conductive Material Thick Measure Tester, Substrate Auto Detection

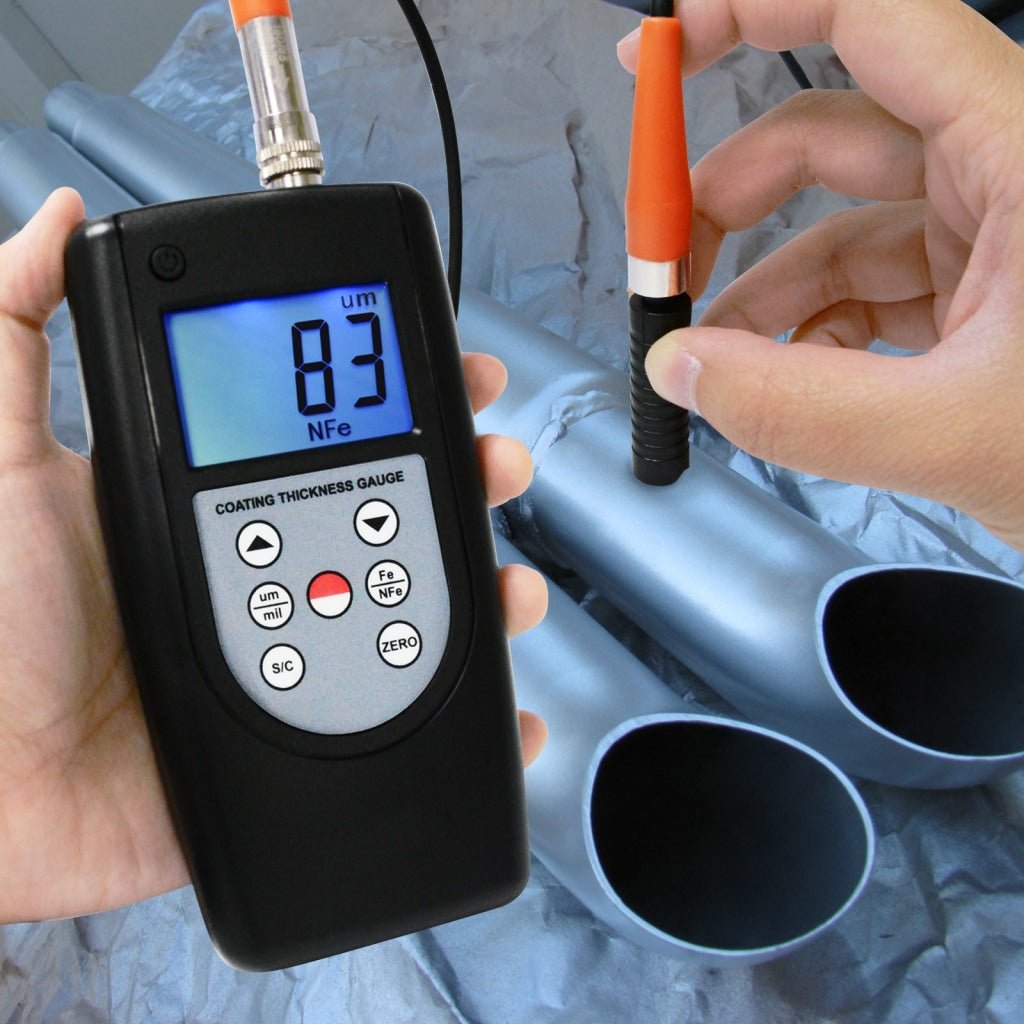

Coating thickness gauge is a kind of portable testing instrument, can take fast, intact, precise measurement of coating thickness. It can be used in both engineering field, and laboratories, as an essential instrument in material protection industry

Principles:

1. F Type Magnetic Induction (Iron Base)
   • Applications: Measure the thickness of non-magnetic materials on magnetic materials
   • Examples: Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
2. NF Type Eddy Current (Aluminium Base)
   • Applications: Measure the thickness of non-conductive coatings on non-magnetic metals
   • Examples: Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc

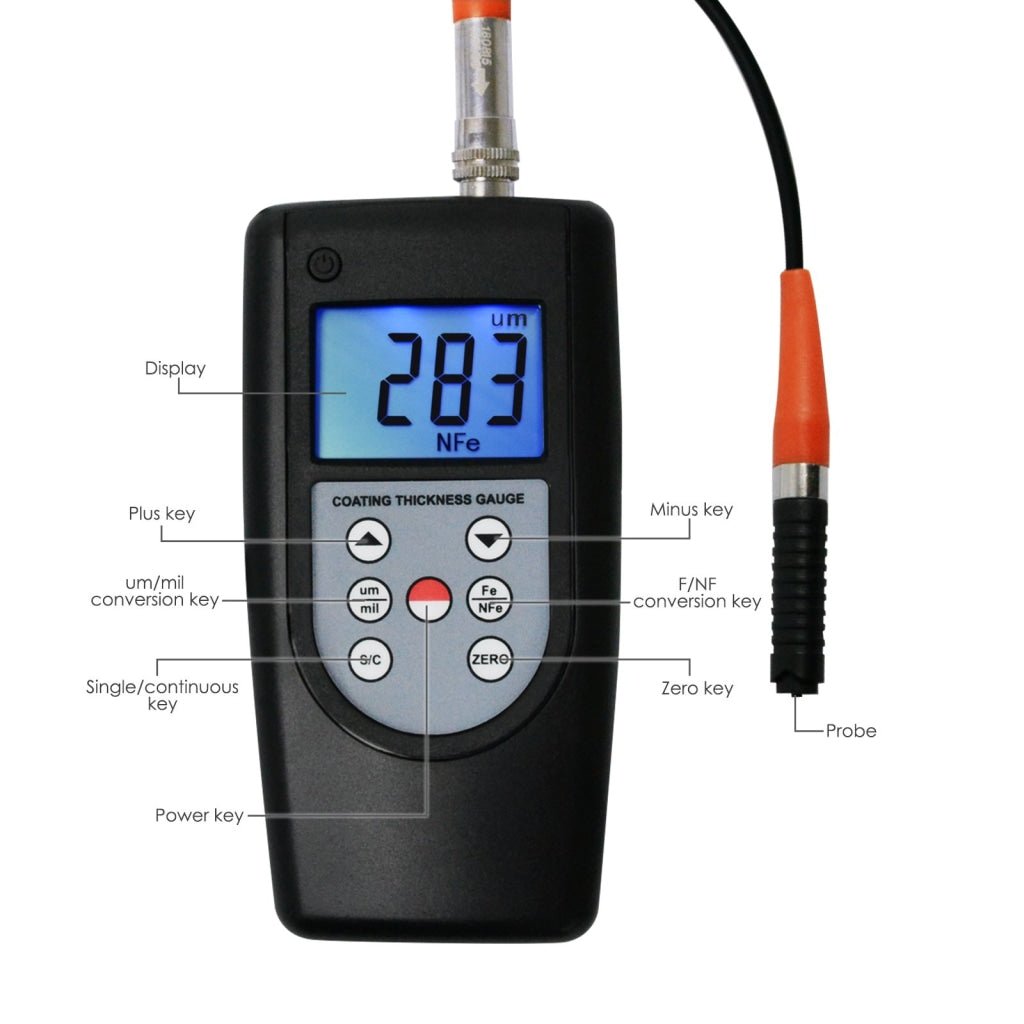

Features:

• Magnetic induction (F) and eddy current (N) measuring methods
• Metric / imperial system selectable
• Manual or automatic power off
• Auto memory of calibration value, auto substrate recognition
• Single and Continuous measurement mode
• Wide measuring range and high resolution
• Use USB/RS-232 data output to connect with PC (Not included in the set)
• Provide Bluetooth data output choice
• Low battery indicator
• Manual or automatic power off
• Digital backlit display gives exact reading with no guessing or errors
• Meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS

Specifications:

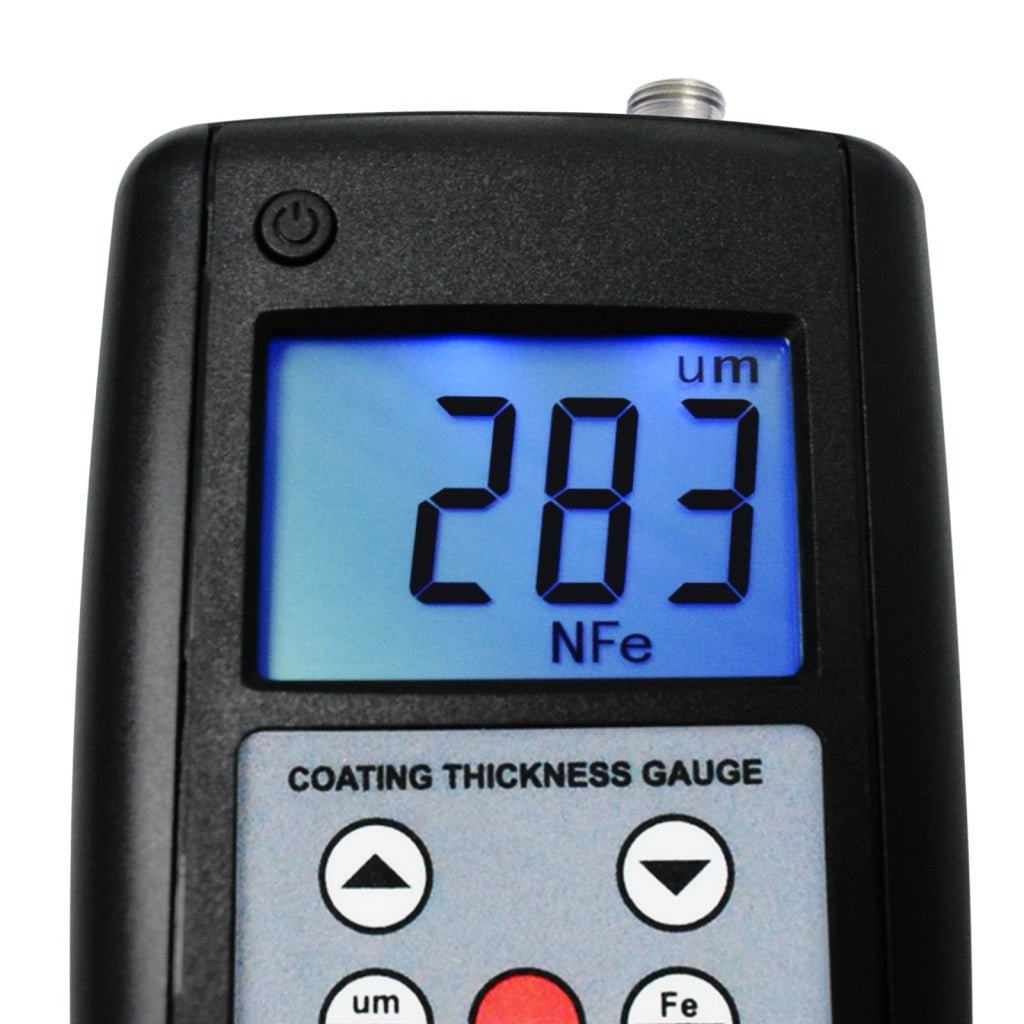

• Display: 4 digits LCD, backlit
• Range: 0~2000µm / 0~80mil
• Resolution: 0.1µm / 1µm
• Accuracy: ±1~3%n or ±2.5µm or 0.1mil (whichever is greater)
• Min.Radius Workpiece
  • F Type:convex 1.5mm/concave 25mm
  • NF Type:convex 3mm/concave 50mm
• Min.Measuring Area: 6mm
• Min.Sample Thickness: 0.3mm
• Operating Conditions
  • Temperature:0~40ºC
  • Humidity:10~90%RH

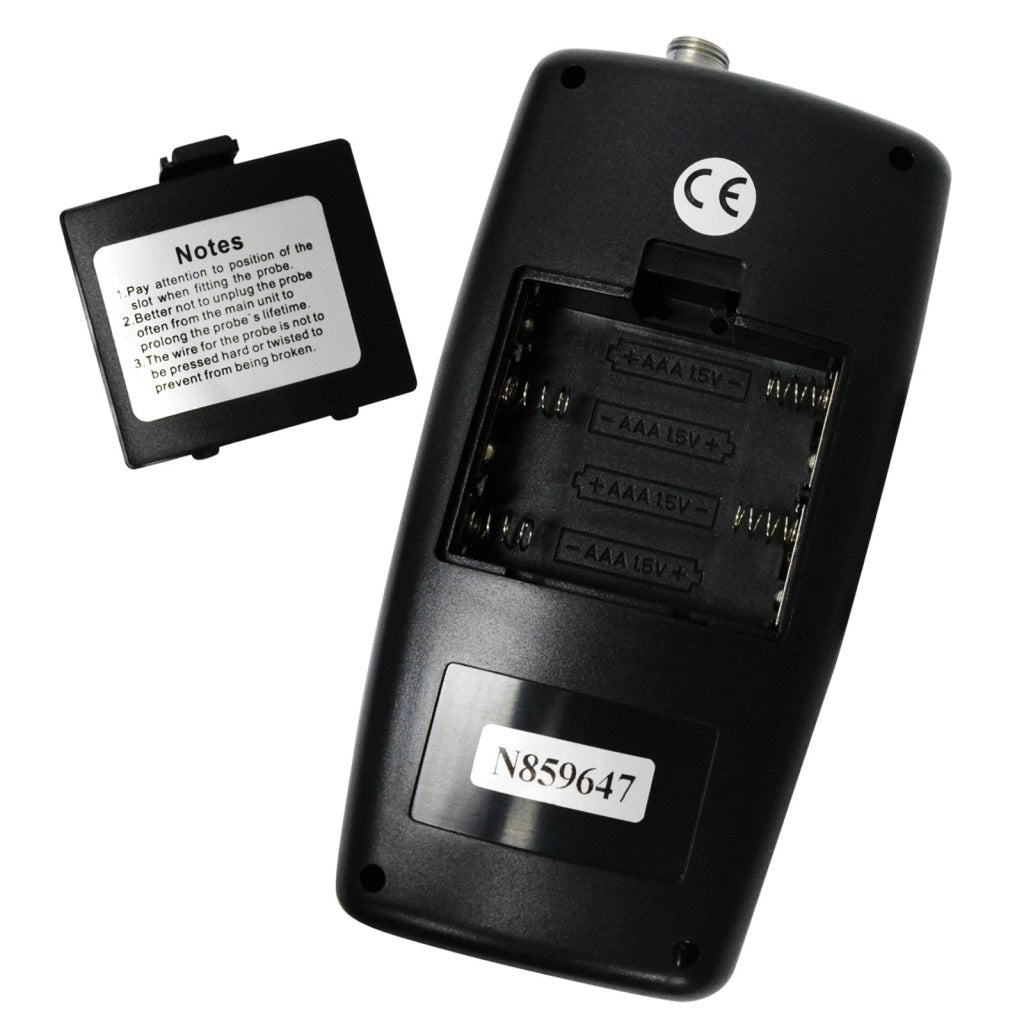

• Power Supply: 4 x 1.5V AAA (UM-4)

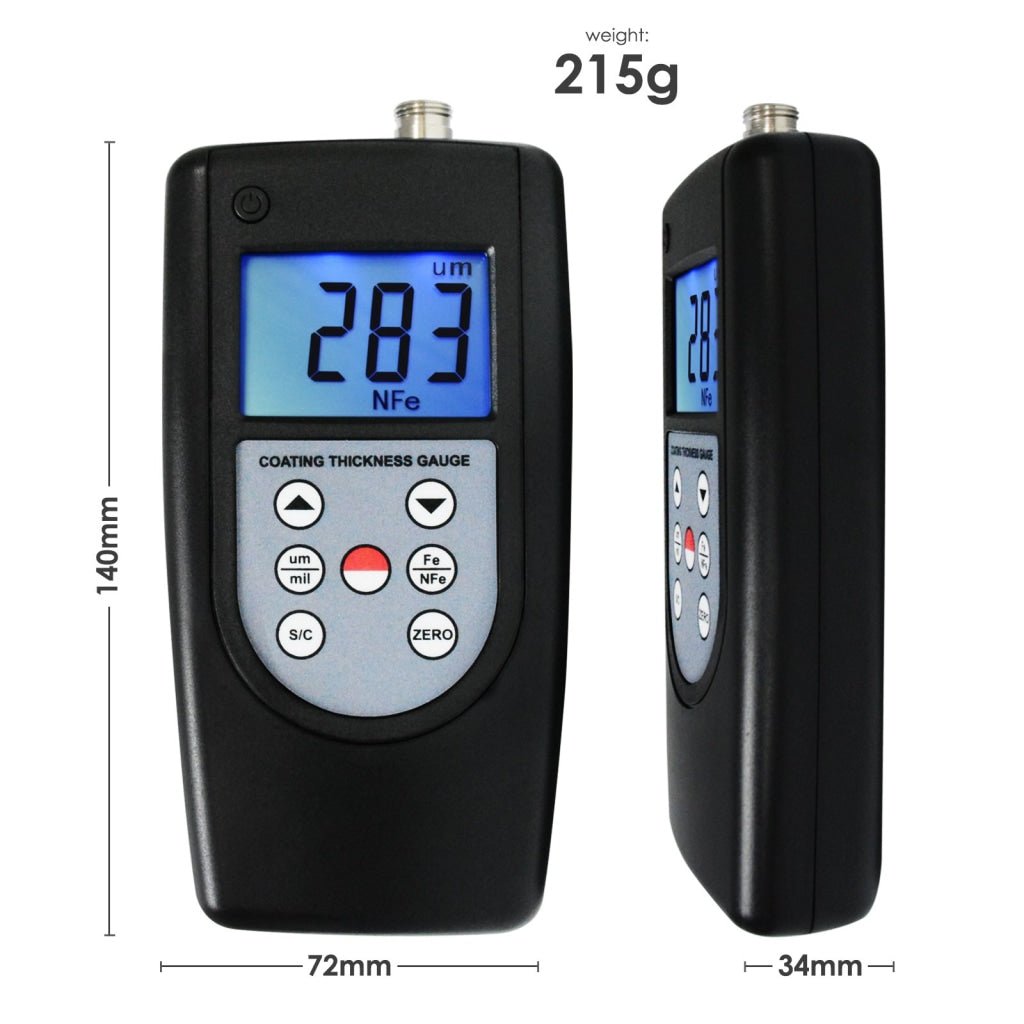

• BatteryDimensions: 140 x 72 x 34mm
• Weight: 215g

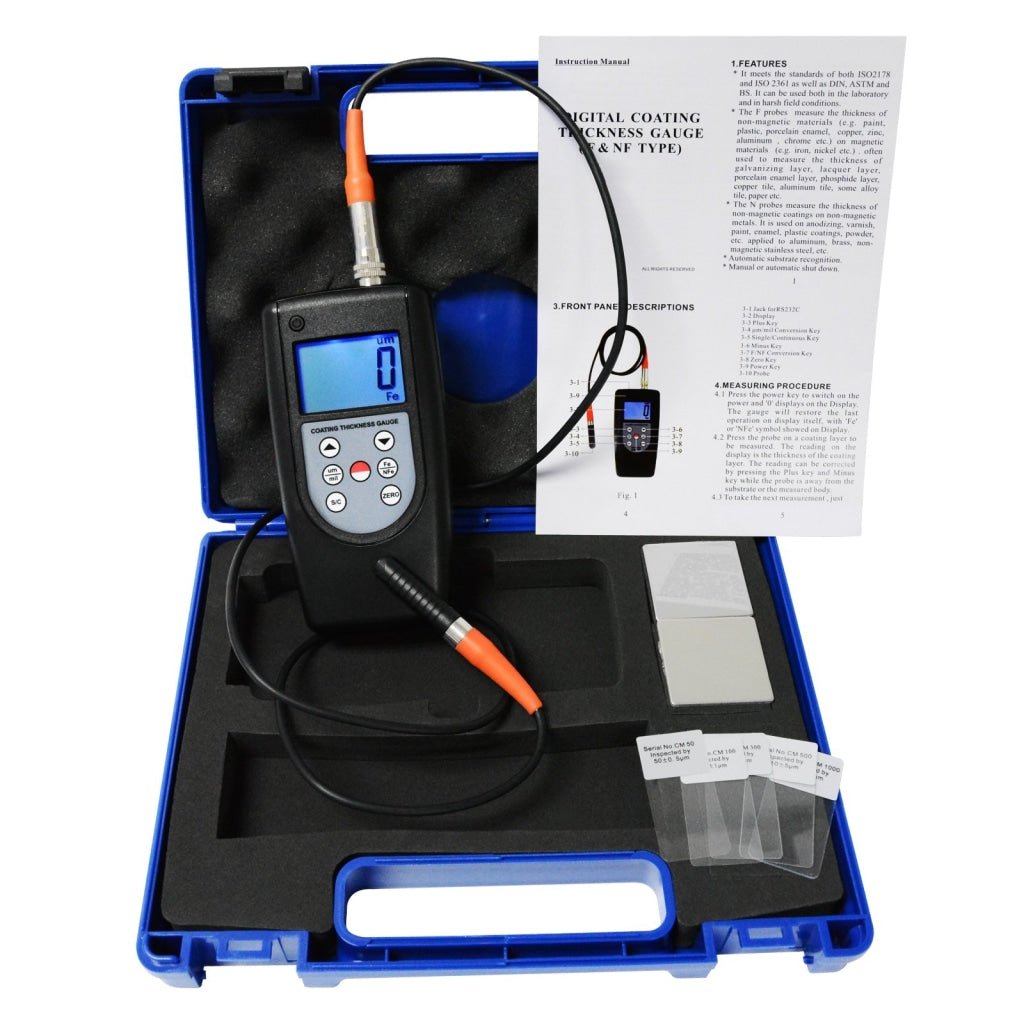

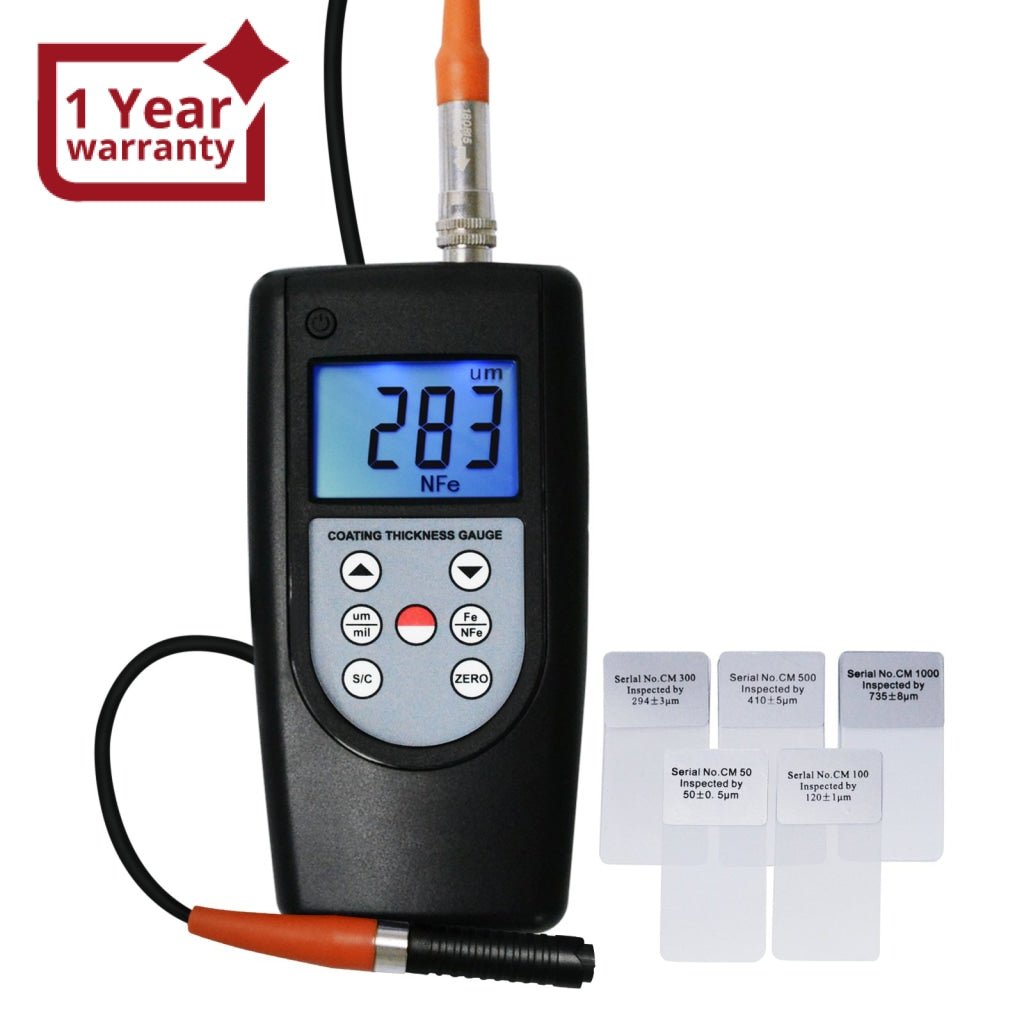

Set Includes:

• 1 x Coating Thickness Gauge (main unit)

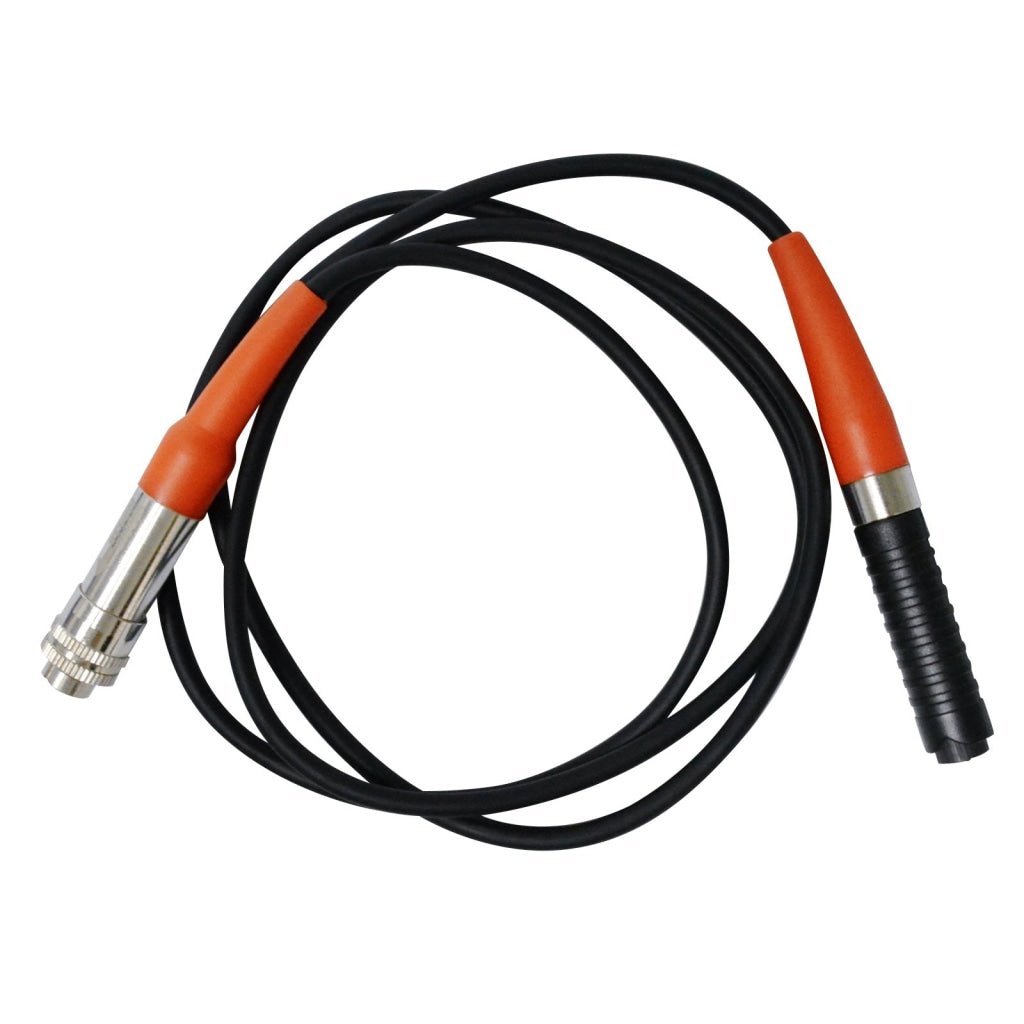

• 1 x Probe (F & NF Type)

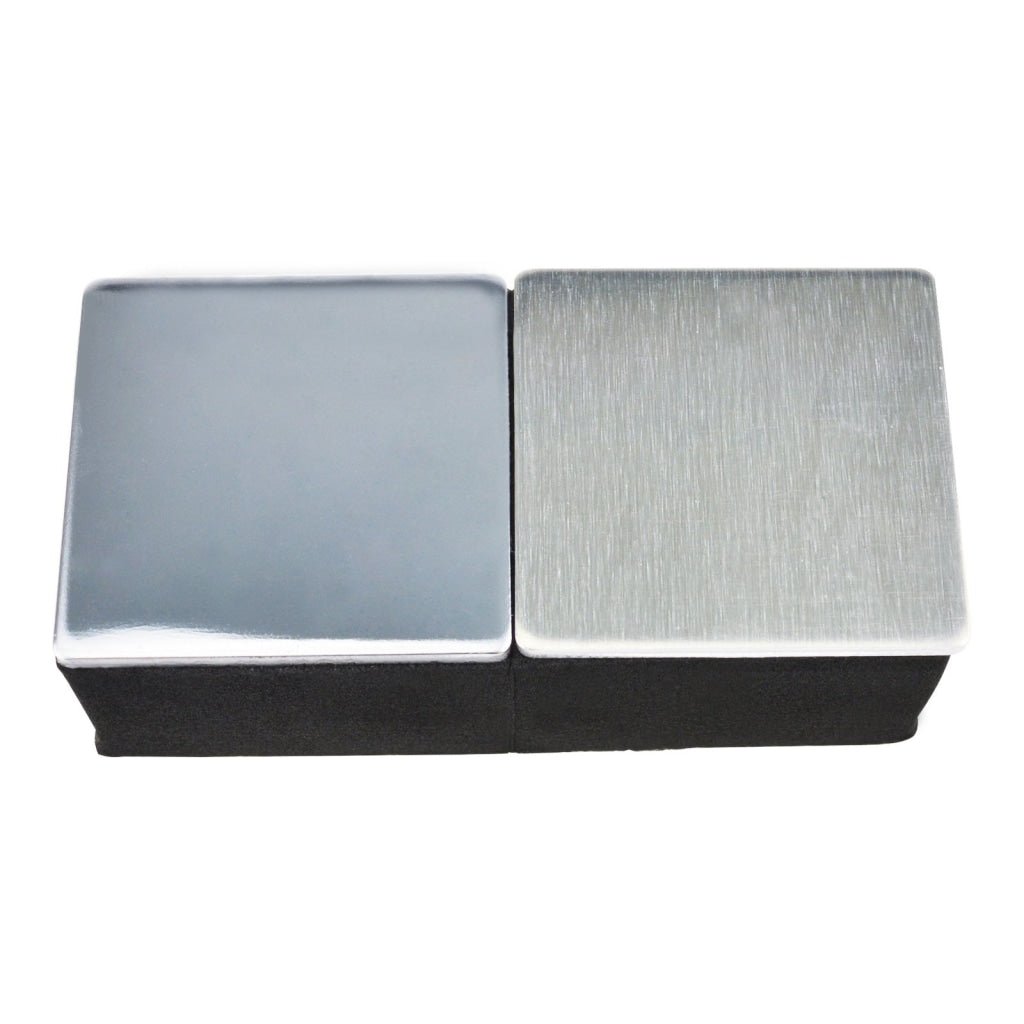

• 1 x Calibration Base (F)
• 1 x Calibration Base (NF)

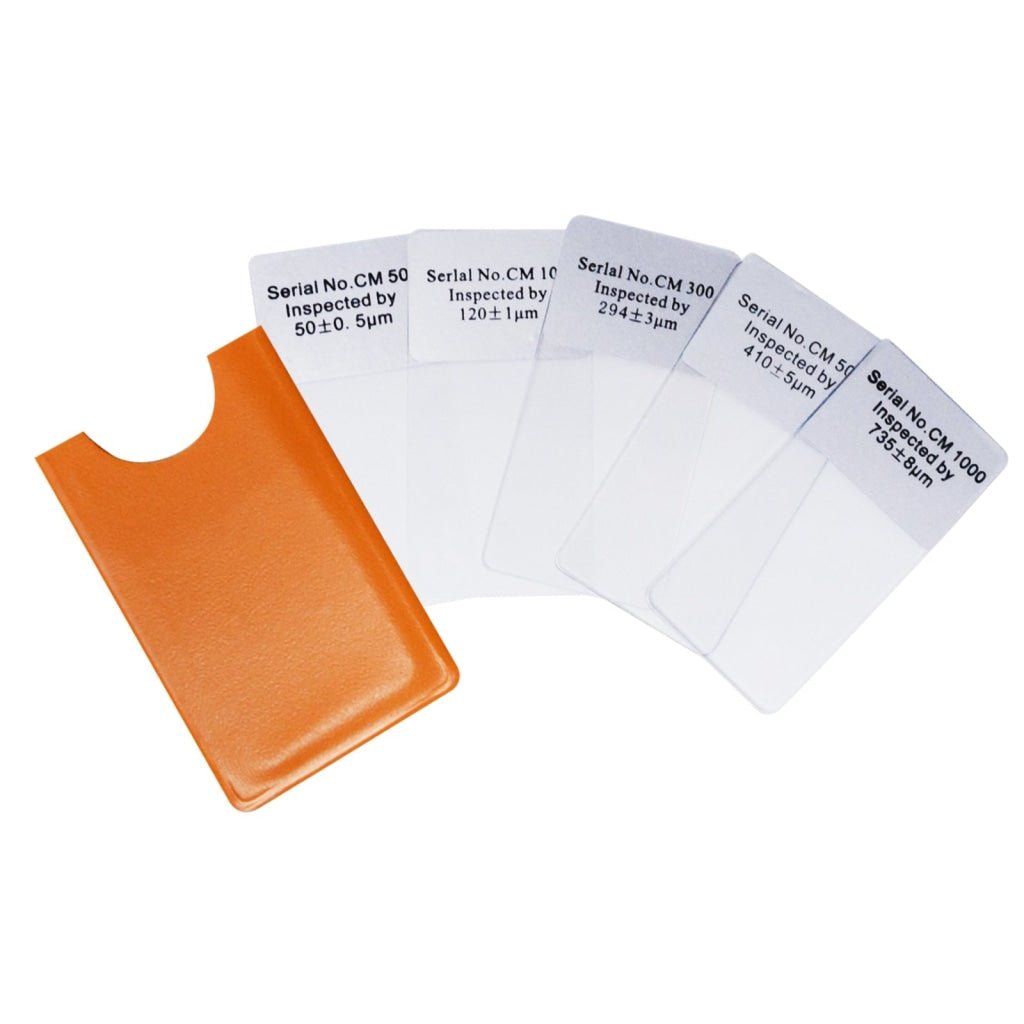

• 5 x Calibration Foils
• English Operation Manual
• Carrying Case
