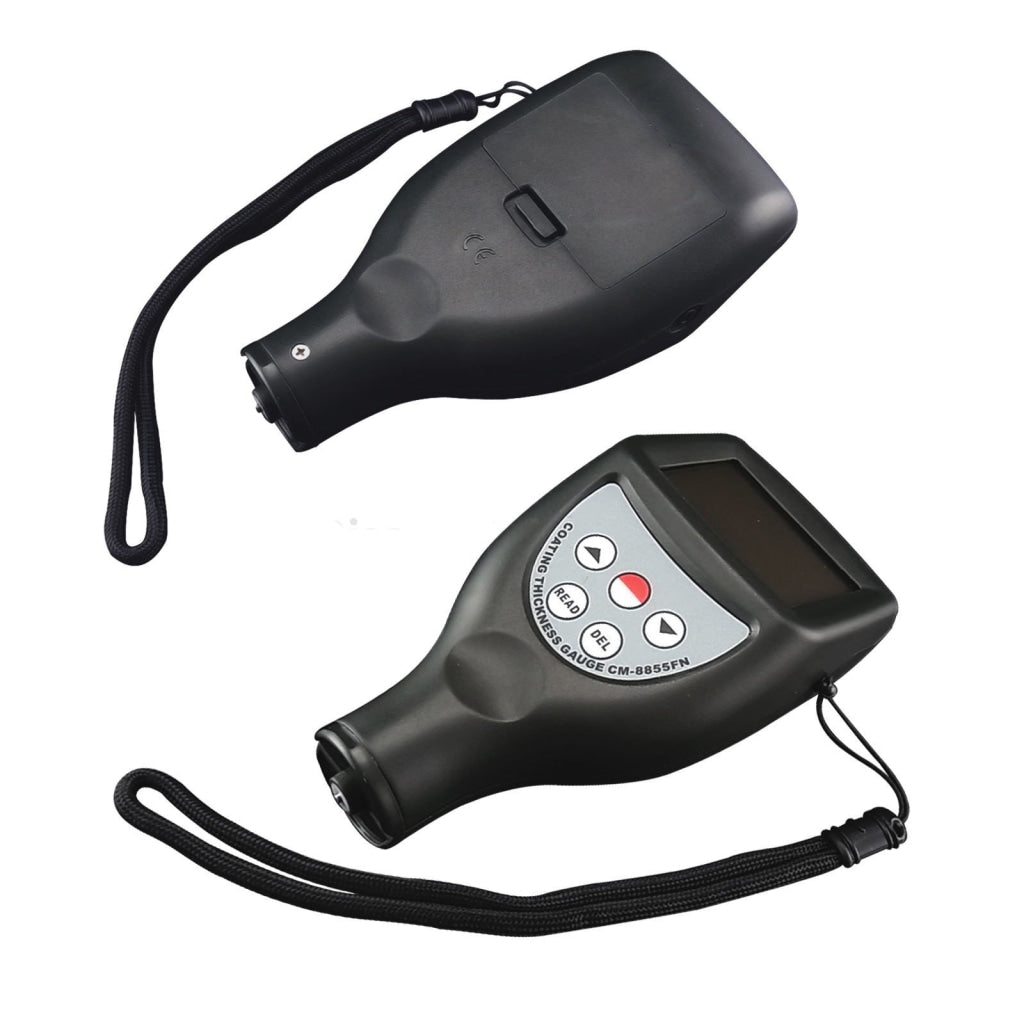

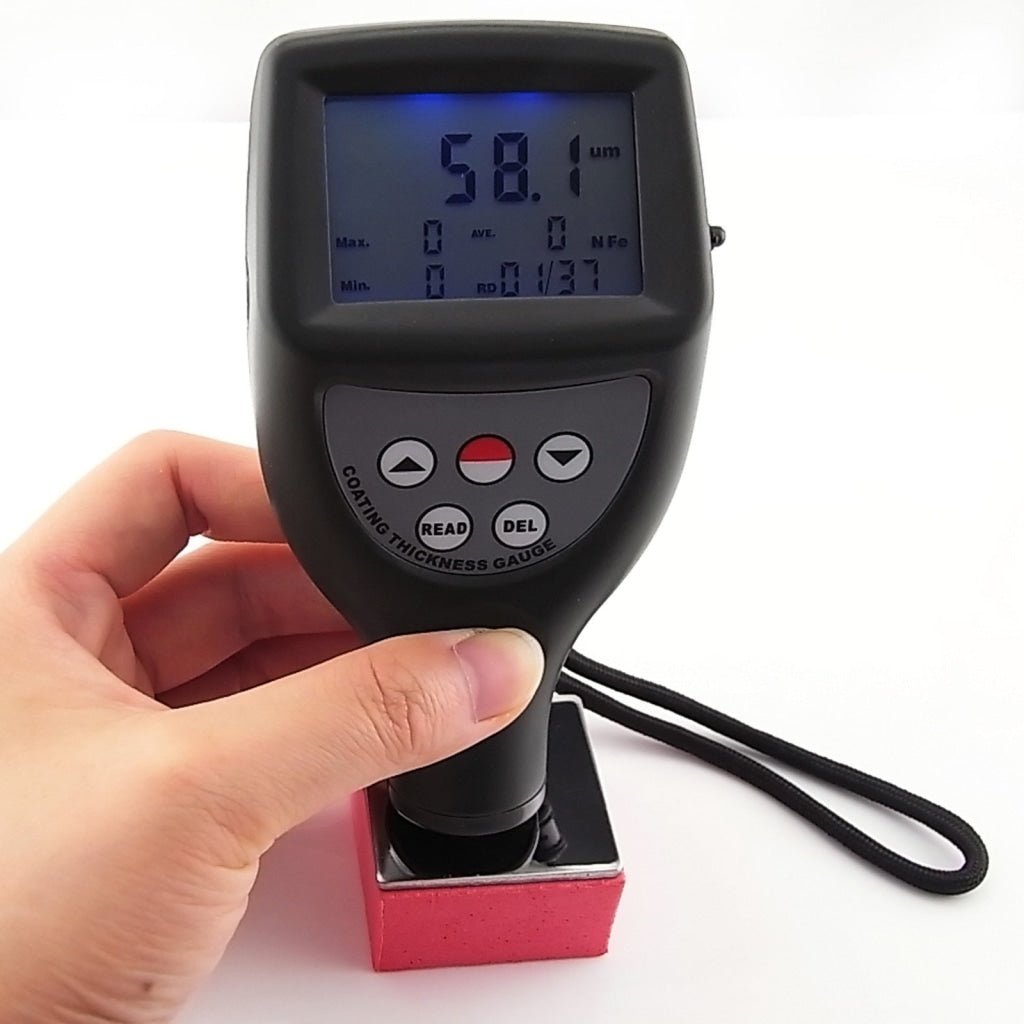

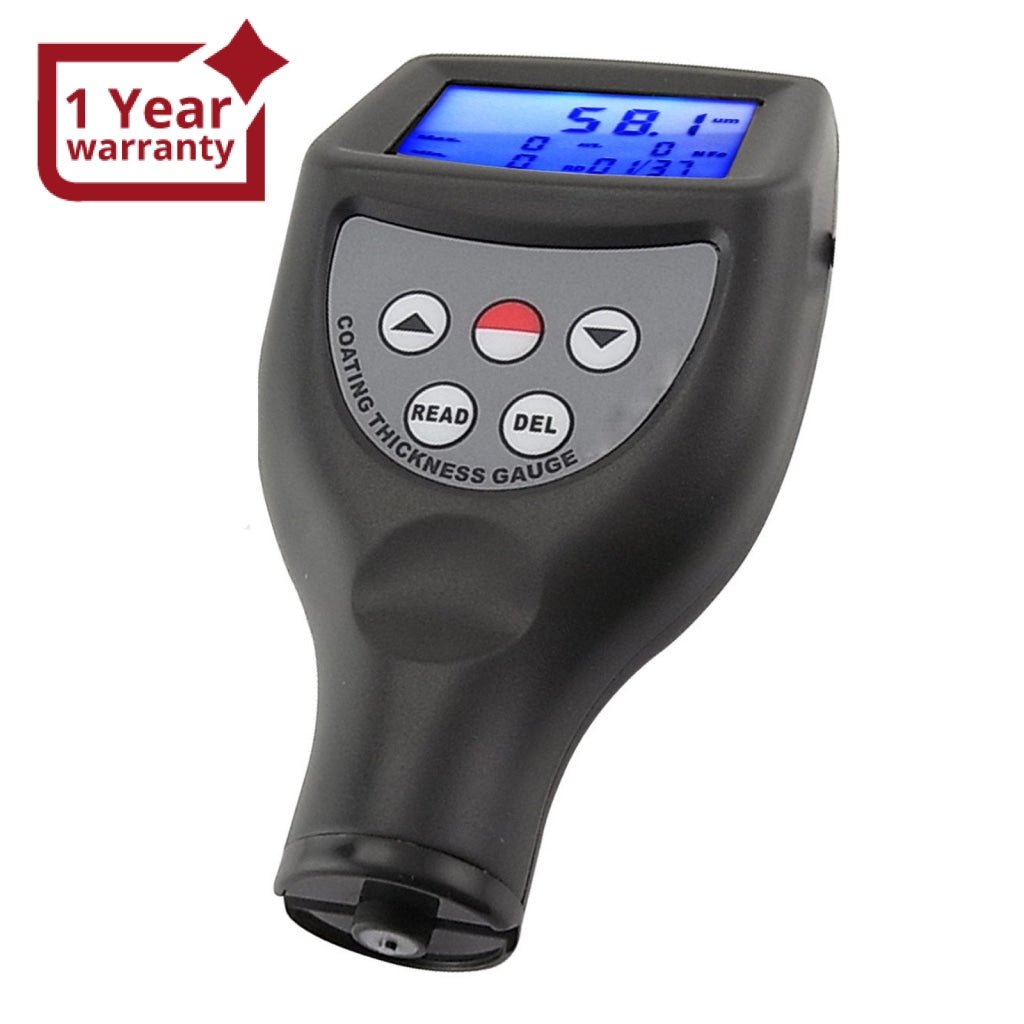

This advance coating thickness meter with 0 to 1250μm (0 to 50 mil) wide measuring range for automotive and painting applications. Its a top quality rugged meter that uses magnetic induction & eddy current principle to measure thickness of magnetic and non-magnetic surface and detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous, F) or an insulating coating on a non-magnetic conductive substrate (non-ferrous, NF).
It has built-in NF (NFe) probe used in procedure turbulence current test and F (Fe) that uses magnet inductive. It carries out fast and accurate results. Plus, you have the option to connect the meter to the computer to collect and retrieve the Measured Data through optional software and cables (not included in the set).
It's usage of Microcomputer LSI circuit advanced microprocessor technology and crystal time base guarantees that measurement has highest level of accuracy with fast measuring time.
In addition, you have the option to measure either by single or continuous mode, automatically switches from NF to F mode and vice versa, stores 99 groups of measurements, Max / Min / Ave, backlight and large LCD screen.
Features:
- Stores up to 99 groups of measurement

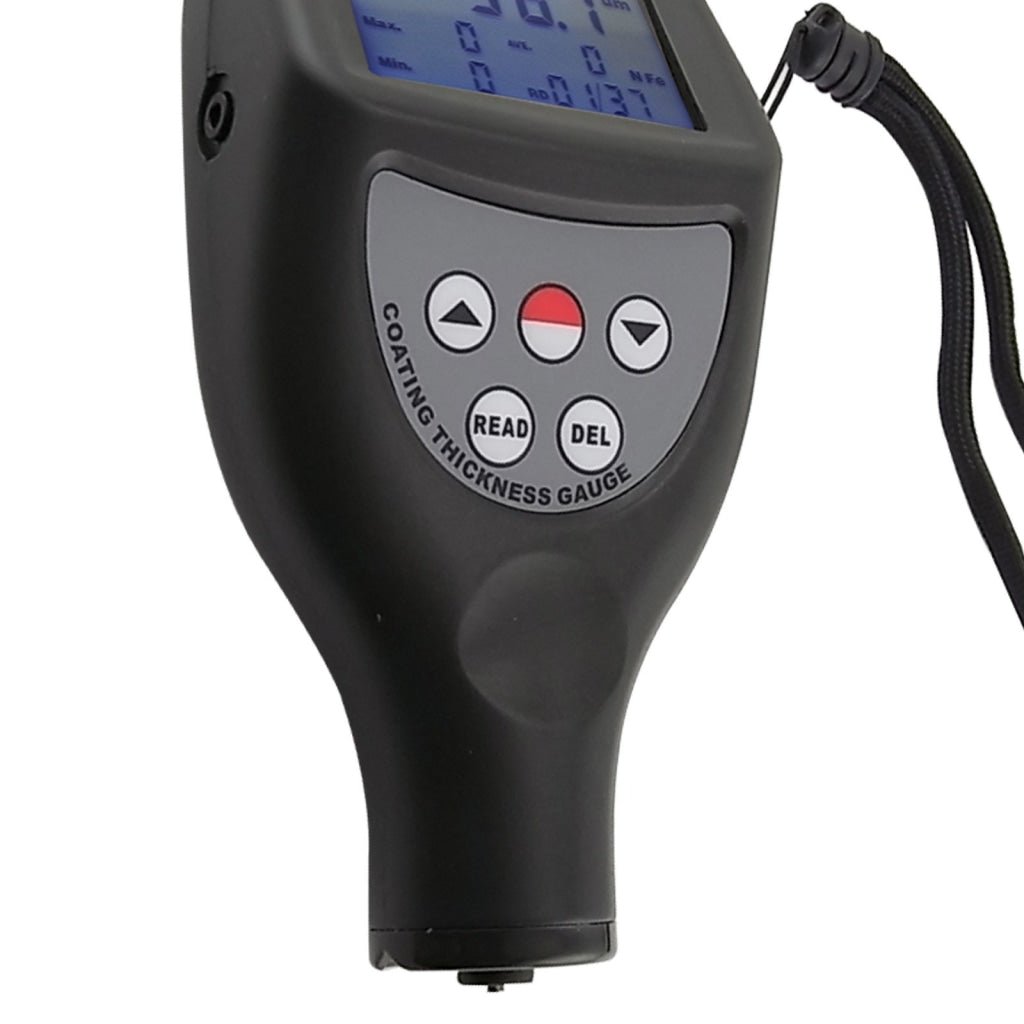

- Big LCD screen with backlight, display more measurement details
- Meets the standards of both ISO2178 and ISO2361. Suitable for the laboratory and for use in harsh field conditions
- Uses durable, long lasting components, including a strong and light weight ABS plastic housing assures maintenance free
- Wide measuring range (0 ~ 1250 μm / 0 ~ 50 mil) and high resolution
- Automatic substrate recognition
-

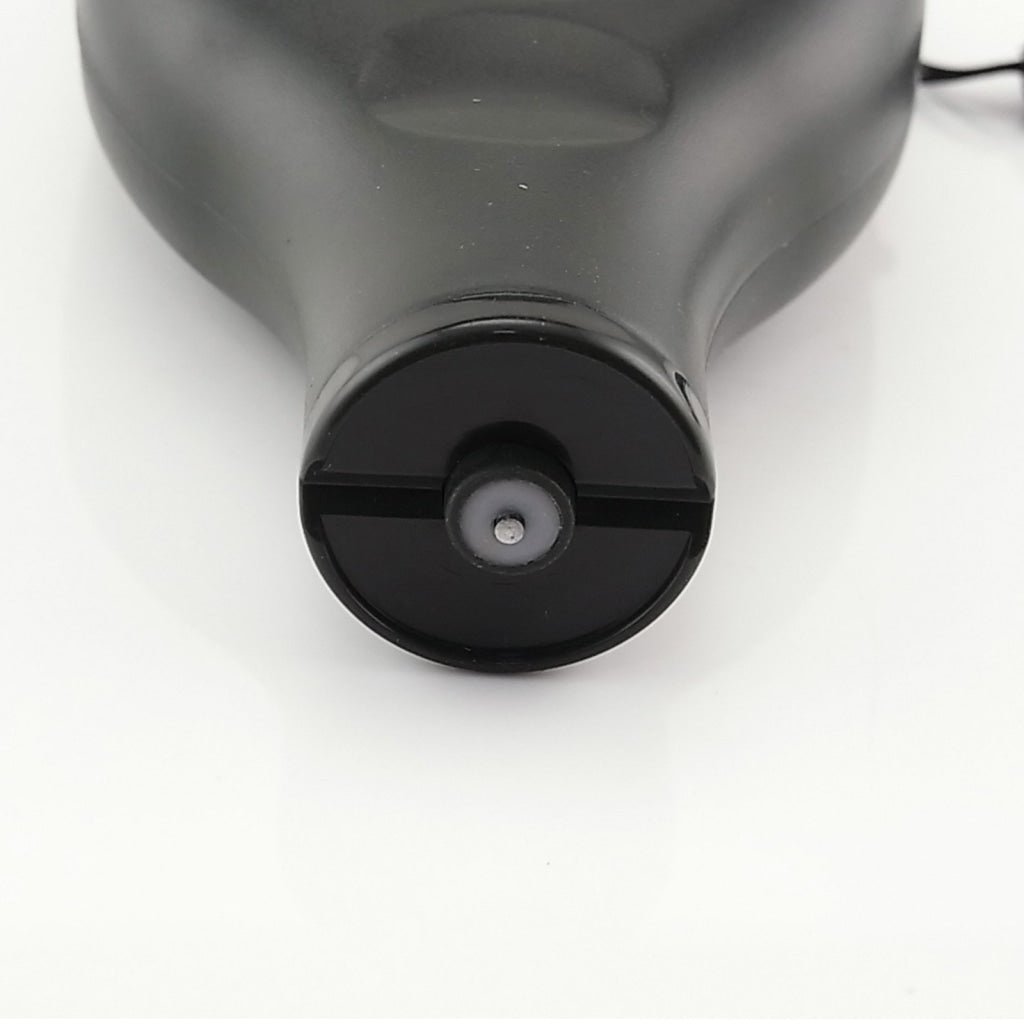

Built-in F & NF probe
- F Probe measure the thickness of non-magnetic materials such as paint, plastic porcelain enamel, copper, zinc, aluminum, chrome on magnetic materials such as iron, nickel etc. It is often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile and paper
- NF Probe measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder applied to aluminum, brass and non-magnetic stainless steel etc
- Best use in laboratory and in harsh field conditions
- Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
- Digital display with no guessing errors
- Single & Continuous measurement mode
- Switchable between mils and microns
- Manual and automatic shut down
- Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time
- Low Battery Indicator
- Automatic or Manual Power off
- Automatic Calibration (when no other metal substrate nears the probe sensor upon switching on)
Specification

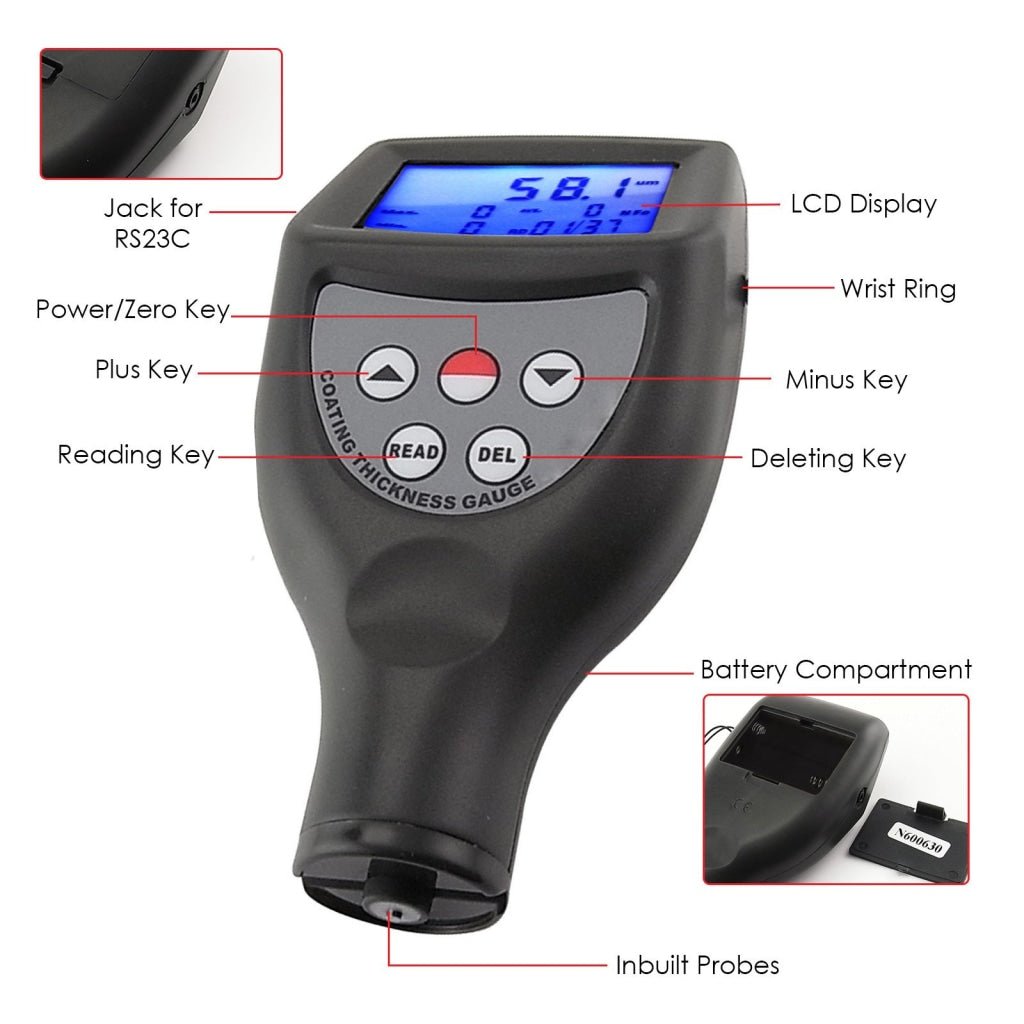

- Probes: Built-in F probe & NF probe
- Screen Display : 4 digits, 10mm LCD

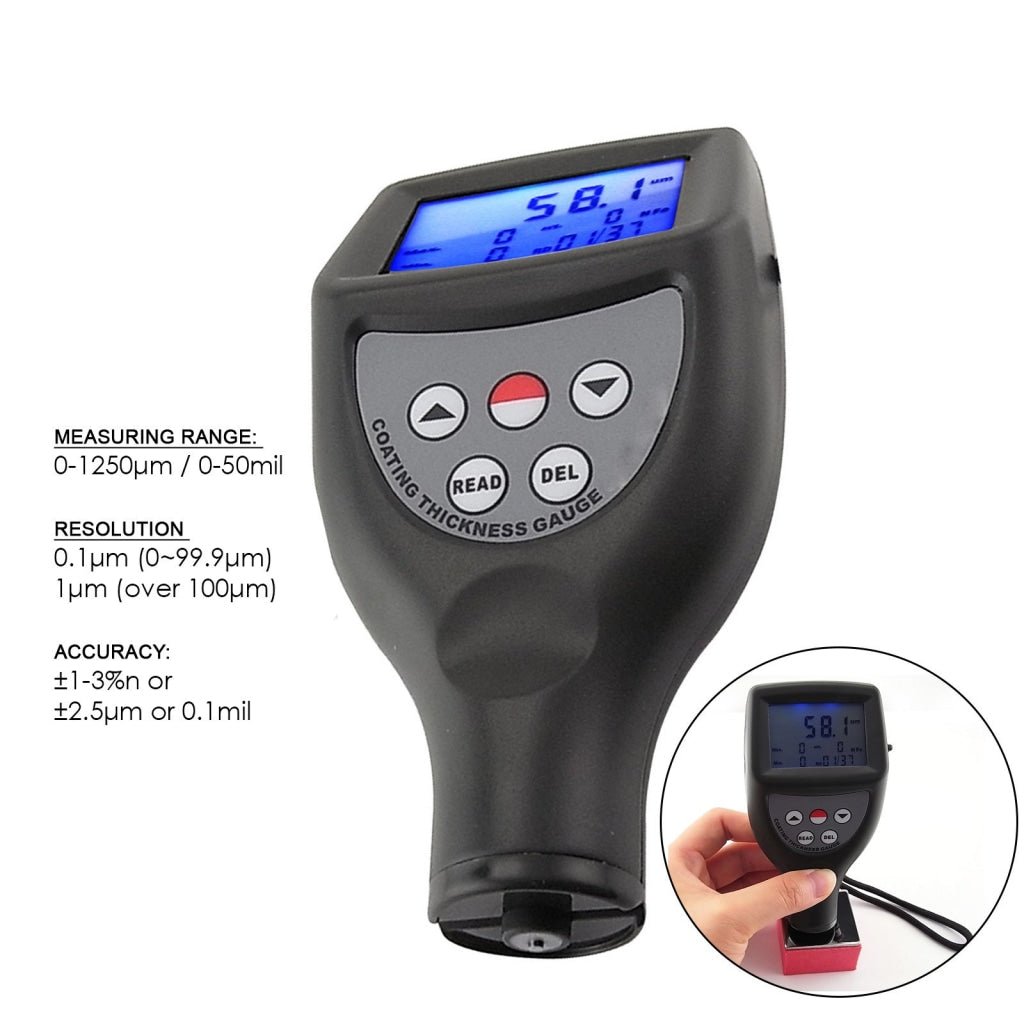

- Coating Thickness Range: 0-1250μm / 0-50mil
- Resolution
- 0.1μm (0~99.9μm)
- 1μm (over 100μm)
- Accuracy: ±1-3%n or ±2.5μm or 0.1mil (which ever is greater)
- PC Interface: RS232C interface (CD and cable are not included in the set)

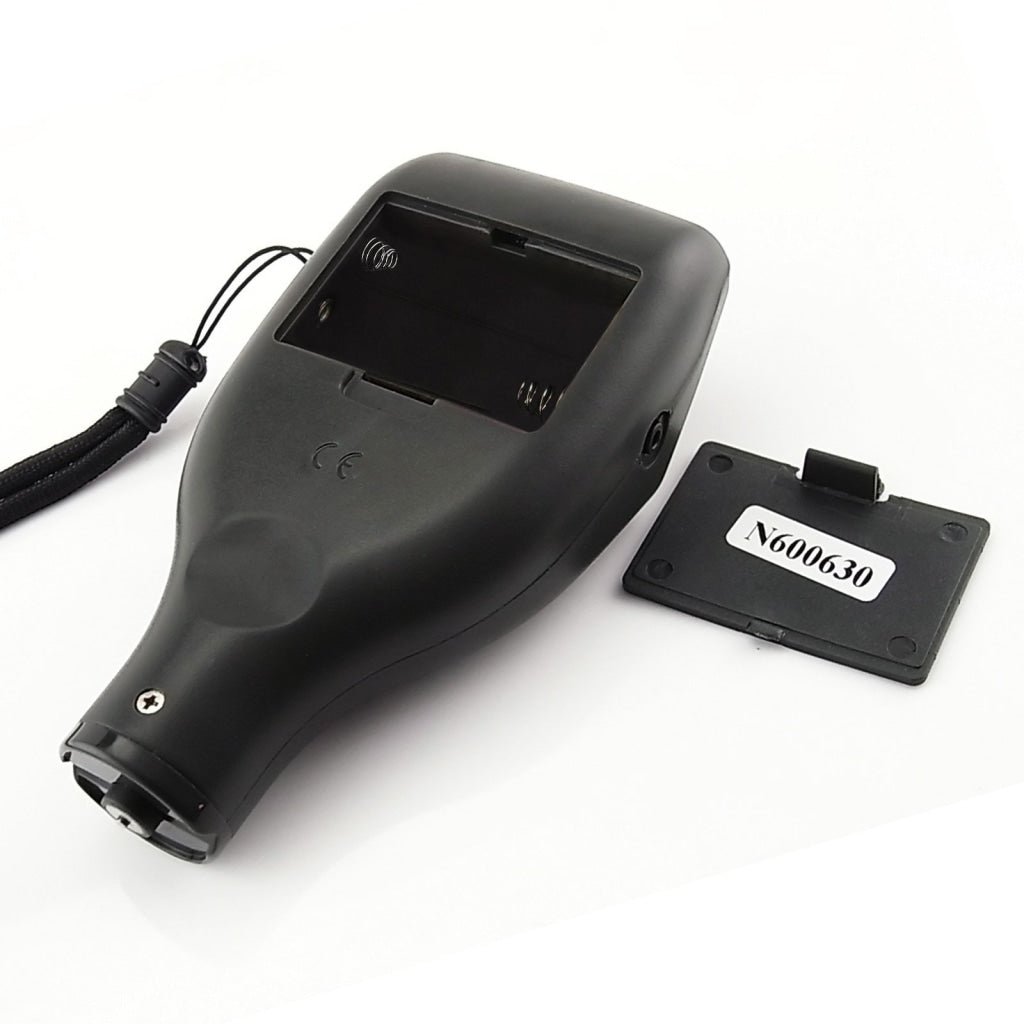

- Power supply: 2 x 1.5V AAA battery
- Operating Condition:
- Temperature: 0~50°C (32°F-104°F)
- Humidity: <95%
- Automatic substrate recognition without guessing

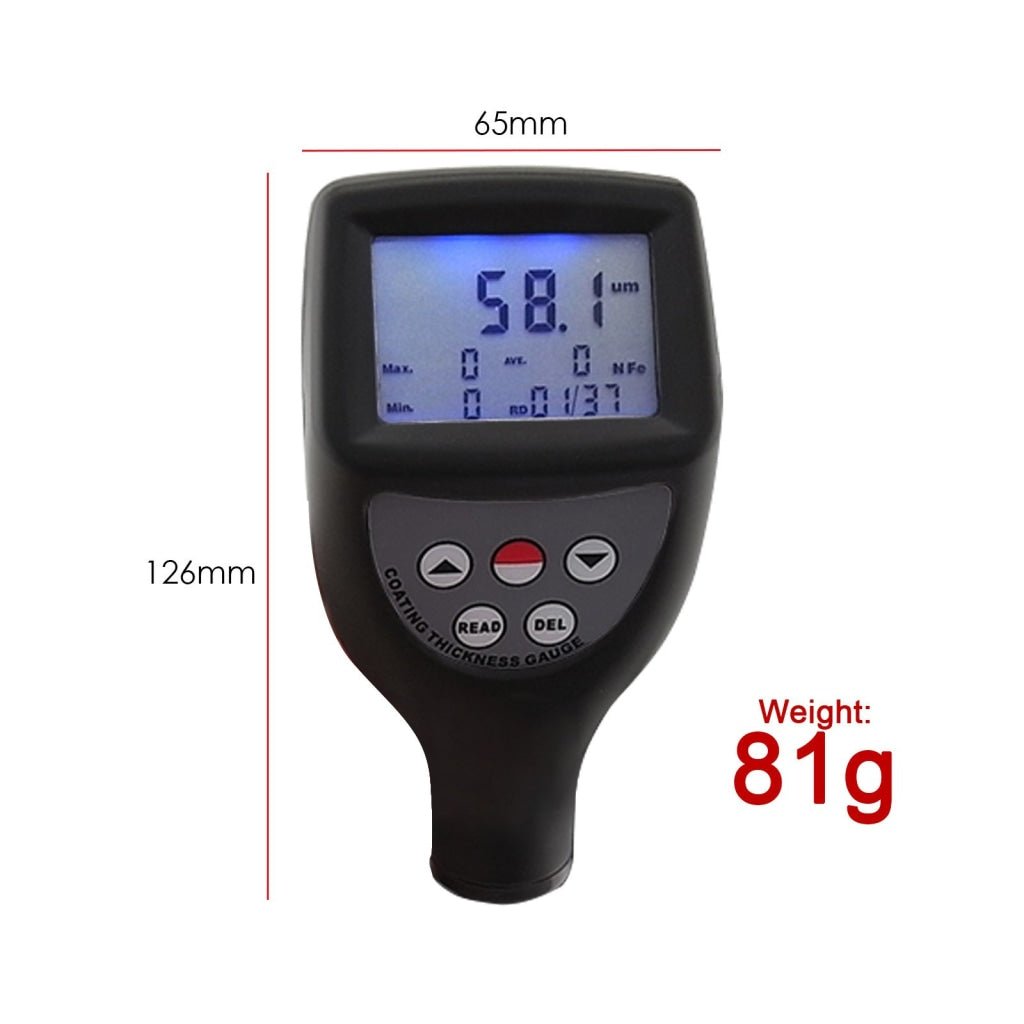

- Dimensions: 126 x 65 x 35mm (5.0 x 2.6 x 1.6 inch)
- Weight: 81g (not including battery)

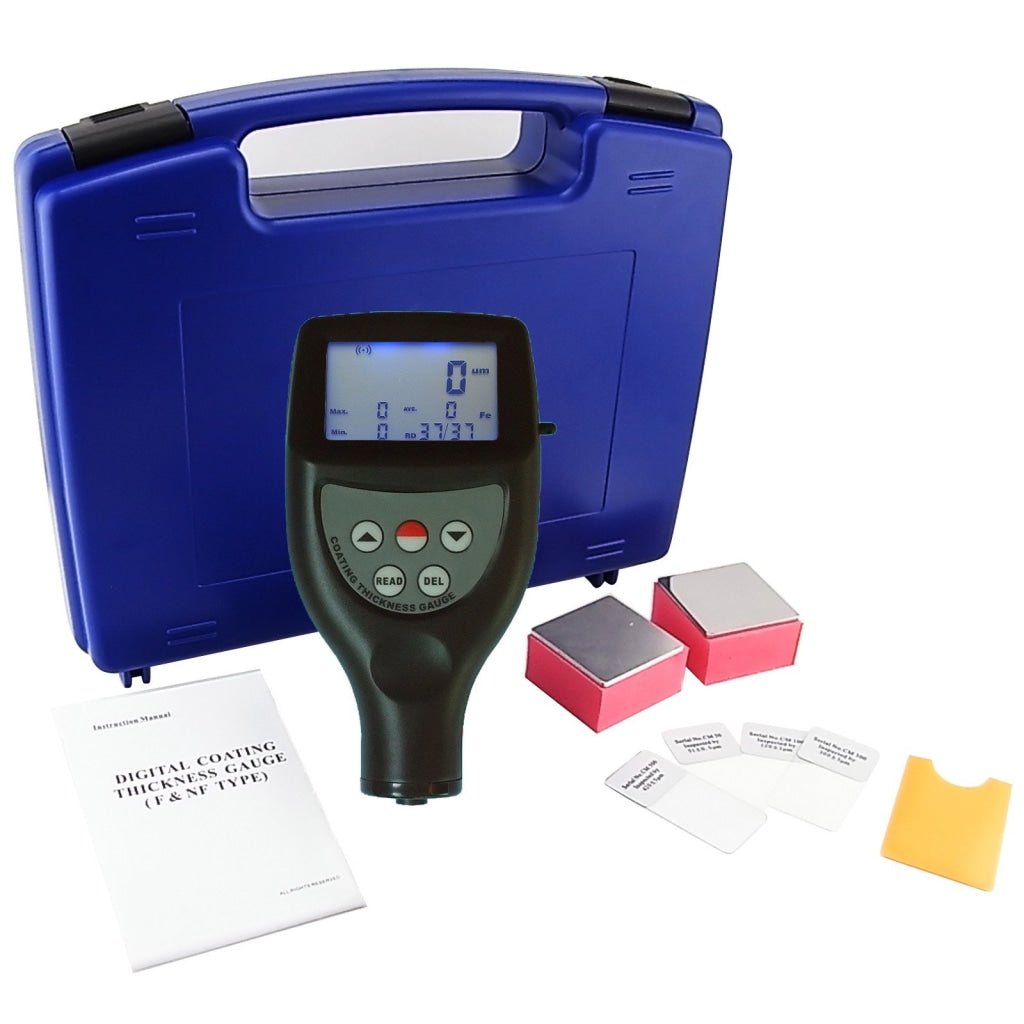

Set Includes:
- 1 x Coating Thickness Meter

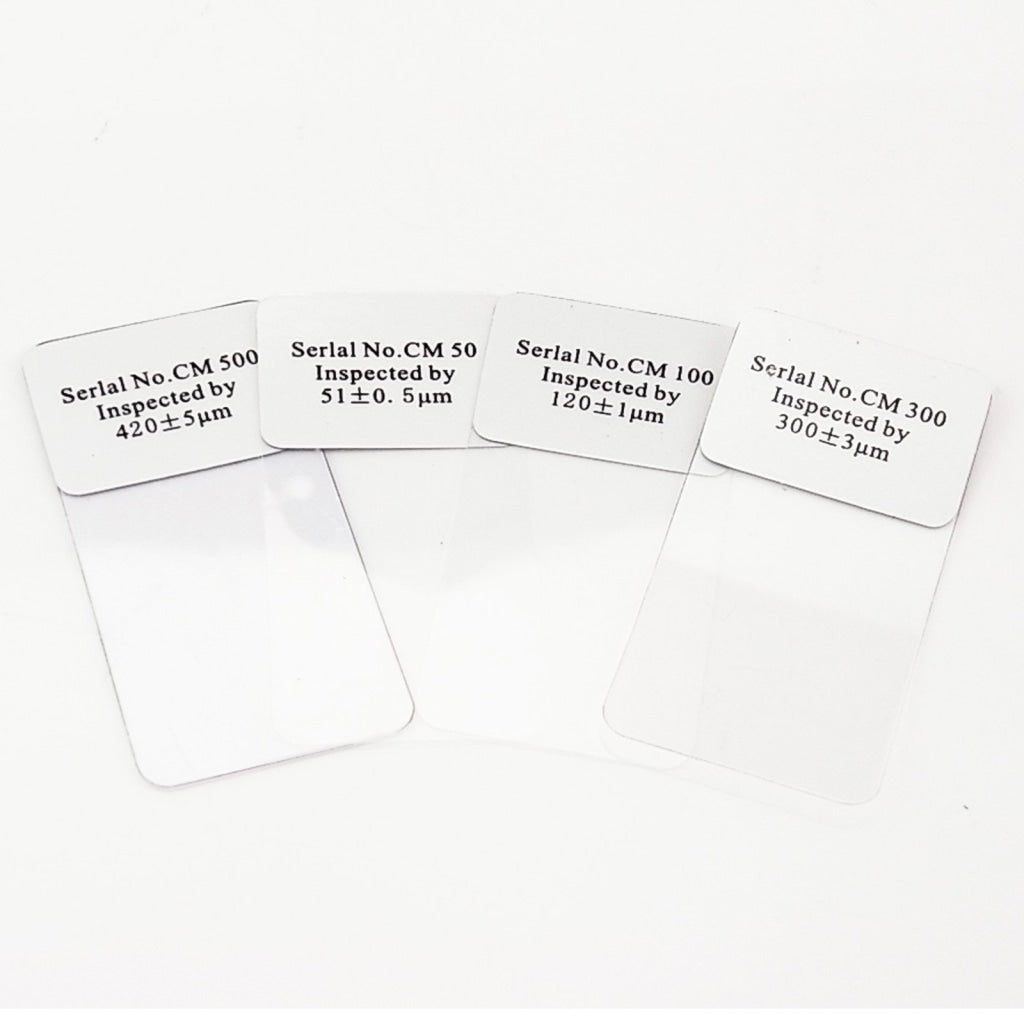

- 4 x Calibration foils
- 1 x Aluminum substrates
- 1 x Iron substrates
- 1 x English Instruction Manual
-

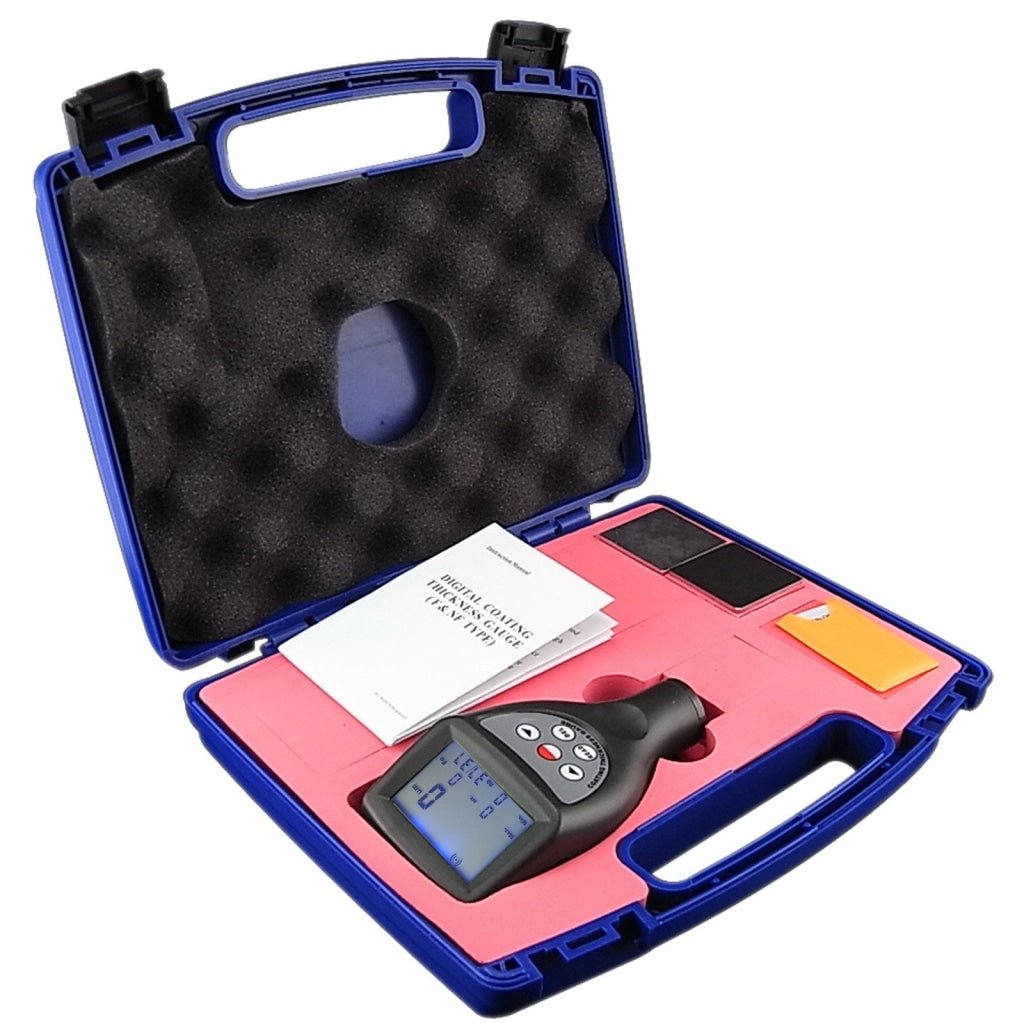

1 x Sturdy & Protective Storage Case
Optional Item (not included in set)
Please click here to buy this optional item RS232C CD Software and USB Adaptor
or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
