Model: VID-9_2M

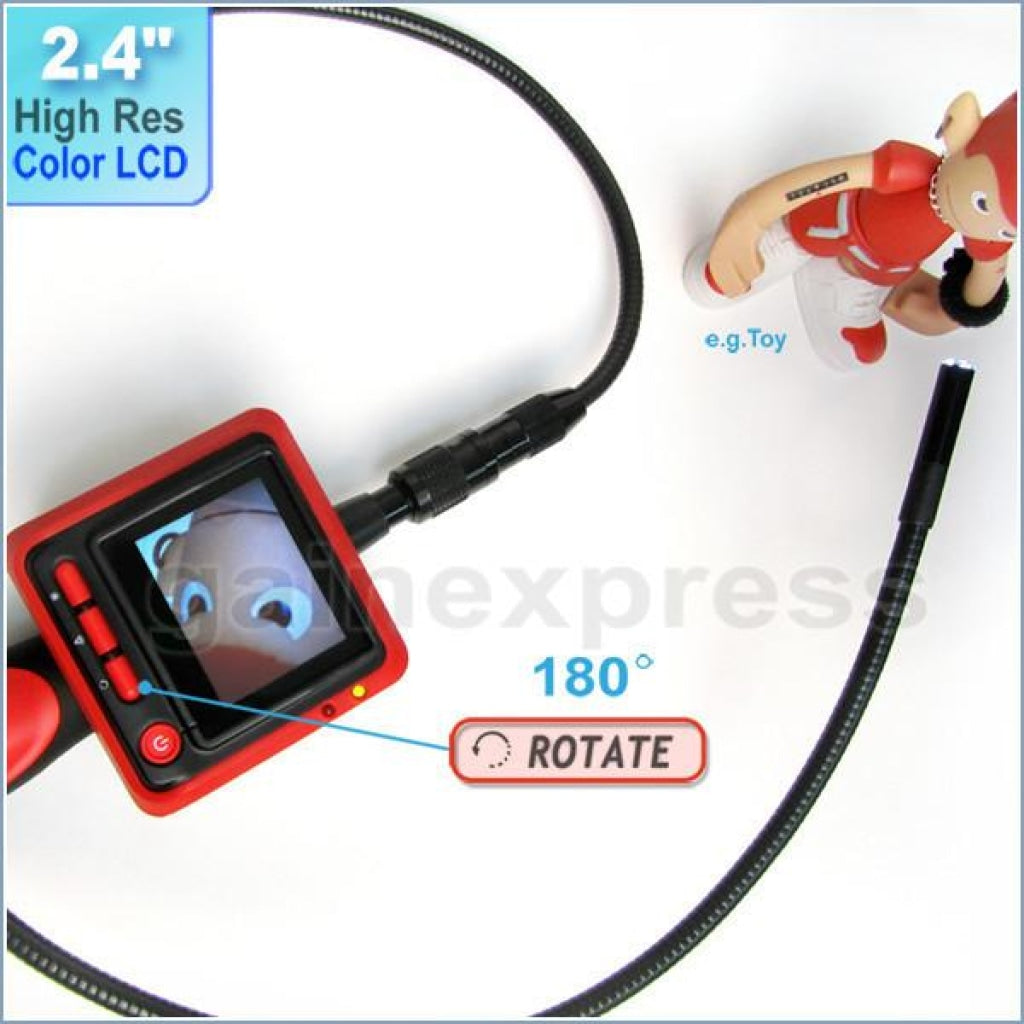

Inspect areas that are hard to reach,tight spots, surveying pipes. View and monitorreal-time video via its wide 2.4" Color LCD receiver.This camera allows you to adjust viewing orientation with180° image rotation function with a press of a button.

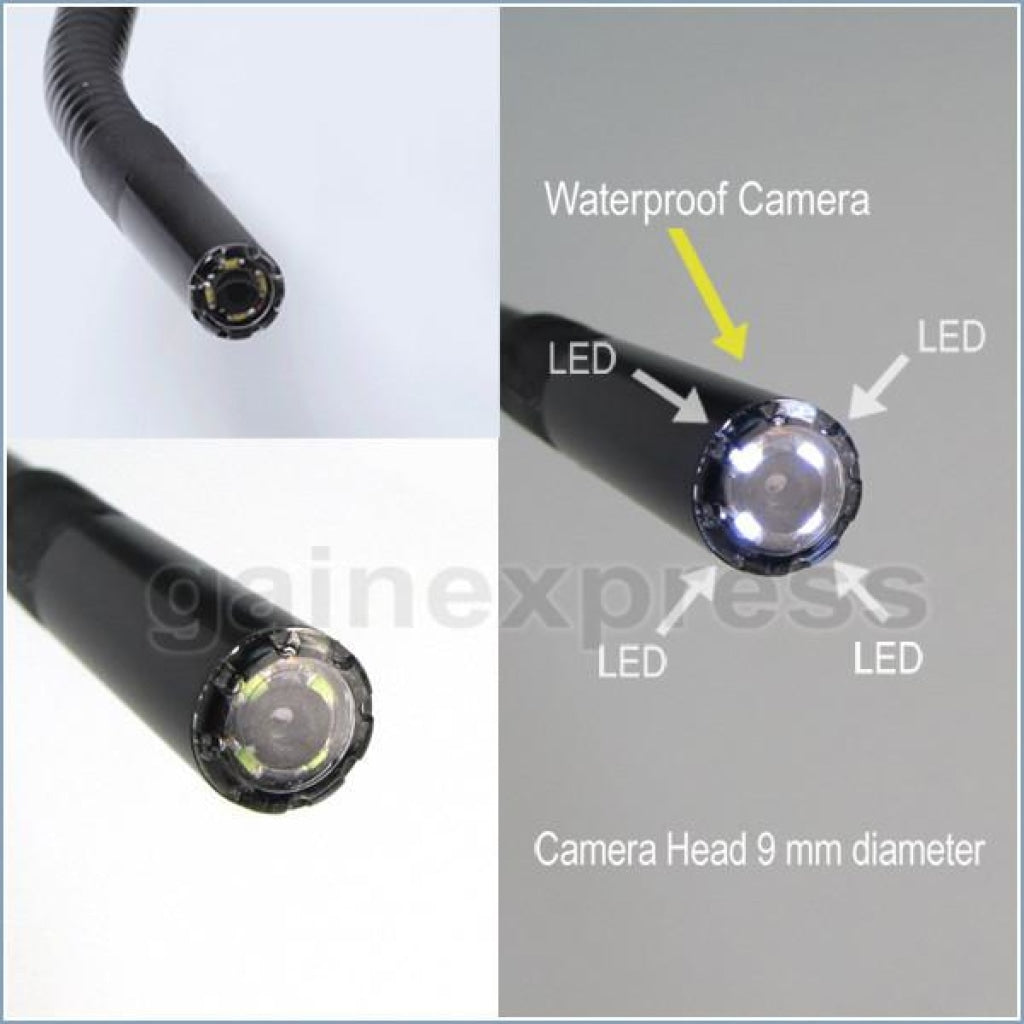

The screen lighting and 4 LEDlights for night vision and day time usage are fullyadjustable. It has Standard 1M Waterproof Flexible Cable with mini 9mm Camera Head that lets you inspect 25cm (10inch) under the water (ifassembled properly). The horizontal Viewing angle of thecamera is 45°.

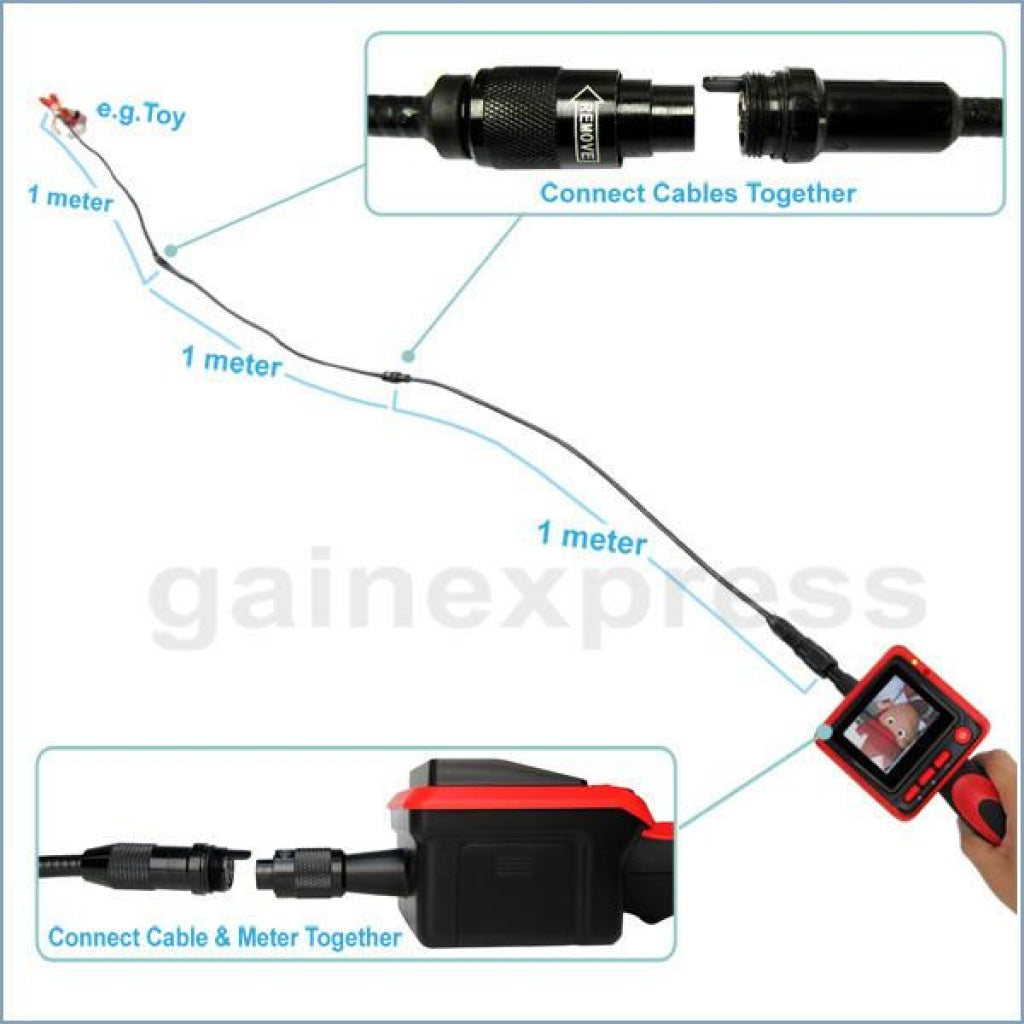

The Flexible 1m (3ft) standard cable allows you to extend the vision to point of discovery. The set also include 1m (3.3 feet) Extension Cable, so totally you have 2m (6.56 feet) for inspection. Plus, an optional 1m (3ft) extension cable allows you to extend the vision of inspection point. The tool set also comes with accessory hook, magnet and mini mirror to speed up to identify the problem.
Applications including HVAC inspection,automotive inspection, cable routing, automotive / boat/ aircraft inspection, furnishing installation, etc. areideal for this inspection camera.
Features
- 2m (6.56 feet) Cable (1 m Camera Tube + 1 m Extension Cable)
- Suitable for hard-to-reach inspection
- Large and Clear 2.4 inch TFT LCD Color Display
- 180° Image Rotation function
- 4 fully adjustable LED lights
- Standard 1M Waterproof Flexible Cable with mini 9mm Camera Head
- Lens with 45° Viewable Angle
- Glare-free close-ups and wide range field of view
- Long & flexible 1m (3ft) cable
- Low Battery Indicator
- Comfort Grip Housing
- Conformed with CE Standard
-
Option to extend via Optional Extension Cable (not included)
Specifications
- Imaging Sensor : CMOS
- LCD Size: 2.36inch (6cm) TFT
- Total Pixels: 640 x 480 NTSC/PAL
- Horizontal Viewing Angle: 45°
- Night Vision Range: 1.5m
- Minimum Illumination: 0Lux
- Tube Diameter: 9mm
- Waterproof Capacity : IP67 (for camera and cable only)
- Effective Pixels : 480 x 234
- Video System : NSTC / PAL
- Operating Temperature : -10 ~ 50°C (14 ~ 122°F)
- Operating Humidity: 15 ~ 85 R.H.
- Consumption Current (Max.): 150mA

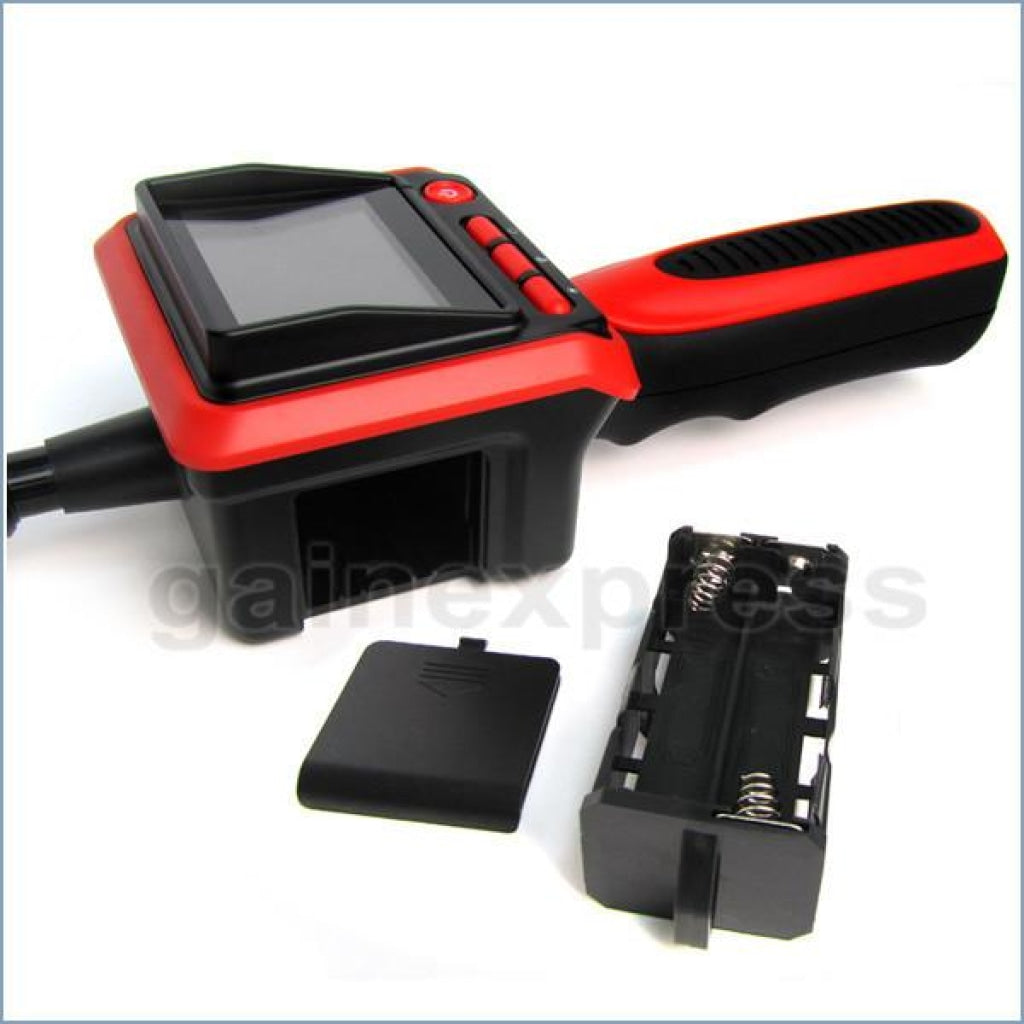

- Power Supply: 4 x 1.5V AA Batteries (not included)
- Size: approx. 201 x 83 x 59mm (7.91 x 3.23 x 2.32 inch)
- Weight: approx. 385g (13.58oz)

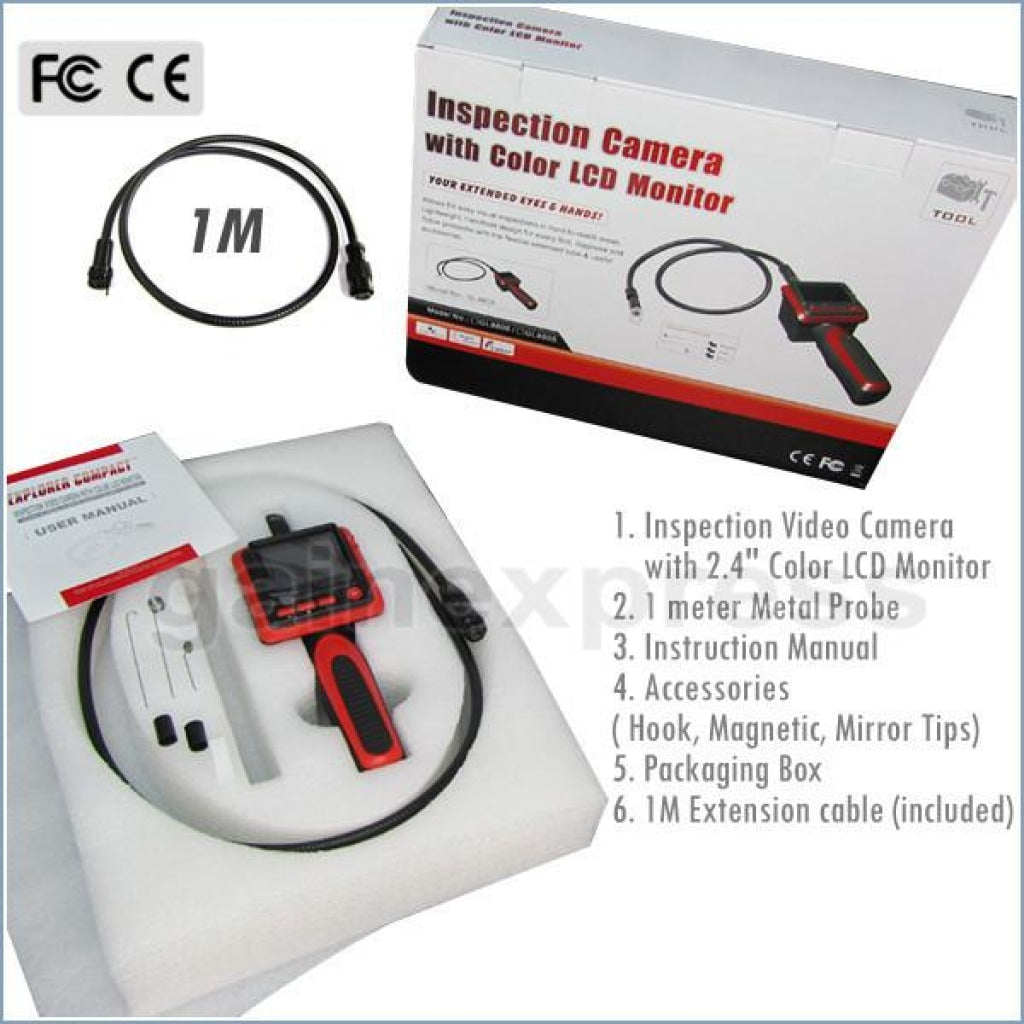

Set Includes
- 1 x 2.4" LCD Inspection Camera
- 1 x 9mm Waterproof Flexible Camera
- 1 x 1 m / 3.3 feet Extension Cable (FREE)
- 1 x Magnet Tip
- 1 x Hook Tip
- 1 x Mirror Tip
- 2 x Rubber Rings
- 1 x Instruction Manual
- Colored Retail Packaging Box

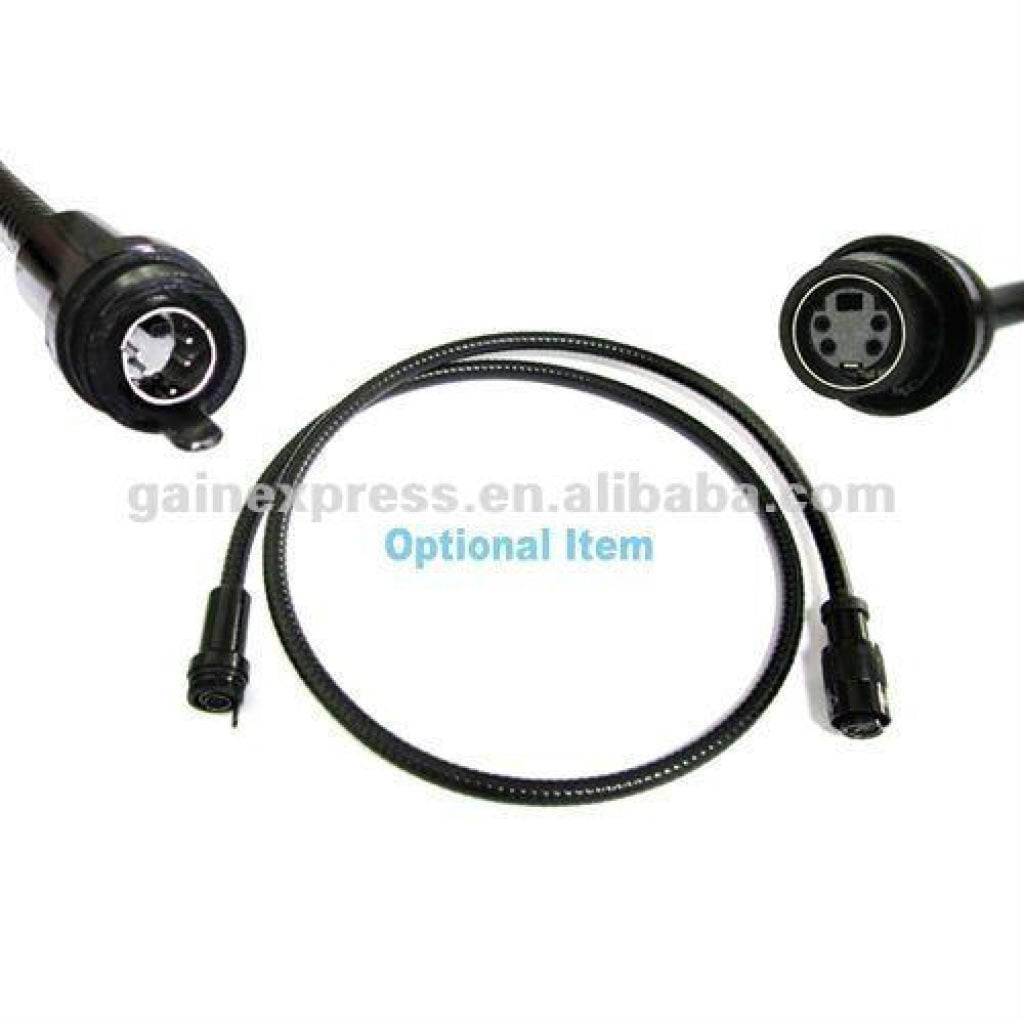

Optional Item:(not included in set):
Please click here to buy this optional item 1m (3.3ft) Extension Cable
or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order.
