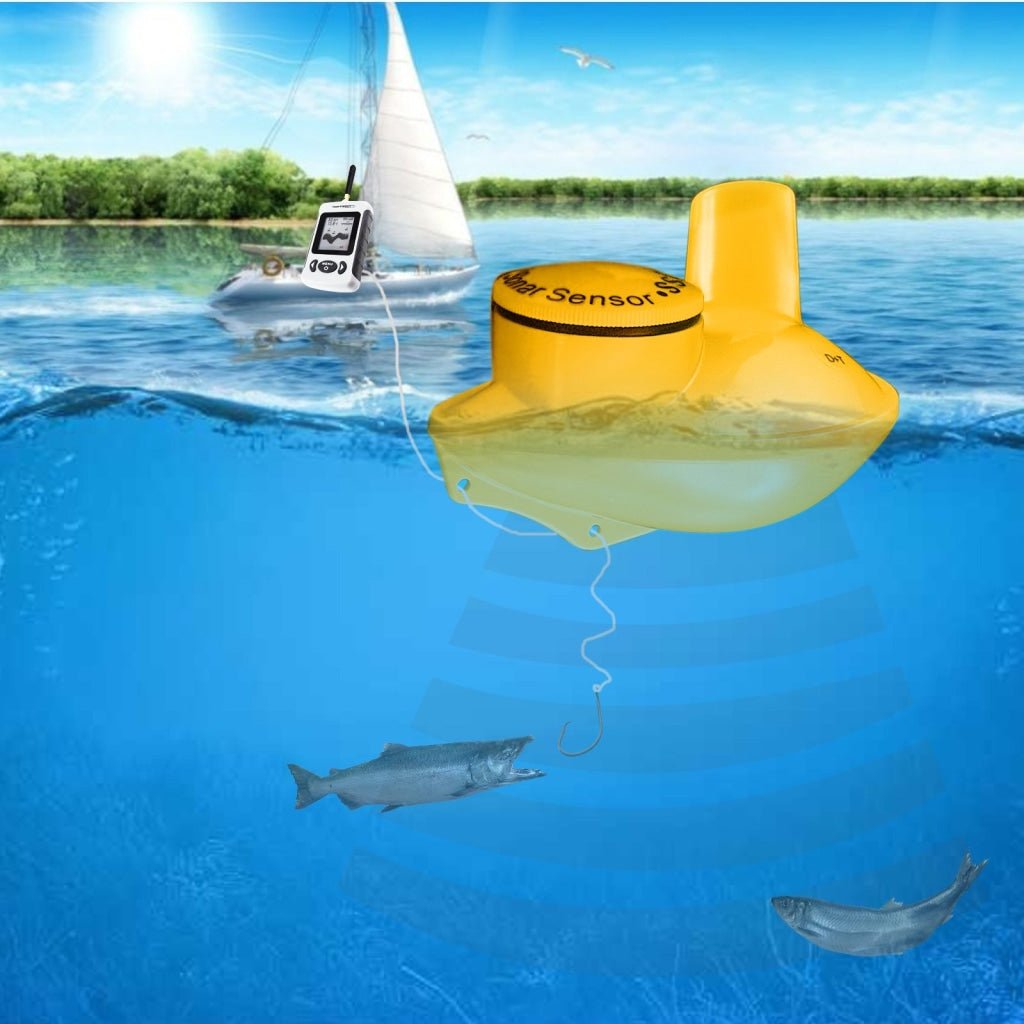

Best for both amateurs & professionals! No wires, means you will not need to get in a tangle with your lines. Use in ocean, rivers, lakes, ponds, reservoirs or calm sea conditions. Fantastic for detecting schools of fish in any particular area. Scan a large area in just a few minutes and not just the water directly beneath the unit. Gain true depth readings in graphical format in units of depth.

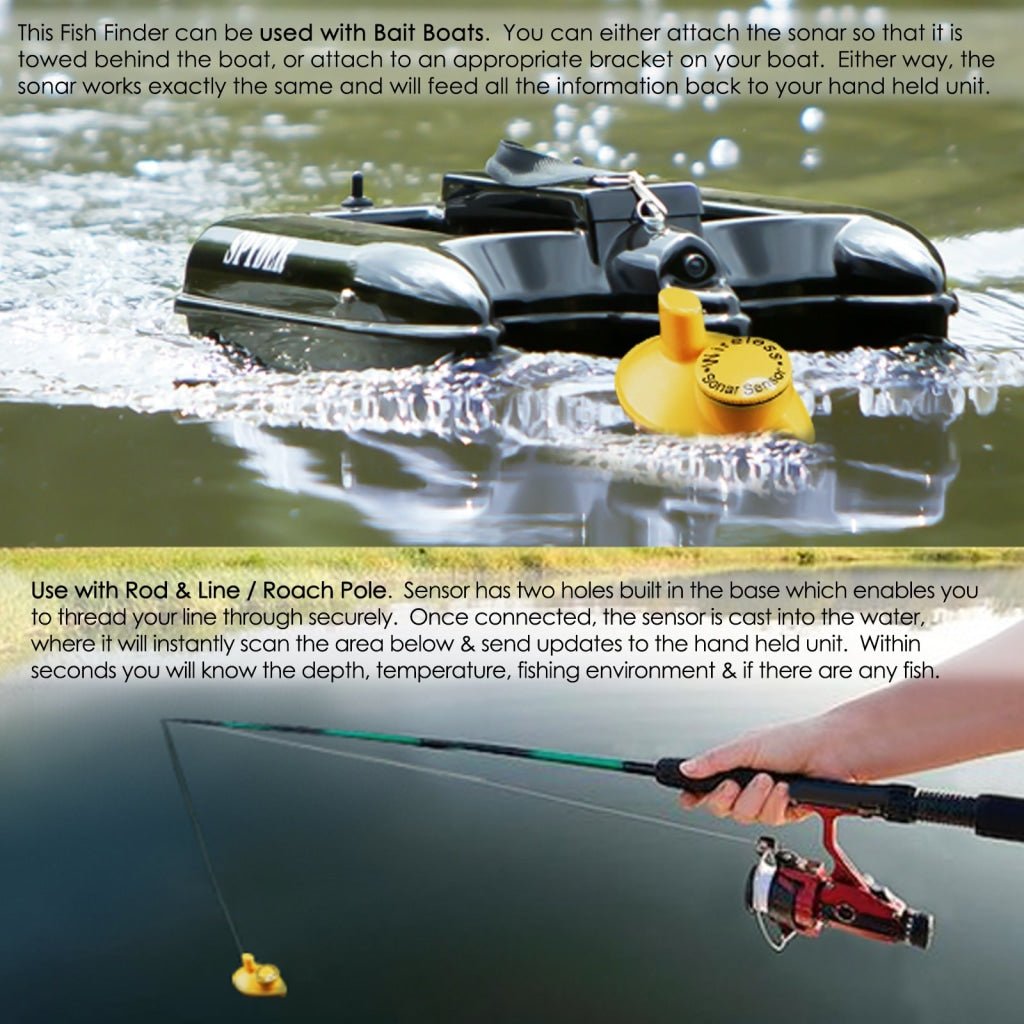

2 ways of how the Fish Finder can be used

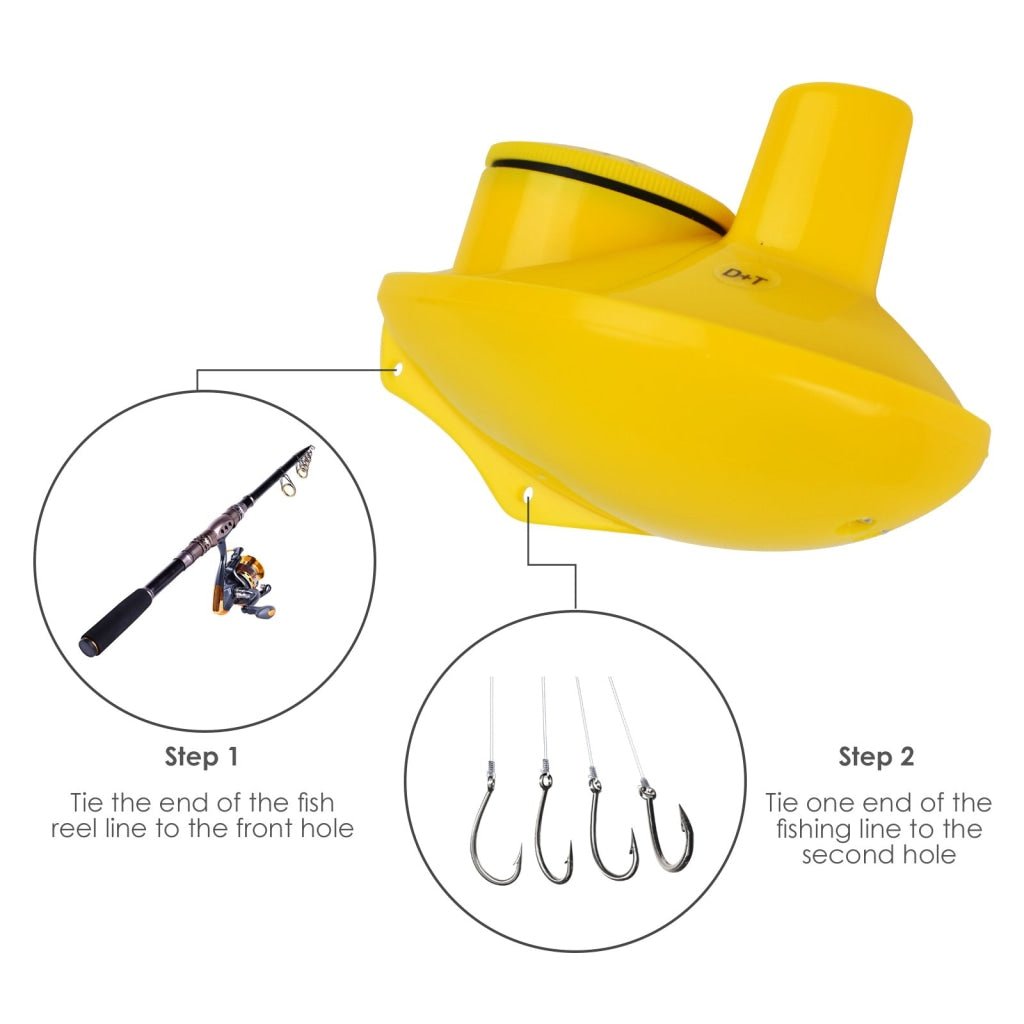

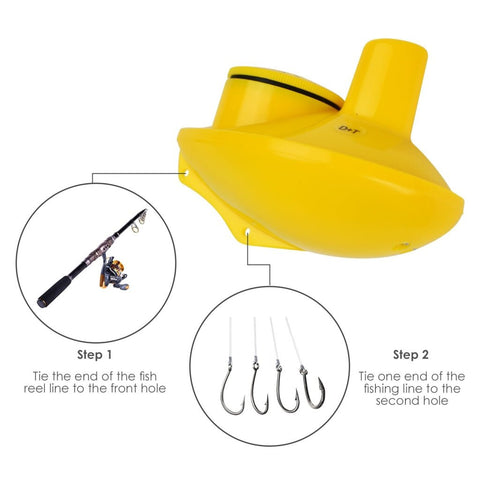

- With Rod and Line / Roach Pole
- With Bait Boats
It has CE & RoHS approval. Safe to used and environment friendly, best for amateurs and professionals.
Note to Buyers:
For Russian and Ukraine Buyers, if you want Russian Version please check this link FFW-718RU.
Features
- Detects both fish location and depth in fresh and salt water

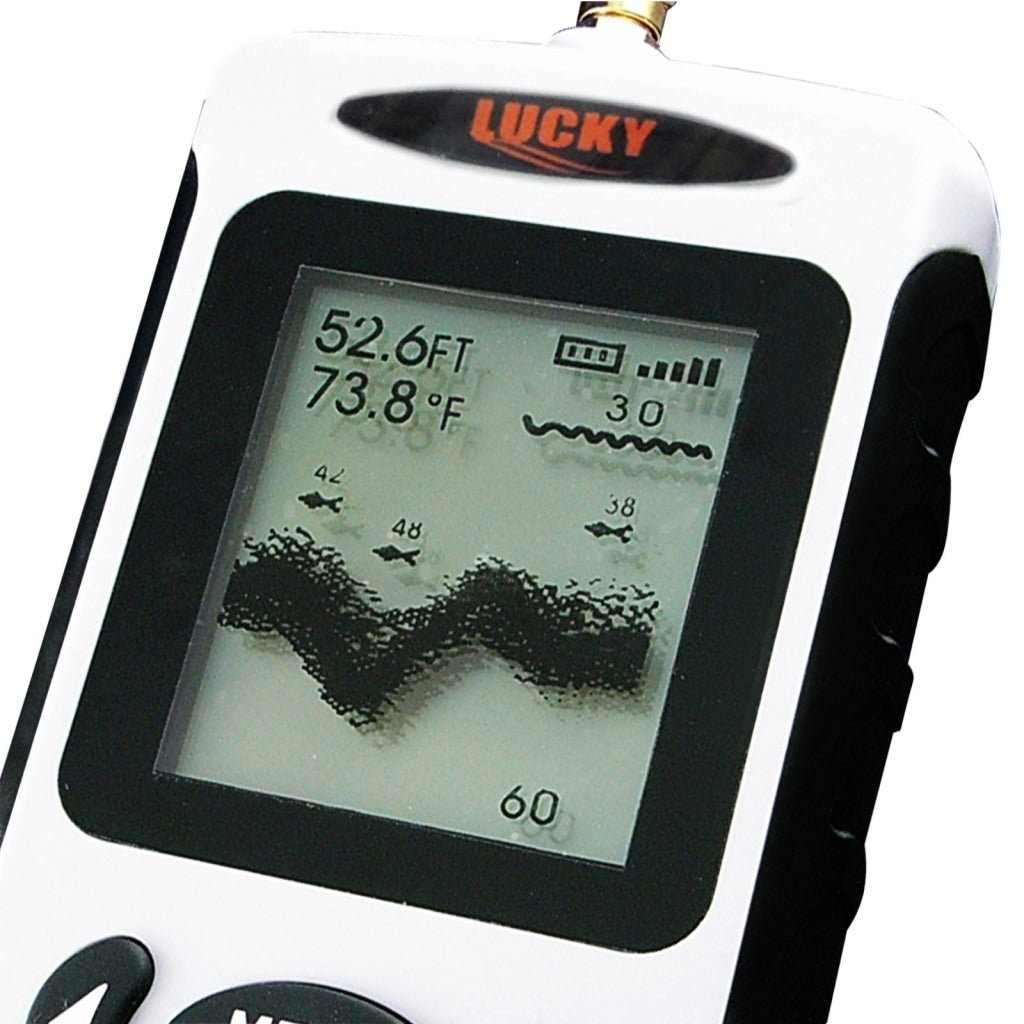

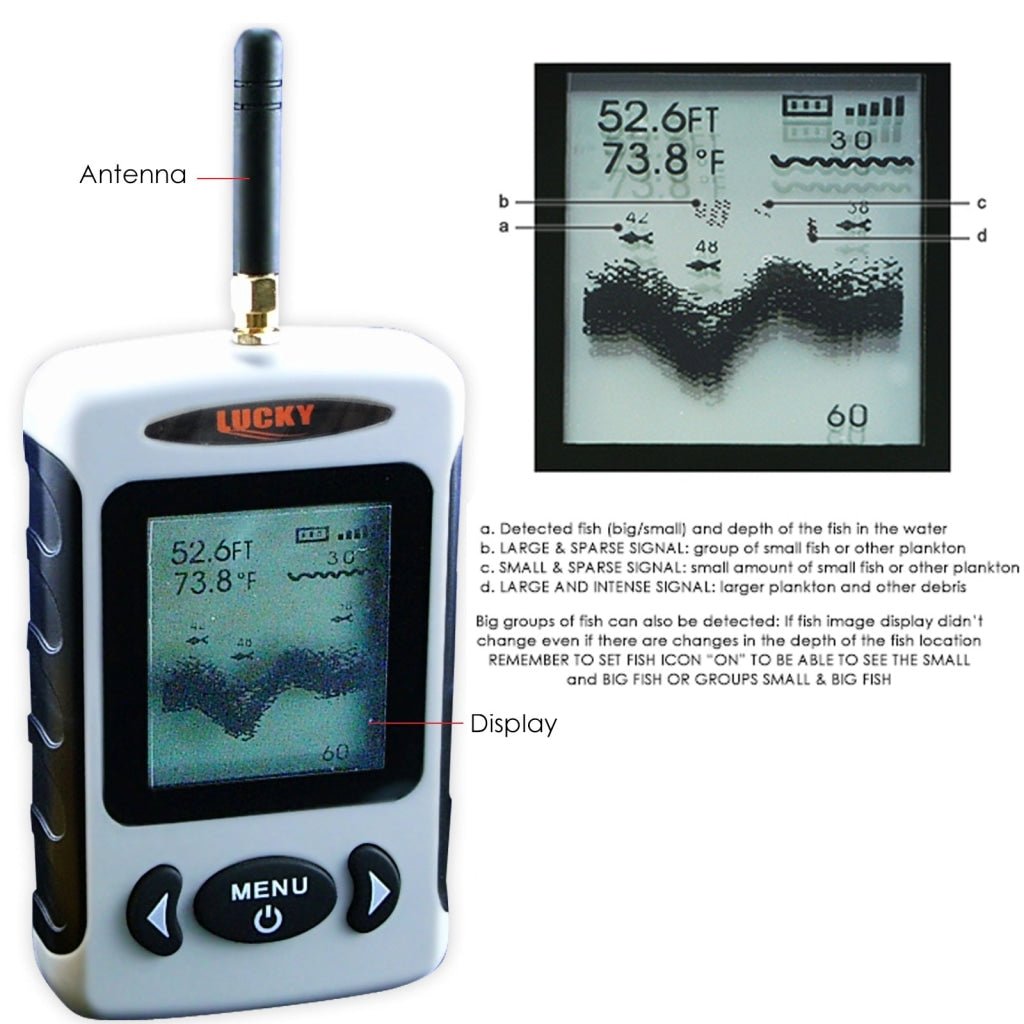

- Display Fish Icon and Live-Update Water Bottom Contour (grass, sand, rock)

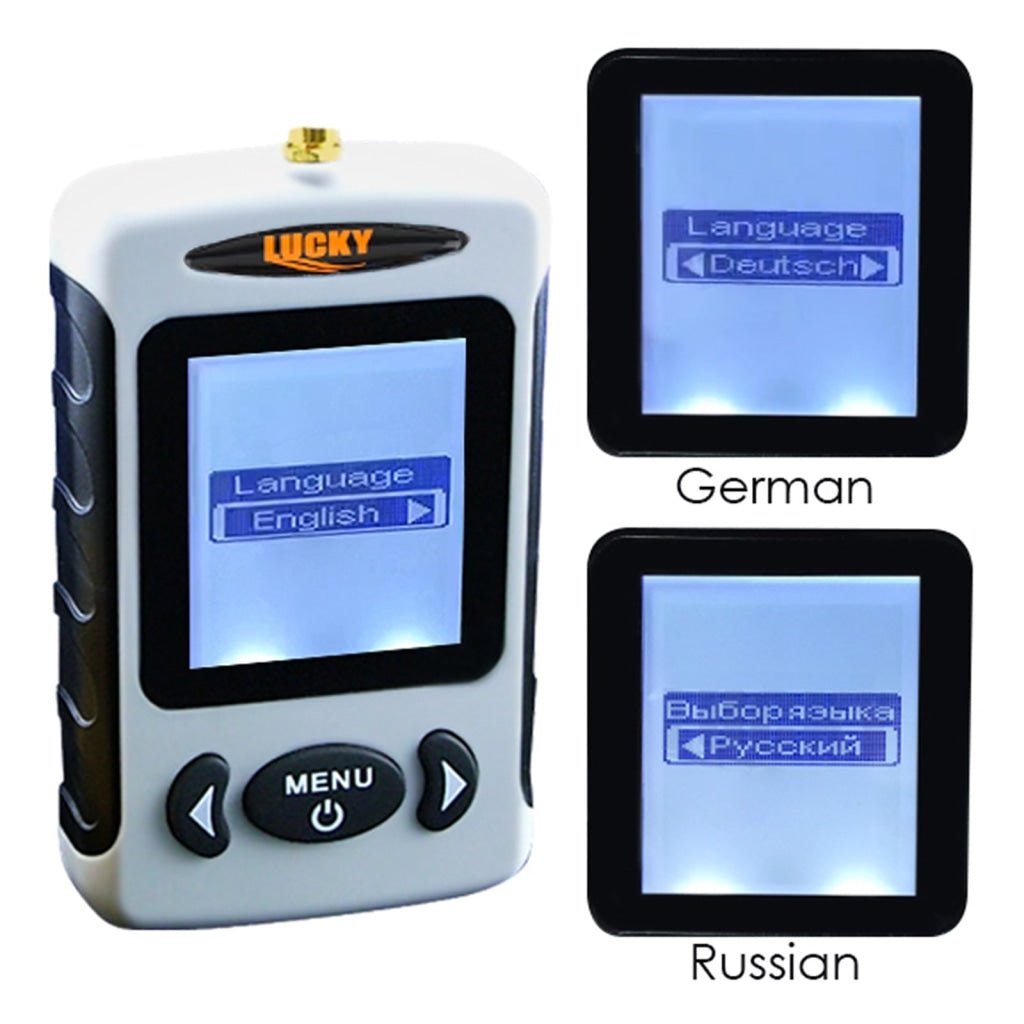

- Language: English (default), Russian and Deutsch
- Detects and displays big and small fish or groups of big and small fish
- Resist interference from grass when used in lake
- Adjustable chart speed, sensitivity level, depth range, Sonar sensitivity setting
- Audible fish and depth alarm
- Zoom at specified depth
- Indicator for battery and Signal for Wireless Sensor
- Simulation mode
- Built-in memory stores sonar setting

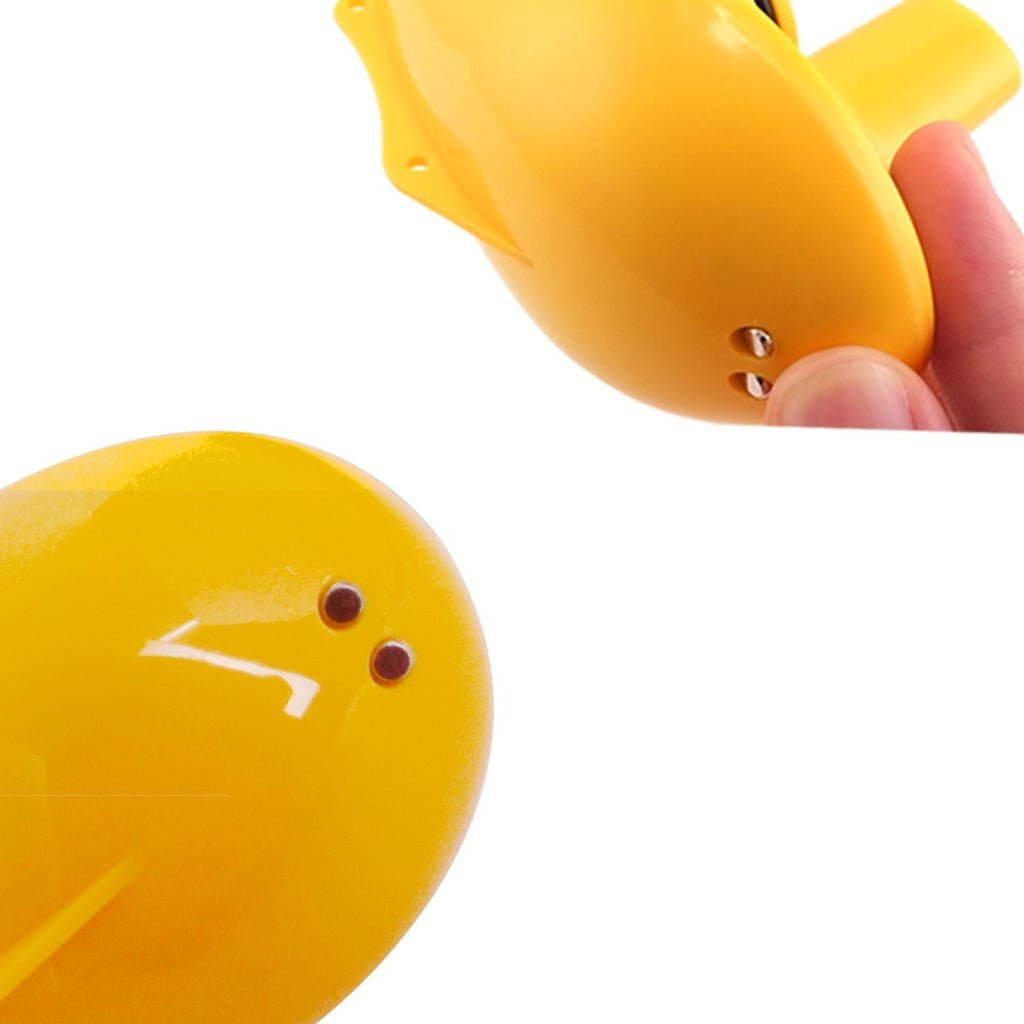

- Sensor auto switch off when not in water
- CE & RoHS approved
Specifications
- Display: Adjustable High-contrast Dot matrix FSTN LCD 128(V) x 64(H)
- Display Size: 41 x 48mm
- Backlight: White LED with on/off option

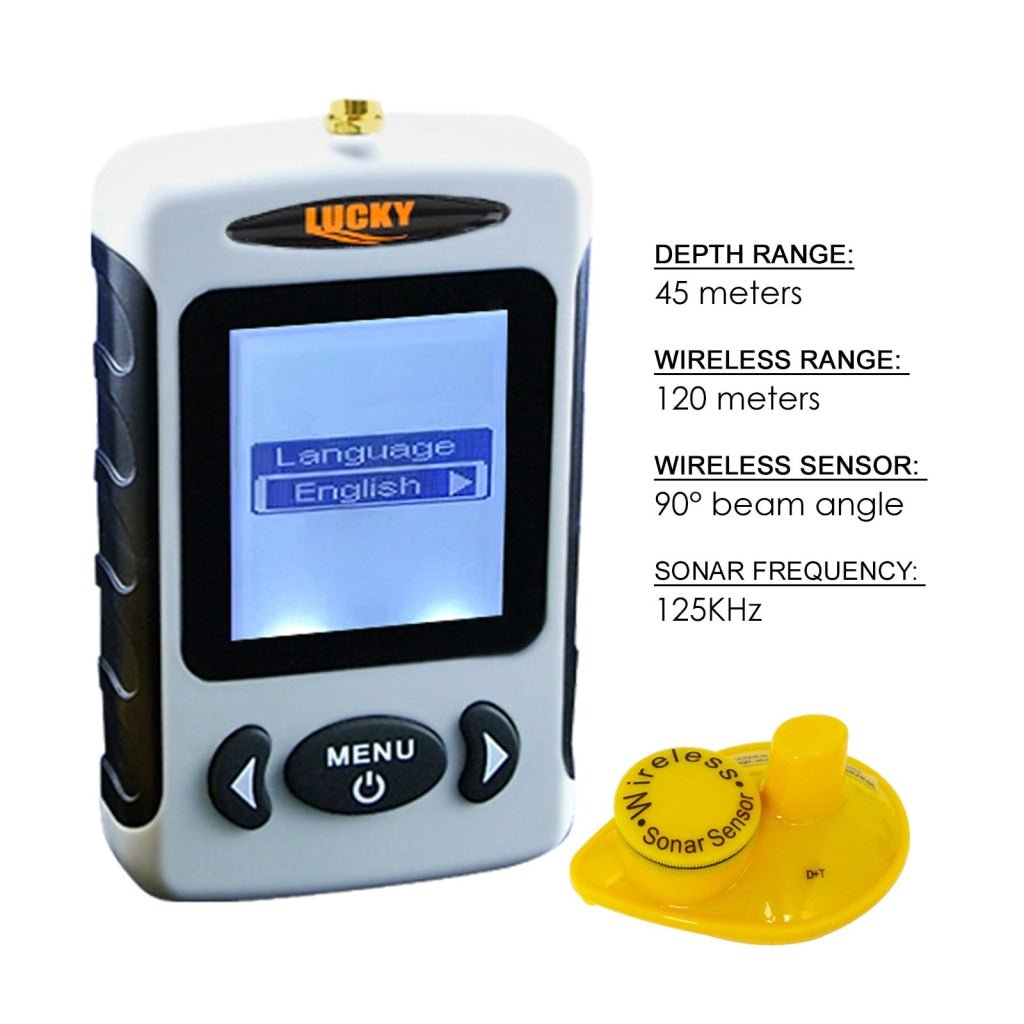

- Frequency: 433 MHz wireless, 125 kHz sonar
- Wireless Sensor Coverage: 90° beam angle
- Depth Range: 45m
- Wireless operational range: 120 meters
- Water Temperature: °C/°F
- Units: meter or feet
- Built-in memory stores sonar setting when the unit is turned off
-
Operating Temp.: 14~122°F (-10~50°C)
-
Storage Temp.: -4~158°F (-20~70°C)
- Battery life of Wireless Sensor: up to 550 hours in water usage
- IPX4 Water Resistant Design / Level-4 (spray-water-proof)
- Power Supply

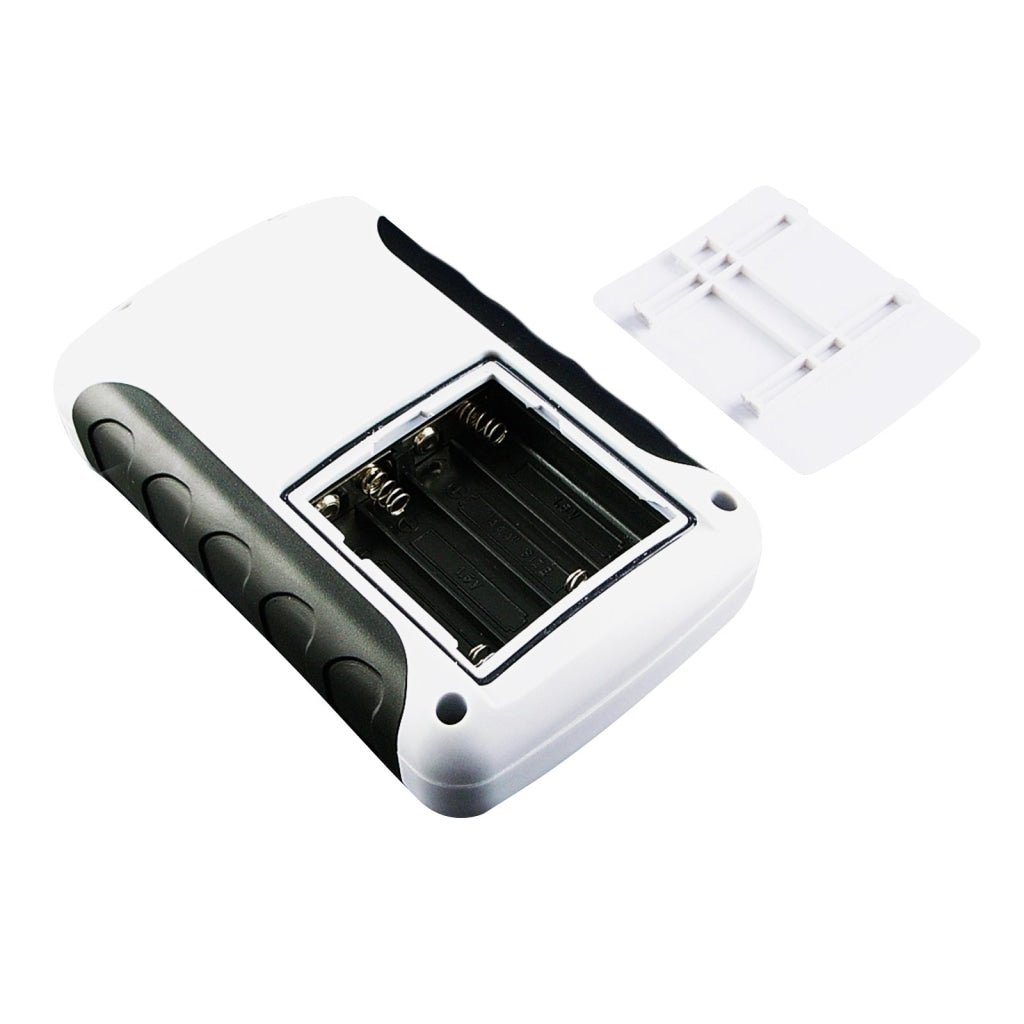

- main unit: 4 x AAA Alkaline Battery (not included)

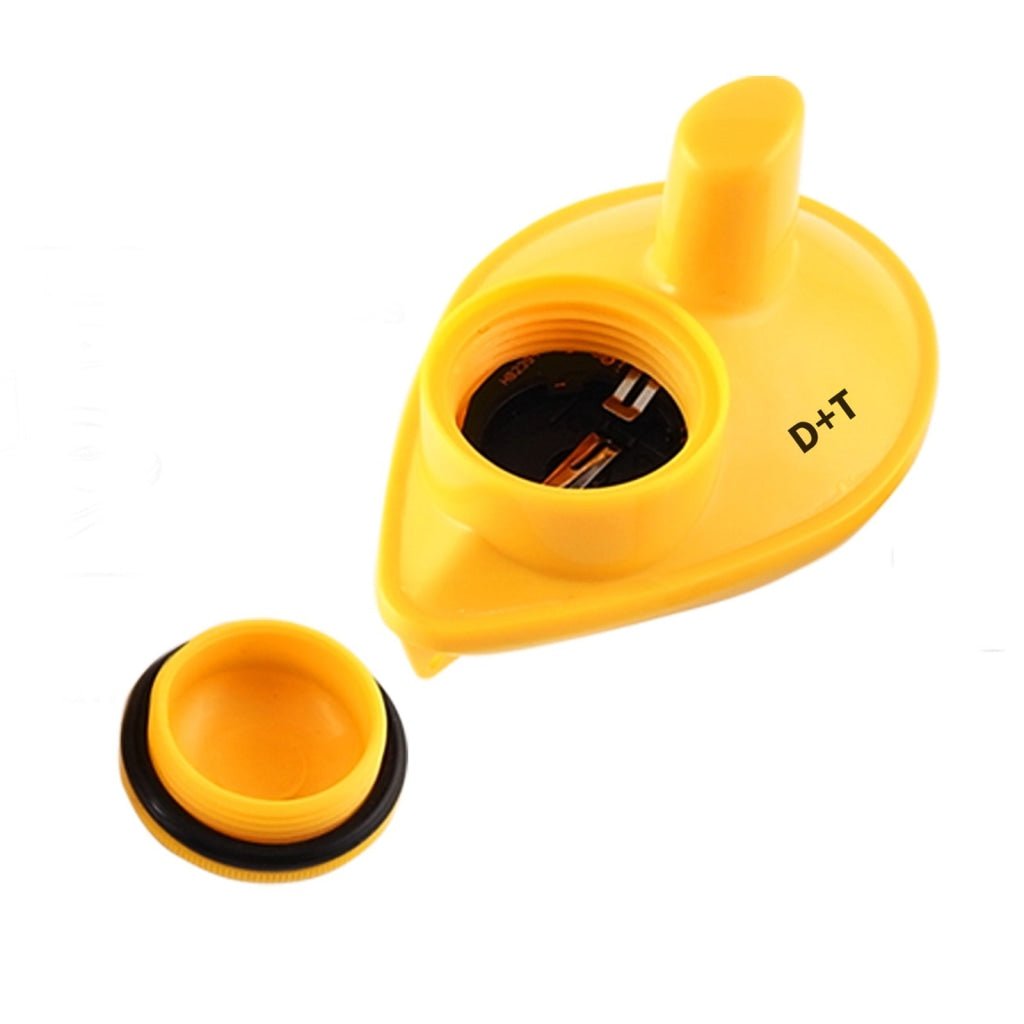

- wireless sensor: 1 x CR-2032 Button Battery (included)
- Size: approx. 136 x 74 x 30mm
-
Weight: approx. 160g (main unit only)

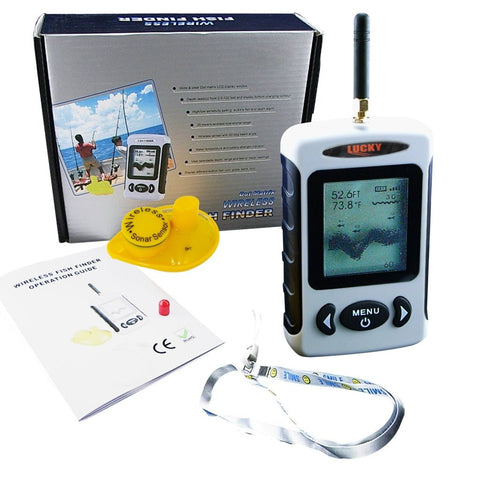

Set Includes

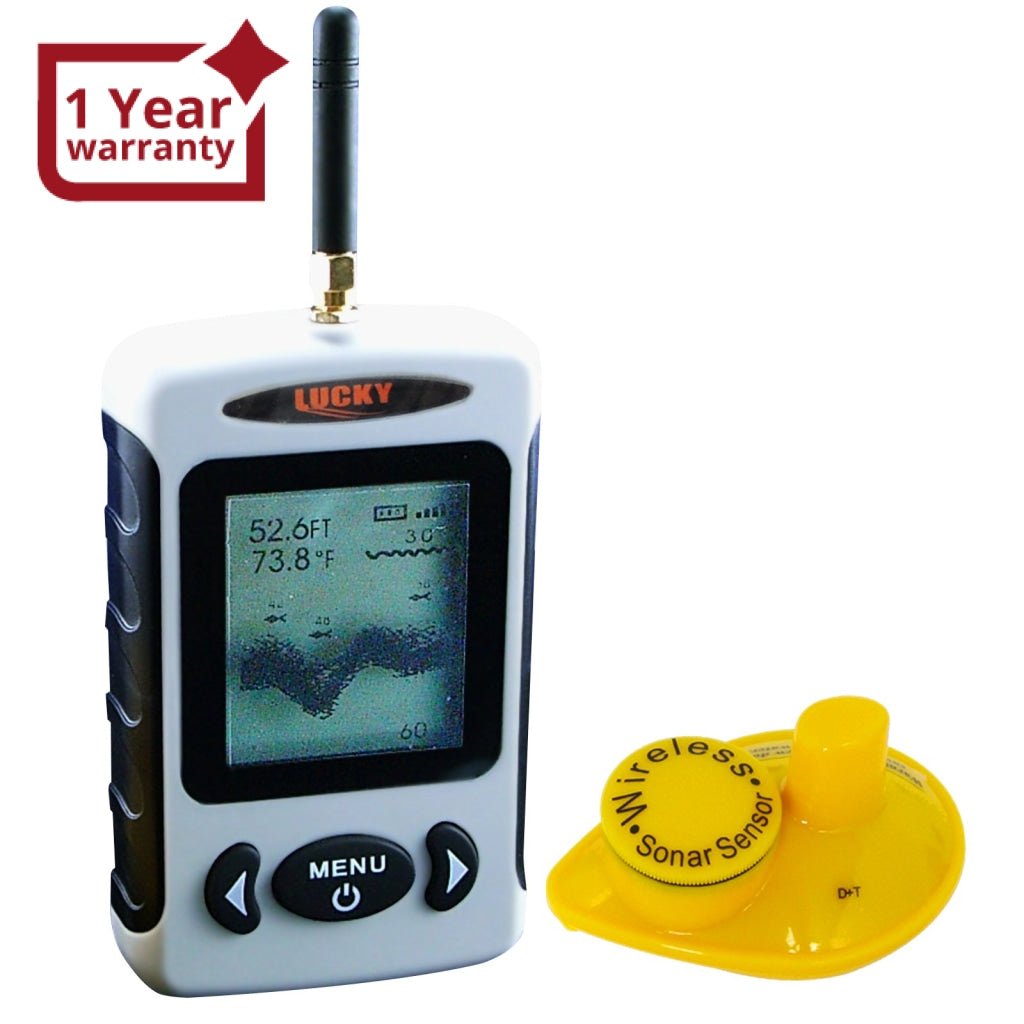

- 1 x Professional Wireless Fish Finder

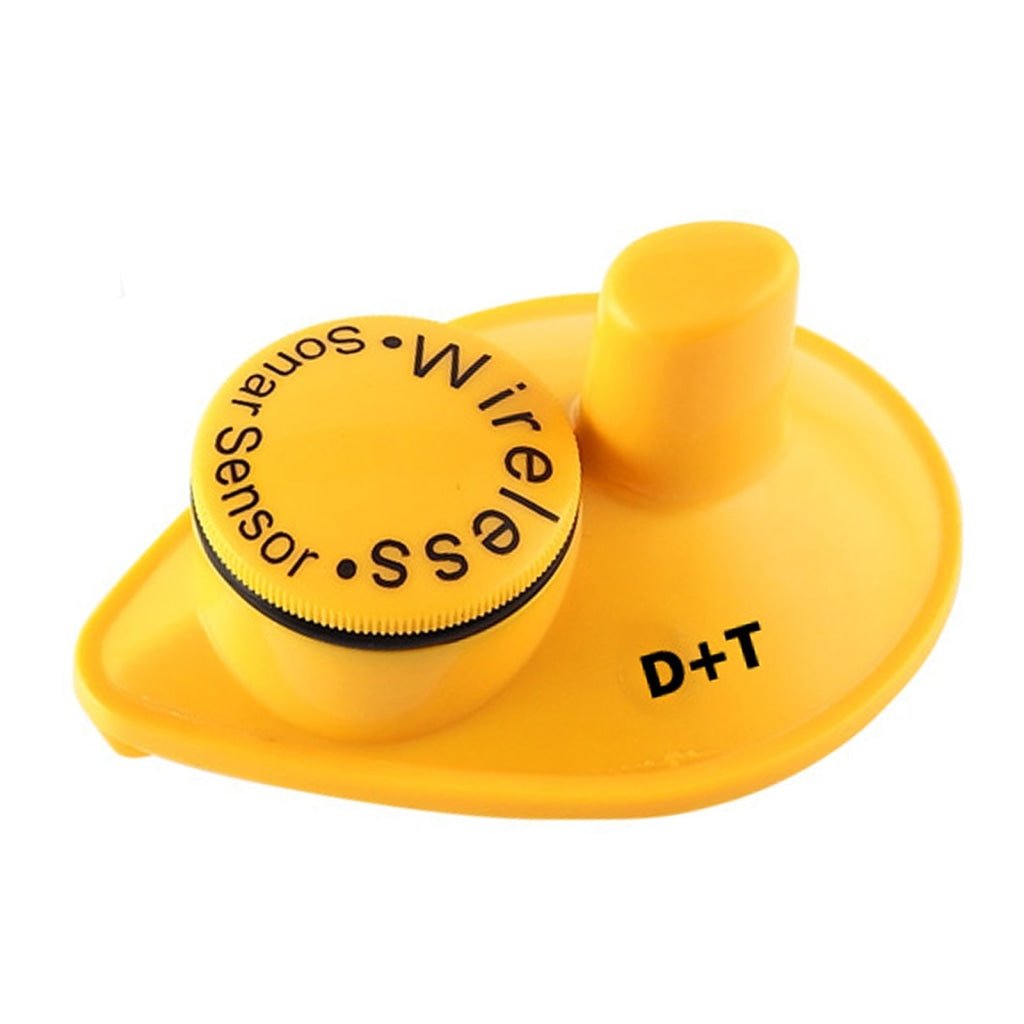

- 1 x Wireless Sensor

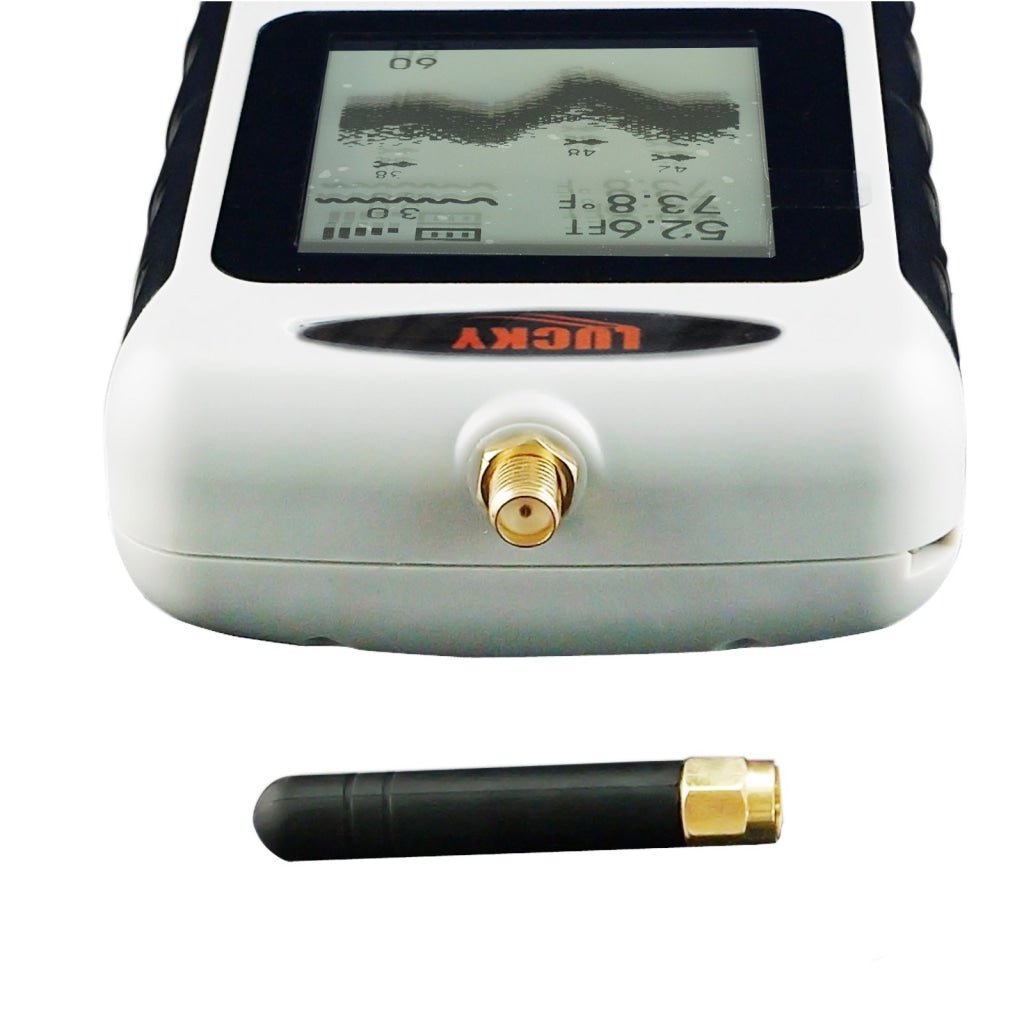

- 1 x External Antenna
- 1 x Neck Strap
- 1 x 3V CR2032 Button Battery
- 1 x English User Manual
-
Optional Item (not included in set)
Please click here to buy this optional item Extra Wireless Sonar Sensor
or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
