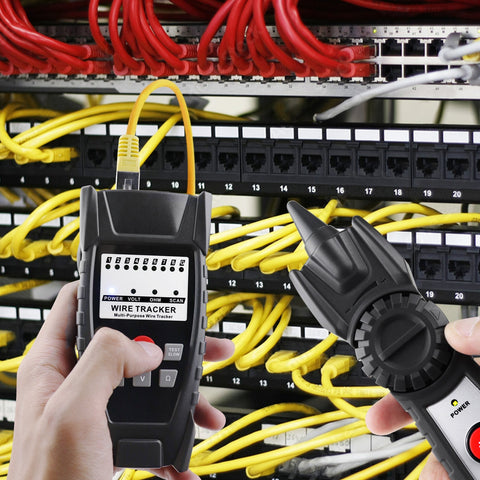

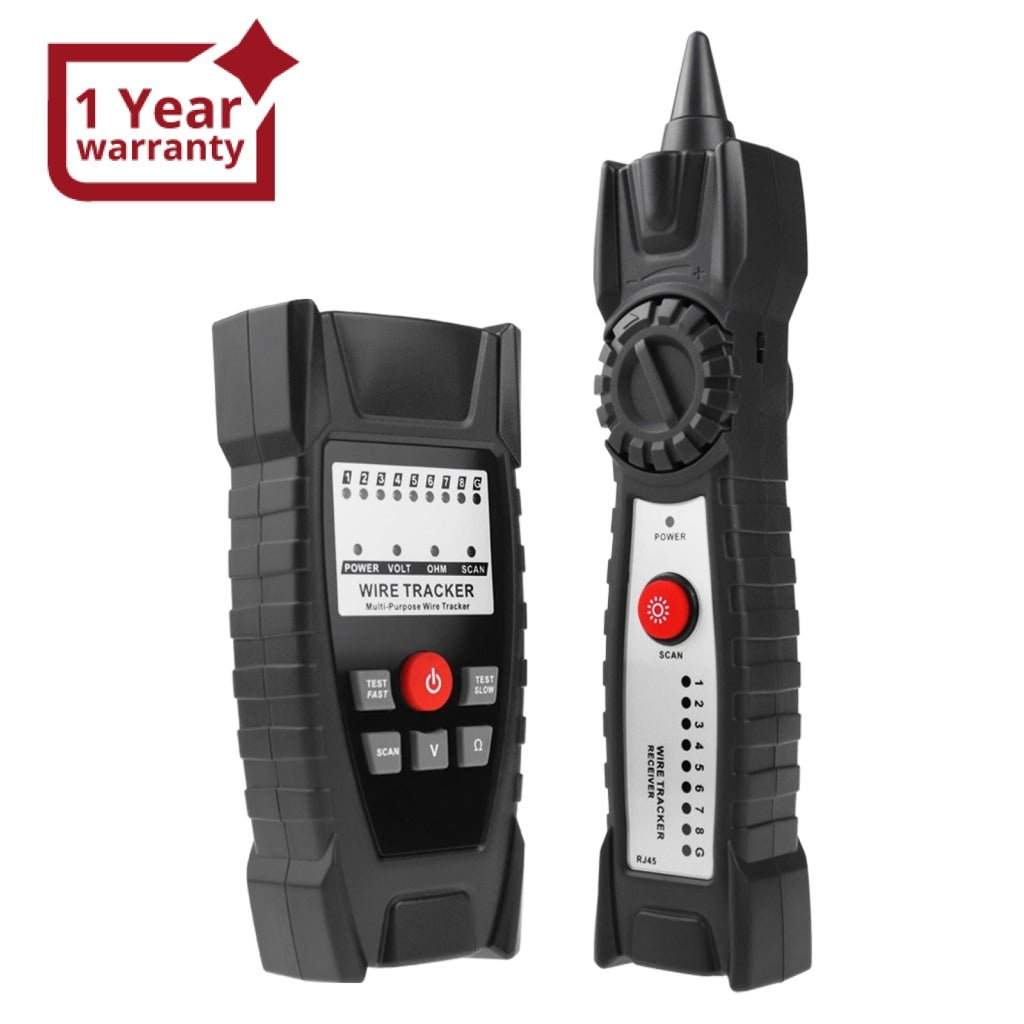

This professional networking cable inspection device is used in wire tracing, cable order verifying and wiring faults inspection functions.
This instrument set is an ideal tool for technicians in installation and maintenance of weak current systems such as communication line and comprehensive wiring circuit. It is widely applicable to telephone systems, computer networks and other metal wire circuit and fields. With this set, only one person is enough to complete cable networking inspection.
Features:
- Chargeable and anti-interference
- Long distance wiring tracing
- Cable order verifying
- Wiring voltage checking
- Wiring voltage polarity checking
- Wiring shorts inspection
- Low battery indicator
- Adjustable tracing sensitivity/volume

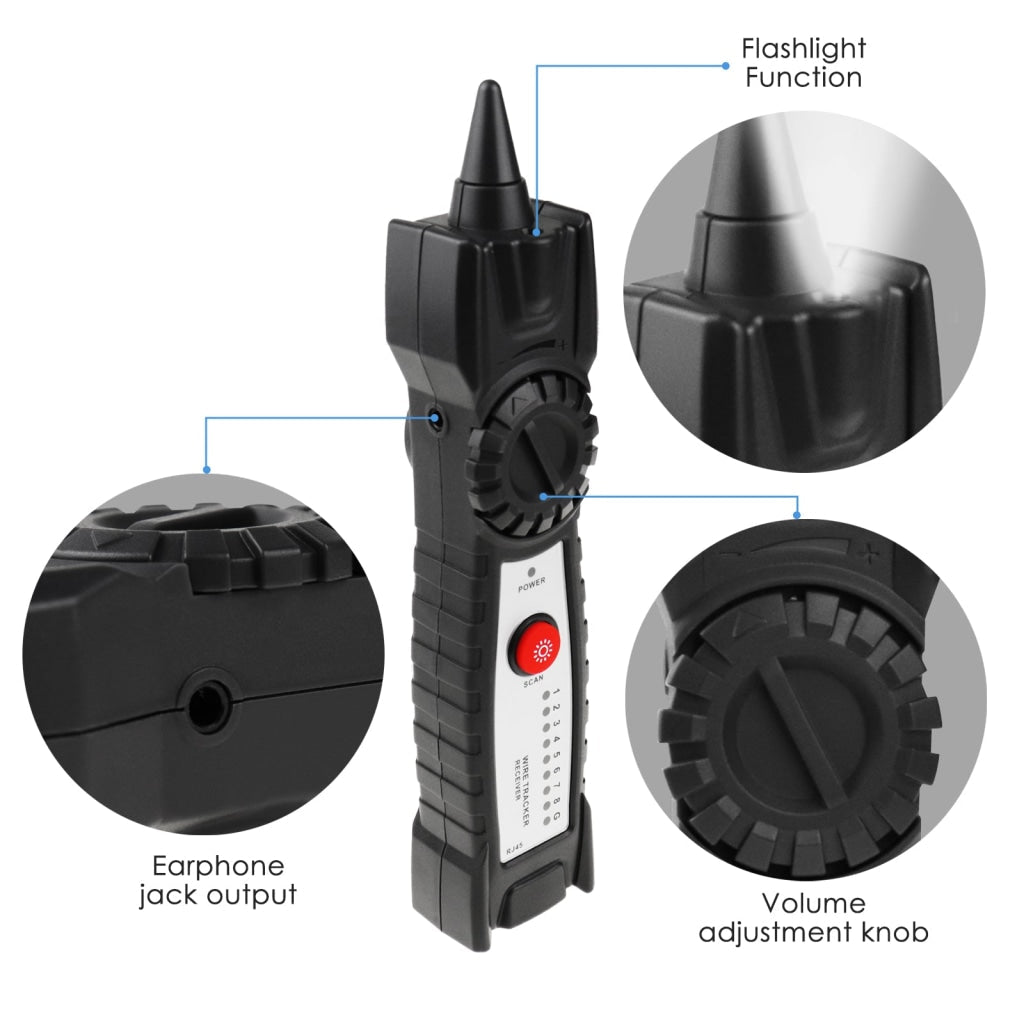

- Earphone jack output
- Flashlight
Specifications:
- Basic Function:
- Wire Tracing function (SCAN)
- Cable order verifying (TEST)
- Line voltage test(V)
- Shorts circuit test (Ω)
- Two manners of testing
- Fast line testing
- Slow line testing
- Signal Tracing Transmit Distance: >1km
- Display: LED
- Operating Environment: -10 ~40℃ (14 ~ 104℉); 10-95%RH
- Storage Temperature: -10 ~40℃ (14 ~ 104℉)

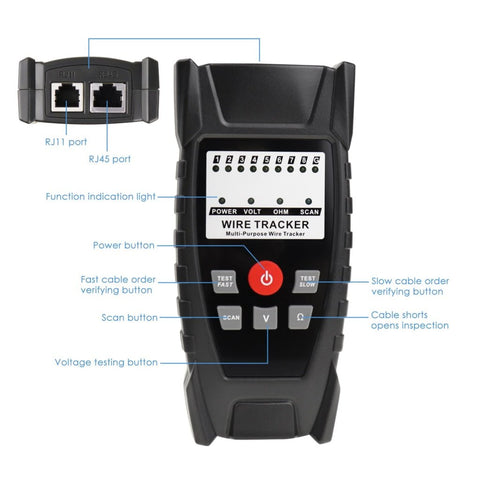

- Transmitter:
- Power Source: 3 x 1.5V AAA battery

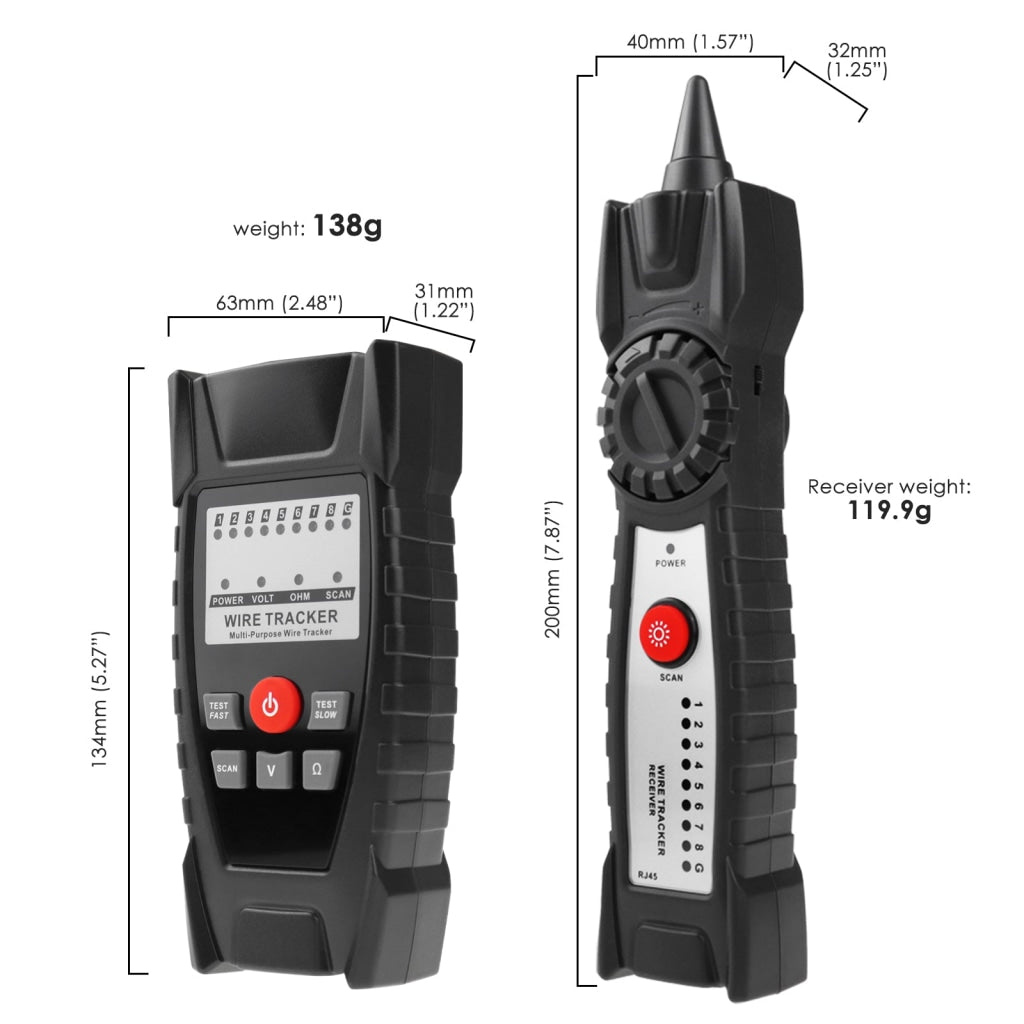

- Weight: 138g
- Dimension: 63 x 134 x 31mm

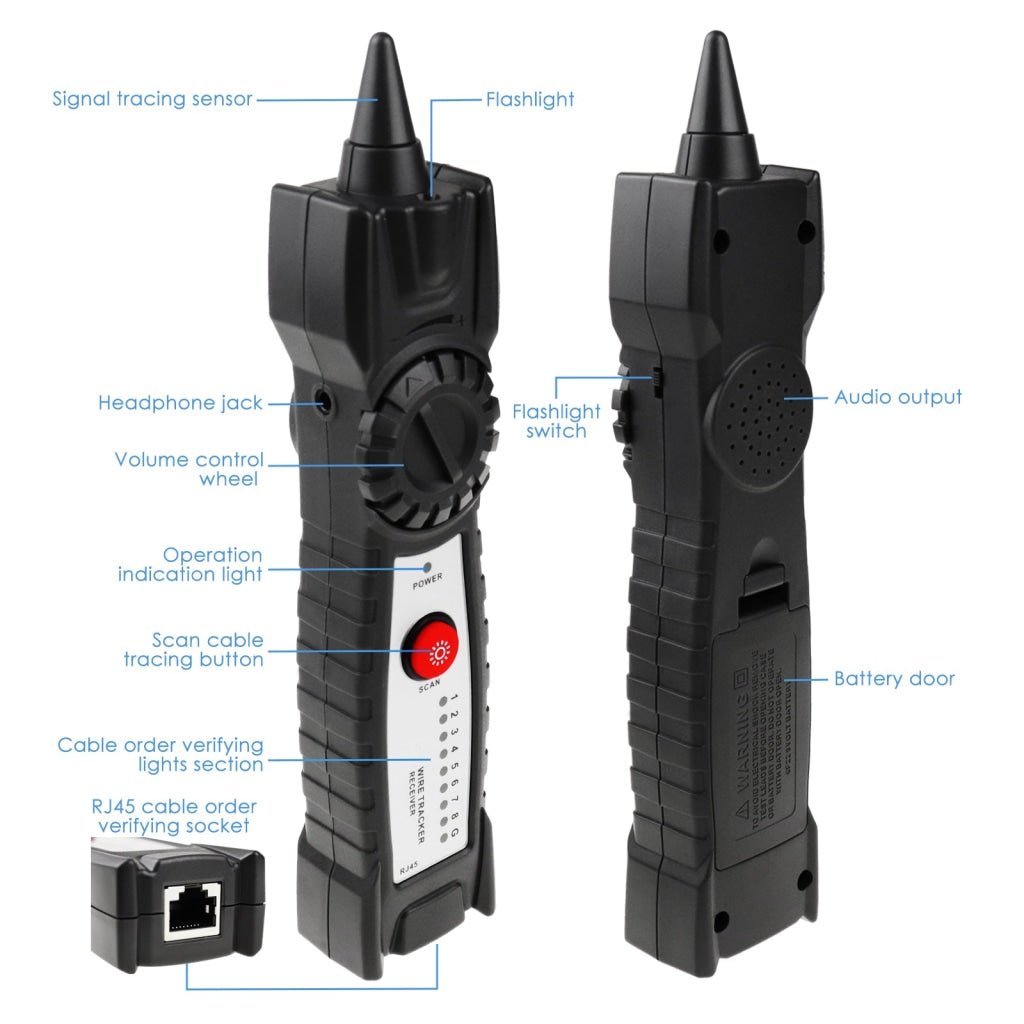

- Receiver
- Power Source: 6F22 9V battery
- Weight: 119.9g
- Dimension: 40 x 200 x 32mm

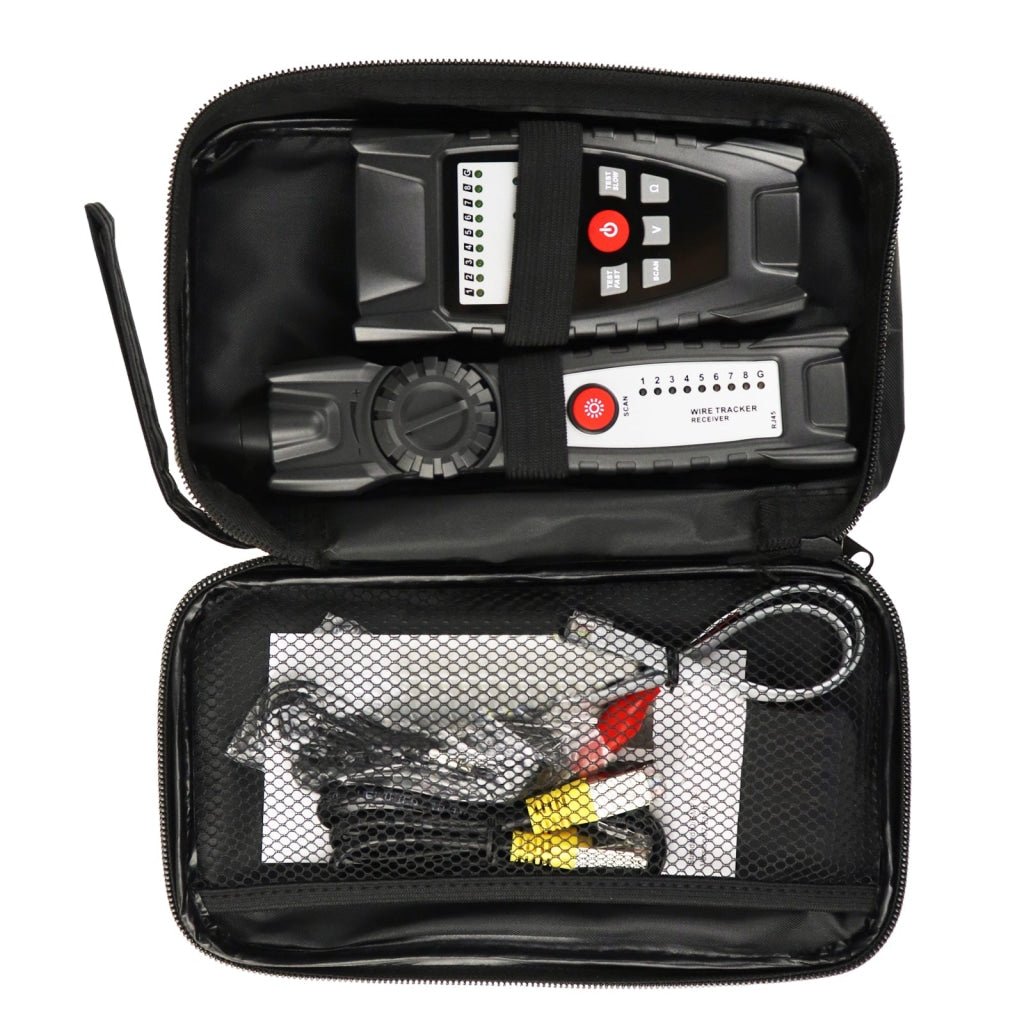

Set Includes:
- 1 x Transmitter
- 1 x Receiver

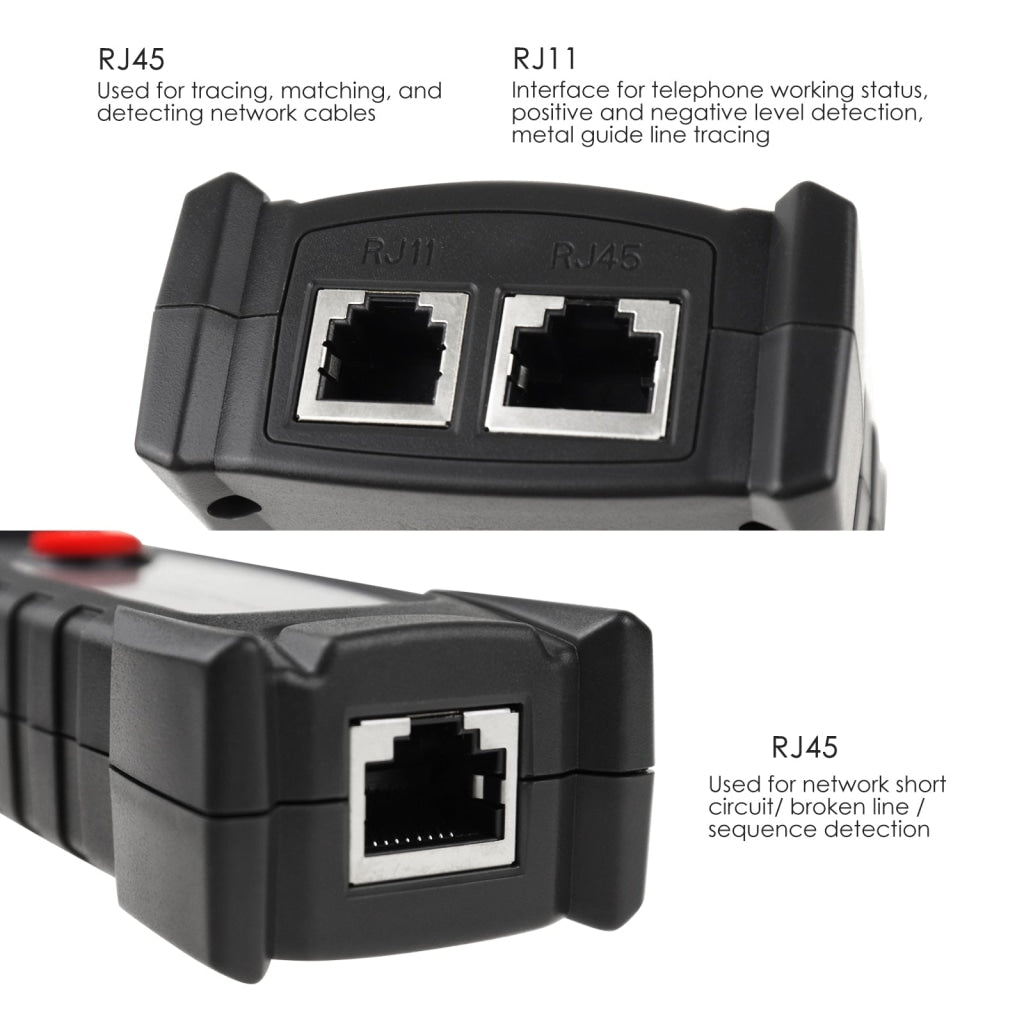

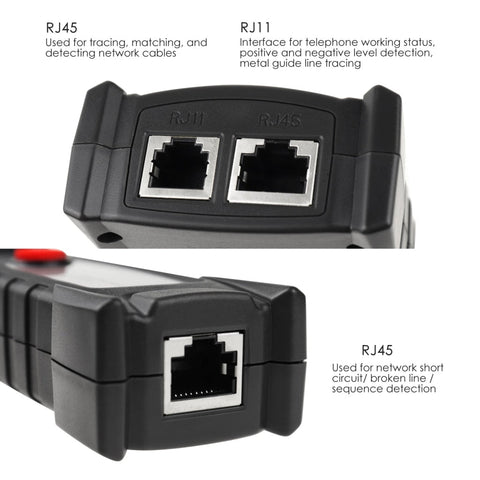

- 1 x RJ11-to-Alligator Clip
- 1 x RJ45 Cable
- 1 x RJ11 Cable
- 1 x Earphone
- 1 x Carrying Pouch
- English Instruction Manual
- Standard factory Packaging
