This amazing Fish finder is equipped with 2.8 inch Colored LCD Screen, especially Designed for Amateur and Professional fisherman alike, to find out the location of fish, depth and bottom contour of water. The Unit can be used in Ocean, River or Lake and is fantastic for detecting schools of fish in any PARTICULAR area.
This Fish finder has 2 user mode: Transducer Mode- can indicate fish found in 45° beam angle and Wireless Mode - can indicate fish found in 90° beam angle.
Features:

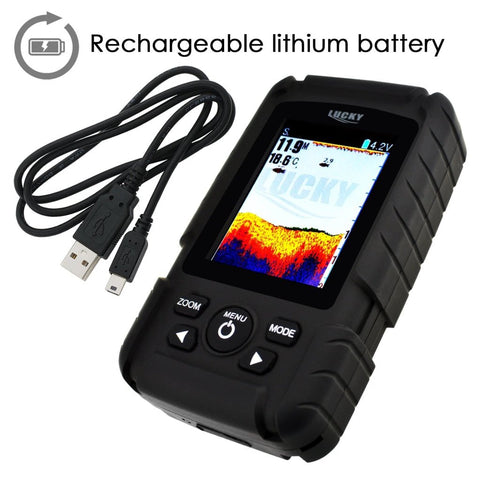

- 3.7V Rechargeable lithium battery
- Selectable Depth Unit : Meter / Feet
- High frequency,125kHz (wireless)
- °C / °F temperature unit
- Blue,Orange or Grey Selectable in Color Tone Menu Features
- Display bottom changing contour
- High/Low sensitivity setting, audible fish and depth alarm
- Water temperature and battery strength indicator
- With Simulation mode
- Display Large and Small Fish Icon with on / off features
- Use Antennas in order to increase the wireless receiving distance
- Compact and Portable, easy to carry anywhere

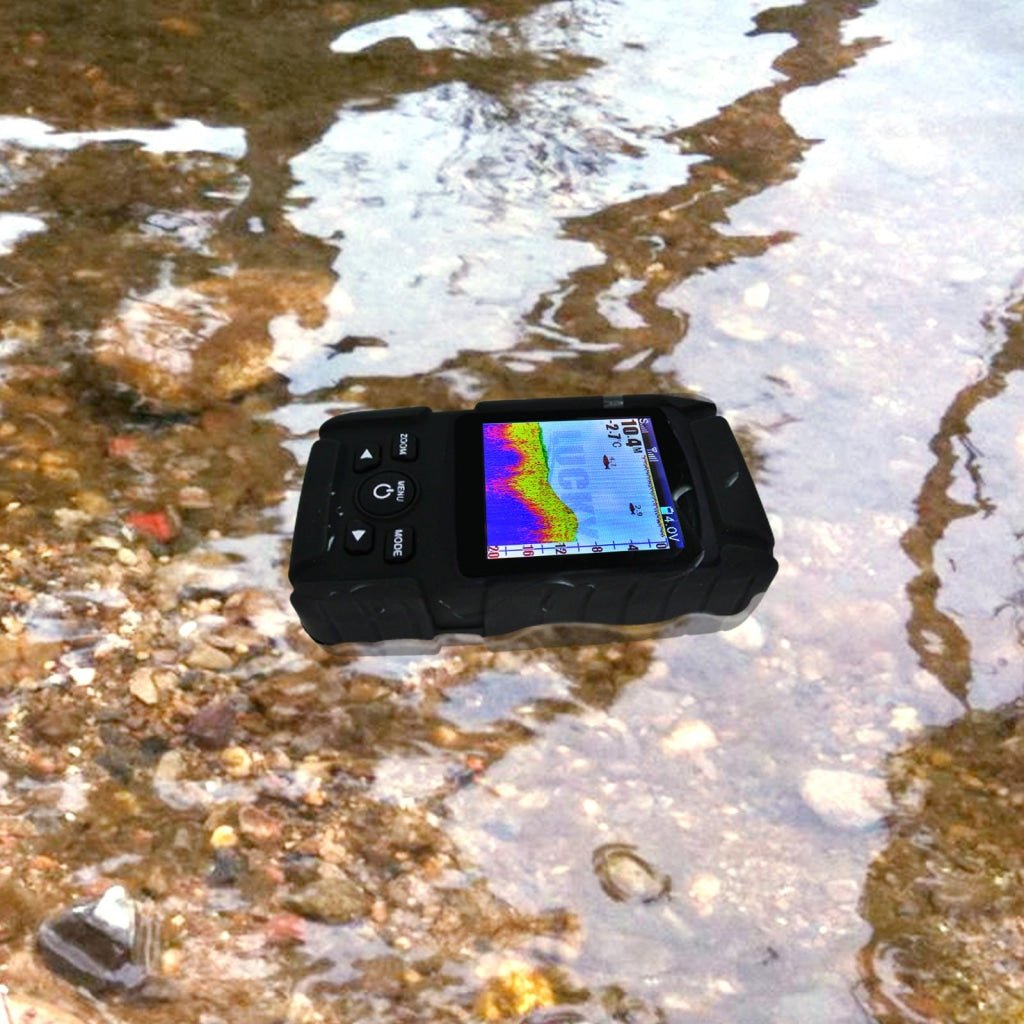

- 100% waterproof design: floating main unit and sensor
Specifications:
-
Fish Finder (Main Unit)
- Floating & waterproof, matte surface
- Display: 2.8inch color TFT LCD Display 240*320 (RGB)

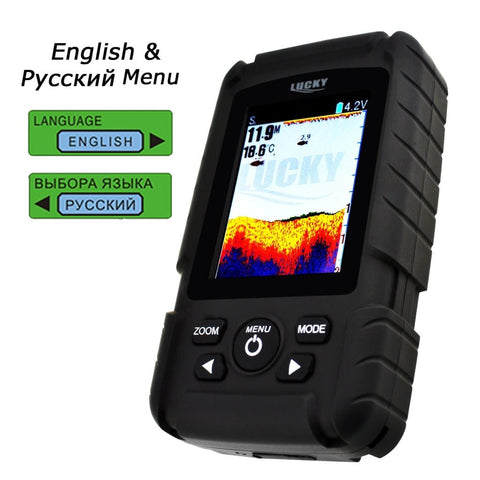

- Language Menu: English and Russian

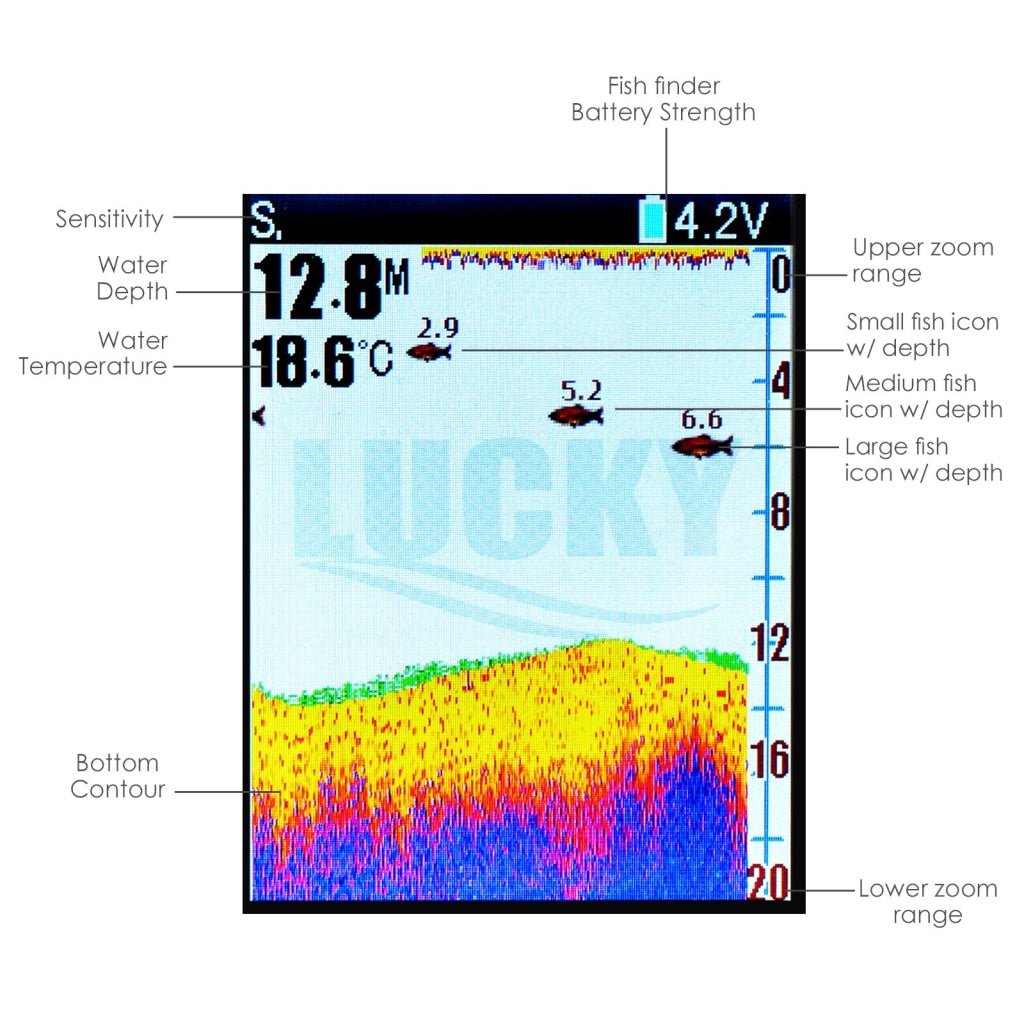

- On Screen display: water depth, water temperature, fish location depth, current bottom contour (bottom contour display changes as the sensor moves)
- Operational Wireless Frequency : 433.92MHz

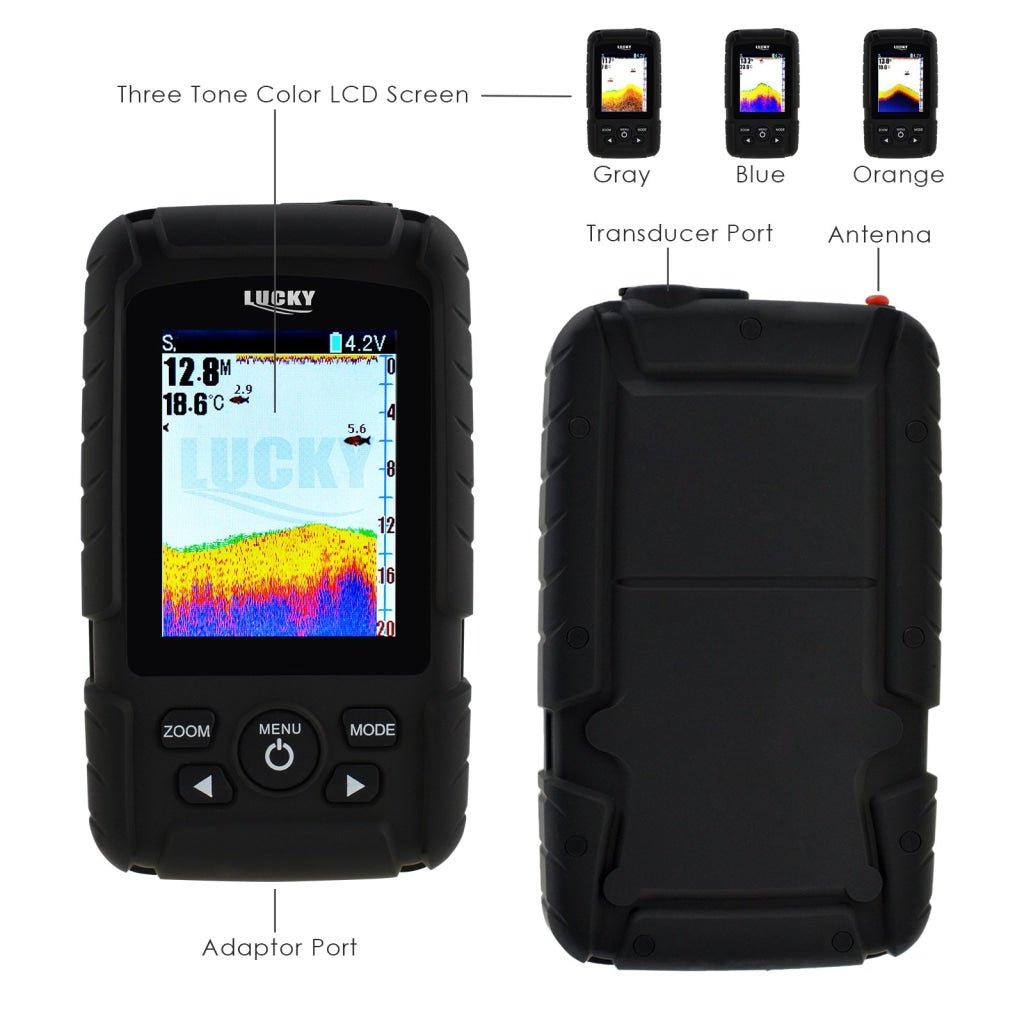

- Colored Display: BLUE, ORANGE or GRAY graph
- Anti-clutter system: automatically filter noise and gain high accuracy
- Alarm: Fish alarm, depth alarm, battery alarm
- Zoom in and out feature (avoid interference of information of different water depth)
- Fish Icon: large, medium , small
- Back lighting: On/off White LED
- Power Input: 3.7V rechargeable lithium battery
- Charge Voltage: AC 5V, 1A
- Running Time: 20 hours (depend on actual using and working status)
-

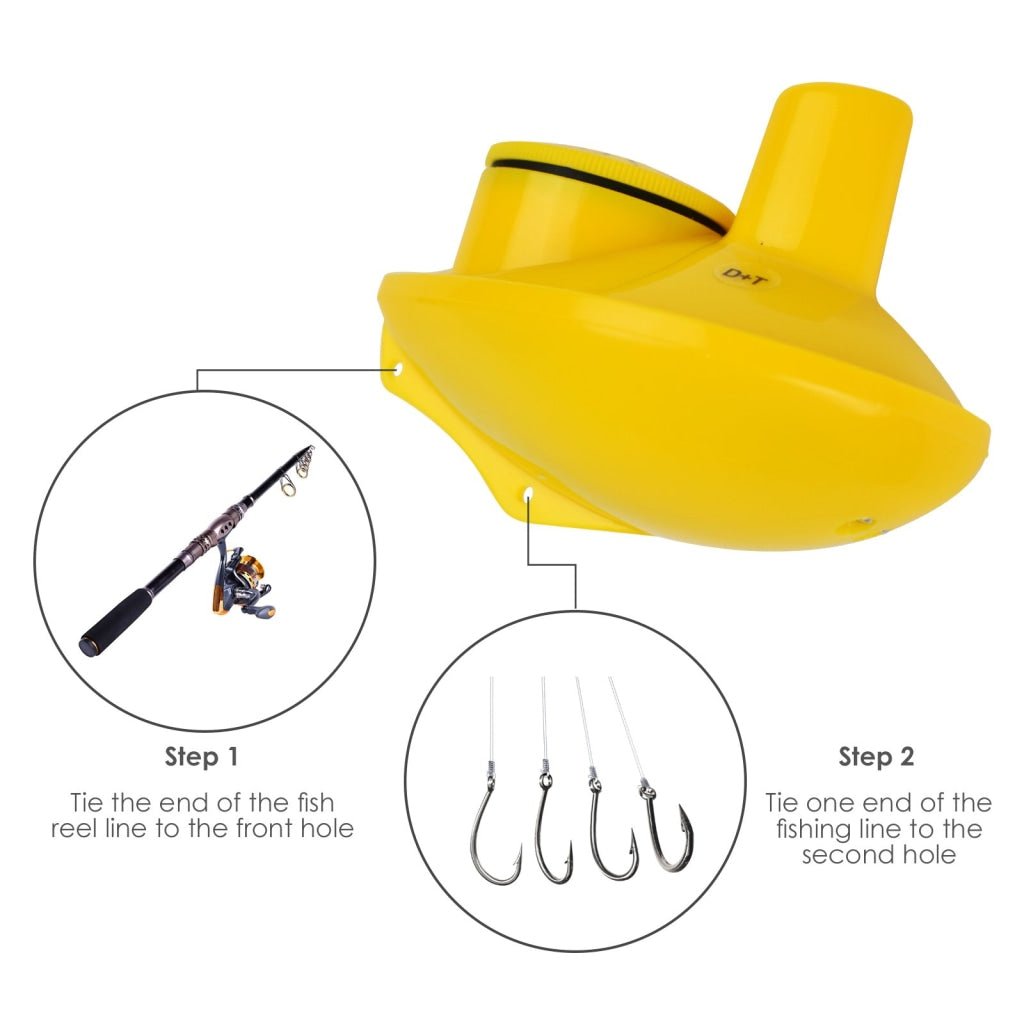

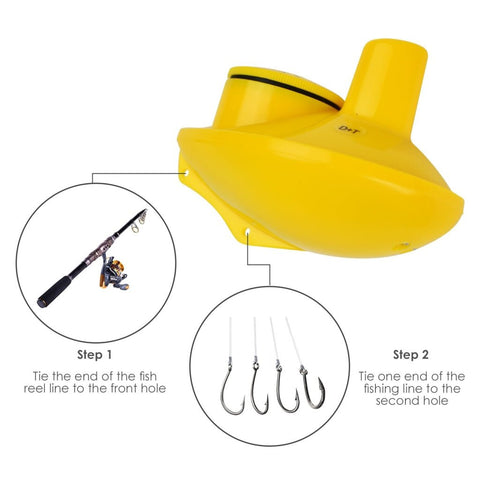

Wireless Sonar Sensor
-

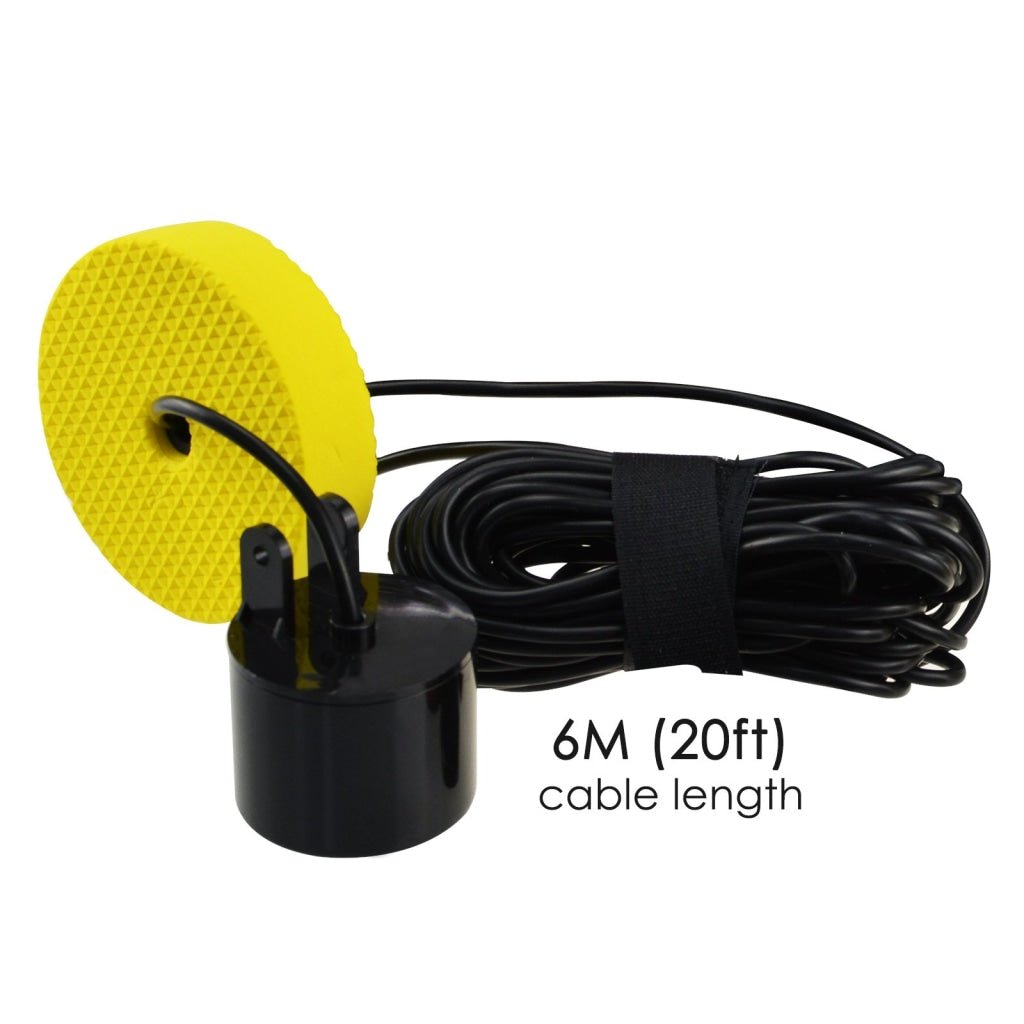

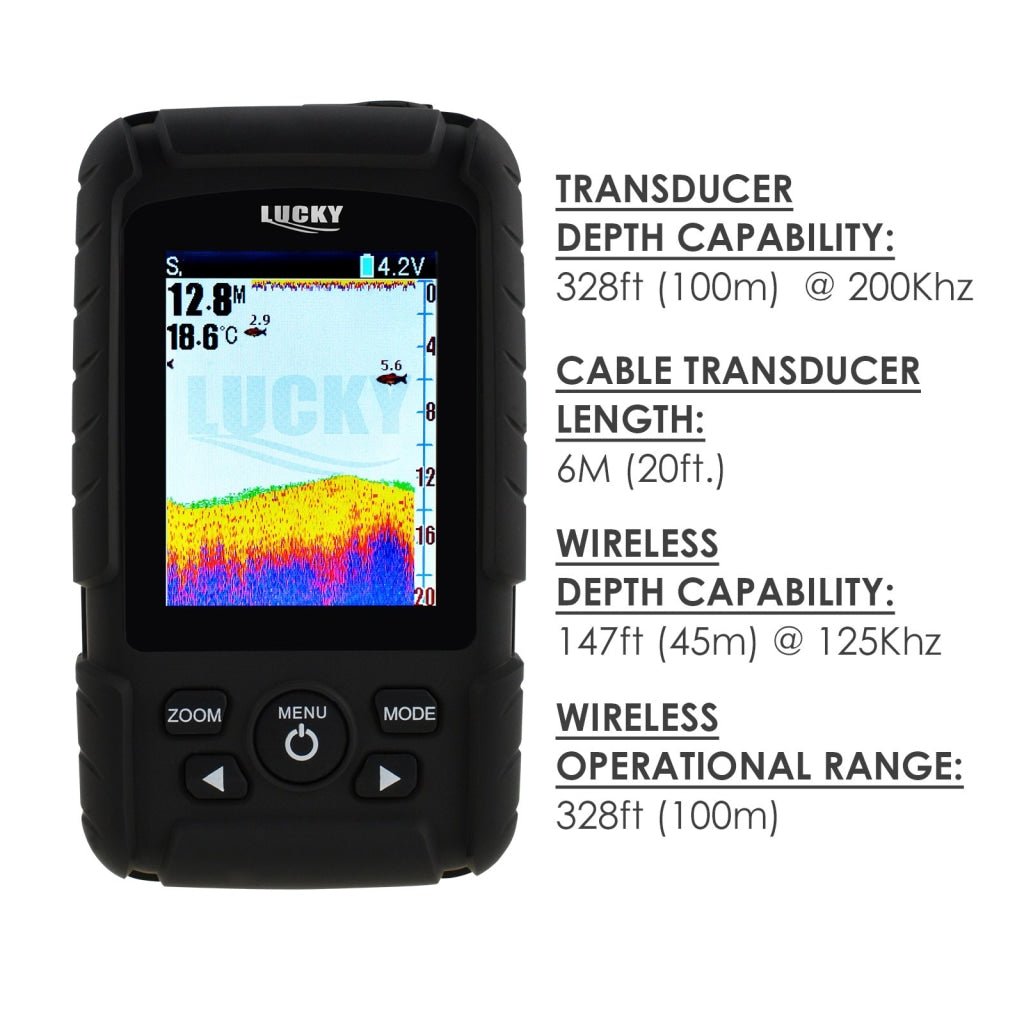

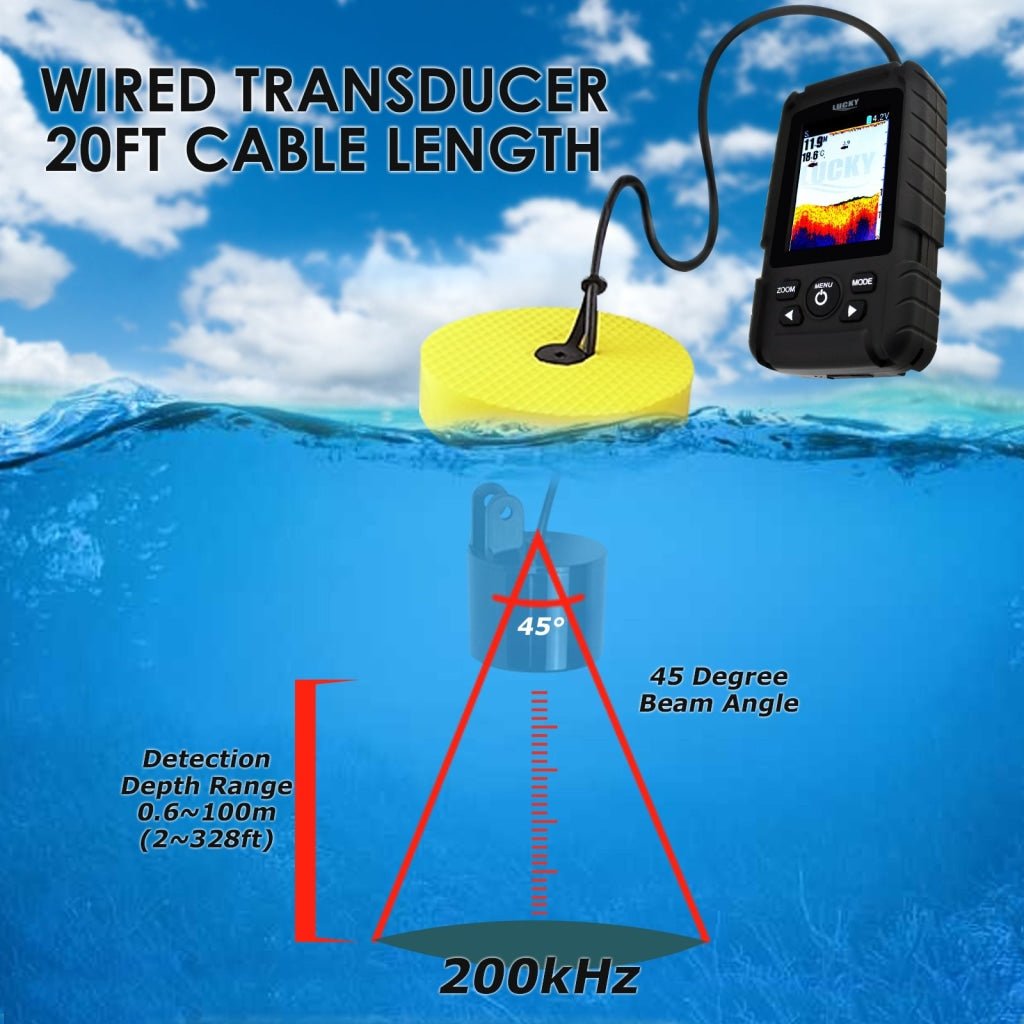

Cable Transducer Length: 6M (20ft.)
-
Depth Capability
- Cable transducer : 328ft (100m) @ 200Khz

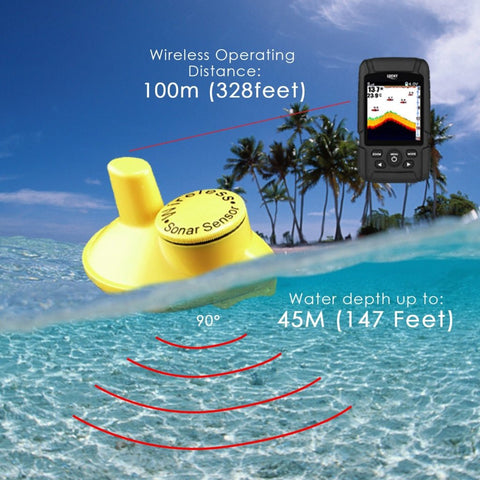

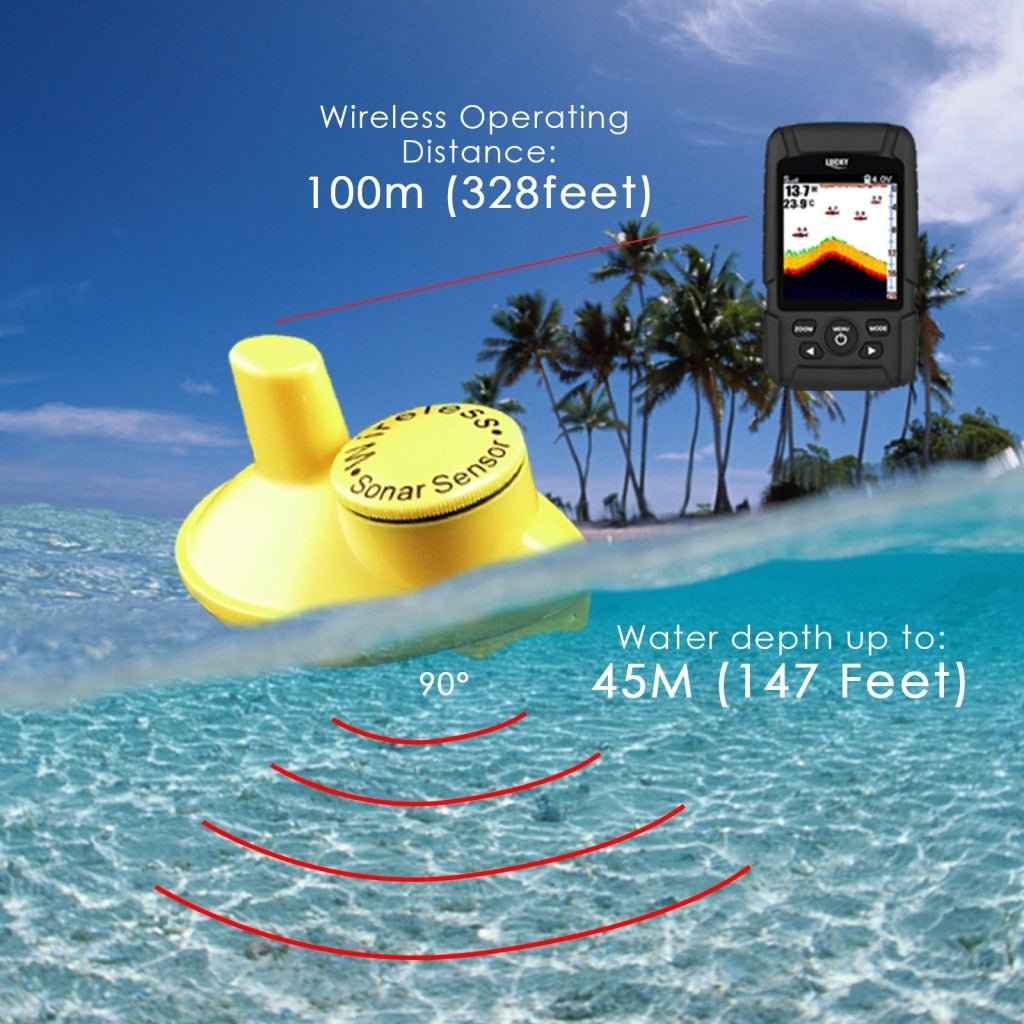

- Wireless: 147ft (45m) @ 125Khz
-
Sonar Coverage
- Cable transducer: 45 degrees beam angle
- wireless: 90 degrees beam angle
- Wireless Operational Range: 328ft (100m)
- Built in temperature sensor

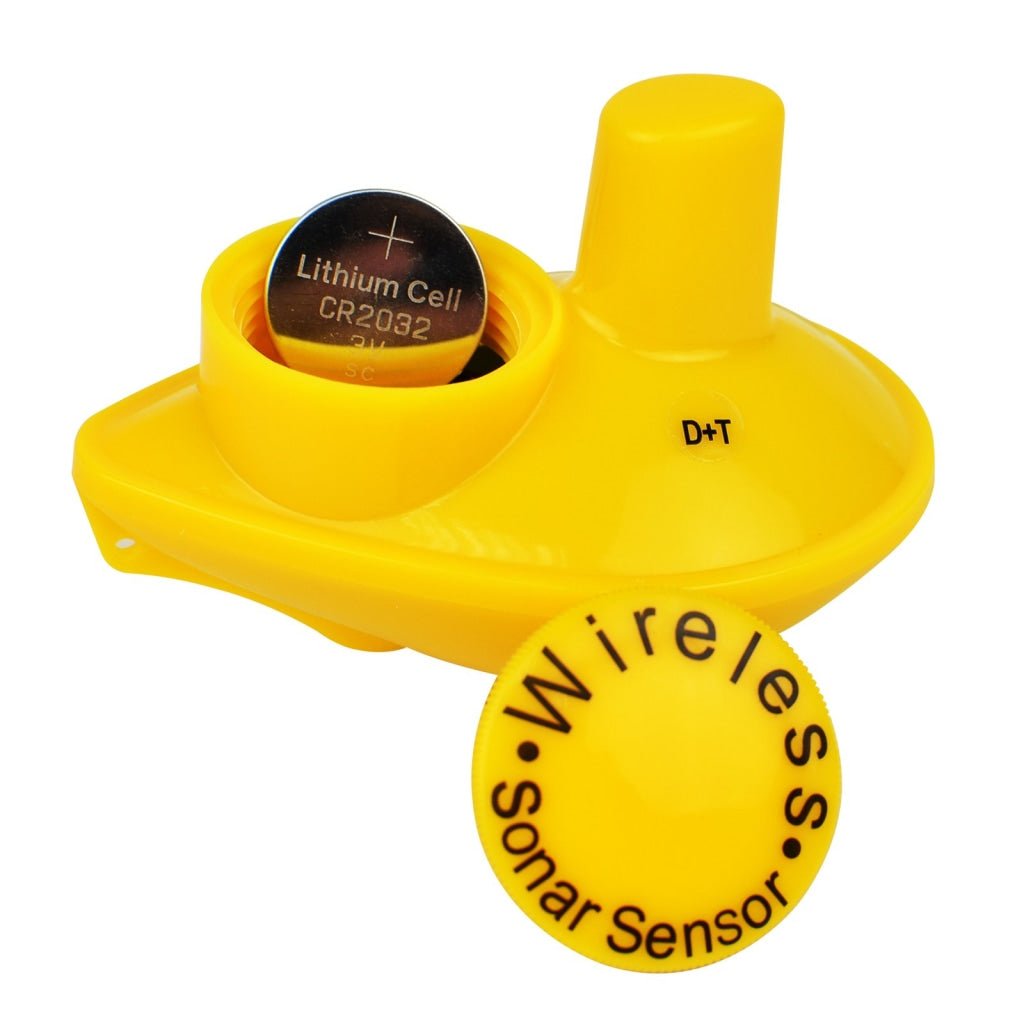

- Power Supply: 1 x CR-2032 Lithium battery
-
- Approval: CE Approval

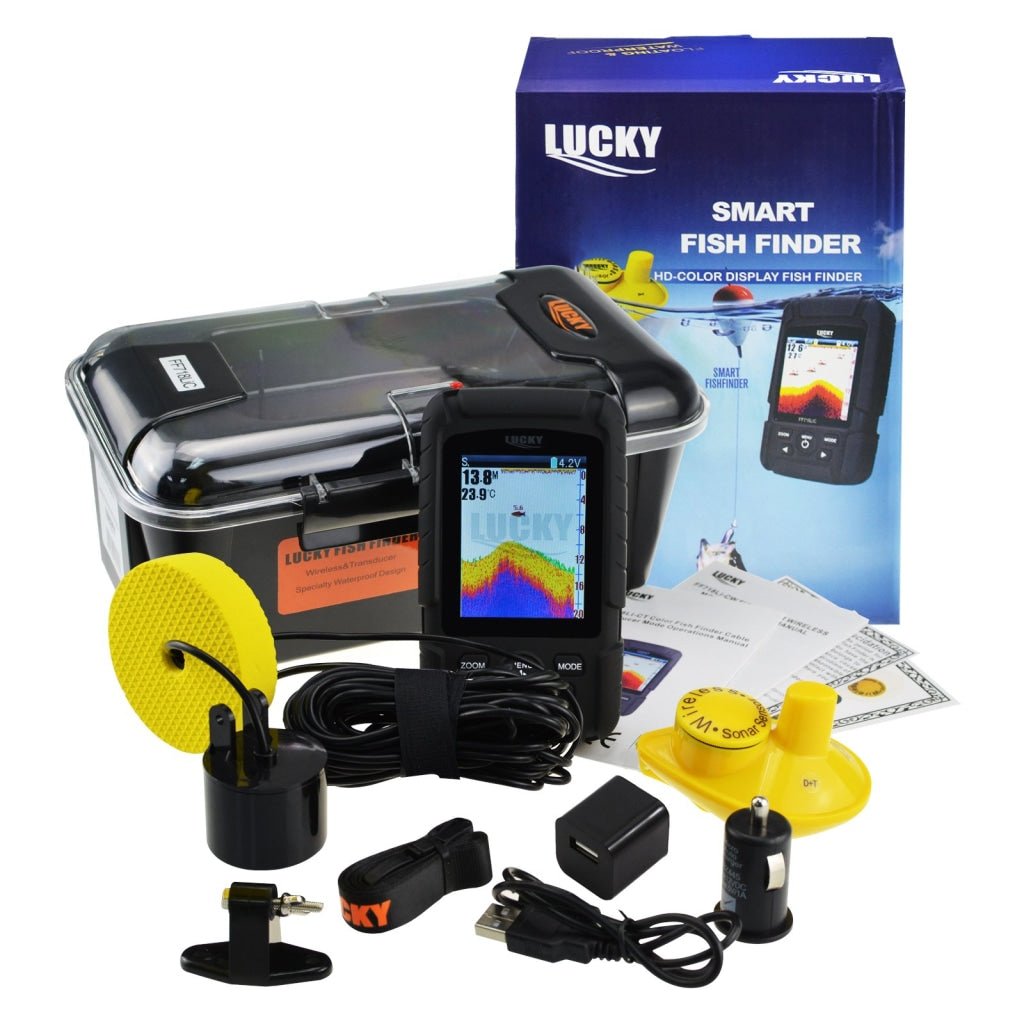

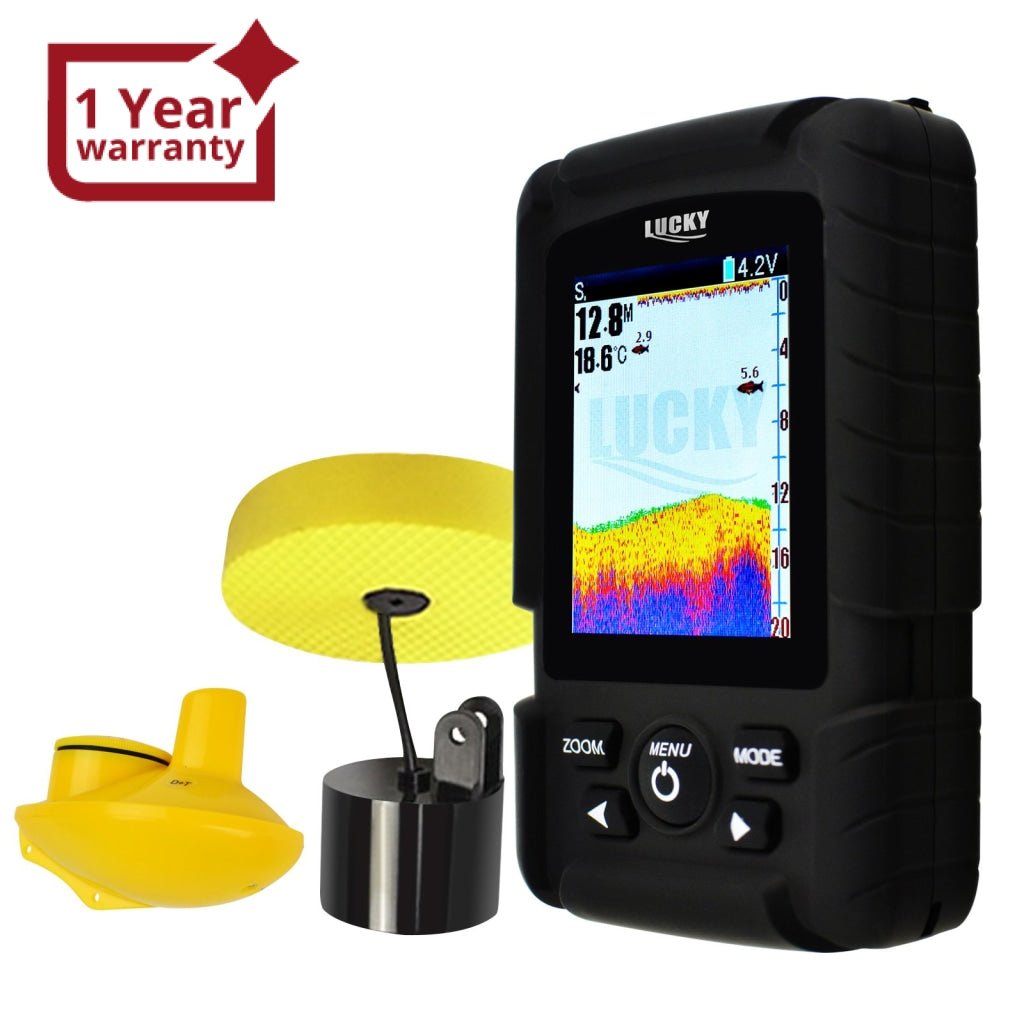

Set Includes:
- 1 x Colored LCD Fish Finder
- 1 x Sonar Transducer with cable
- 1 x Wireless Sensor

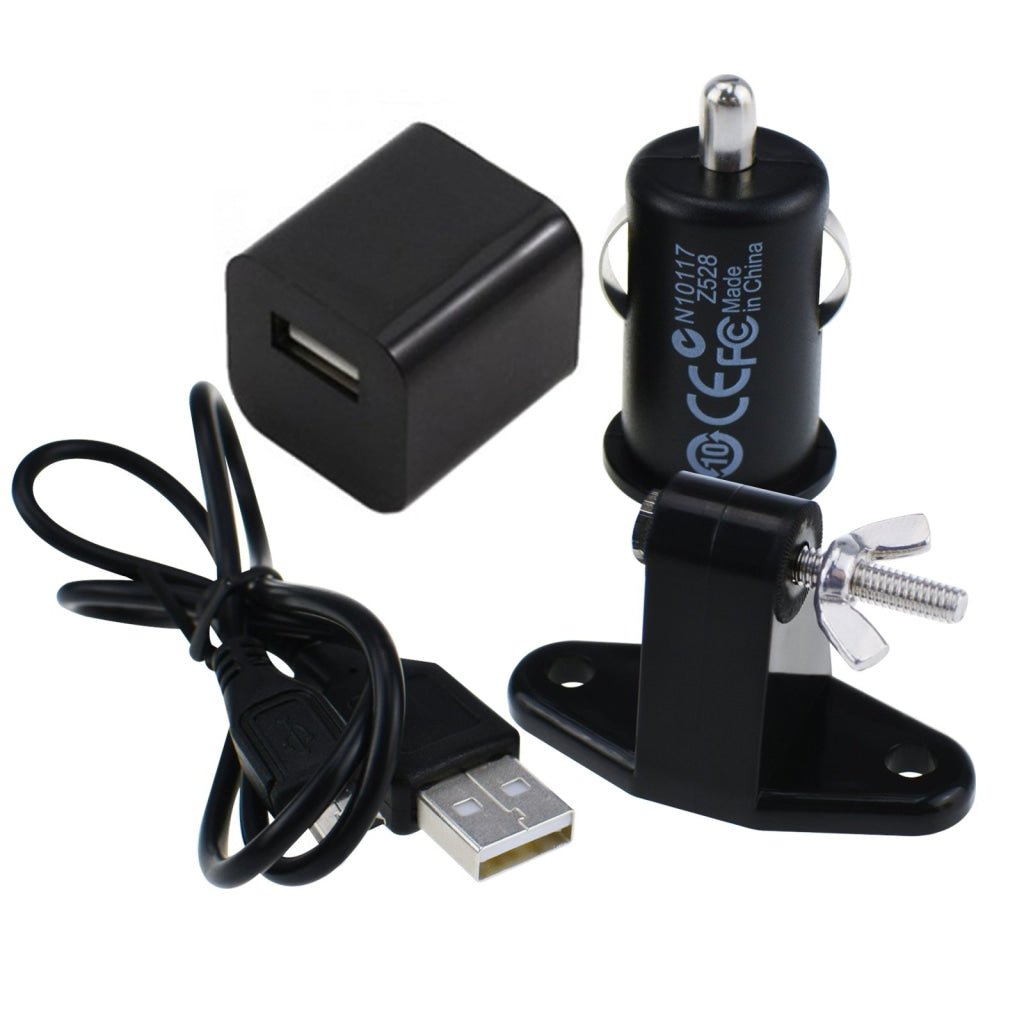

- 1 x Charger Plug
- 1 x USB Charge Cable
- 1 x Neck Strap
- 1 x Vehicle Cigar Plug Charger (you may charge the battery inside the car)
- 1 x Warranty Card
- 1 x English Instruction Manual
- Standard Factory Packaging
-
Optional Item (not included in set)
Please click here to buy this optional item Extra Wireless Sonar Sensoror you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
