This FF-918N2 Fish Finder, equipped wide range wireless sensor and high-contrast 4-level grayscale FSTN LCD, is designed for amateur and professional fishermen alike. Aside from zooming function & adjustable settings, it also has (1) alarm that can be set to alert the user on size of the detected fish and a (2) audible alert once the wireless communication has been cut off, plus this can be used in both freshwater and saltwater such as ocean, river, lake, etc. and even on icy water.

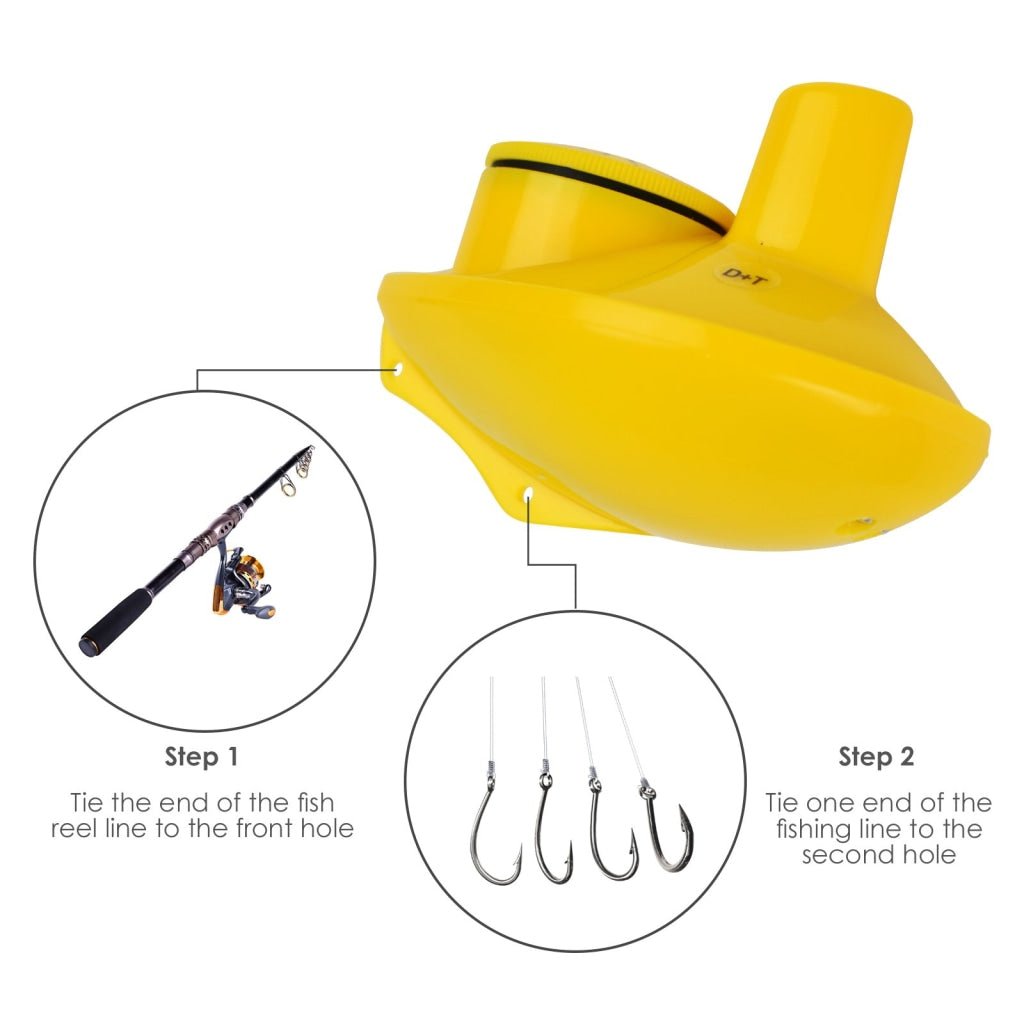

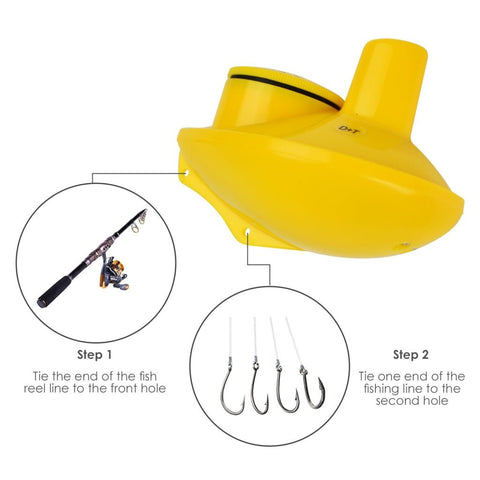

The Wireless Sonar/Sensor can be used with Rod & Lines, Roach Pole and Bait Boats while the Wired Transducer can be mounted in 4 different ways such as Boat Hull, Floats, Poles and Ice. This comes with transducer & mount with suction crater ascent system for hanging on boat, vessel or buoyant boat vessel underneath the water line to which they are utterly submerged.
Features:
- 8-LED Backlight setting
- Adjustable Sonar Sensivity setting
- Adjustable Contrast setting
- Adjustable Depth Range Setting
- Adjustable Fish & Depth alarm setting (with disable feature)
- Adjustable 3 Fish size alarm setting (with disable feature)
- Auto & Manual Zoom Function

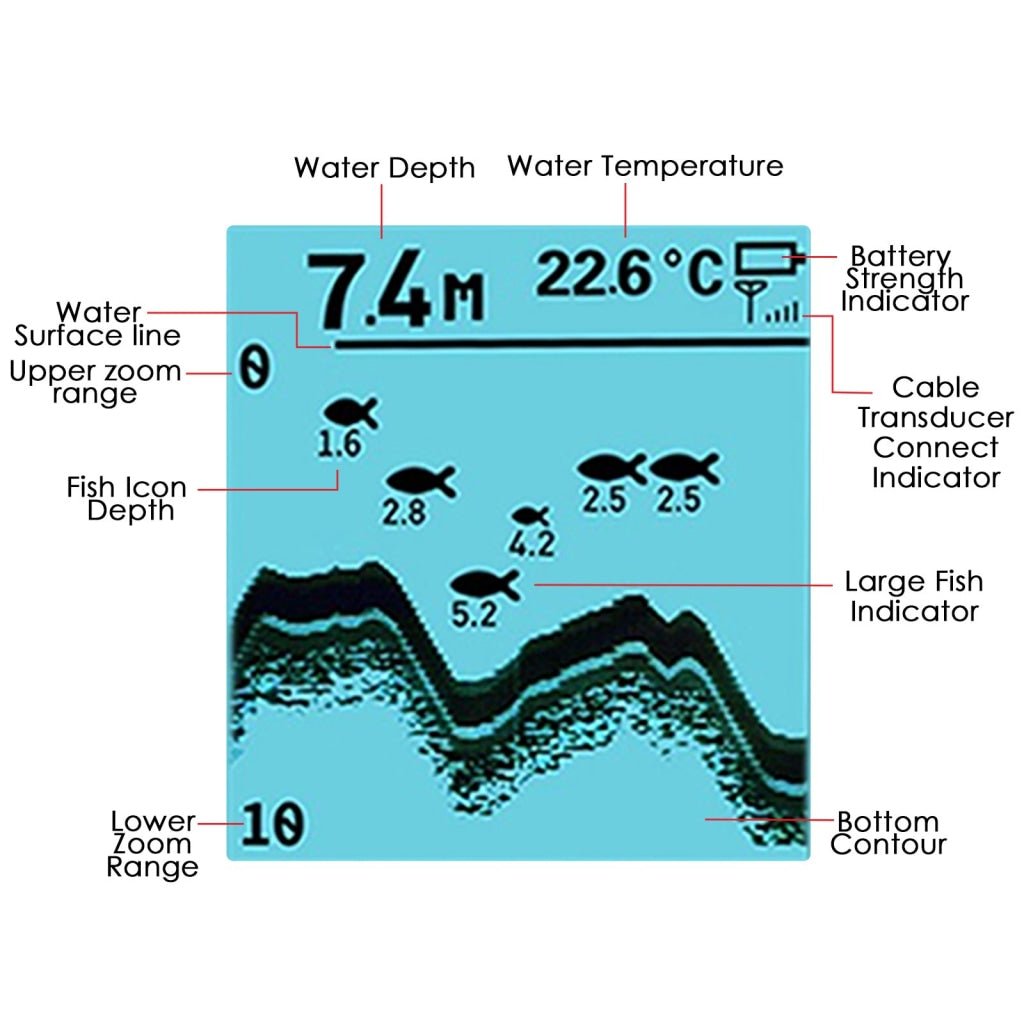

- Display Live-Update of Bottom Contour
- Fish depth location in units or in specific depth figures

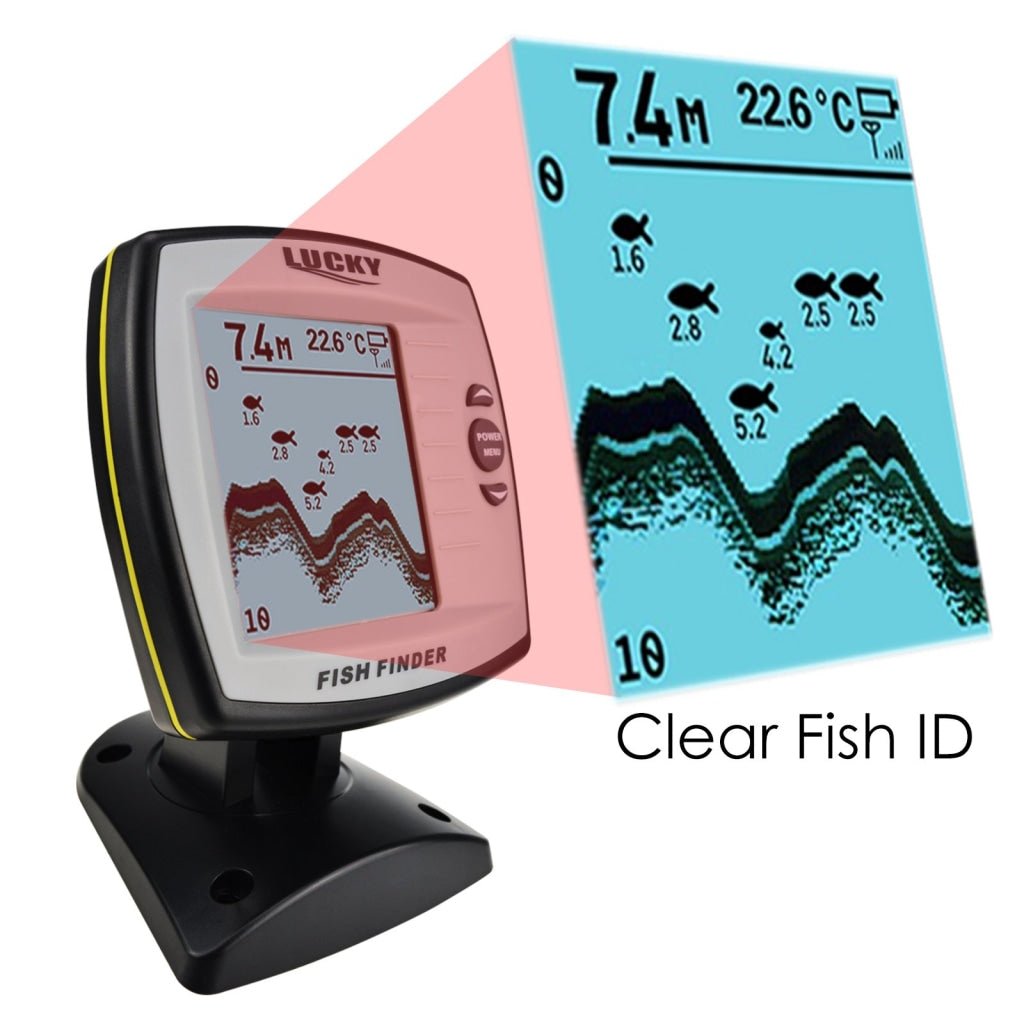

- Fish ID Display: Large, medium and small fish symbols (3 fish size display)
- Bottom View: :( Structure ID, Black, White Line, Inverse )
- Battery strength indicator and Power save mode
- Big and small fish identification, detects schools of fish in any particular area
- Supplies Transducer with Transom Mount w/ crater suction cup system
- Built in memory stores sonar setting when the unit is turned off
Specifications

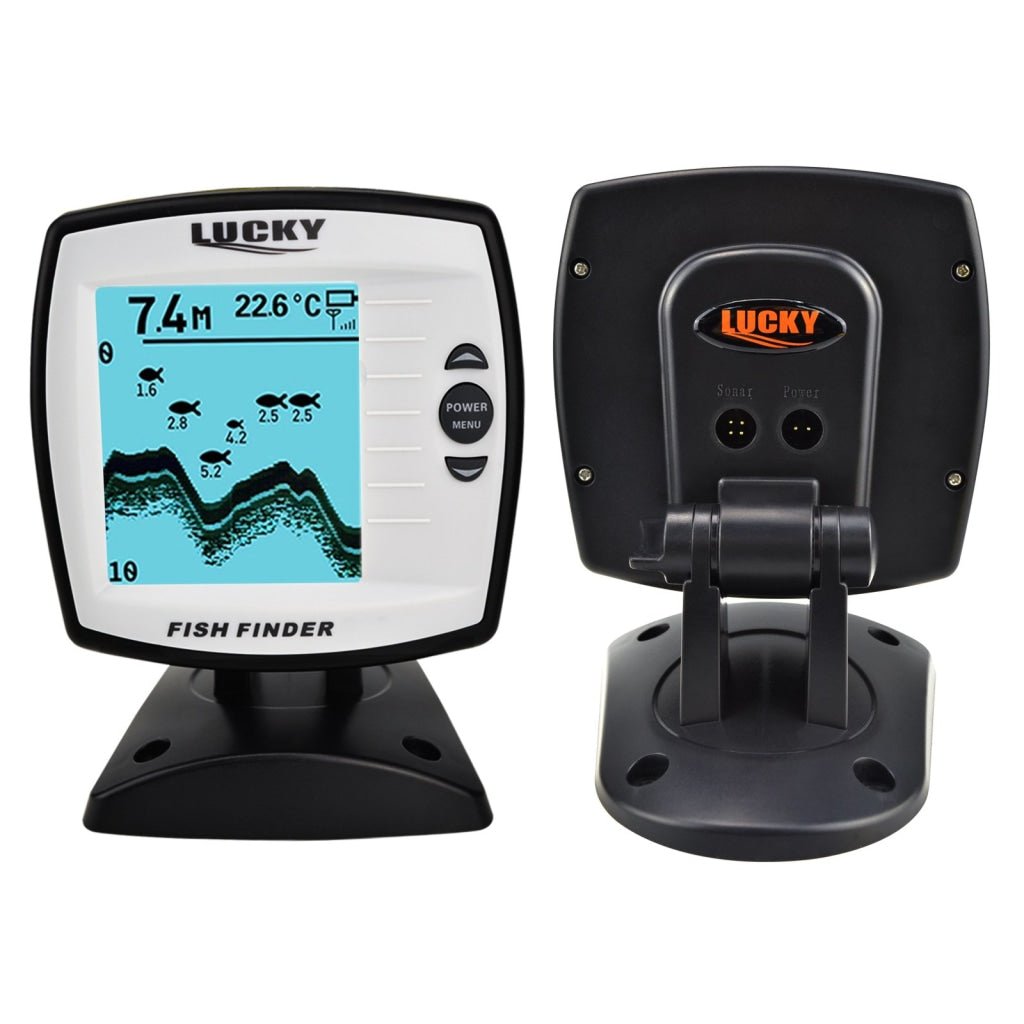

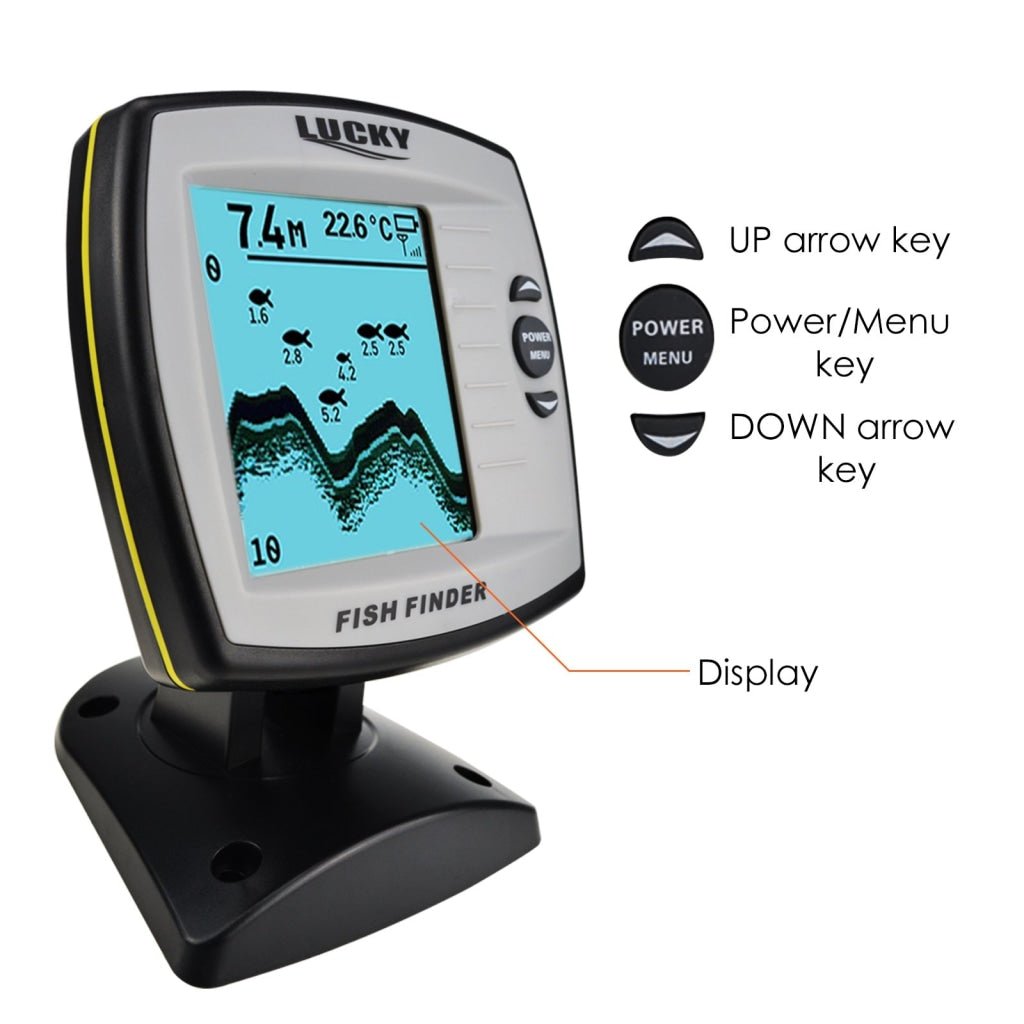

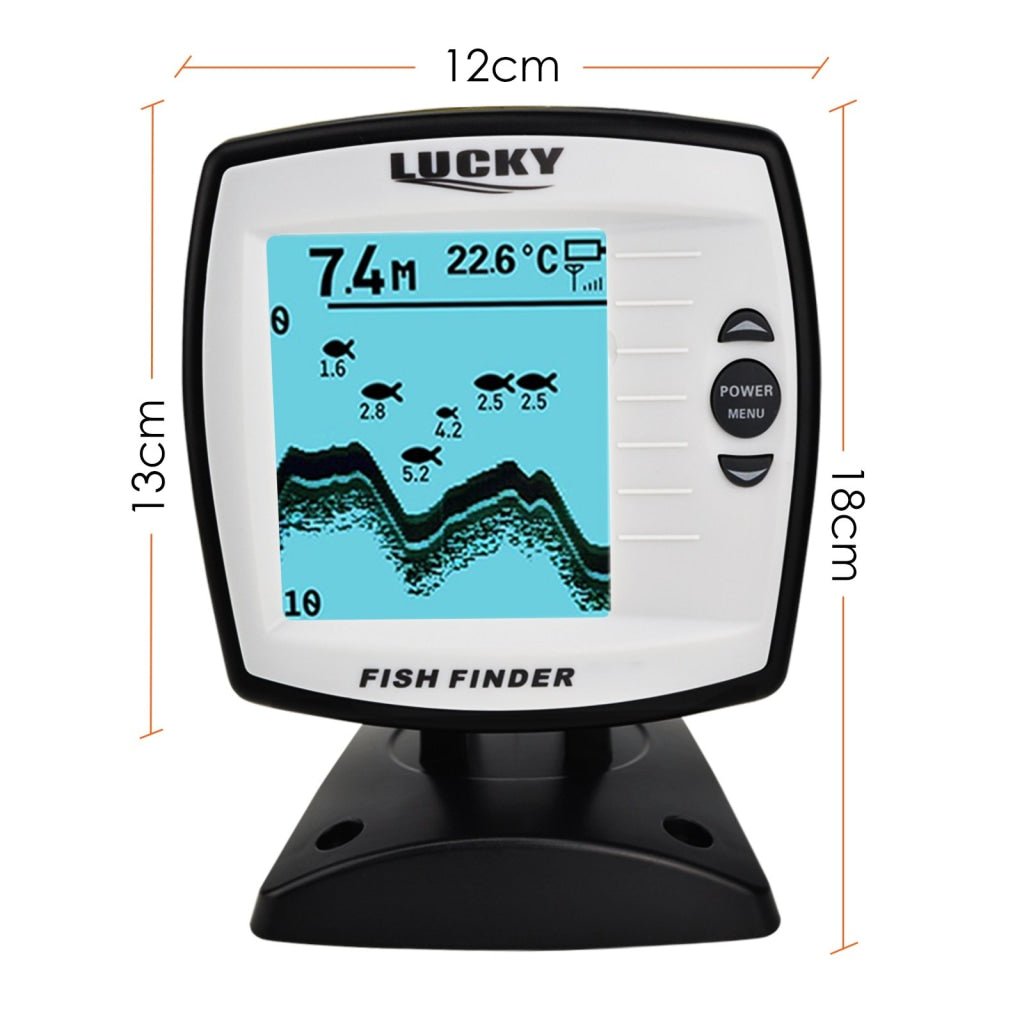

- Display: 3.9inch high-contrast 4-level grayscale FSTN LCD, pixels:160V X 132H
- 2 modes of use: Wireless Mode/Cable Mode
- Back lighting: On/off White LED
- Built-in Temperature Sensor
- Water Temperature Indication: Celsius and Fahrenheit
-

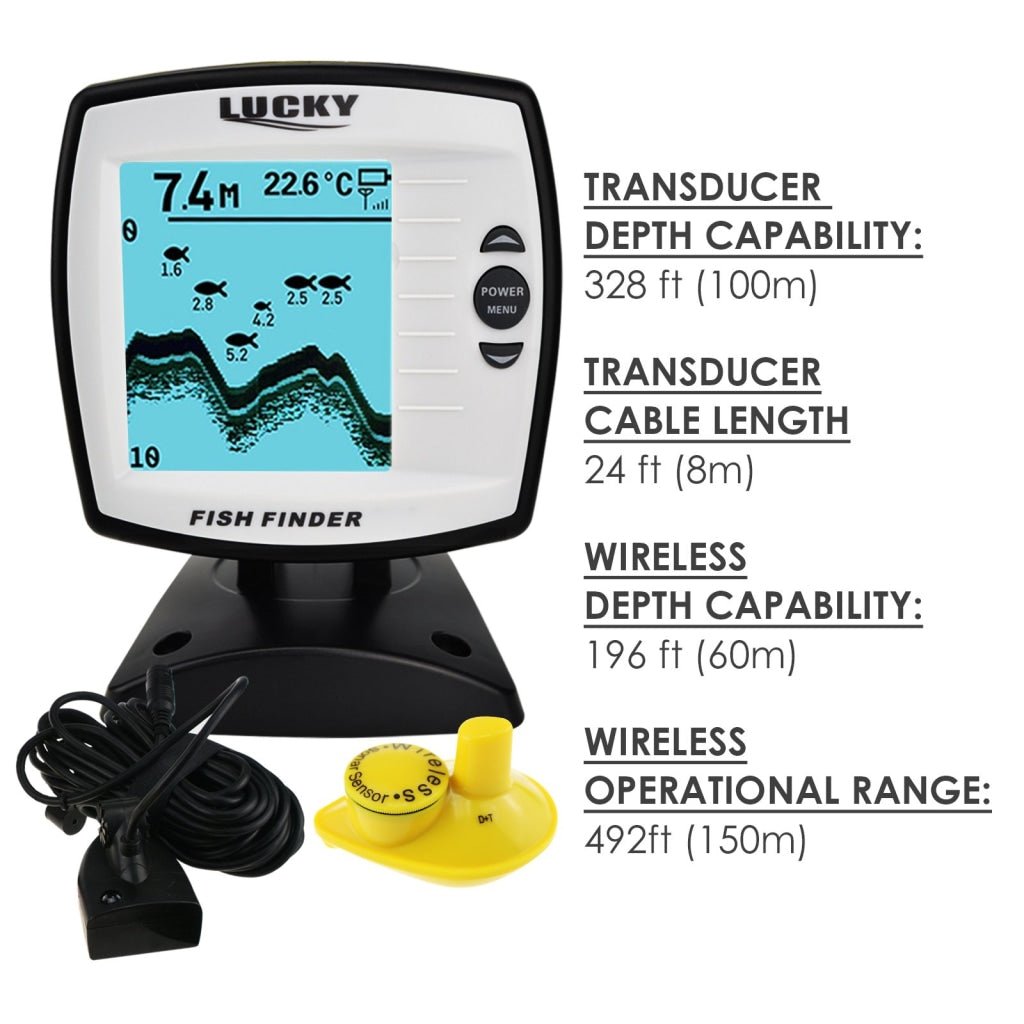

Depth Capability :
- Cable transducer:328 ft (100m)
- Wireless: 147 ft (45m)
-
Sonar Coverage:

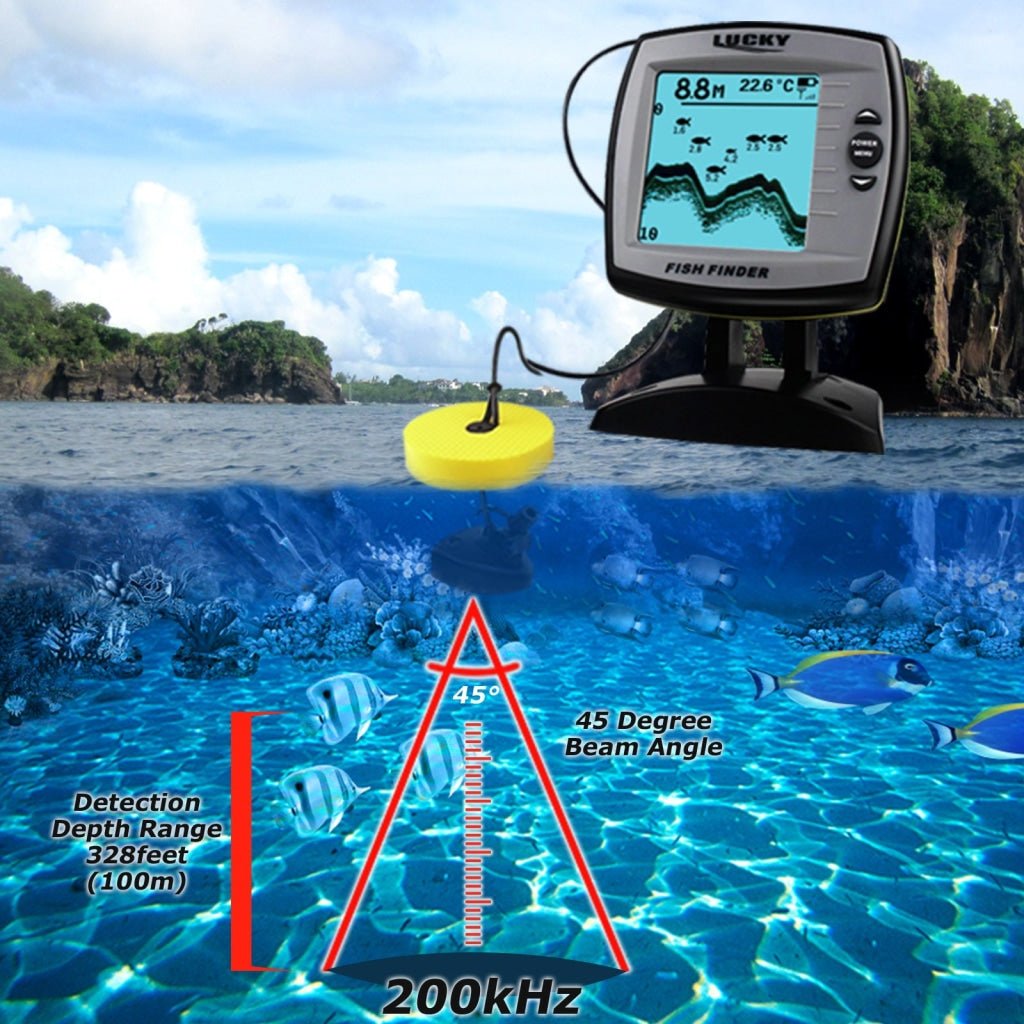

- Cable transducer: 45° beam angle

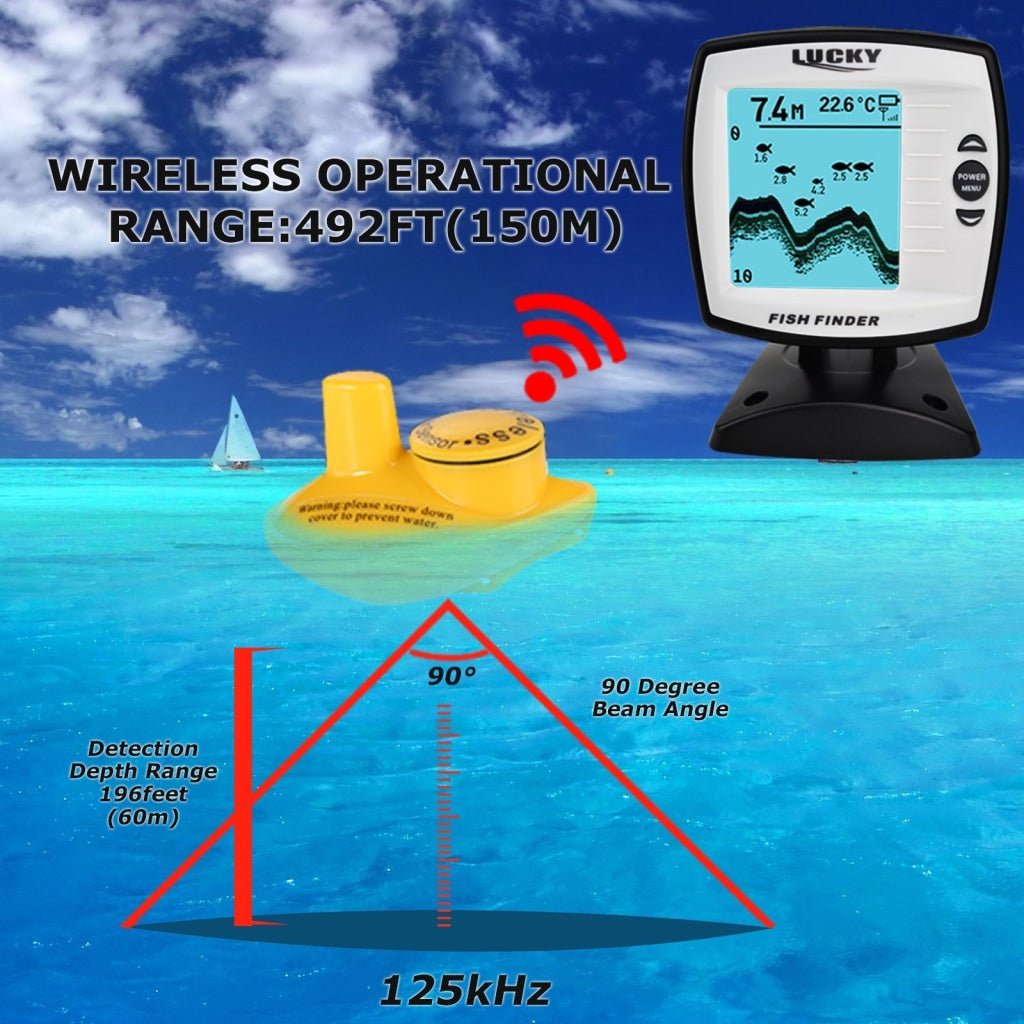

- Wireless: 90° beam angle
-
Sonar Frequency:
- Cable transducer: 200Khz
- Wireless: 125Khz
- Operational Temperature : -14 ~ 122°F(-10°C-50°C)
- Transducer Cable Length: 24 ft.(8m)
- Wireless operational Range : 328ft (100m)
- Wireless Sensor Battery Requirement : 1 x CR-2032 battery(replaceable)
- Power Requirement: 11V ~ 13V DC

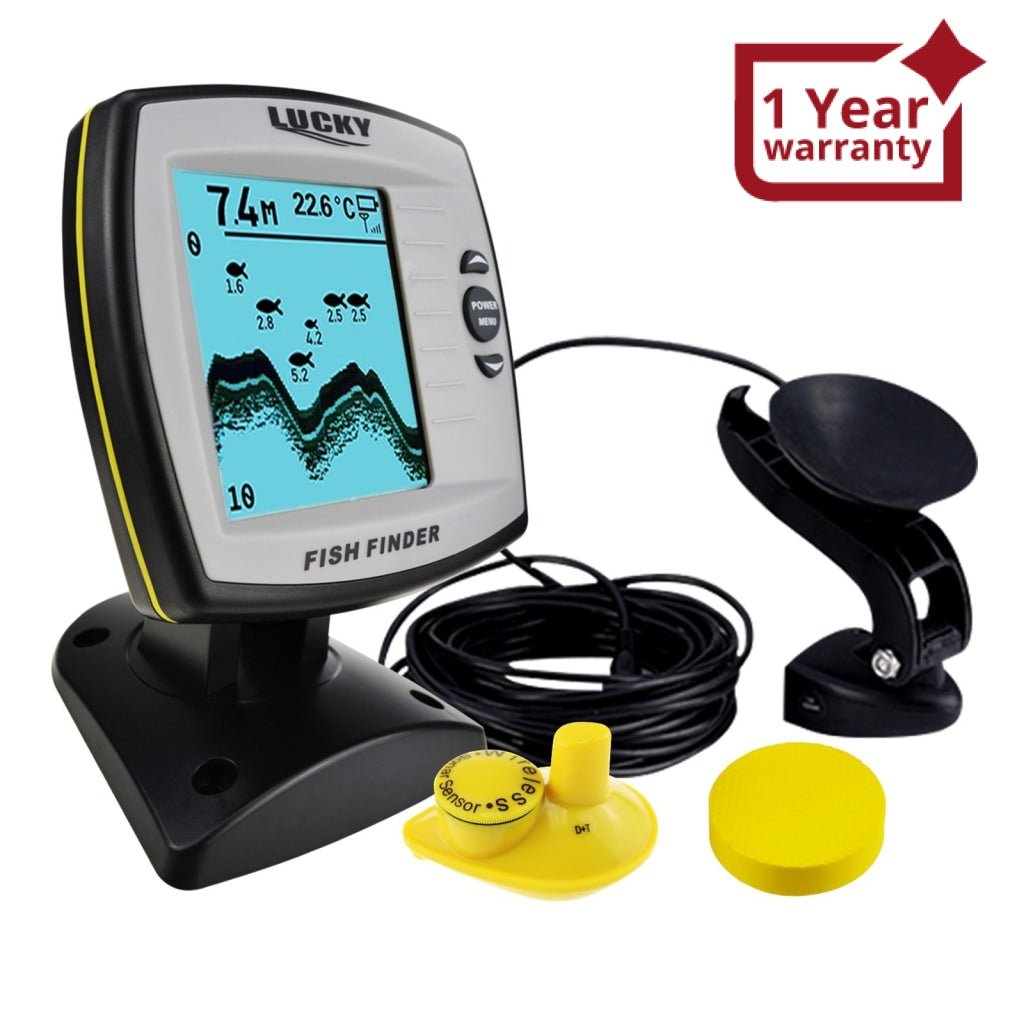

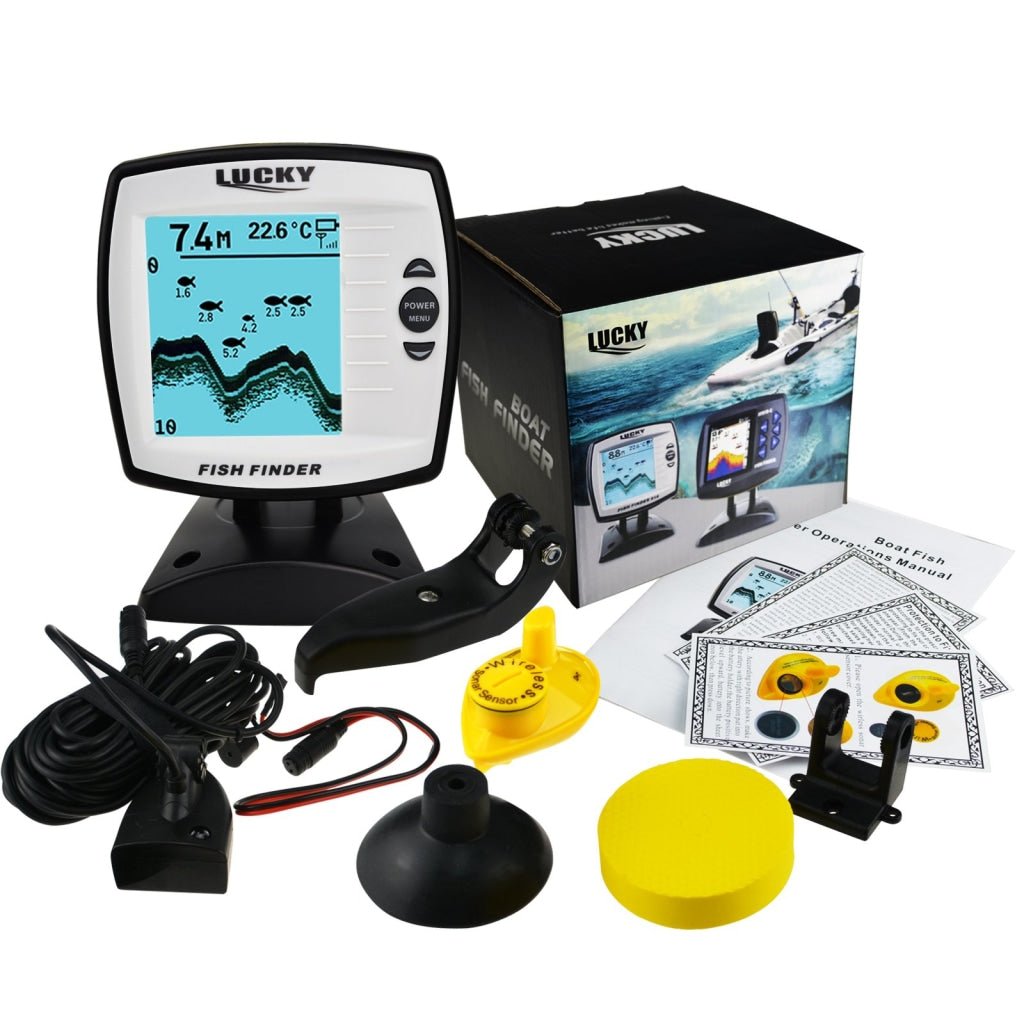

Set Includes
- 1 x 2-in-1 Fish Finder Wireless/Wired (FF-918N2)
- 1 x Wireless sensor (CR-2032 battery included)
- 1 x Transducer
- 1 x Suction cup mount for transducer
- 1 x Power cable
-
English User Manual
-
Optional Item (not included in set)
Please click here to buy this optional item Extra Wireless Sonar Sensoror you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
