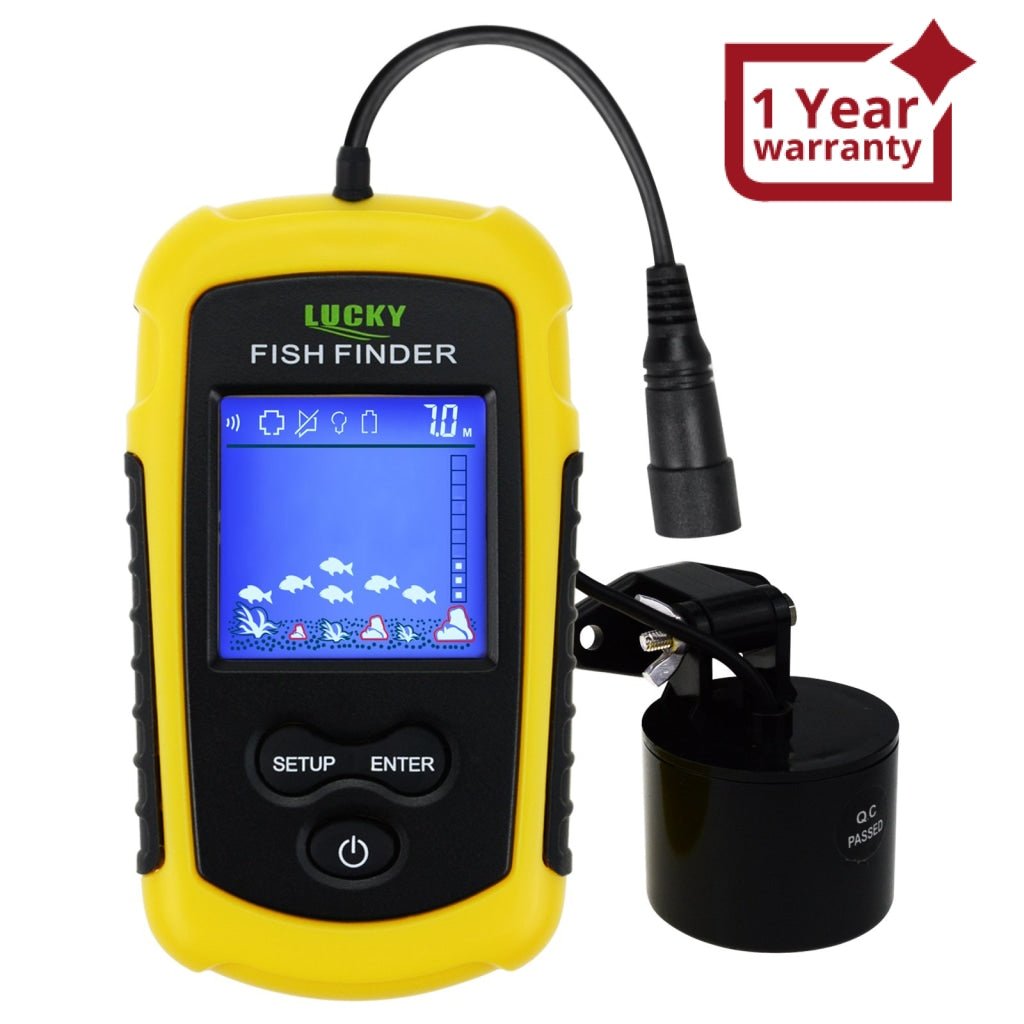

The Lucky FFC1108-1 Sonic Depth Finder with the wired transducer is more effective in some conditions as a beam angle gets narrower by 45 degrees and scanning depth increases to 100 meters. Know the depth of a reservoir, fish location and depth.

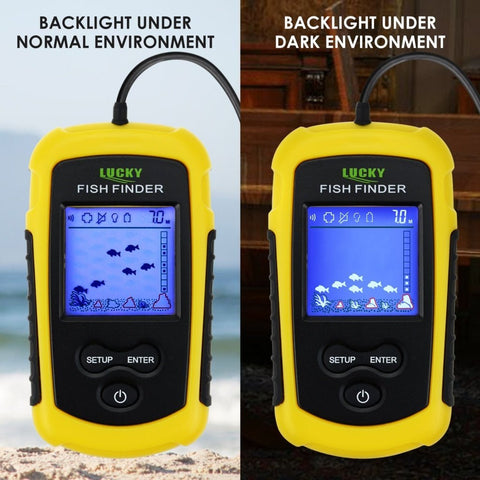

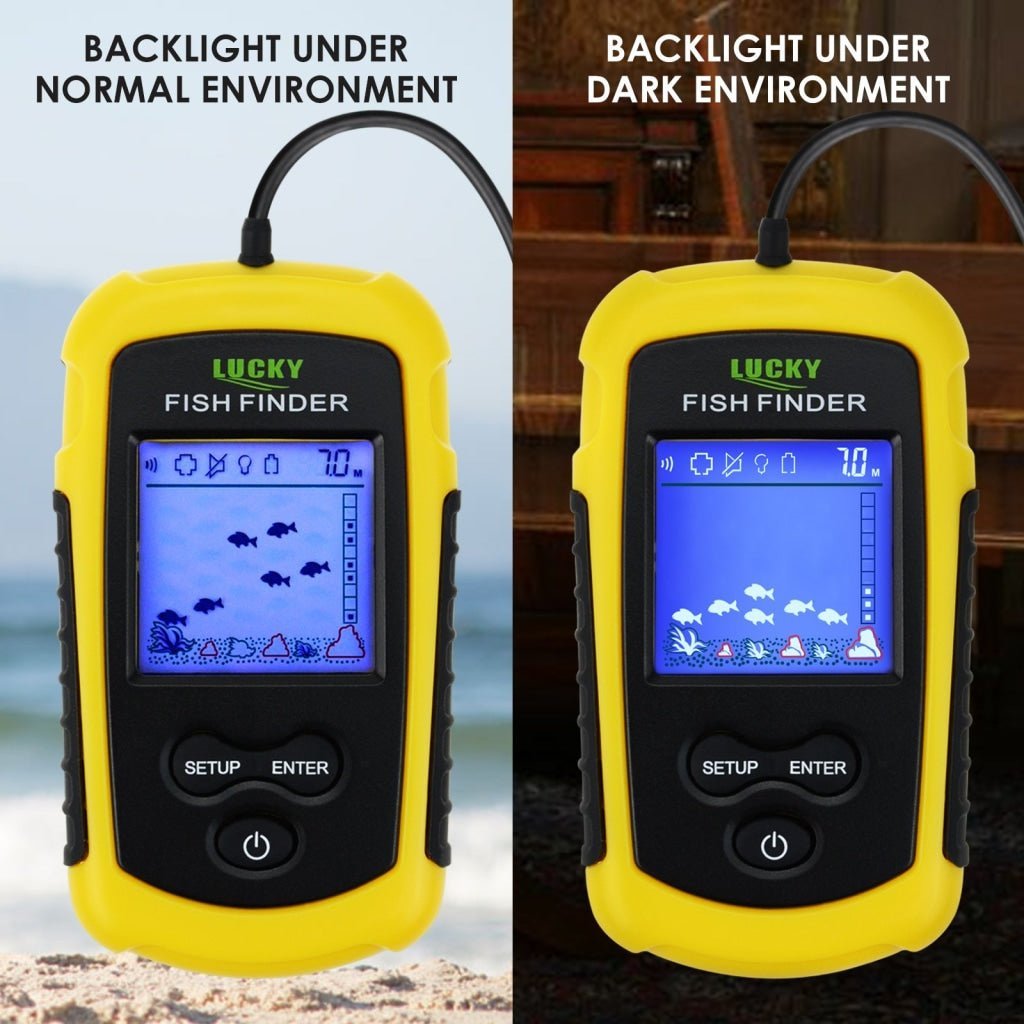

Suitable for NIGHT & DAY FISHING. In dark environment, the backlight brings fluorescent effect on the fish icons and bottom structure. A more contrast and obvious display at nights compared with the other Lucky models.
How to use the Sonar Sensor:
1. Toss the sensor and float into the water(Place the sensor and float in your hand, and toss underhand);

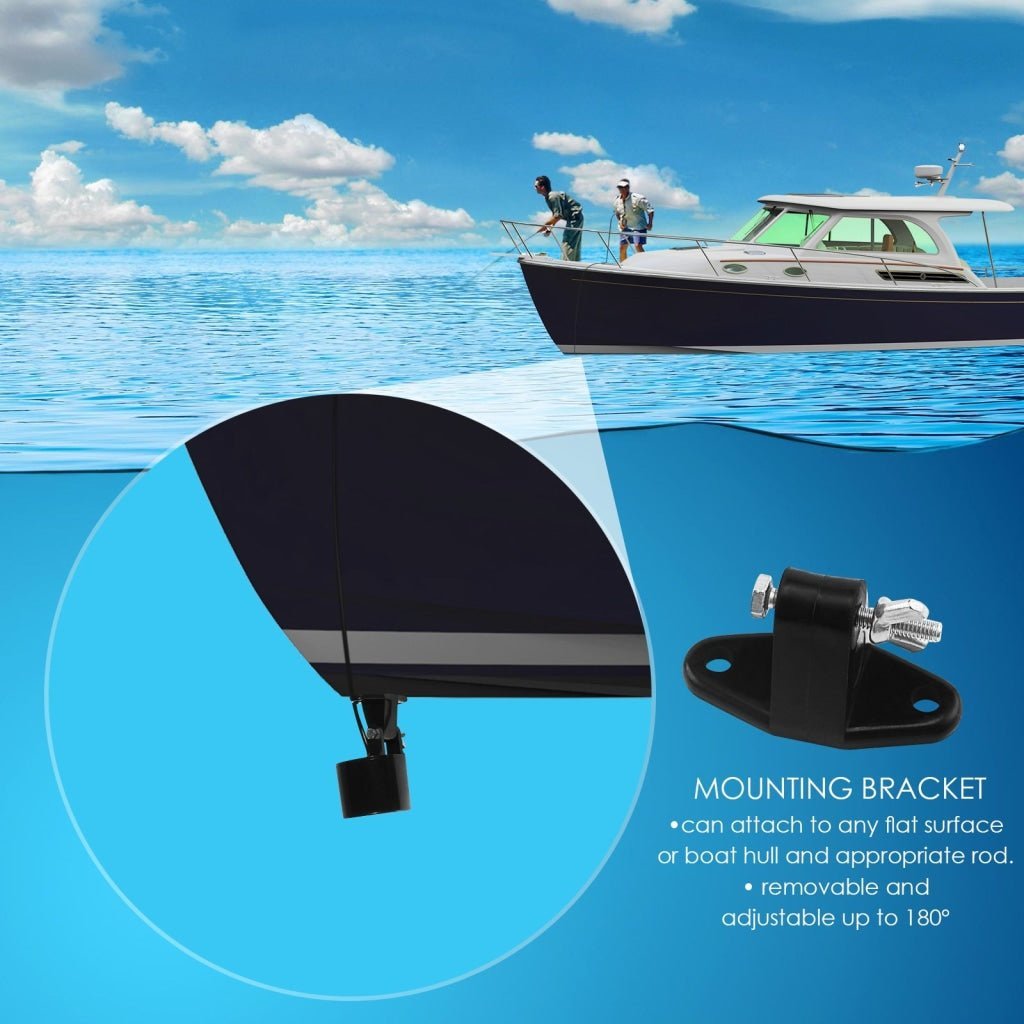

2. Attach the Side-Scan Adapter to the boat hull using the mounting tabs;
3. Attach the sensor to a handle, lower the sensor into the water.

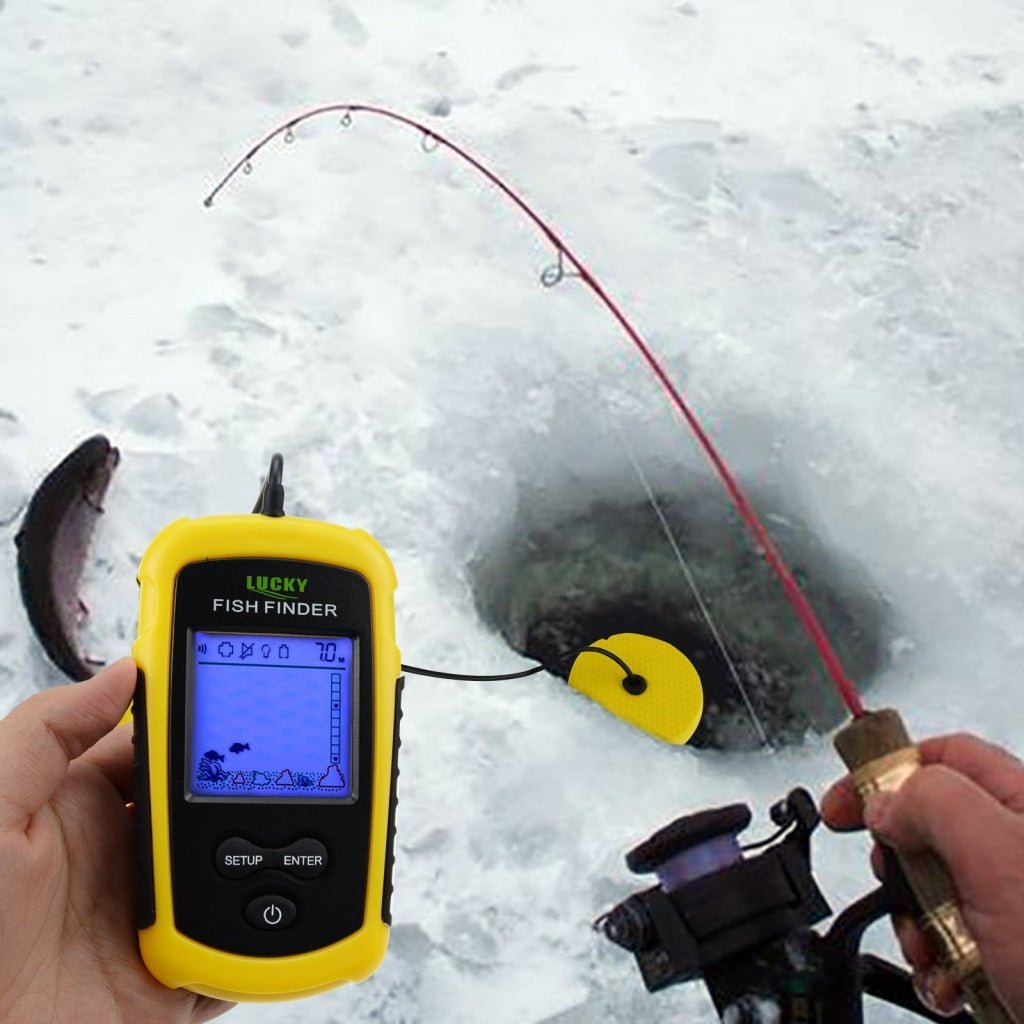

Wide Applications: Turbid Water, Reservoir, Sea, River, Lake, Boat Fishing, Ice fishing, Kayak fishing
Features :

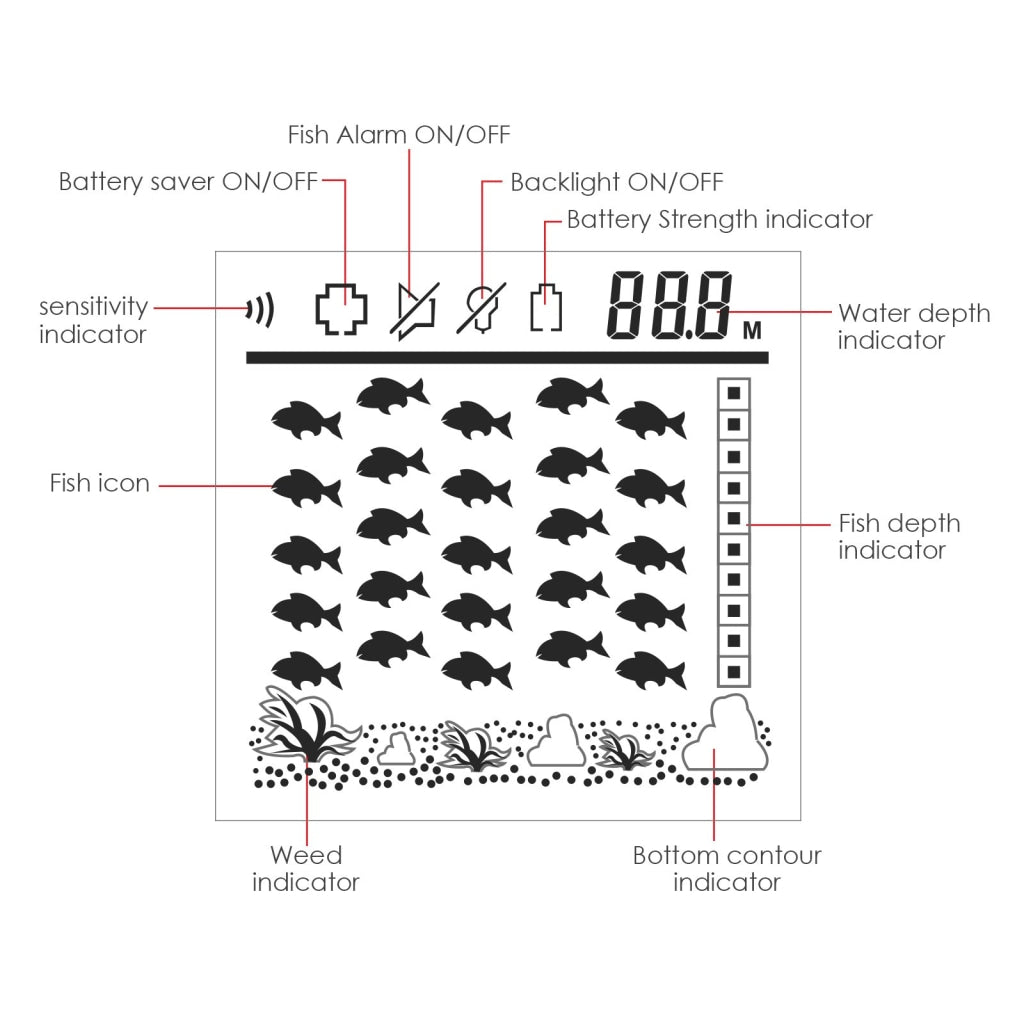

- Fluorescent Backlight in Dark Environment
- Turbid Water Detection
- Material: ABS
- Waterproof Design: Level 4 (spray-waterproof)
- Sensitivity Setting
- Battery Strength Indicator
- Water Depth Indicator
- Fish Depth Signal
- Fish Alarm ON/OFF
- Battery Save ON/OFF
- Fish Icon
- Anti-Clutter

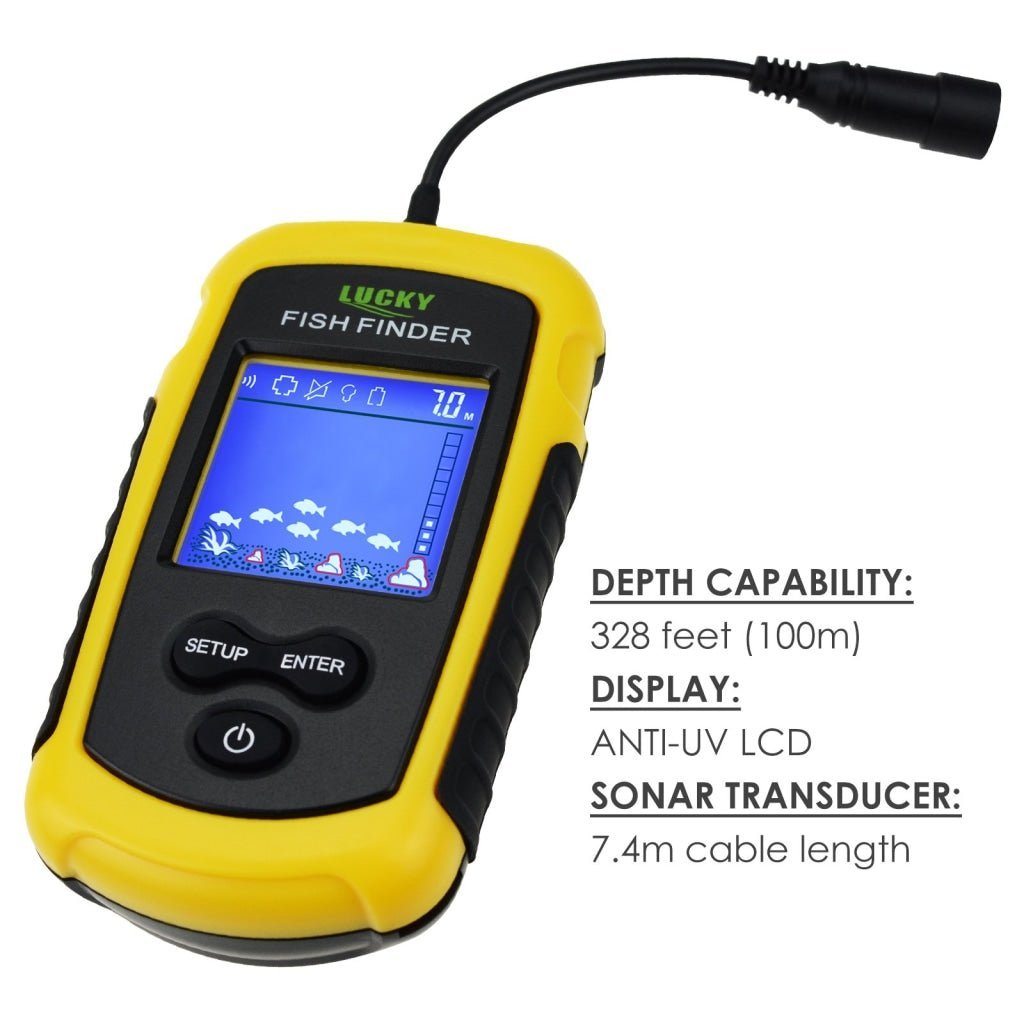

Specifications
- Measure Units: Meters / Feet

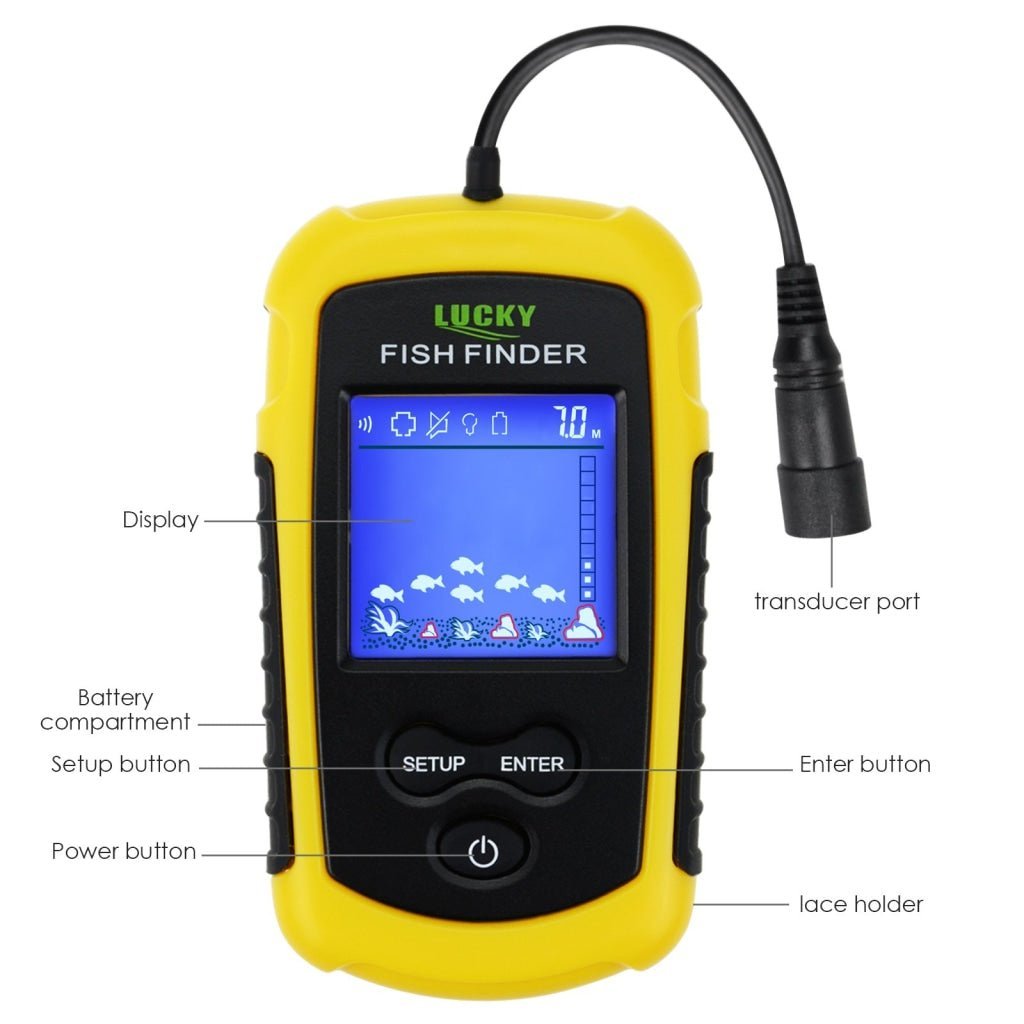

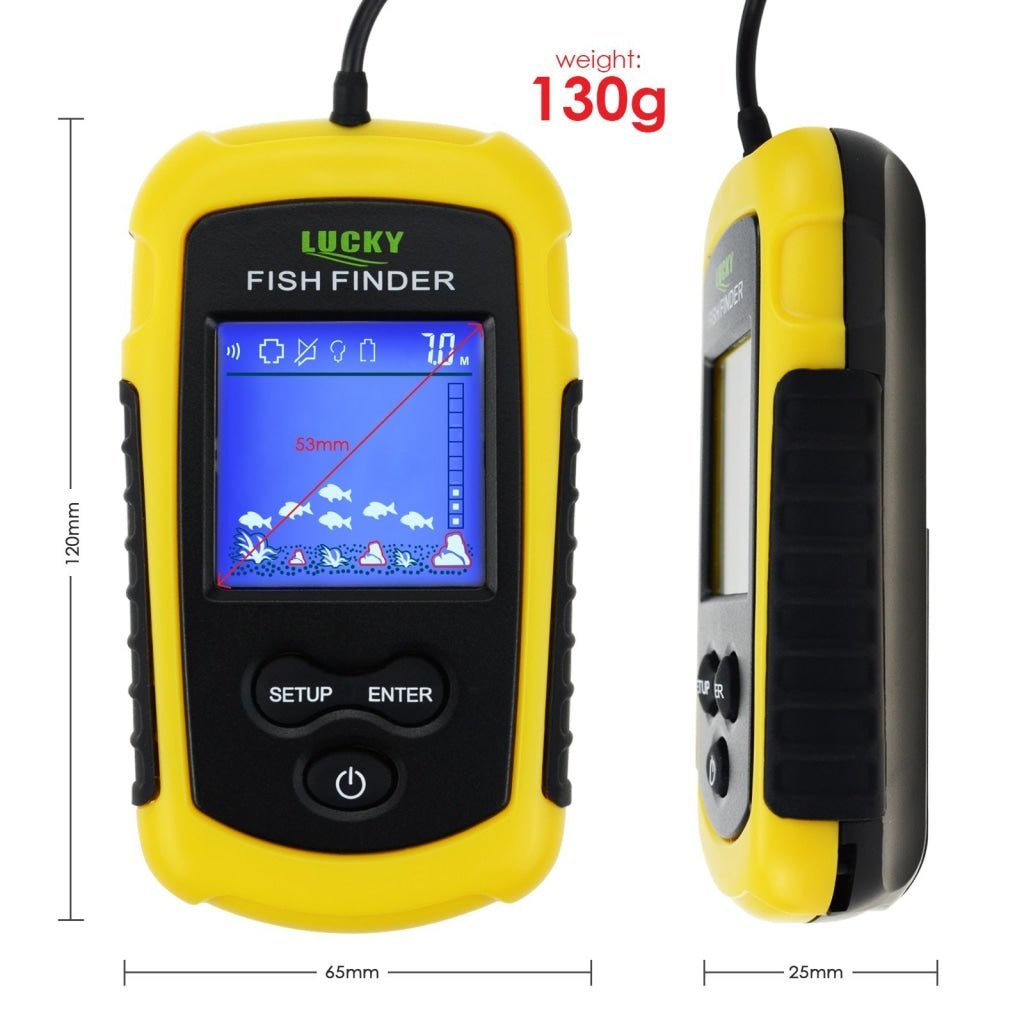

- Display: 2 inch TN/Anti-UV LCD display

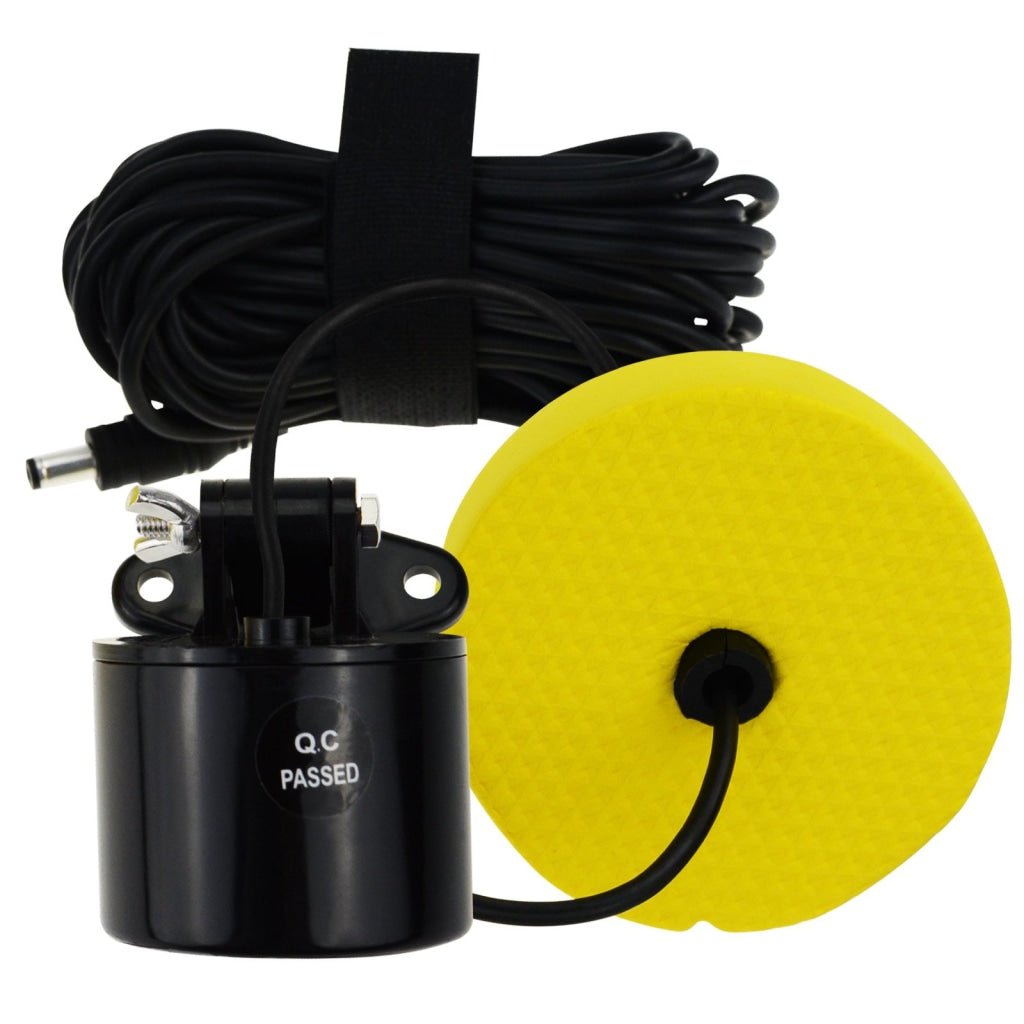

- Transducer Sensor: 4.6cm (46mm) diameter Round shape with 7.5m (25ft) cable
- Depth Range:
- Max: 100 m (328.08 ft)
- Min: 0.7 m (2.30 ft)

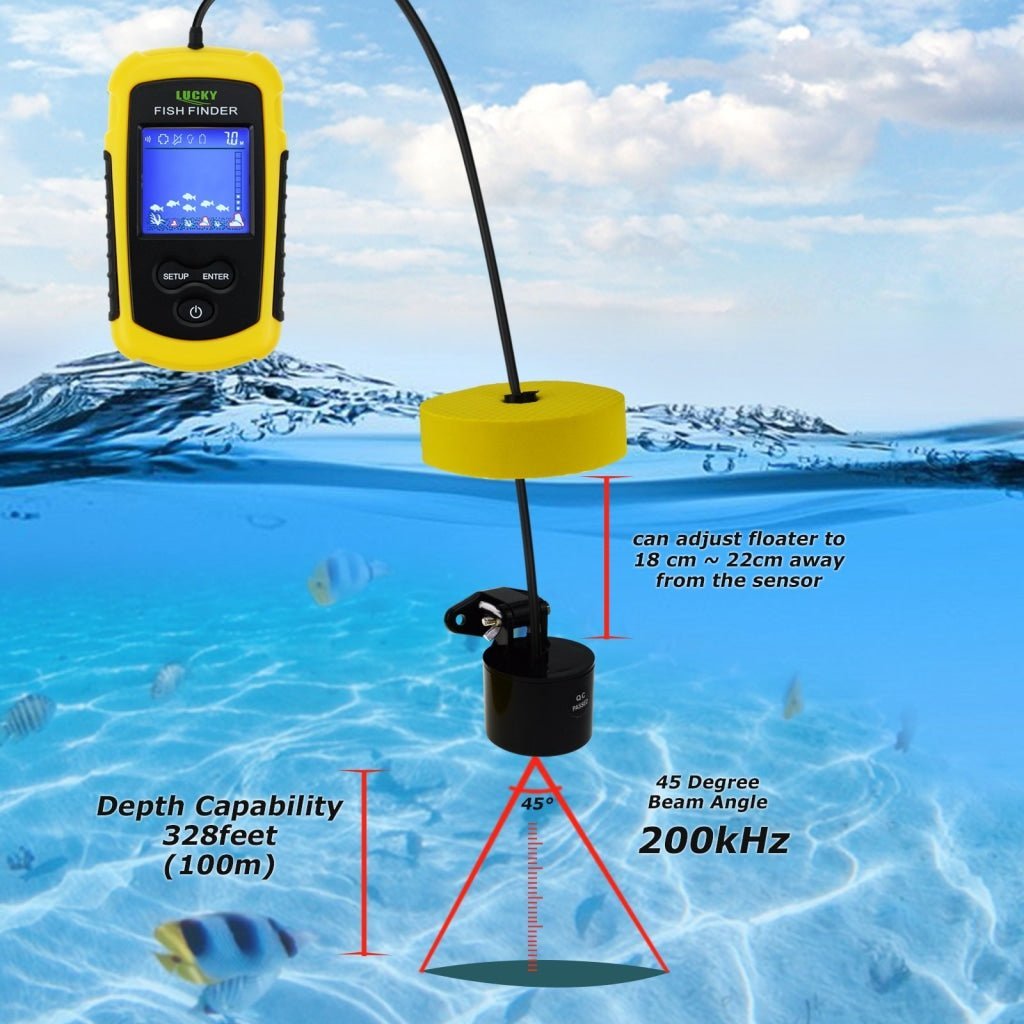

- Sensor Beam Angle: 45 degrees
- Sonar Frequency: 200Khz
- Operating Temperature: -10°C to 50°C

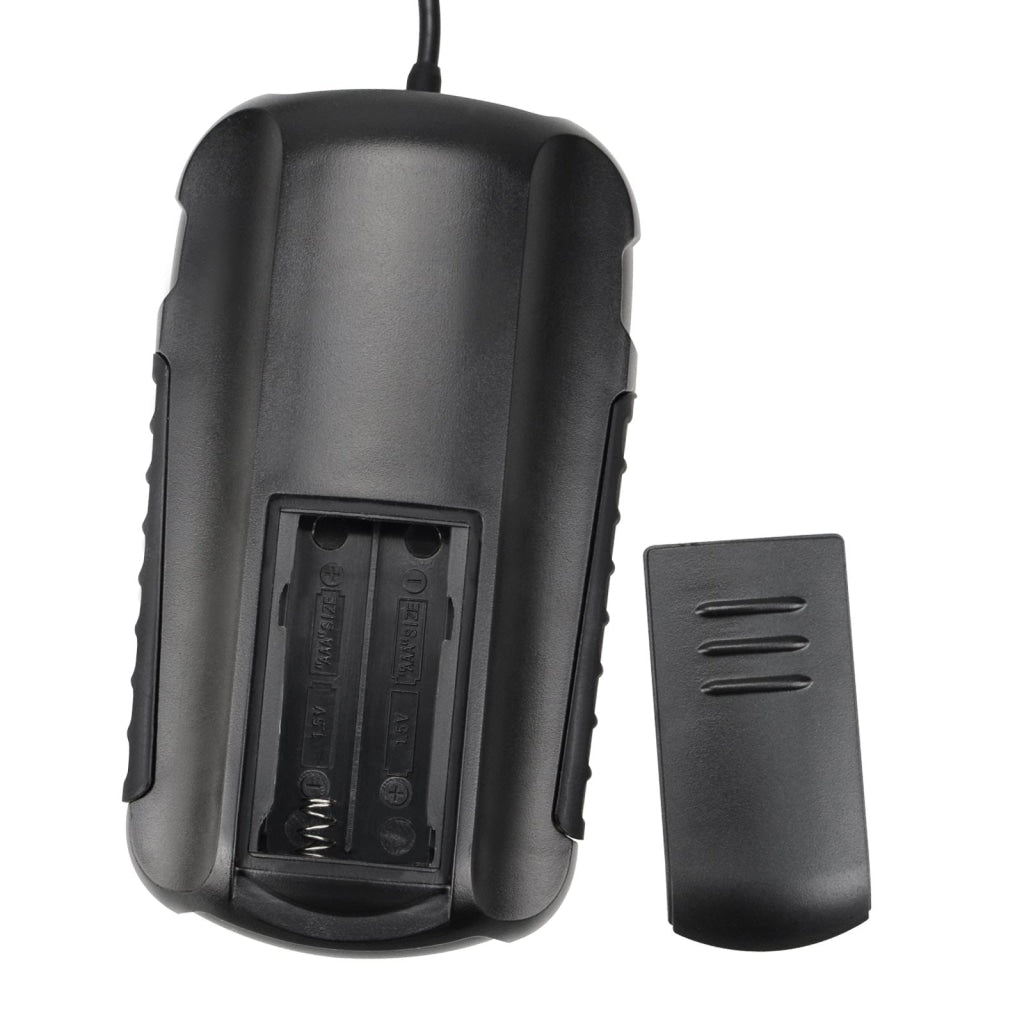

- Uses 4 x AAA batteries (not included)

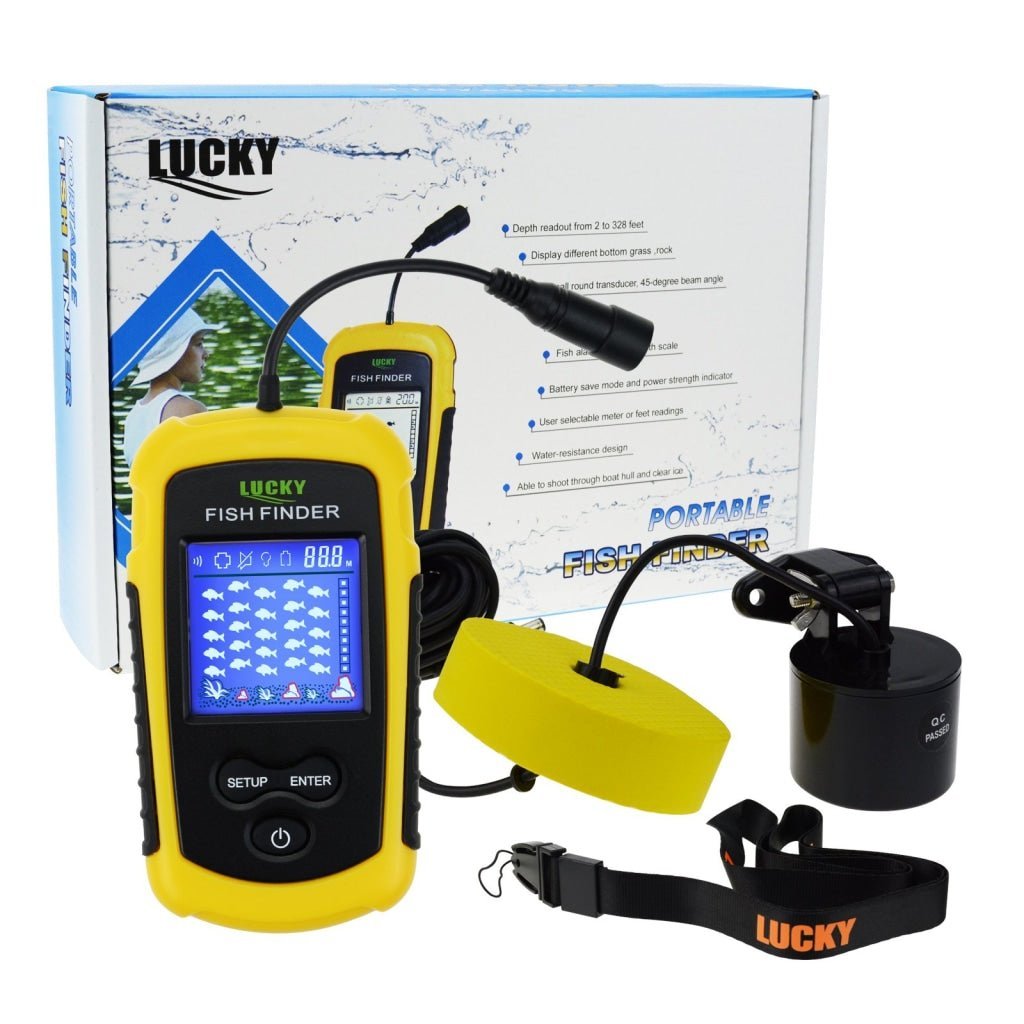

Set Includes:
- 1 x Fish Finder
- 1 x 4.6 cm or 46 mm Diameter Round Sonar Sensor with 7.4 m Cable
- 1 x Bolt
- 1 x Wing Nut
- 1 x Neck Strap
- Print coloured retail box
