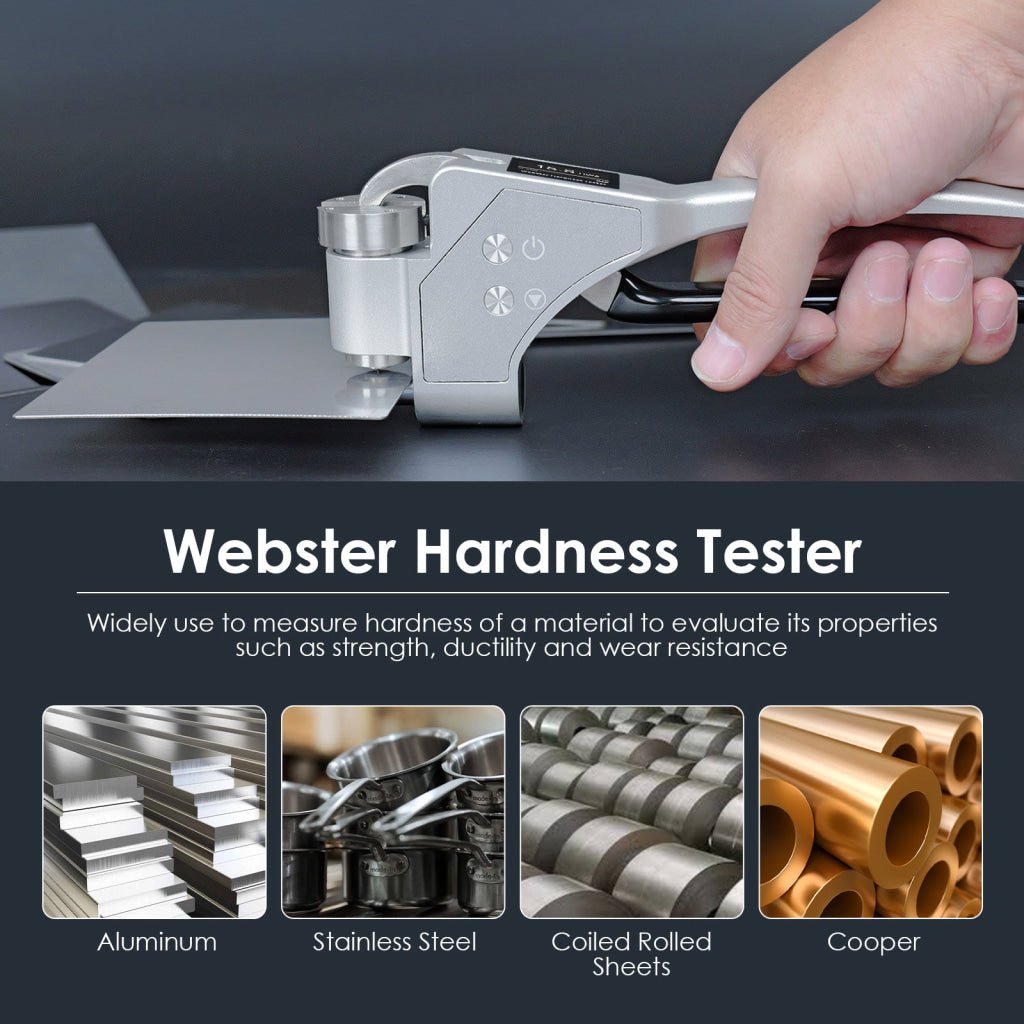

This Webster Hardness Tester is a portable instrument for measuring the hardness of aluminum alloys, brass, copper, and soft steel. It adopts the eddy current induction principle to determine hardness. The Webster scale (HWA) is one of the hardness scales the instrument can measure, along with Rockwell (HRE, HRF, HRB), Vickers (HV), and Brinell (HB).
Features:
- Wide range of metal materials inspection
- Digital OLED screen display
- Auto-lock data measurement
- 6 Selectable hardness scale
- Easy calibration by just a single press
- High-precision measurement
- Handheld, compact, and portable
- Store 9 sets of data

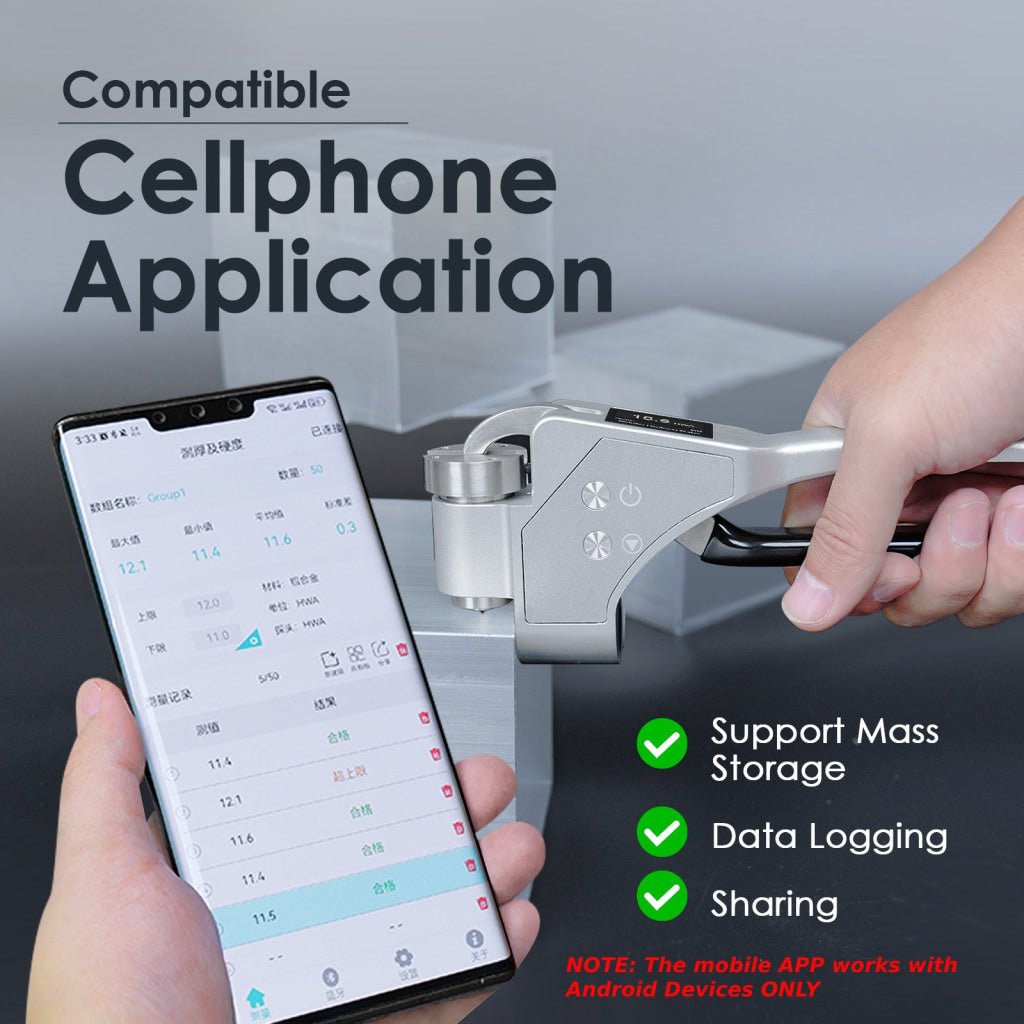

- Bluetooth communication module and can be connected to a mobile device via APP (compatible with Android devices only)
Specifications:
- Display: 128 * 64 dot matrix OLED

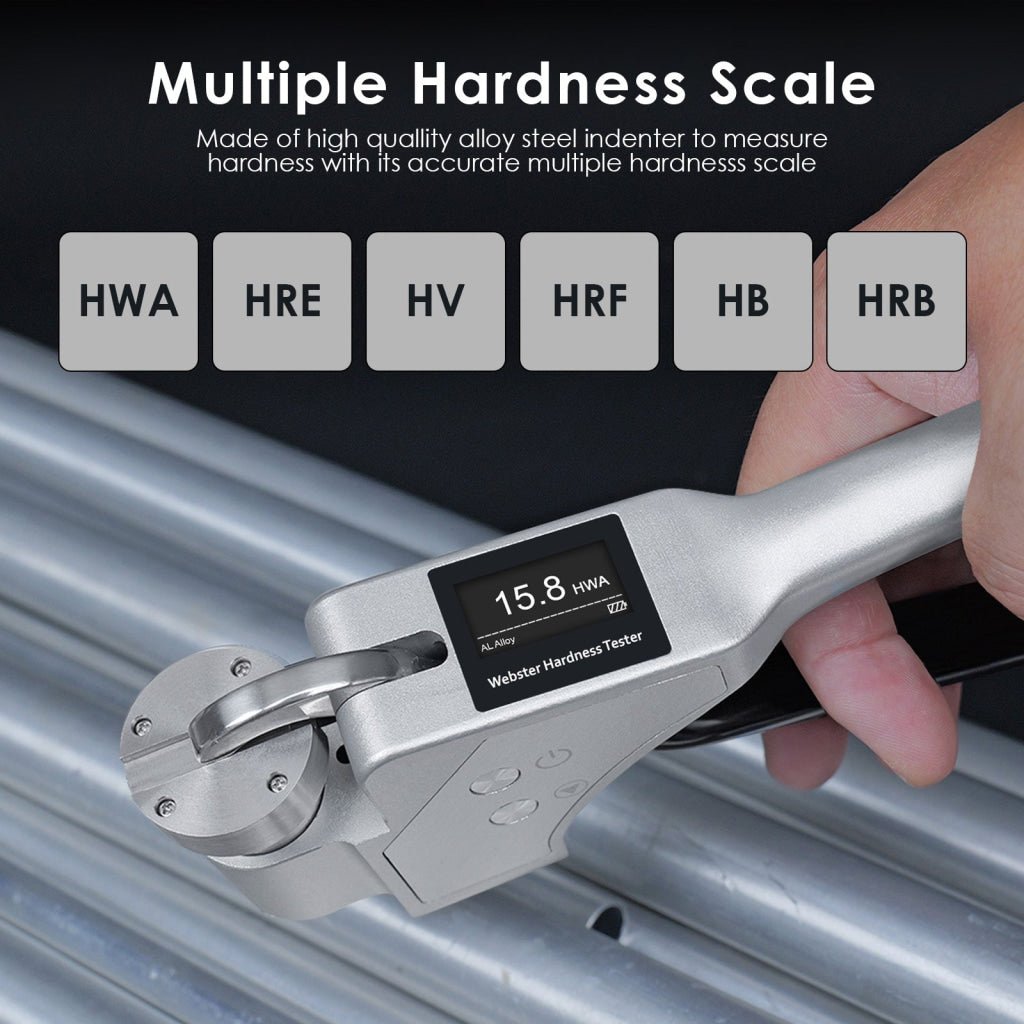

- Hardness Scales: HWA. HRE, HRF, HRB, HV, HB
- Measurement Range:
- HWA: 0~20
- HRE: 23.5~110
- HRF: 26.2~105.5
- HRB: 0~85.3
- HV: 49~155
- HB: 35.2~153
- Resolution: 0.1HWA
- Accuracy: ±0.5HWA
- Repeatability: 0.5HWA
- The thickness of measured material: 0.6~8mm
- The inner diameter of the measured material: >10mm
- Power supply: Rechargeable lithium battery 3.7V@400mAh, full charge for over 5000 continuous measurements
- Charging Port: USB (Type-C)
- Supply Voltage: DC5V
- Working Environment: -10~50℃，0~85%RH（no condensation）
- Storage Environment: -10~60℃，0~85%RH（no condensation）
- Size: 203 x 97 x 30mm
- Weight: 484g
Set Includes:
- 1 x Webster Hardness Tester
- 1 x USB Type C Cable
- 1 x Standard Hardness Block
- English Instruction Manual
- Standard Factory Packaging
