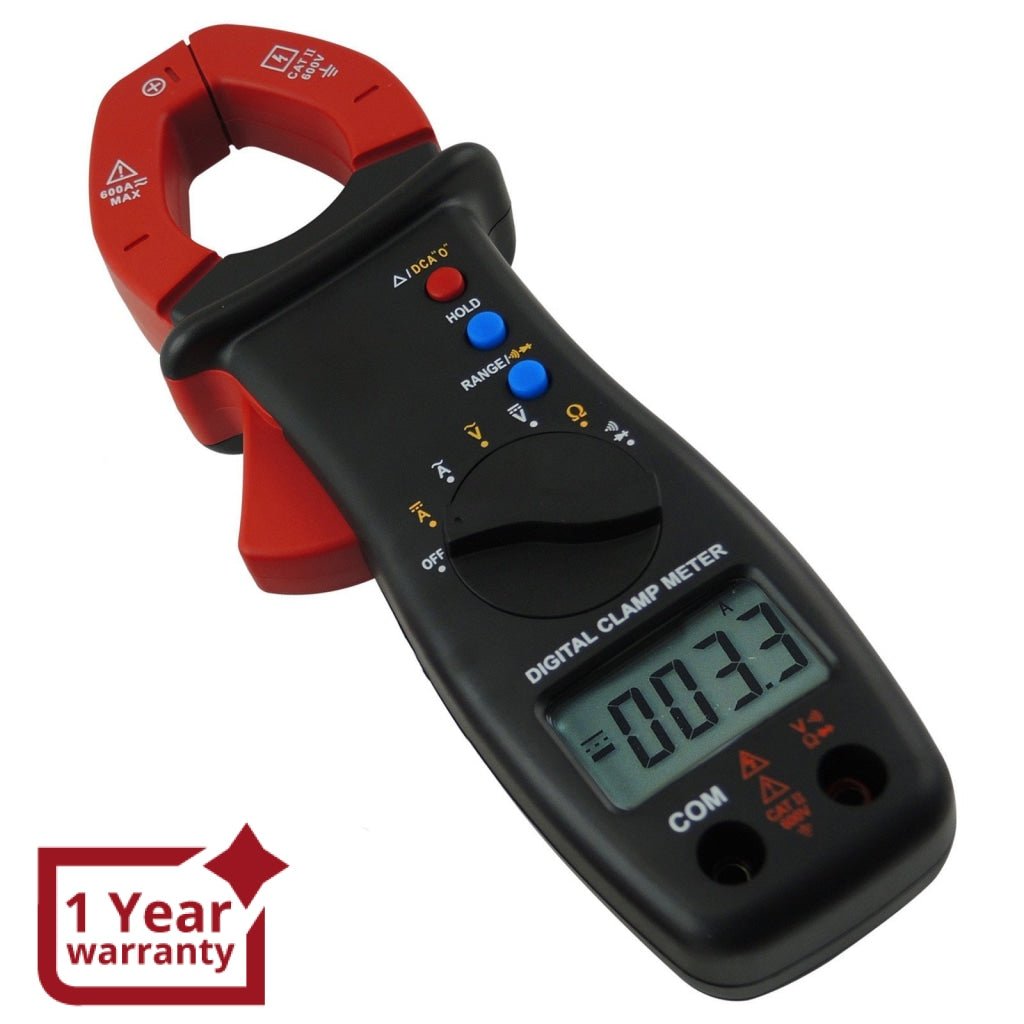

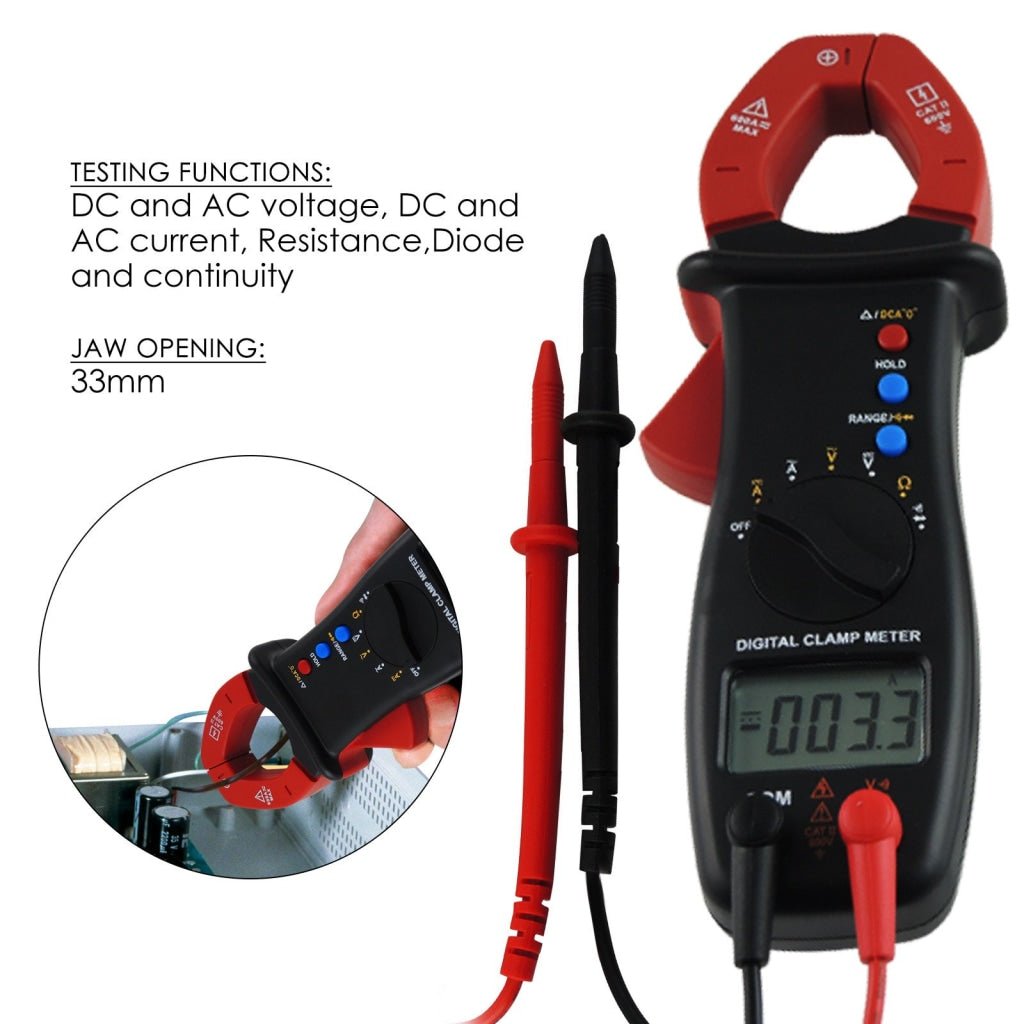

This Digital Clamp Meter has 3 ¾ digit autorange. It is used for measuring DC and AC voltage, DC and AC current, Resistance,Diode and continuity. It has 33mm jaw opening, easy to operate making an ideal tool for measurement.
Features:
- 3 ¾-digit LCD, with a max. reading of 3999
- DCA, ACA measurement
- Overload protection
- Data-hold function
- Zeroing function
- IEC-61010 CATII

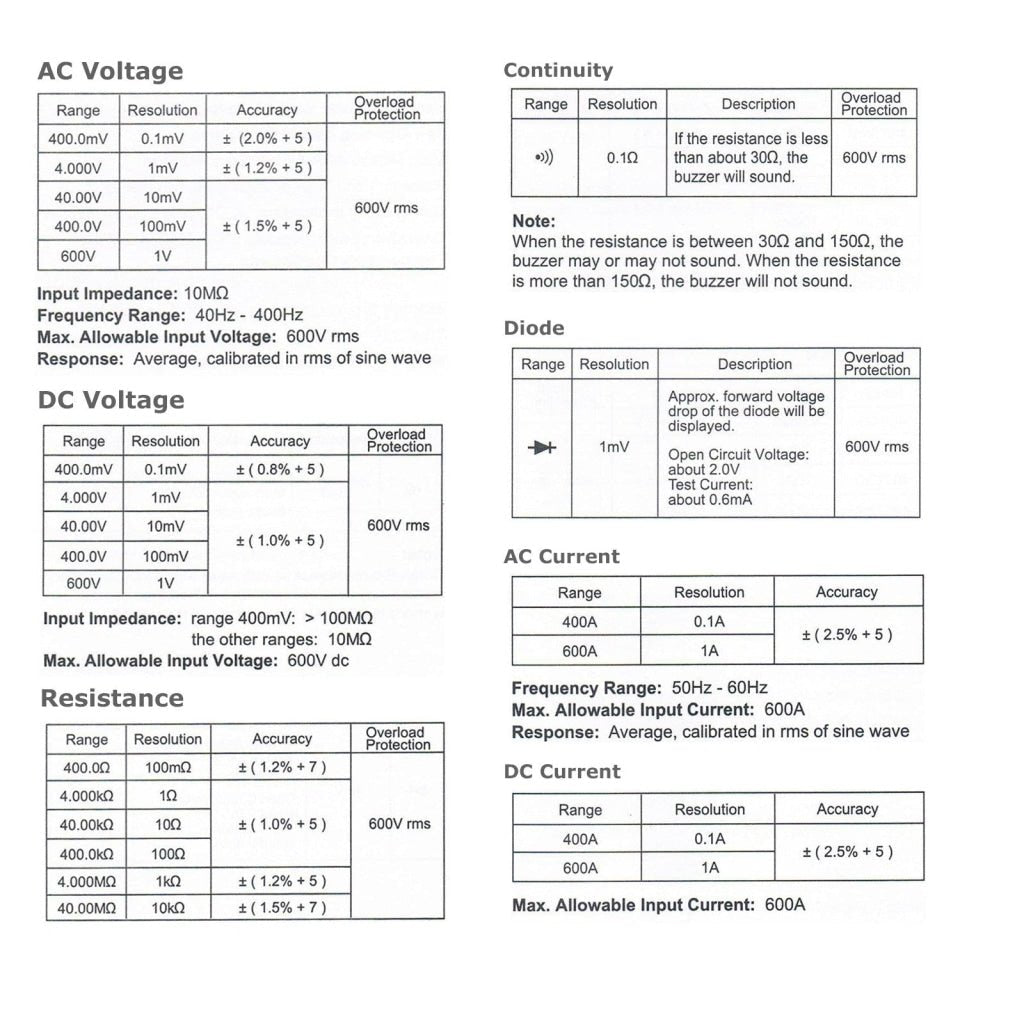

Specifications
- Display: 3 ¾-digit LCD, with a max reading of 3999
- Negative Polarity Indication: negative sign "-" shown on the display automatically
- Overrange Indication: "OL" shown on the display
- Sampling Rate: about 3 times /sec

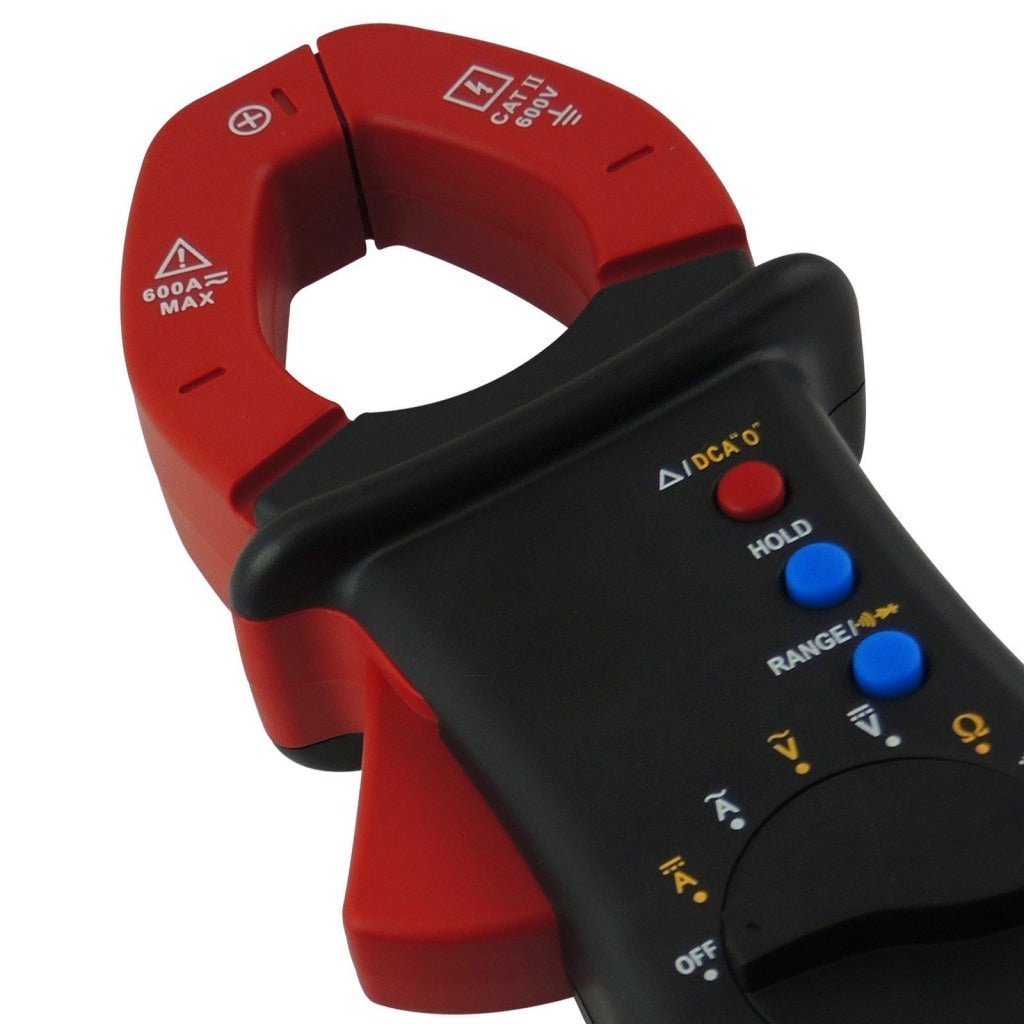

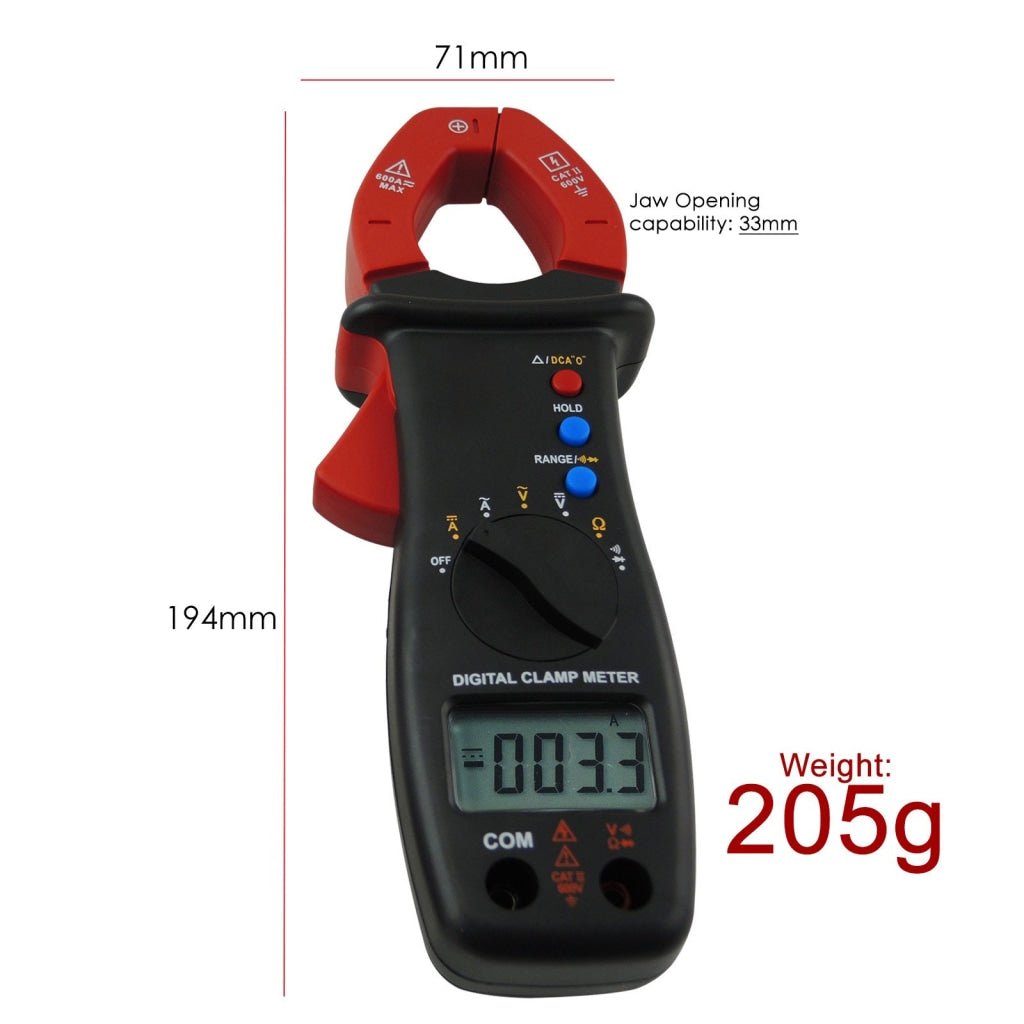

- Jaw Opening capability: 33mm
- Max. Measurable Conductor: ϖ28mm
- Battery: 2 x 1.5, AAA or equivalent
- Low Battery Indication: shown on LCD display
- Operation Environment: 0°C~40°C, <75%RH
- Temperature Coefficient: 0.2 x (specified accuracy)/°C (<18°C or >28°C)
- Storage Environment: -10°C ~50°C, <85%RH
- Size: 194 x 71 x 38mm
- Weight: about 205g (including battery)

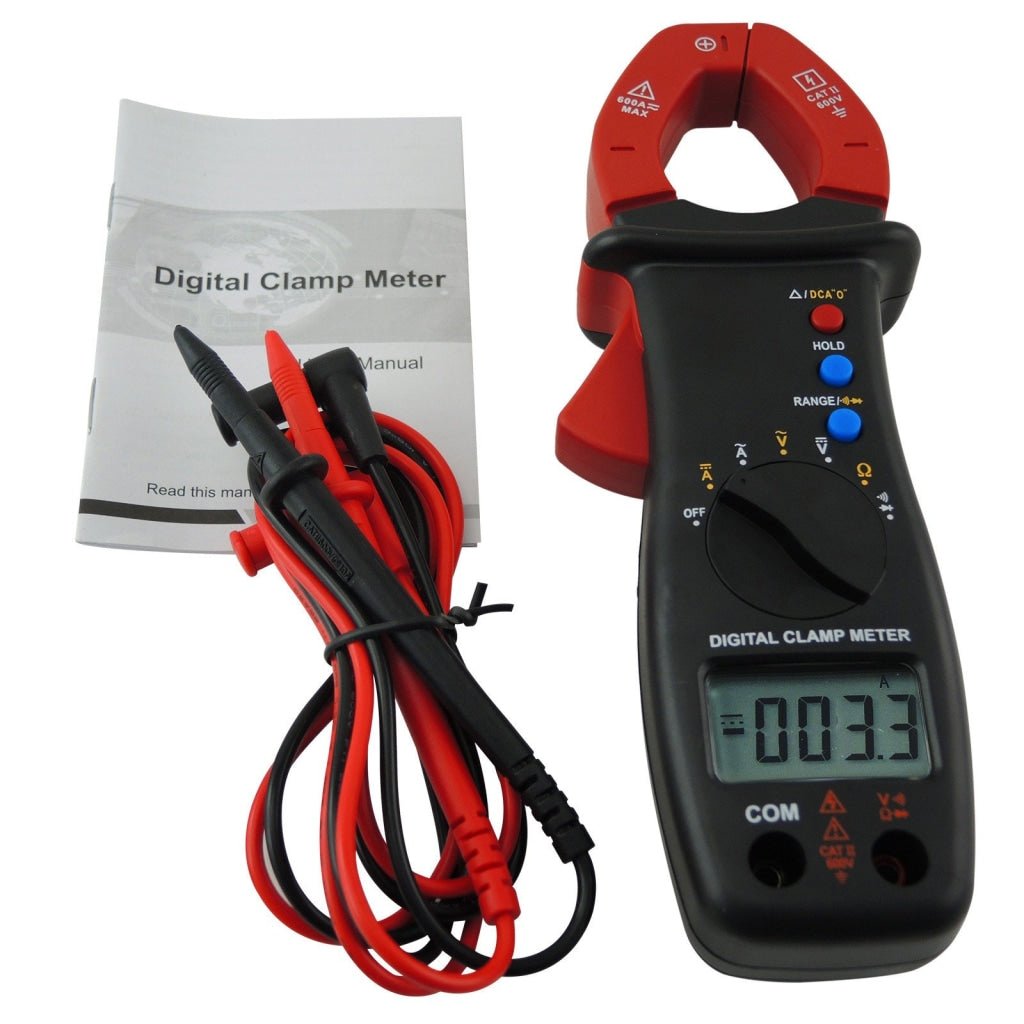

Set Includes:
- 1 x Digital Clamp Meter

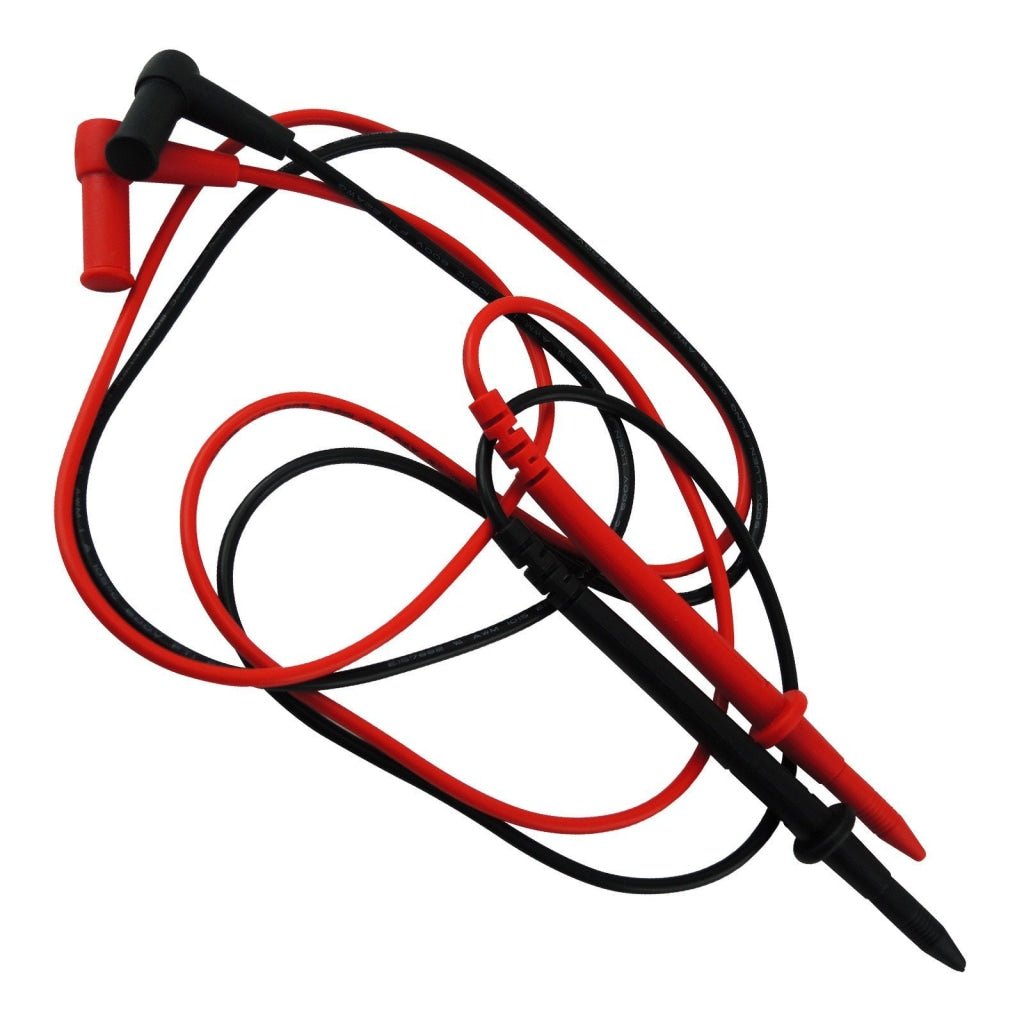

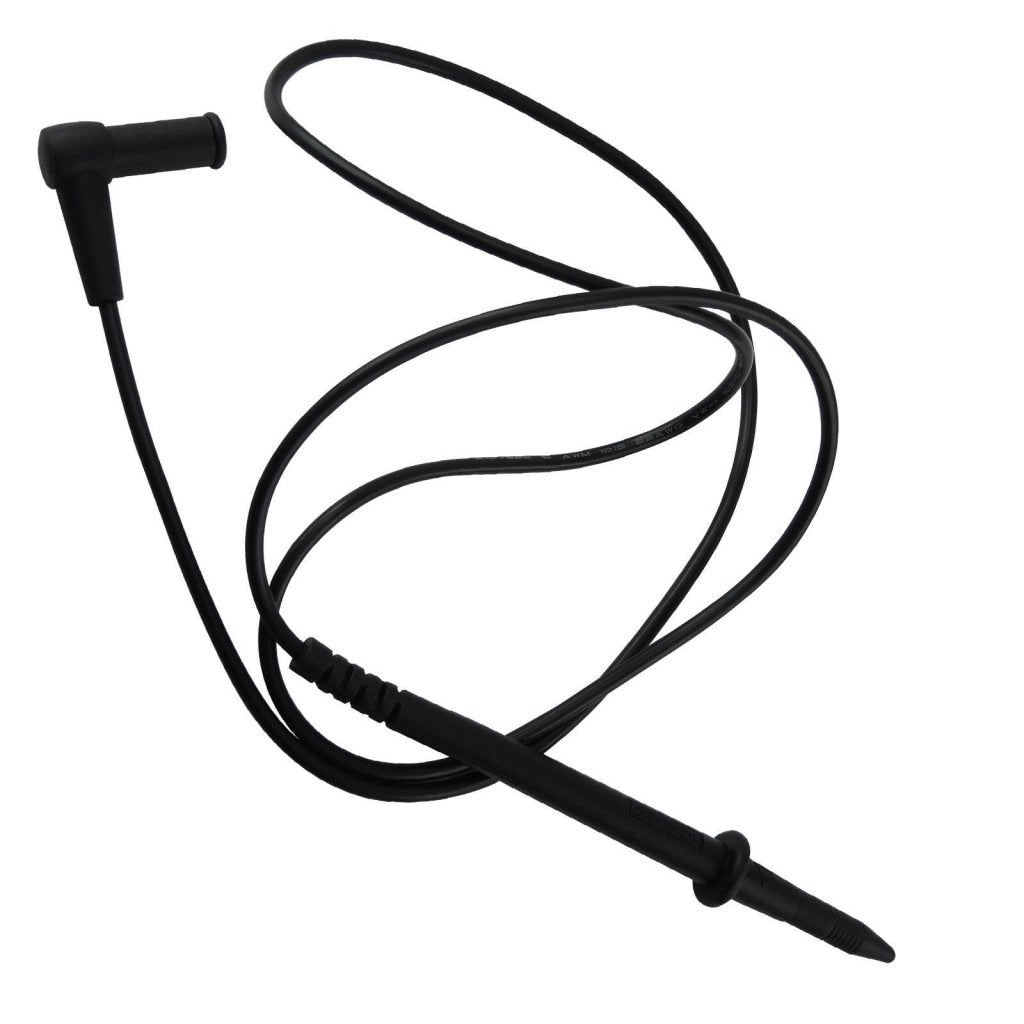

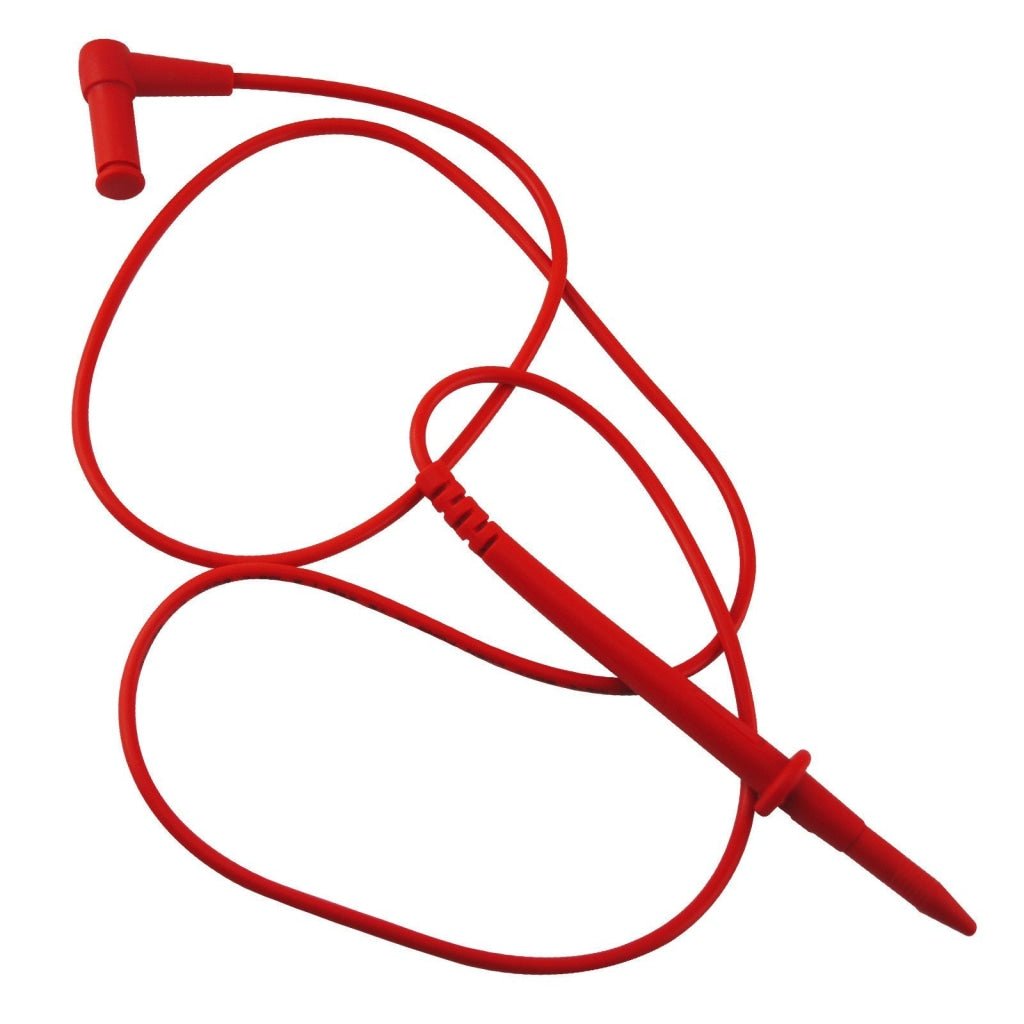

- 1 x pair of Test Lead
- 2 x 1.5 AAA Batteries
- English User Manual

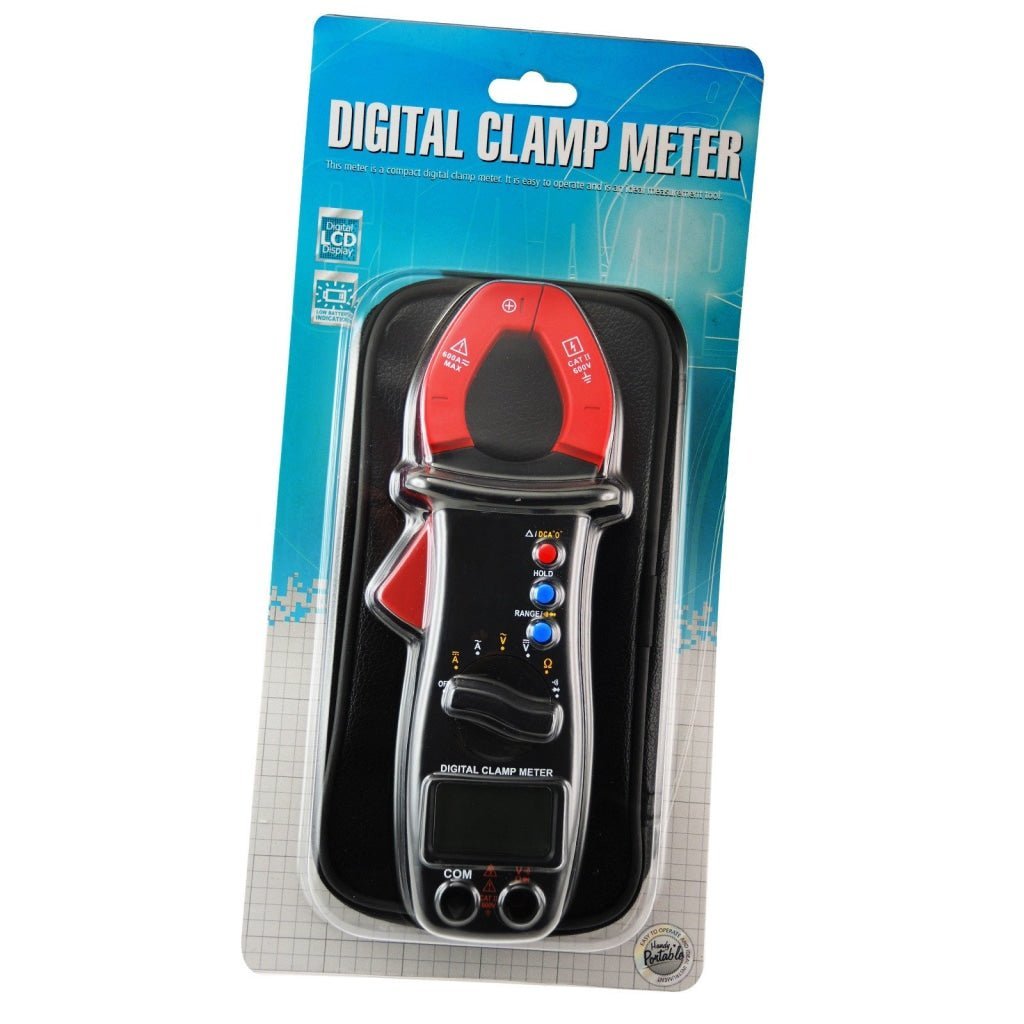

- Standard Factory Packaging
