Model: MUL-212

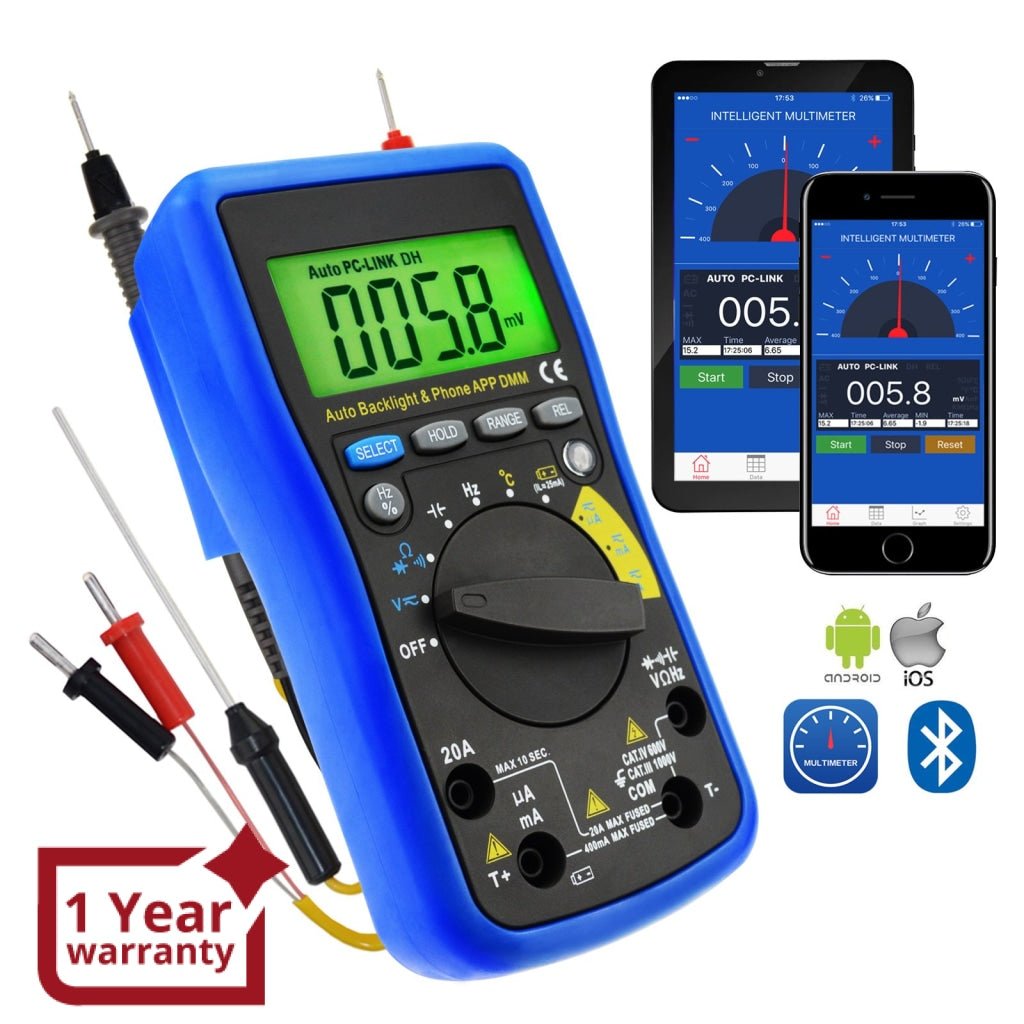

Its a portable, stable performance and with anti-dropping capacity multimeter with Bluetooth and mobile app, view results in your mobile device (IOS and Andriod). Has 4000 counts digit LCD monitor with 22mm digit height. With circuitry design centring on large-scale IC A/D converters in conjunction and over-load protection circuit, providing excellent performance making it a perfect utility tool.

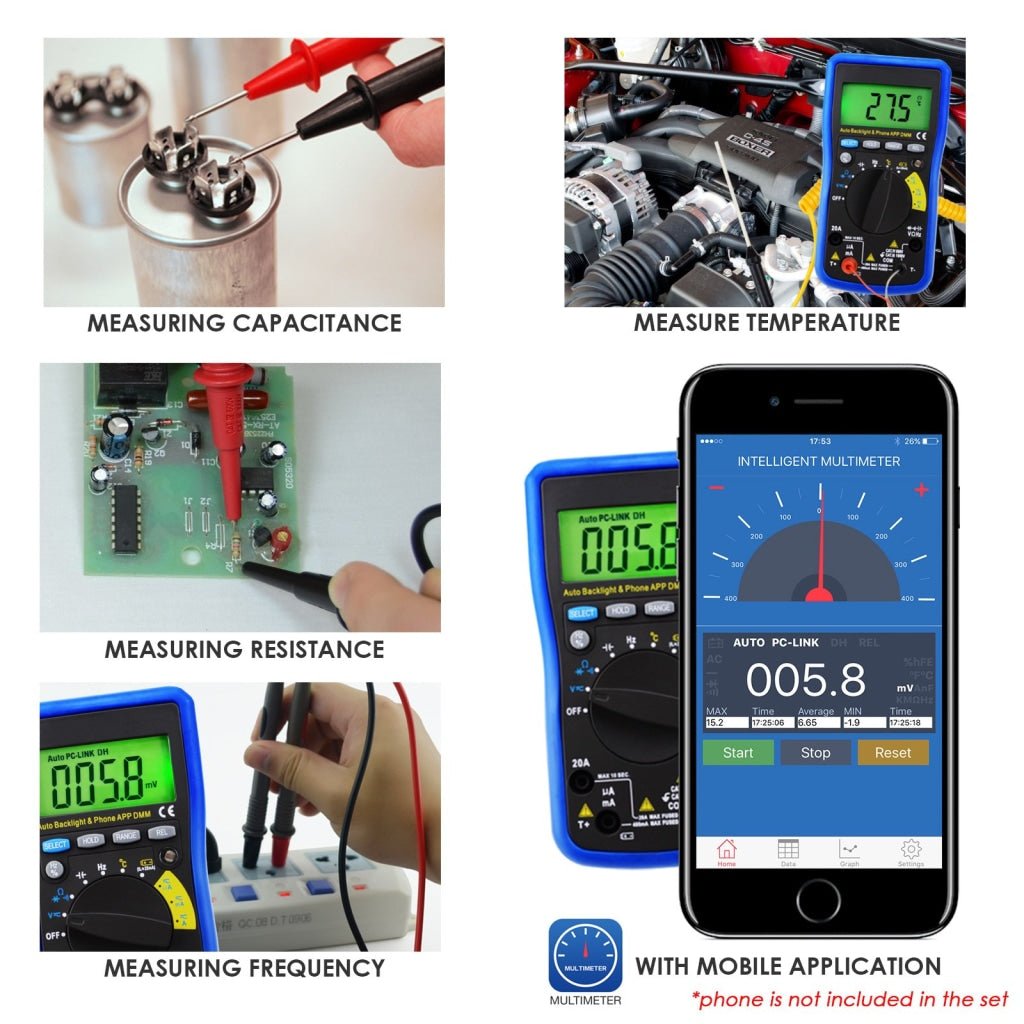

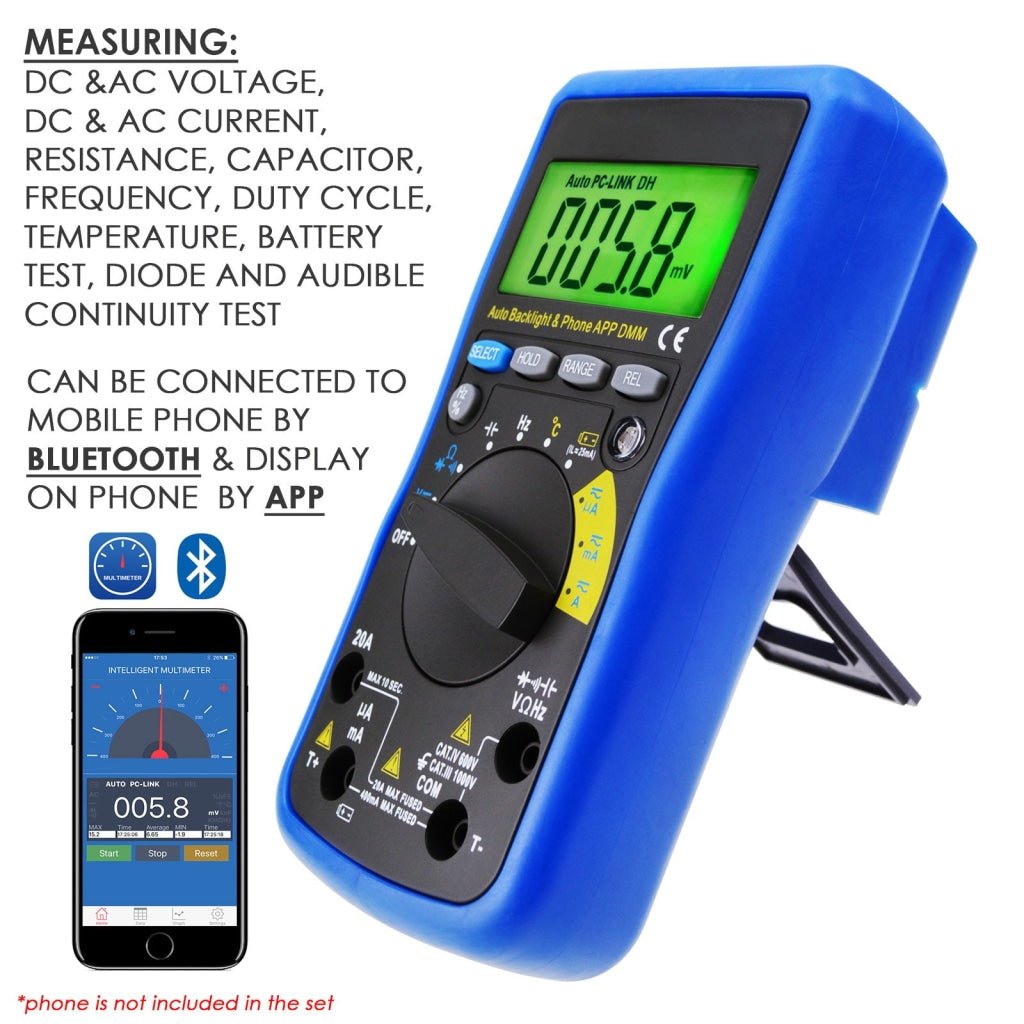

It measure DC & AC voltage, DC & AC current, resistance, capacitance, frequency, duty cycle, temperature, battery test, diode test and continuity buzzer.

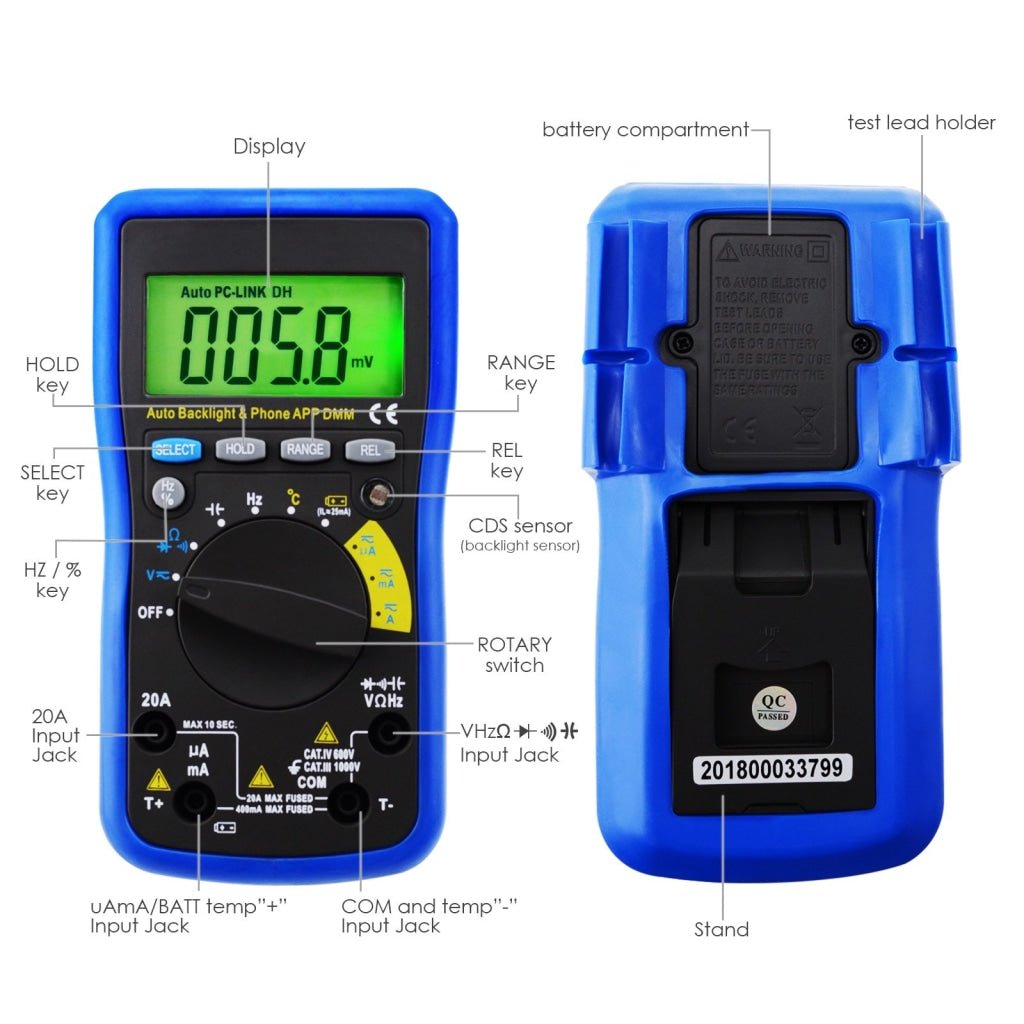

FEATURES:
- Data hold function

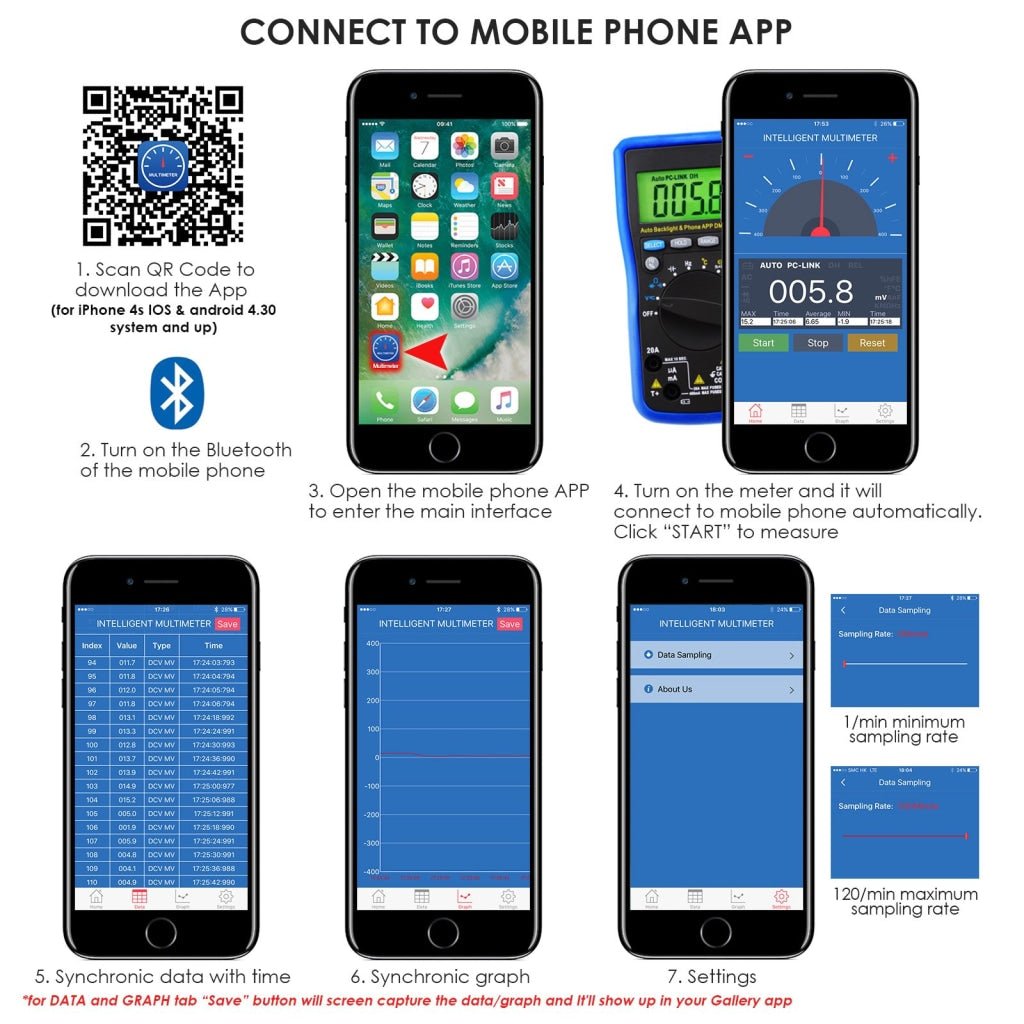

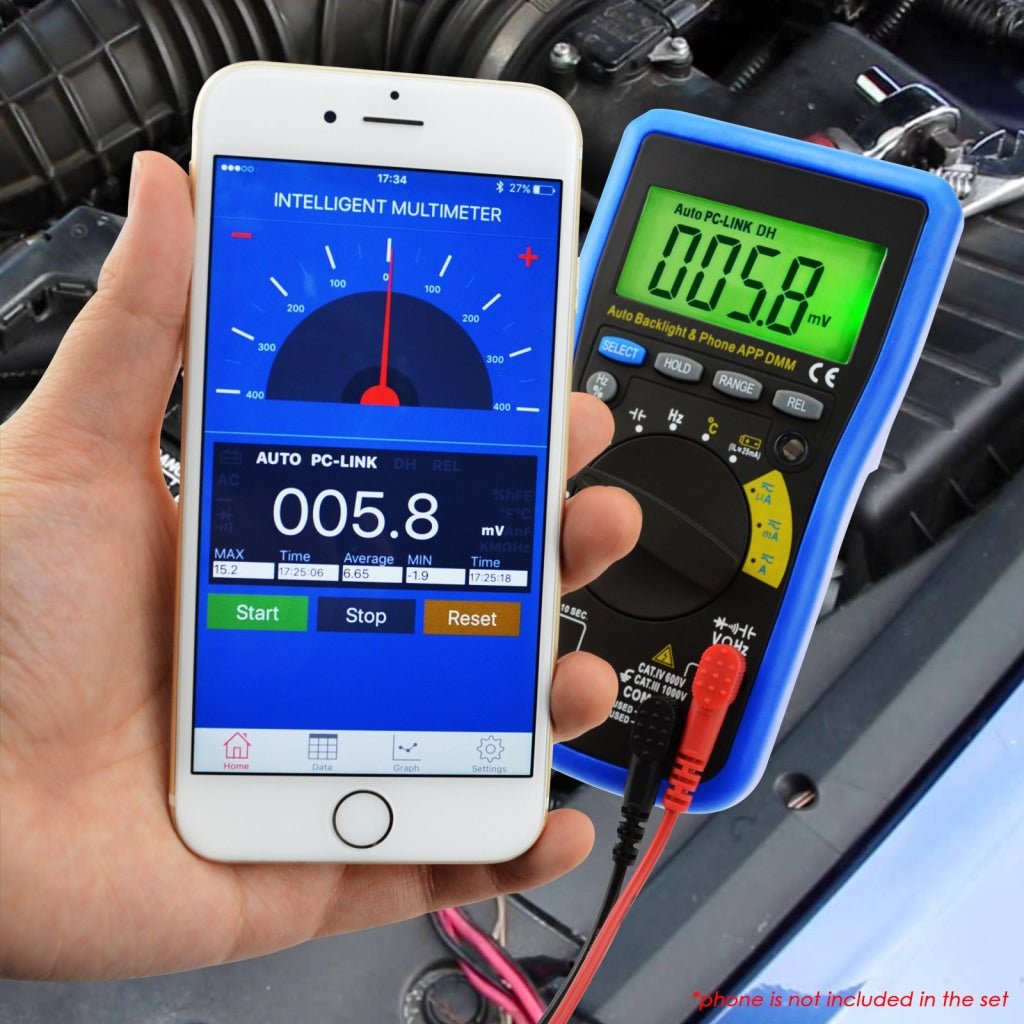

- Mobile App: Record, analyze, process on your phone via Bluetooth connection
- Relative Value
- CDS light sensor for auto backlight
- Designed according to IEC-1010 with over-voltage category 600V (CAT IV) and pollution 2
- Double insulation (protection Class II)
- Over-range indication, display "OL"
- Auto negative polarity display
- Low battery indication
- Auto-Range
- Auto power off
- Min/Max Value with time stamp. Average value display
- 400mA/250V PPTC Resettable Fuse
- 1000V 20A Test Leads electric rating
SPECIFICATIONS:
- CAT III 1000V, CAT IV 600V
- DC Voltage: 400mV～1000V
- AC Voltage: 4V～750V
- AC & DC Current: 400μA～20A
- Resistance: 400Ω～40MΩ
- Capacitance: 51.2nF～100μF
- Temperature: -20～1000℃
- Frequency: 5.12Hz～5.12MHz
- Duty Cycle: 0.1%～99.9%
- Display: 3999
- Max Voltage between input terminal and Earth Ground: CAT IV 600V
- Fuse Protection: 400mA/250V PPTC Resettable Fuse / F-20A/250V Fuse (Ø5x20mm)

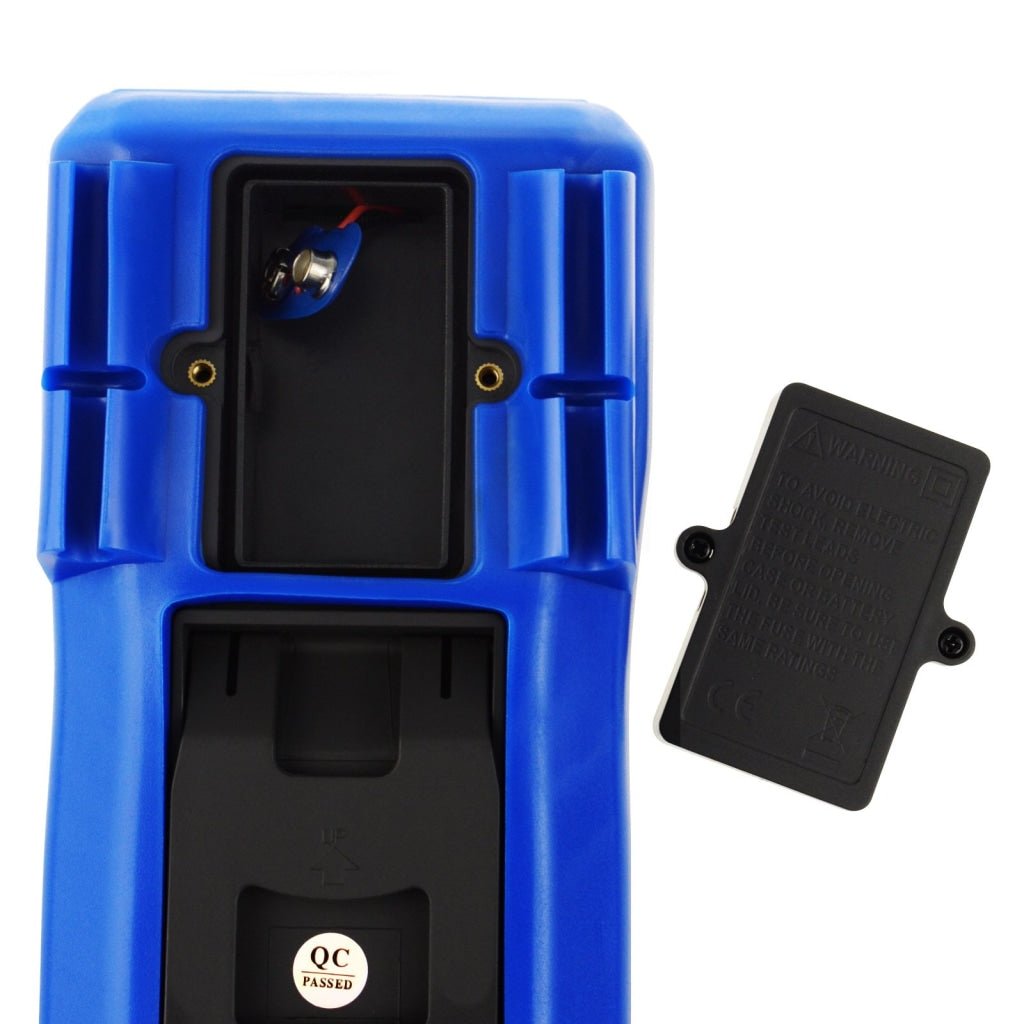

- Power Supply: 9V battery
- Operating Temperature: 0~40°C (<85%RH)
- Storage Temperature: -10~50°C (<85%RH)

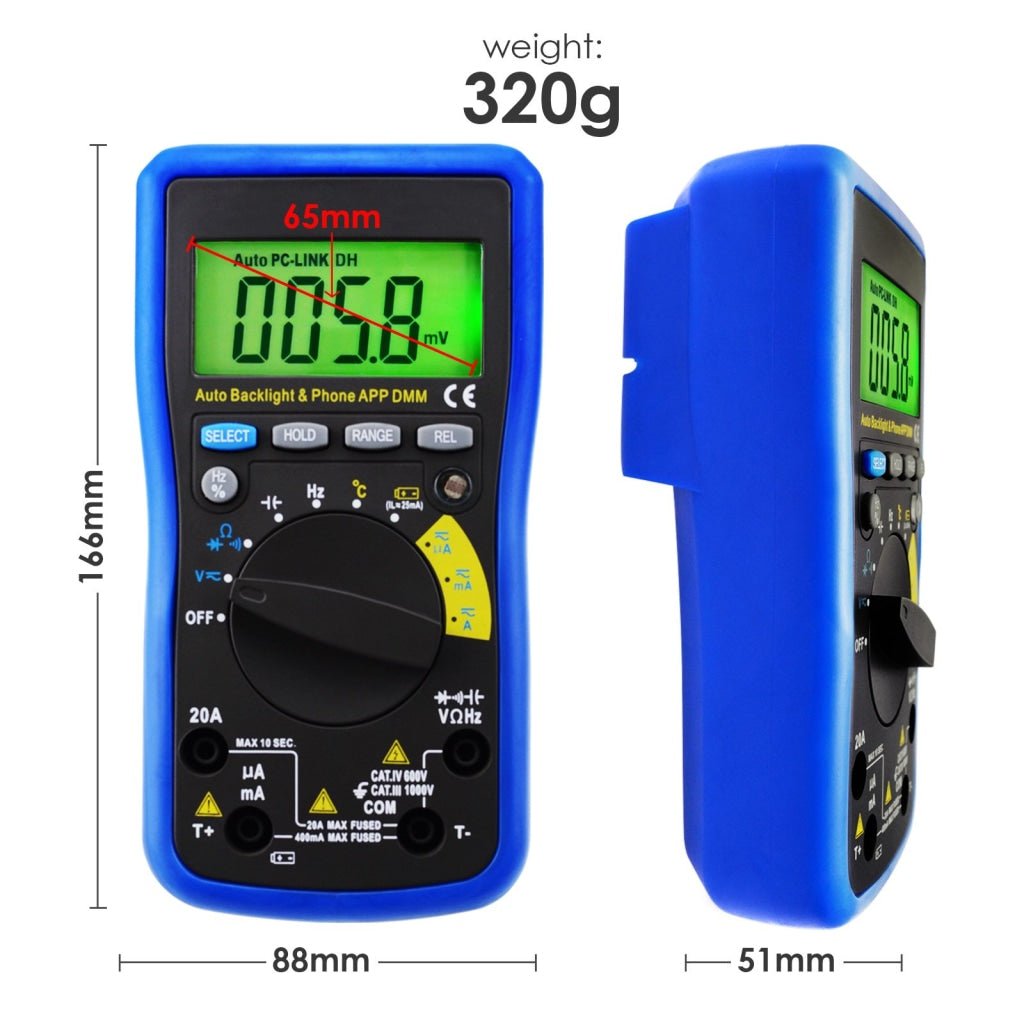

- Size: 180 x 88 x 51mm
- Weight: approx. 320g (including battery)

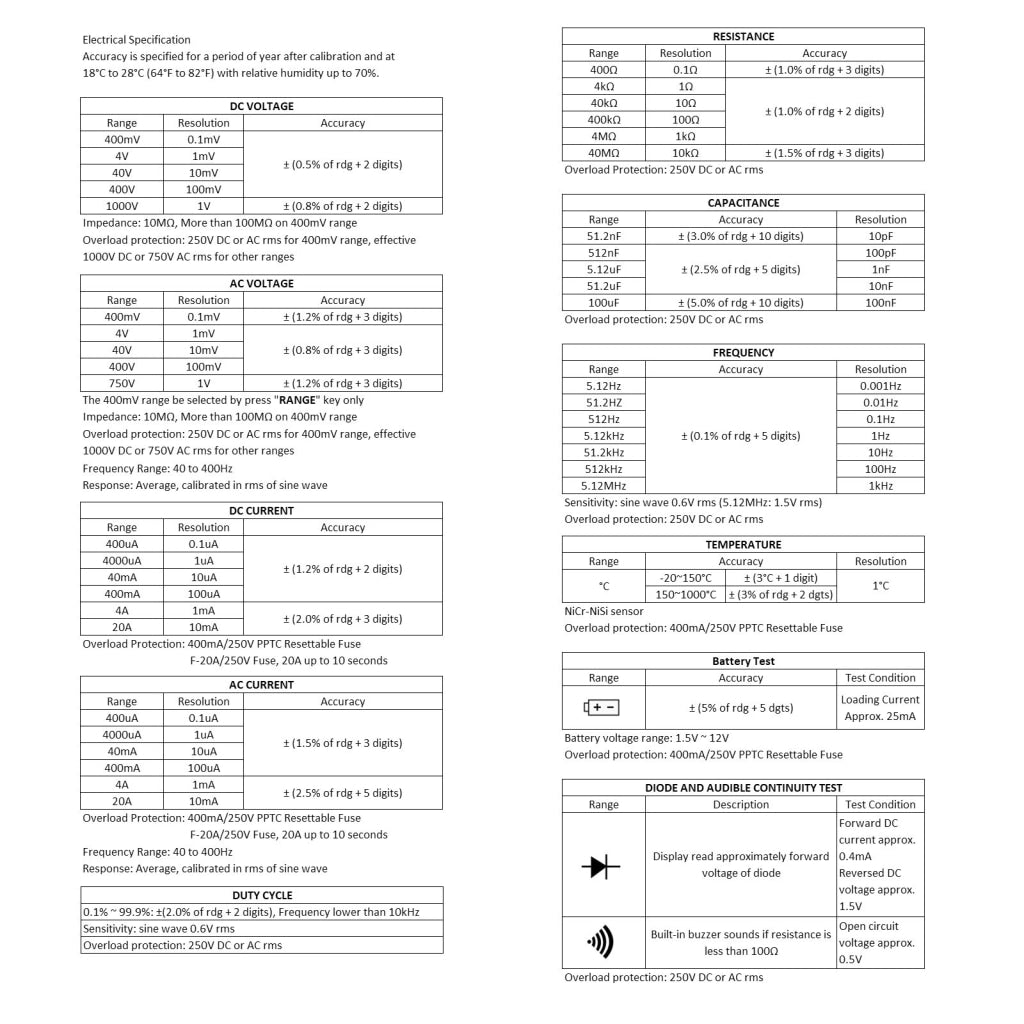

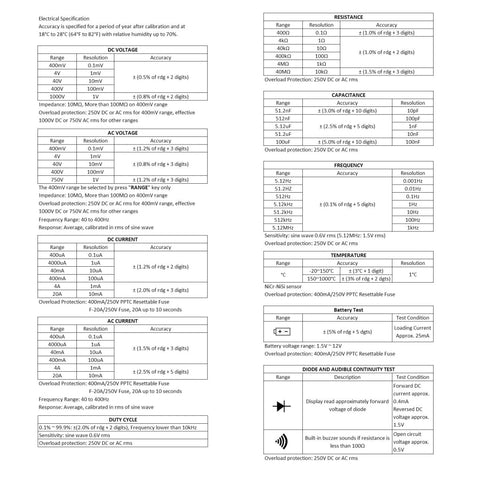

(see pictures for detailed Technical Specifications)

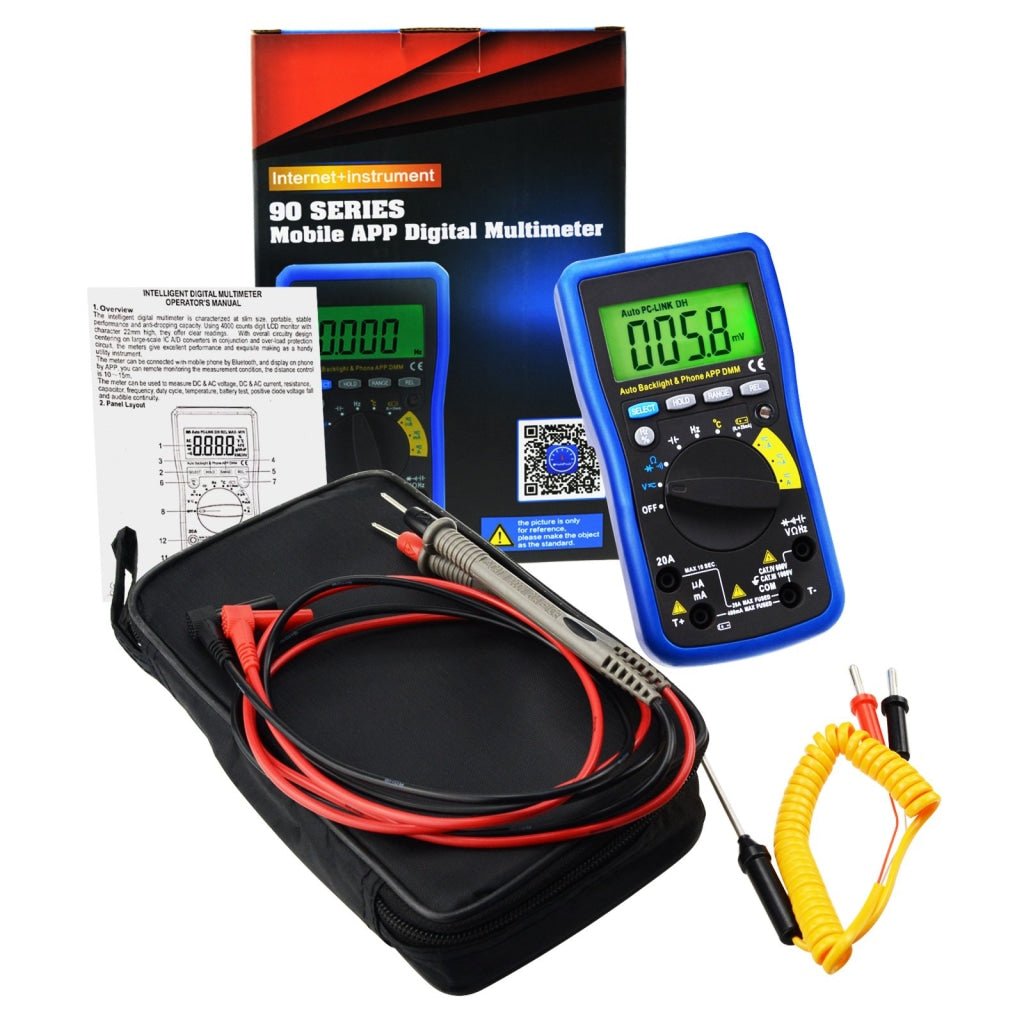

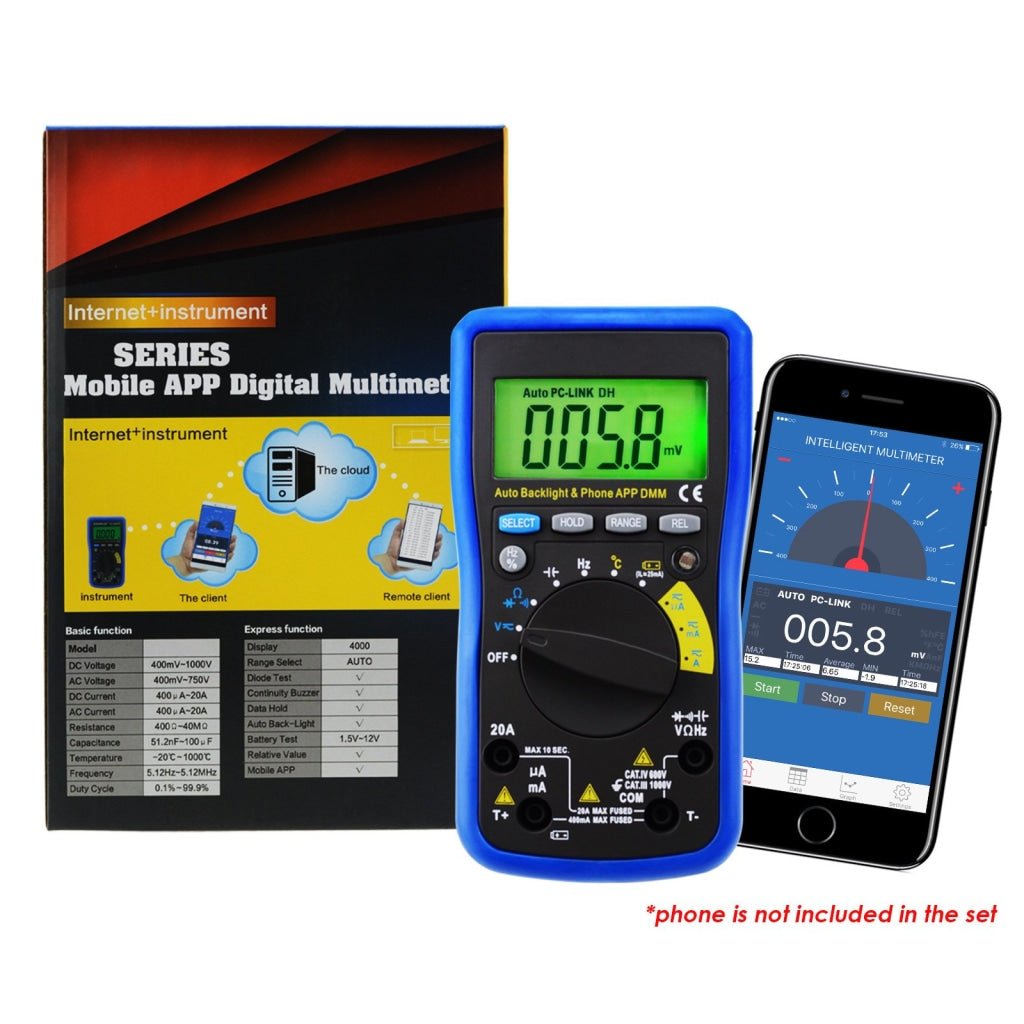

Set Includes
- 1 x Digital Multimeter

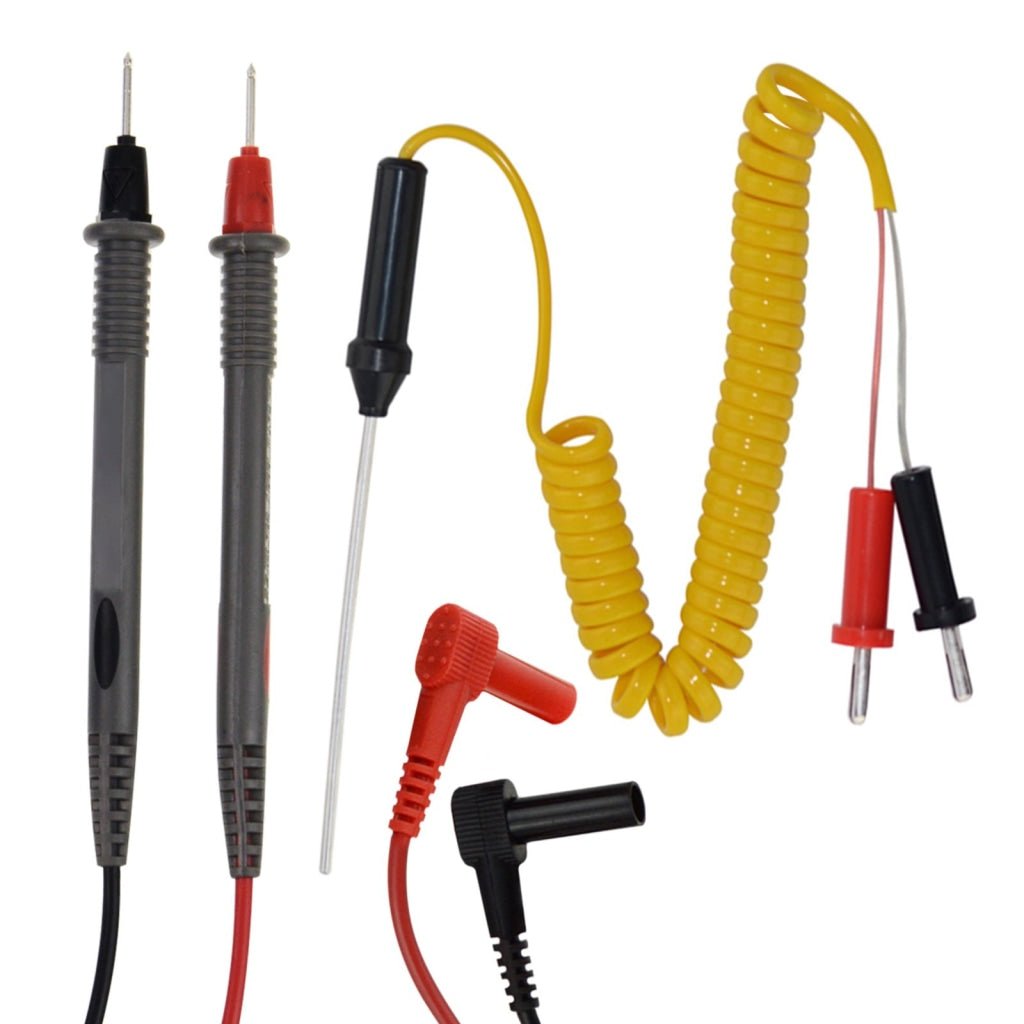

- 1 x pair Test Leads
- 1 x K-Type Thermocouple Sensor Probe
- 1 x 9V battery

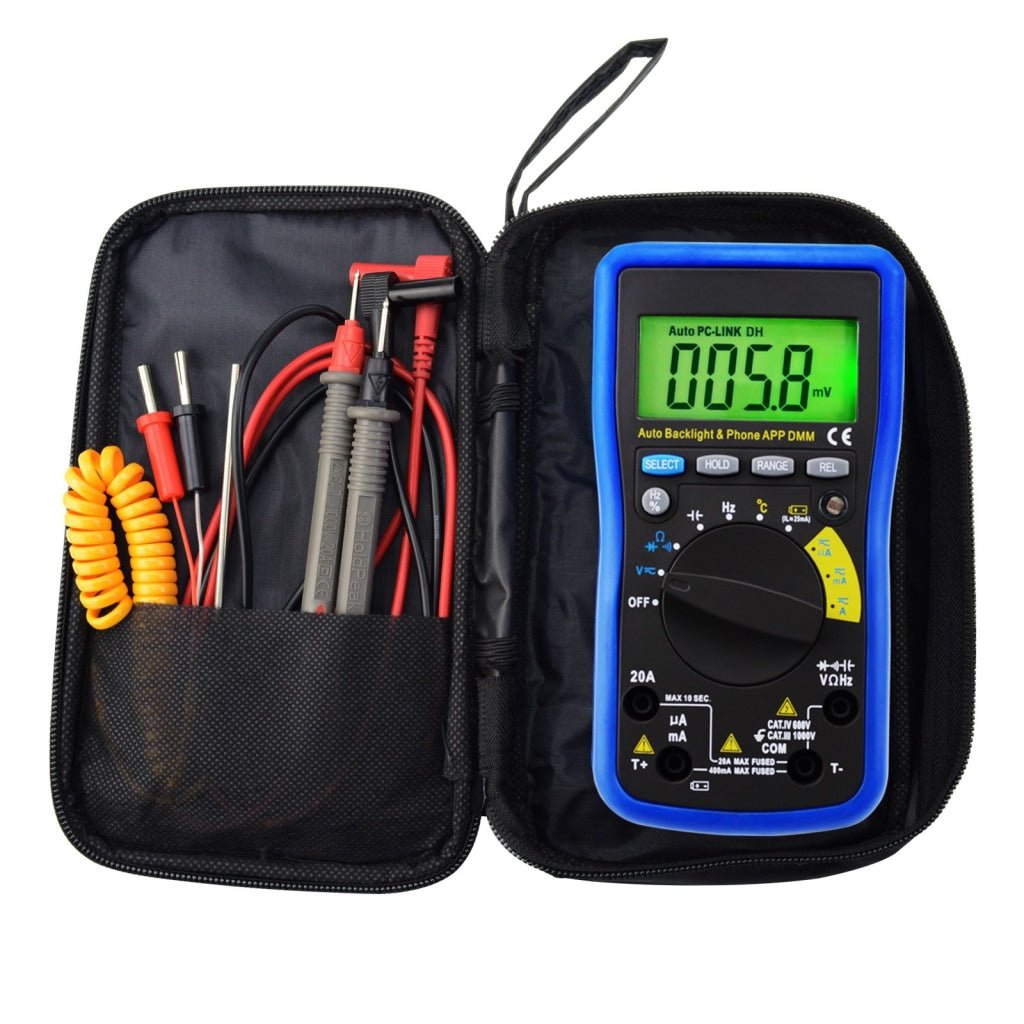

- 1 x Nylon Carrying
- 1 x English User Manual
