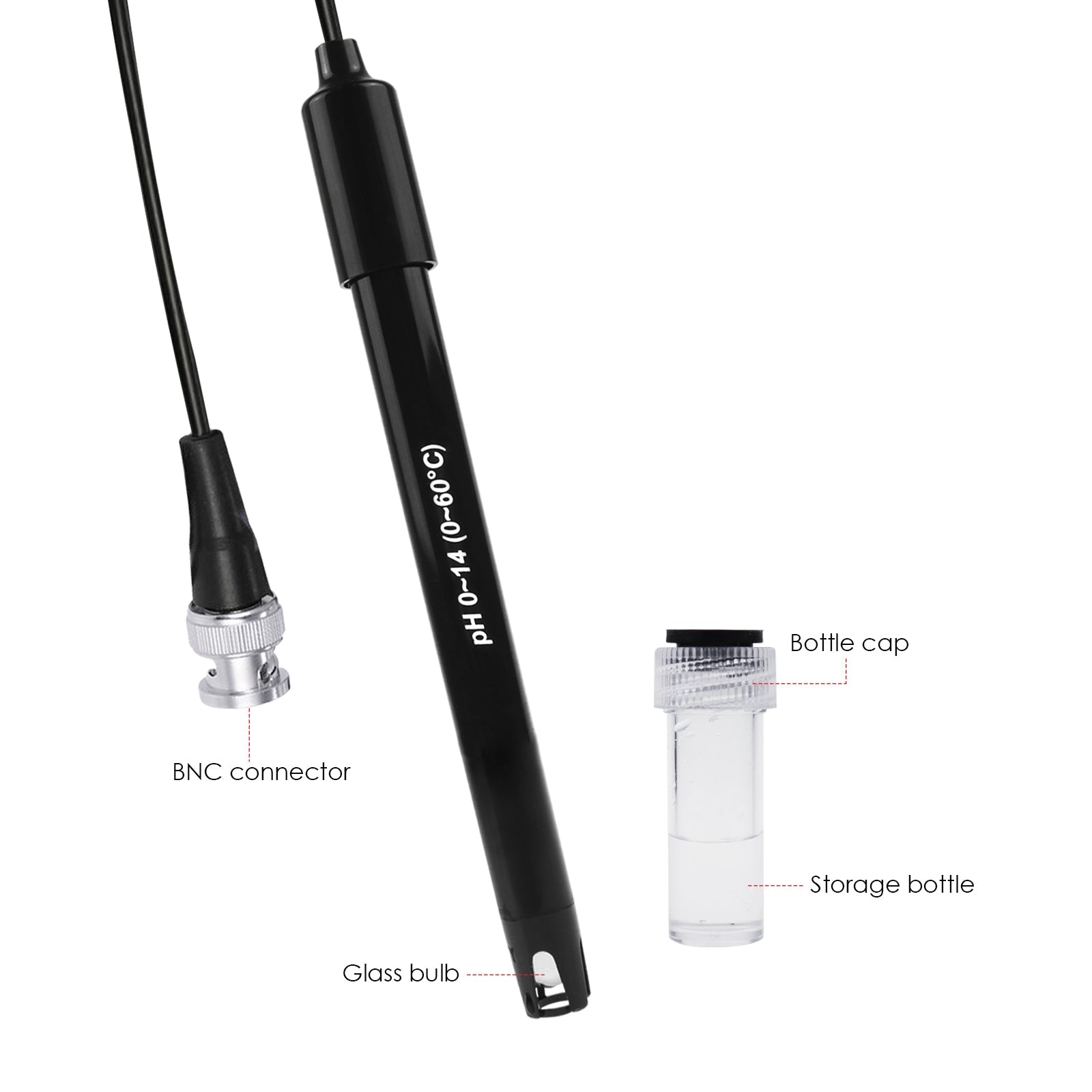

This pH electrode is made of a silver chloride (Ag/AgCl) reference electrode to measure pH value of liquid. It has a BNC type socket with 300cm long cable that allows you to connect directly to the input terminal of your pH meter, pH controller or any pH device that has a BNC input terminal.
Re-use your meter portion indefinitely with this replaceable pH electrode.
Features:
- Long Cable replaceable pH electrode

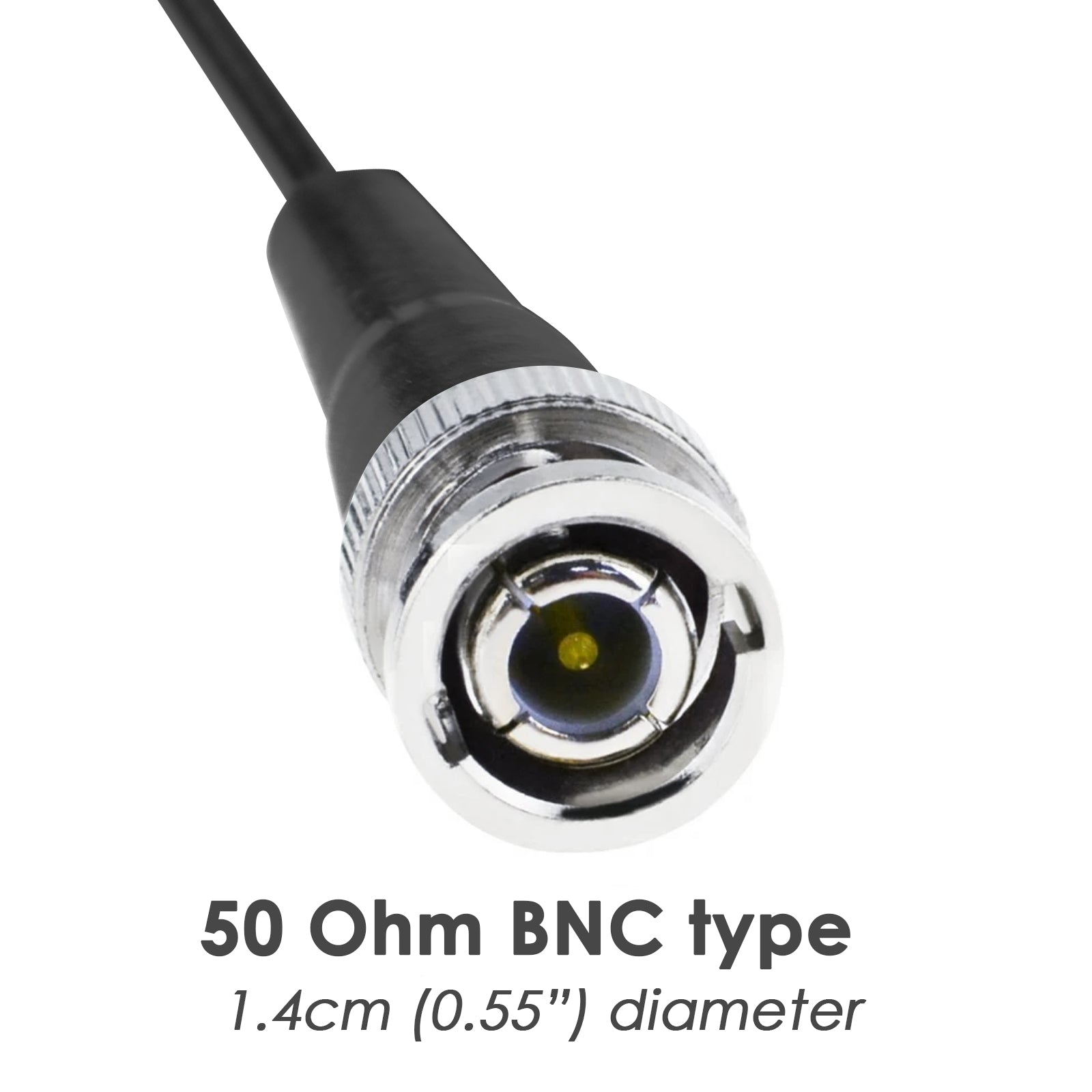

- 50 Ohm BNC type connector

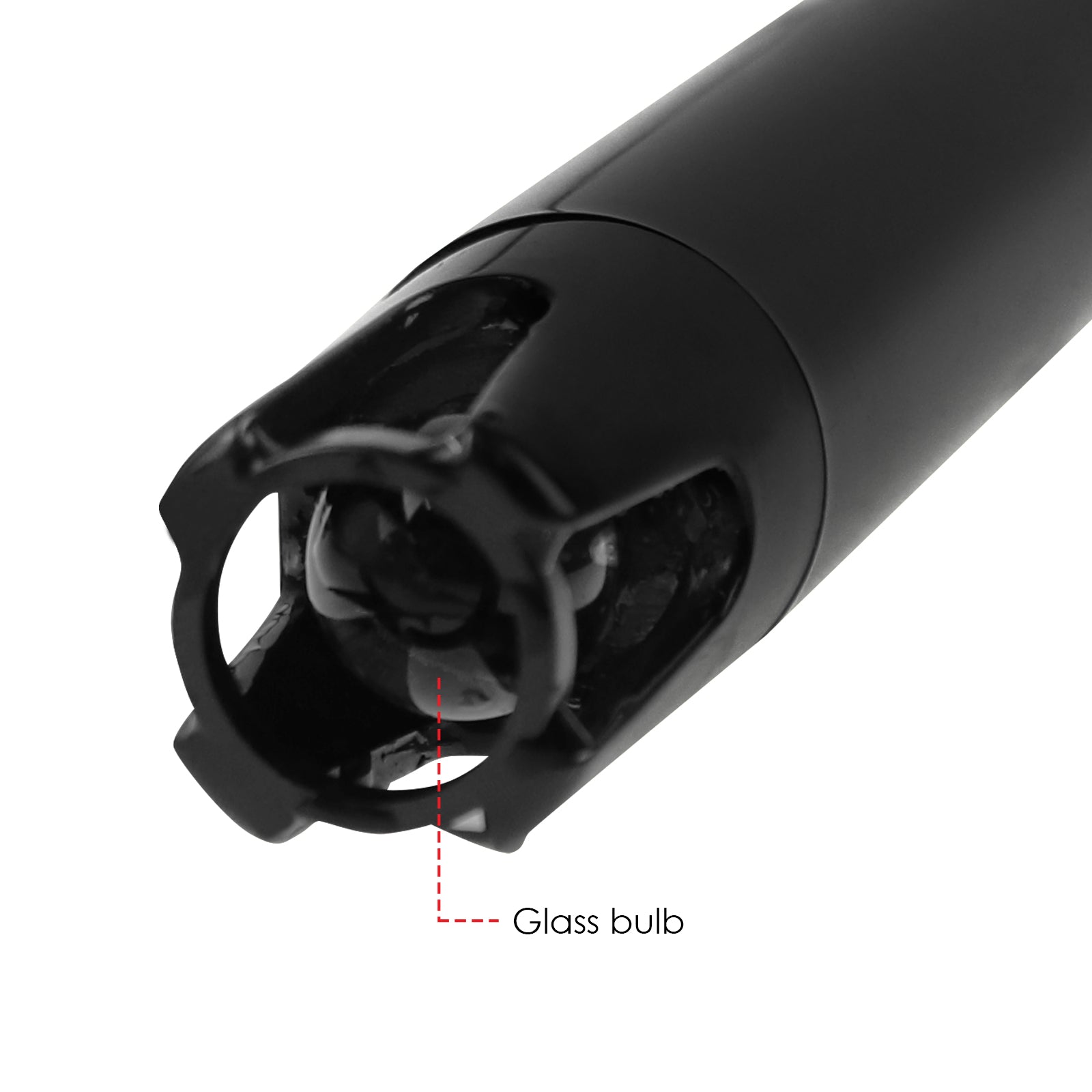

- Glass bulb
- Easy to calibrate using your pH measuring device
- Easy monitoring of pH accurately

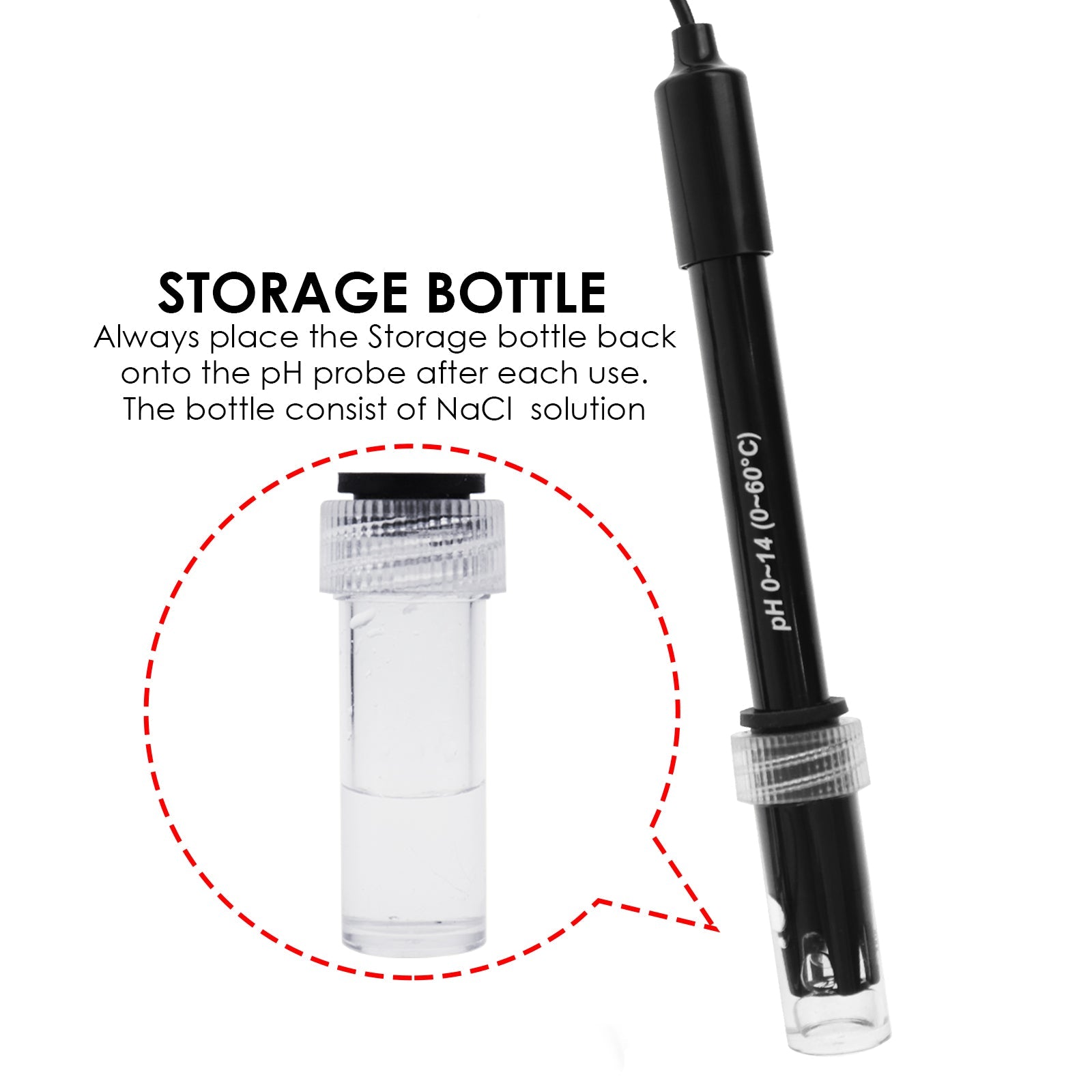

- Comes with protective cap
Specifications:
- Sensor Type: General-purpose combination pH electrode

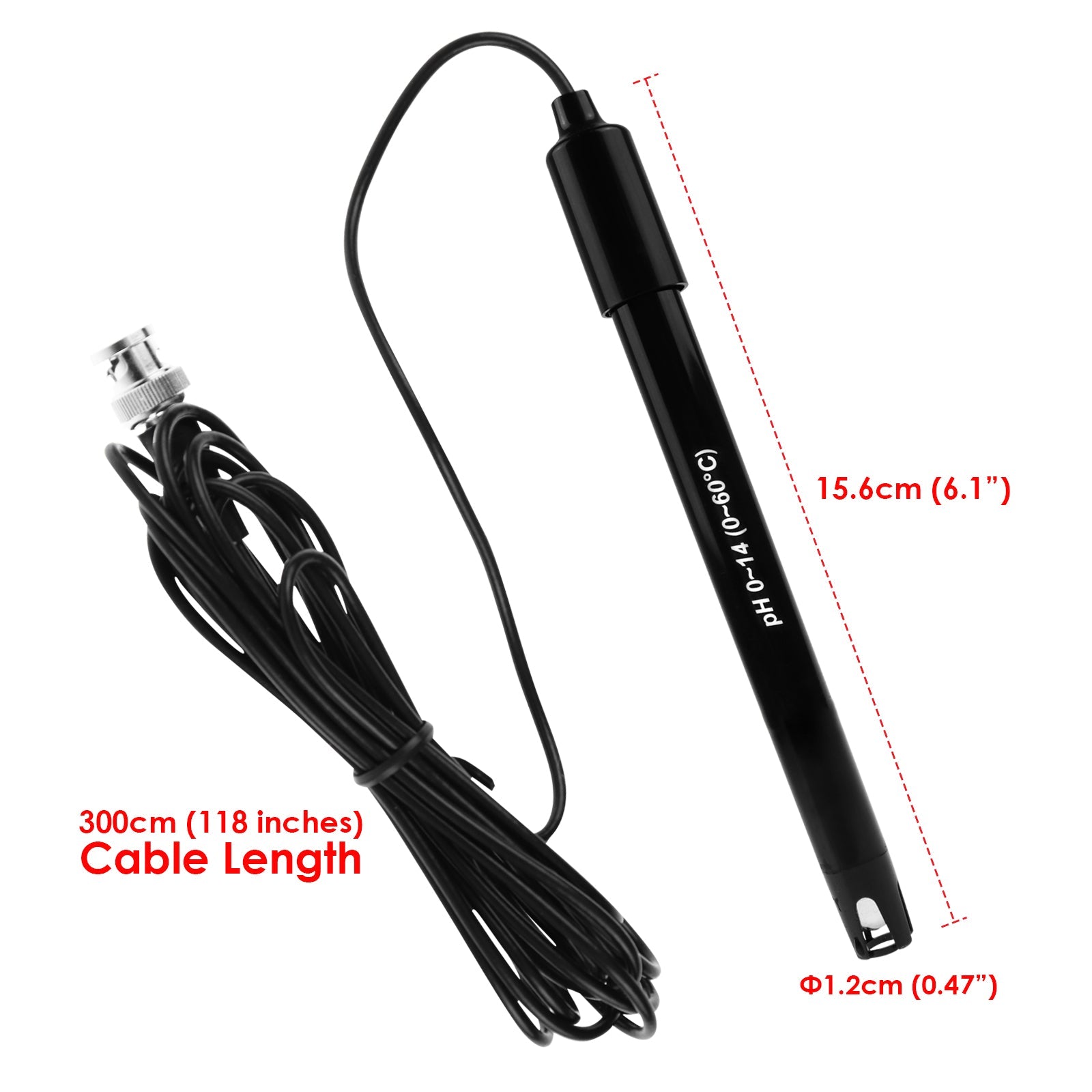

- Dimensions: Φ12*156mm
- Construction Material: Polymer housing and glass bulb
- pH range: 0~14pH
- Working temperature: 0~60°C (32~140°F)
- Zero potential: 7.0 ±0.5pH (under 25°C / 77°F)
- Percentage of slope: ≥ 98% (under 25°C / 77°F)
- Internal resistance: ≤ 250 MΩ (under 25°C / 77°F)
- Alkaline error: < 15 mV
- Response time: < 2mins
- Repeatability: < 0.017
- Noise: < 0.5 mV
- Connection: 50 Ohm BNC with fixed cable
- Cable length: 300 cm (118")

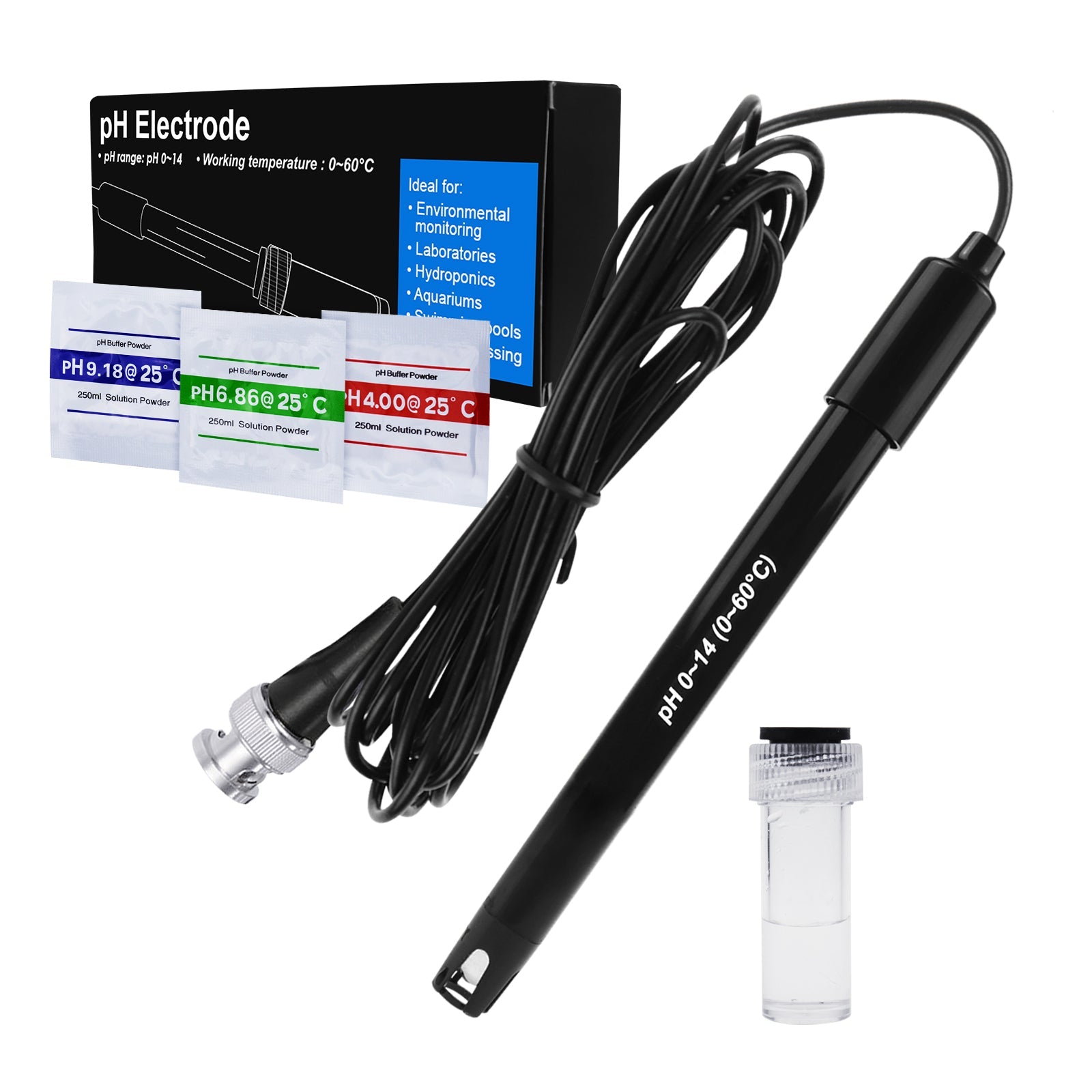

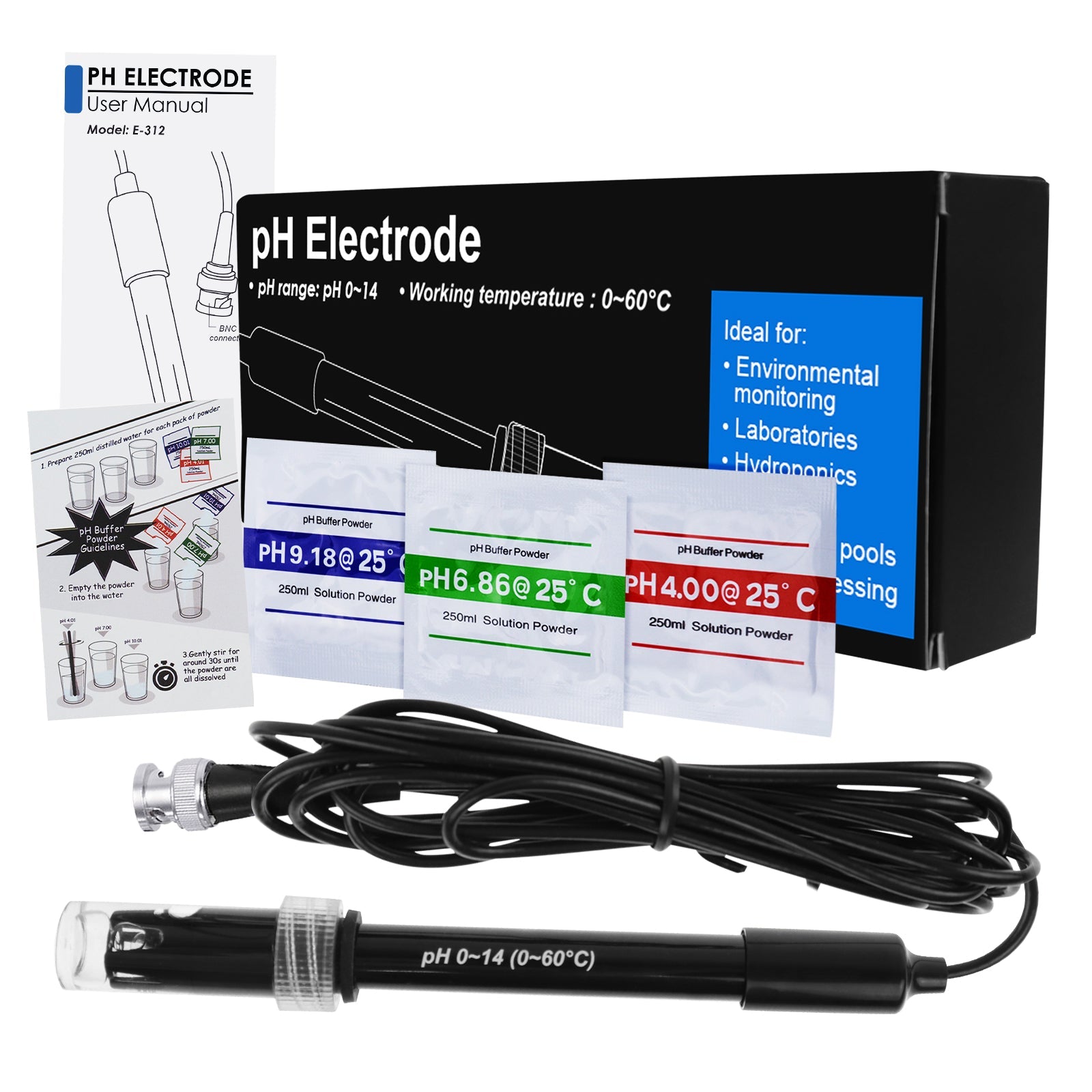

Set Includes:
- 1 x pH electrode

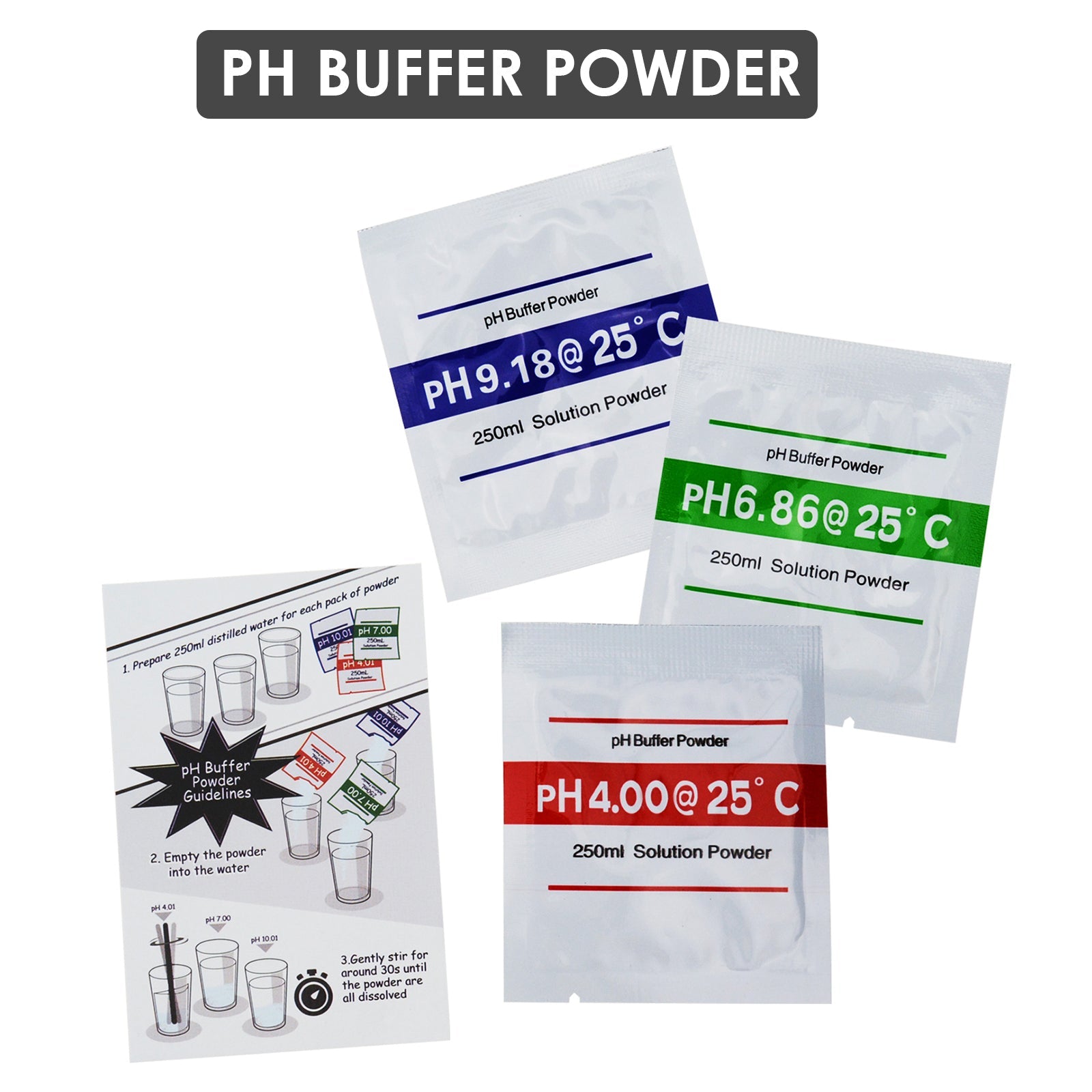

- 1 x pH 4.00 calibration powder
- 1 x pH 6.86 calibration powder
- 1 x pH 9.18 calibration powder
- Written User Manual in English (Other languages are available upon scanning of the QR code)
- Standard factory Packaging
