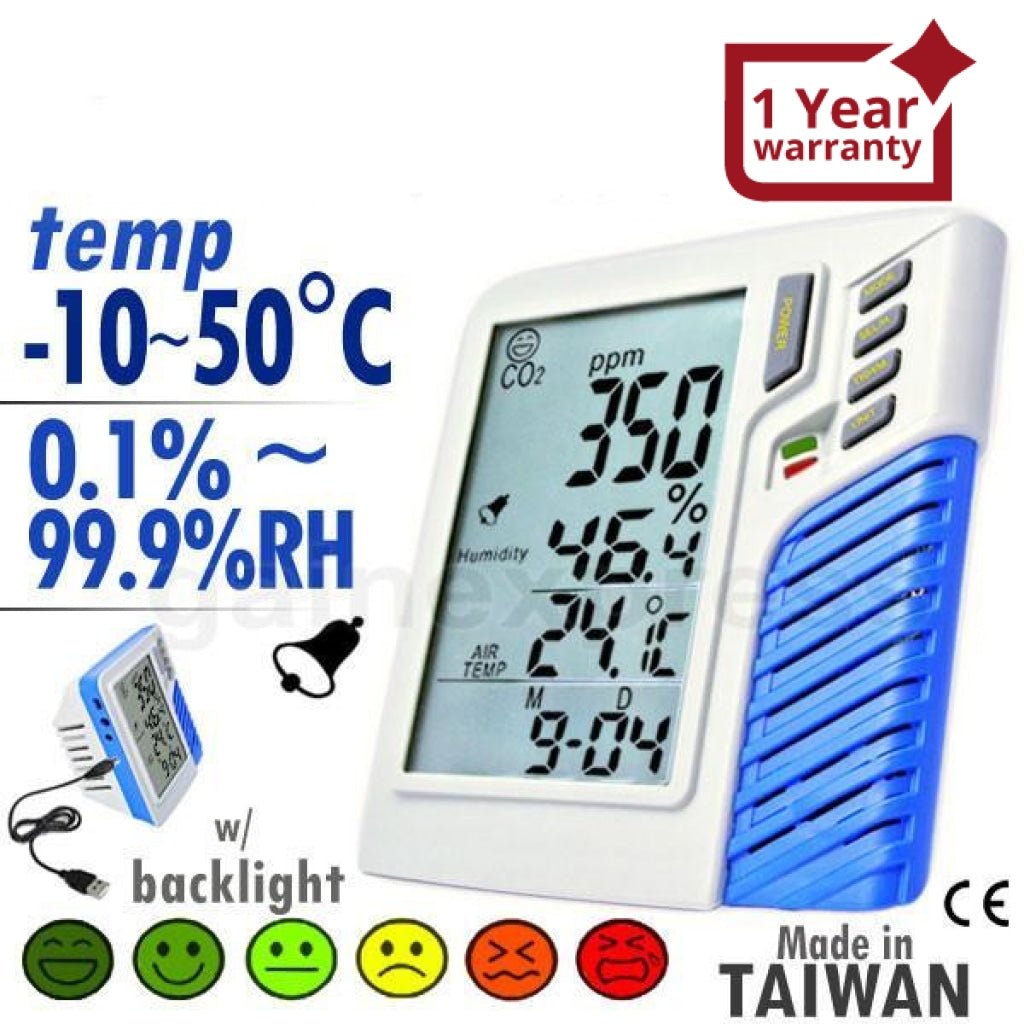

M0198537 Indoor Carbon Dioxide (CO2) Monitor & Datalogger Made in Taiwan

This Carbon dioxide (CO₂) Monitor and Datalogger is used to measure and log CO₂ Concentration, Air Temperature and Relative Humidity with visual alarm. It is an ideal for Indoor Air Quality (IAQ) diagnosis. Can be wall-mount or desktop with backlight features making it easy to read even in dark areas. The memory datalogging capacity is up to32,000 points with date and time.

It has 5 selectable start mode : (1)Schedule mode- select a date and time for the meter to start recording, (2) Real-time mode- after setting start mode meter will start logging, meter should be always connected with pc under this mode,(3) Key-start mode-press the button to start and stop logging,(4)Roll-over mode- continuous datalogging, when the data is full it will cover the earliest memory, (5) Immediate-log and measure instantly.

It complies with all essential health and safety requirements set out in European Directives (CE marking). Plus, all parts are made in and manufactured in Taiwan.

Features:

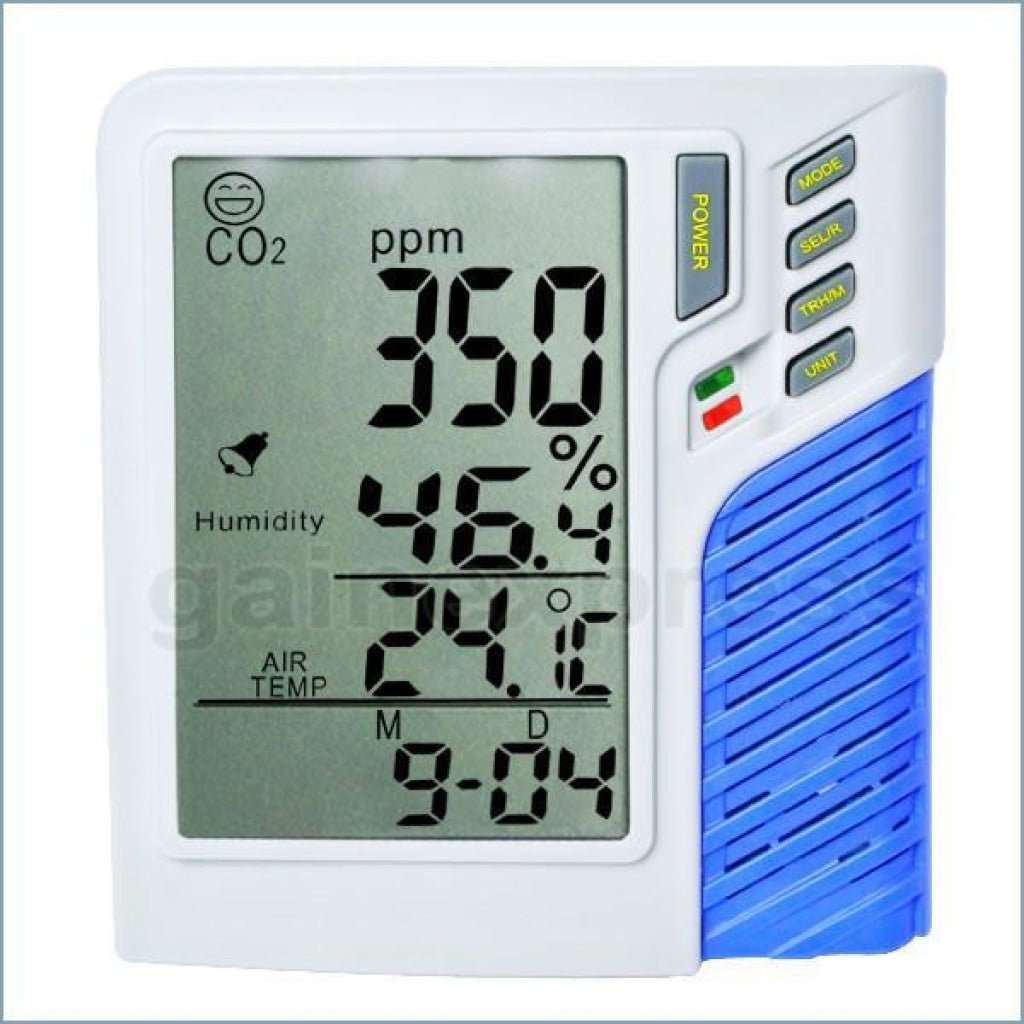

• Super large LCD simultaneously display and log C0₂ Level, Temperature, Relative Humidity, Calendar (Y / M / D) and Time (clock)

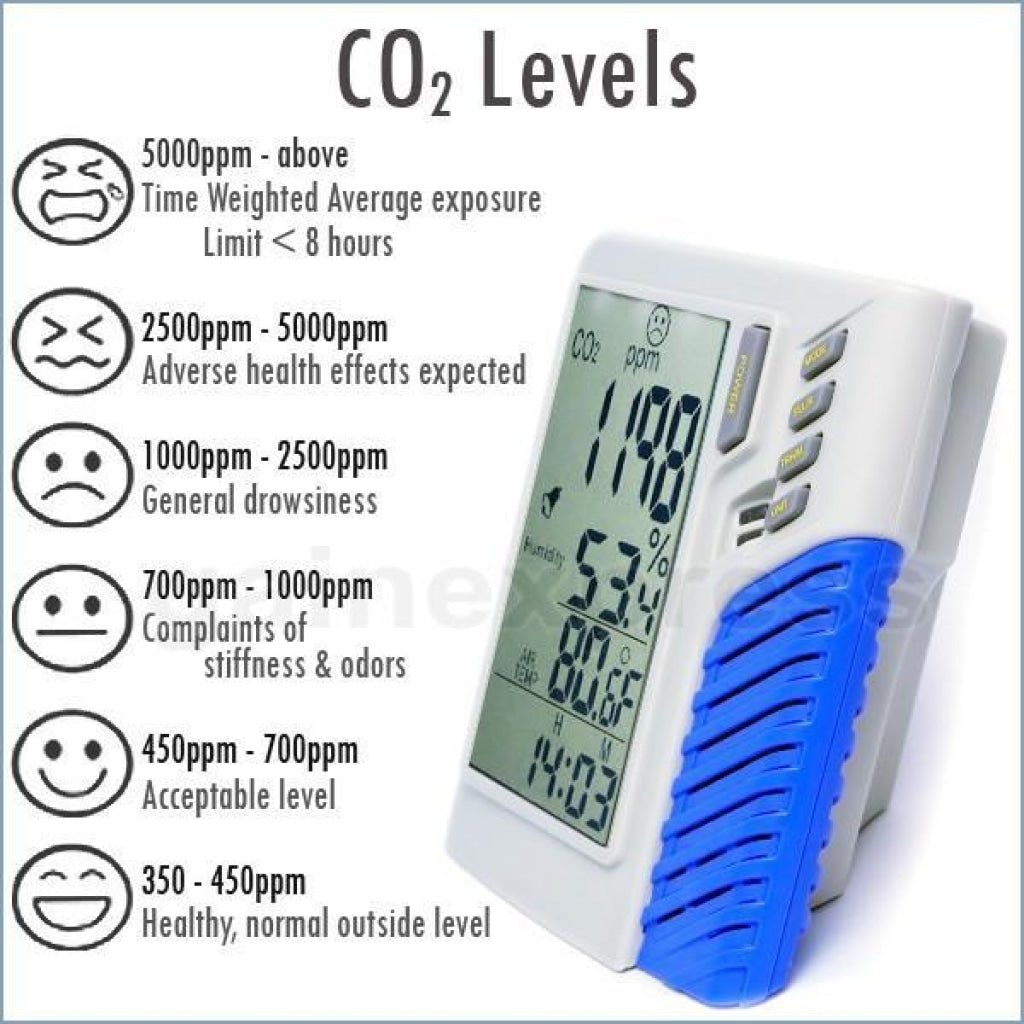

• Six (6) smiley icons indicate indoor air quality levels
  • (350/450/700/1000/2500/5000ppm) easy to understand CO₂ concentration.
• 32000 data logging memory
• Stable NDIR sensor for CO₂ concentration

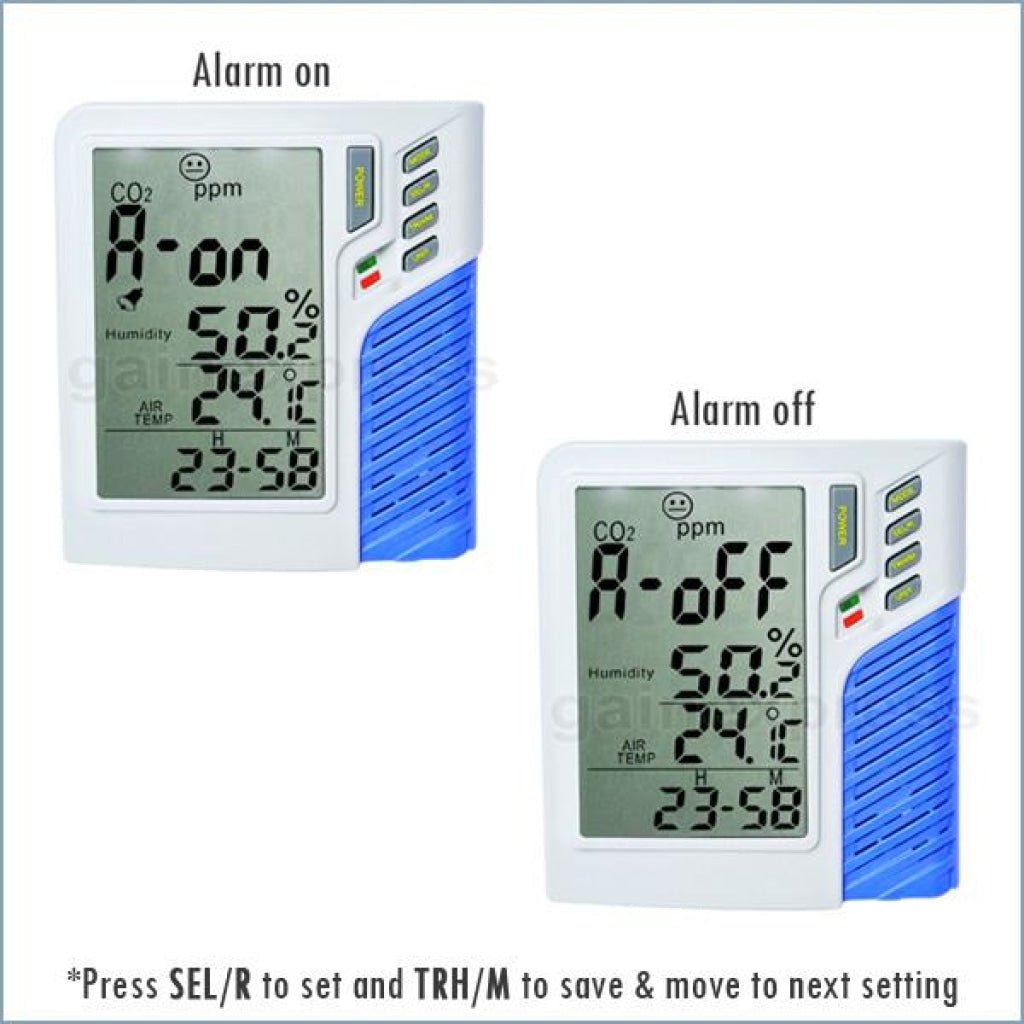

• With visual alarm
• High and Low threshold setting
• Selectable °F and °C temperature unit
• Automatic baseline calibration (ABC) function
• Warning for high CO2 concentration

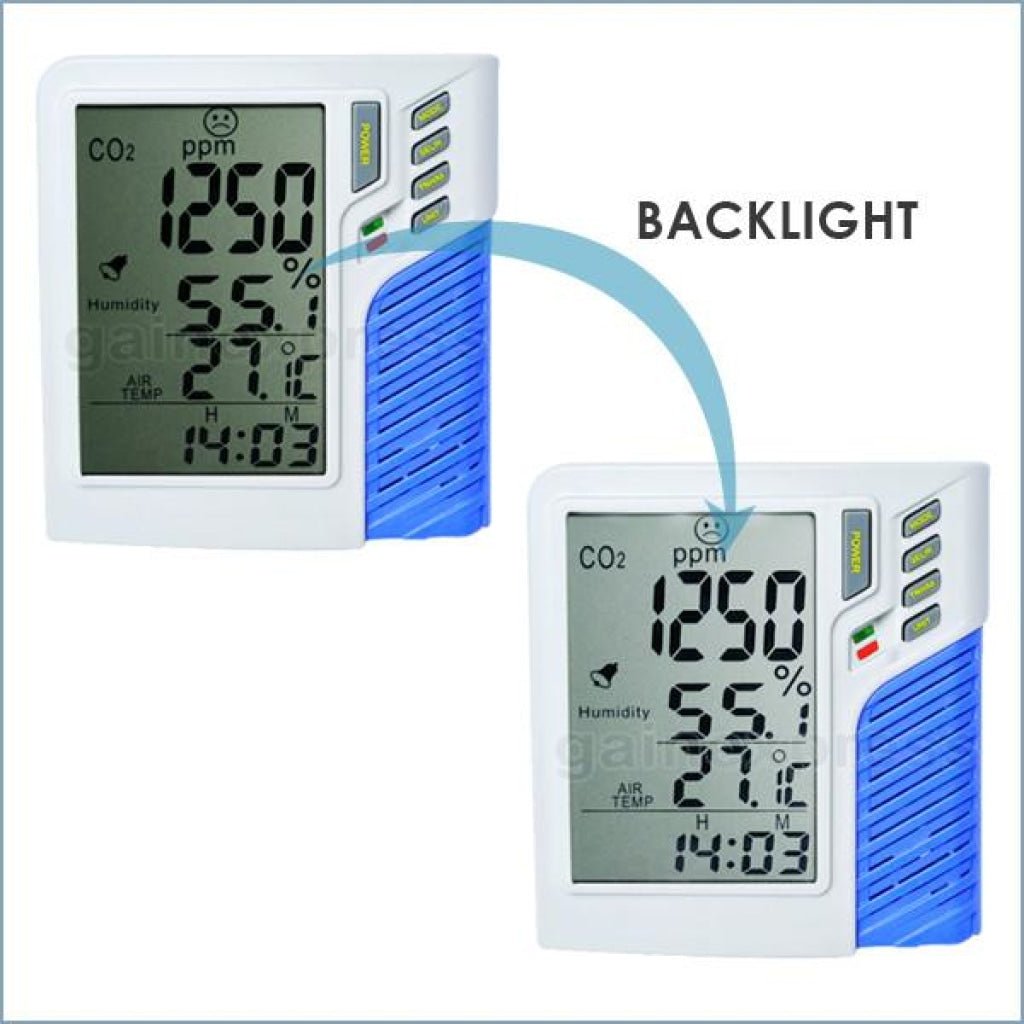

• Backlight Function
• Recall MAX and MIN reading

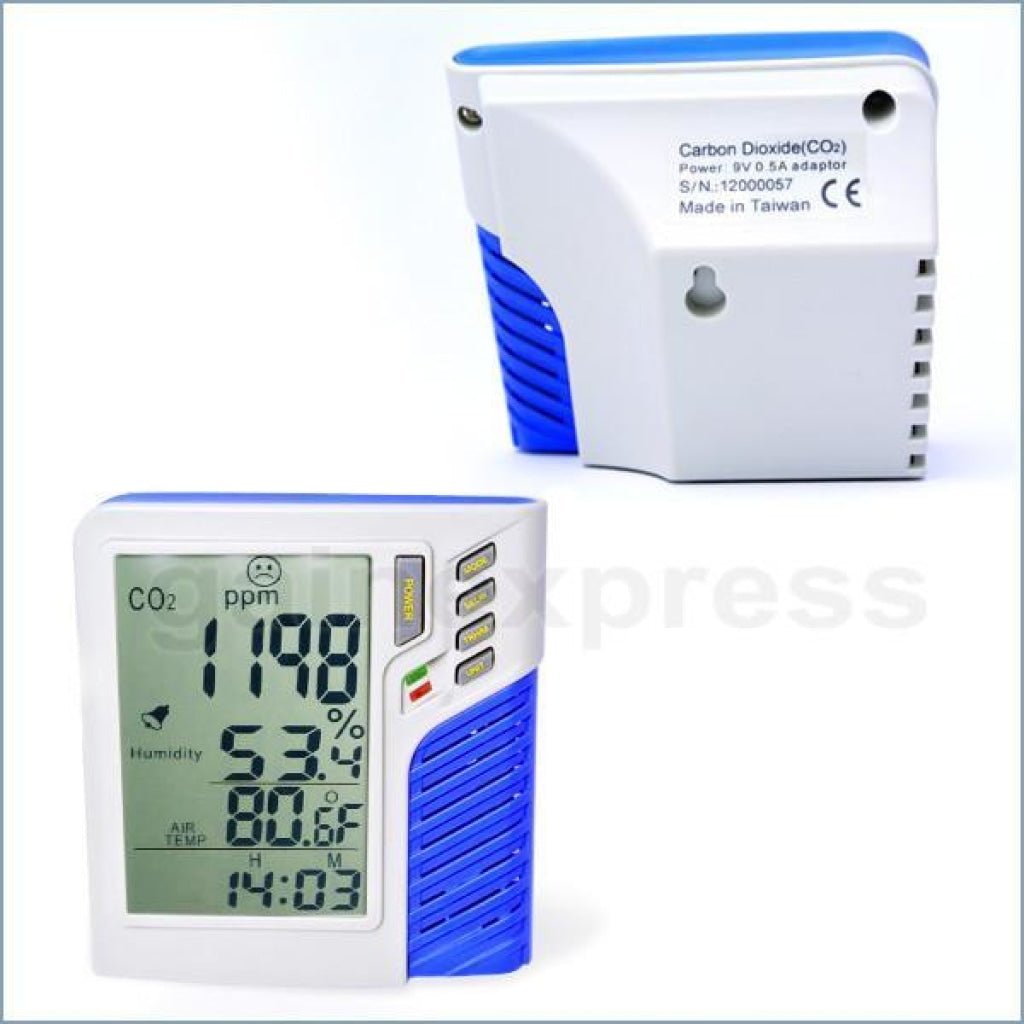

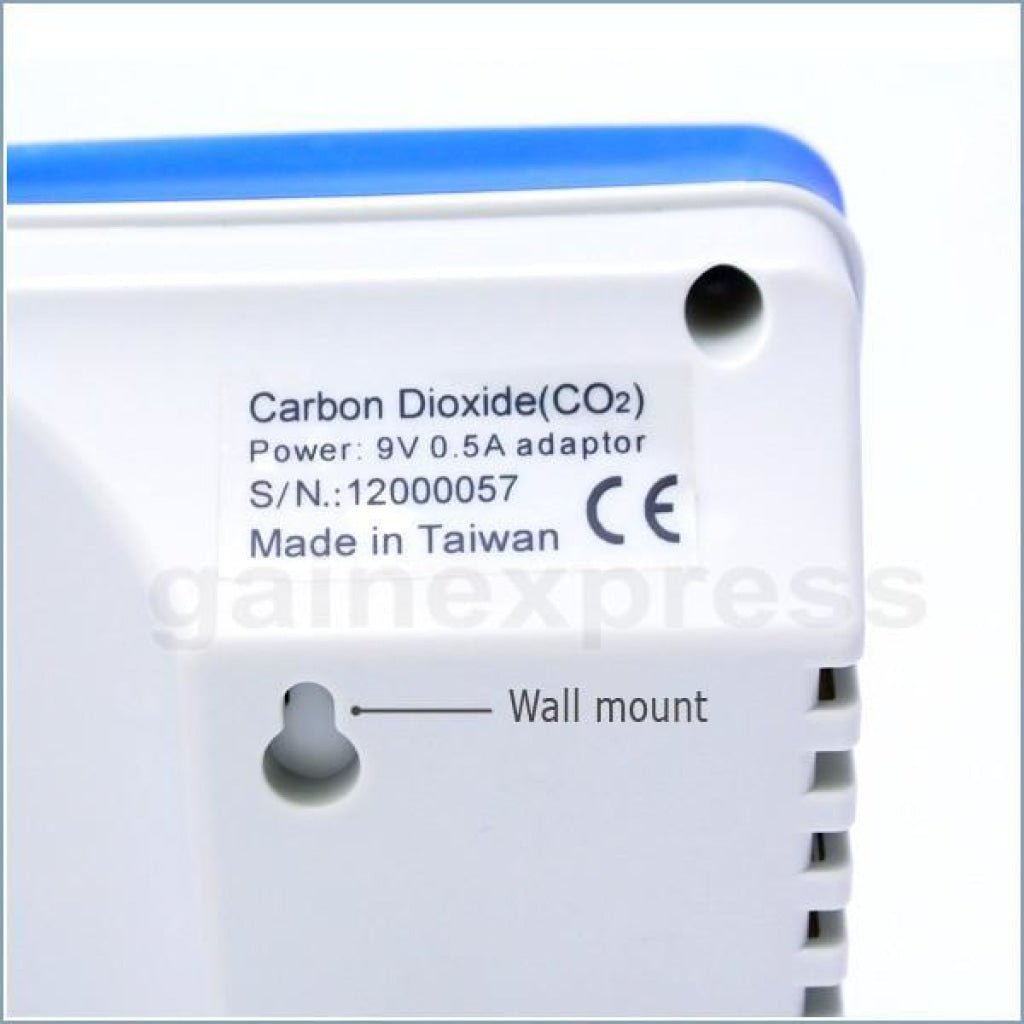

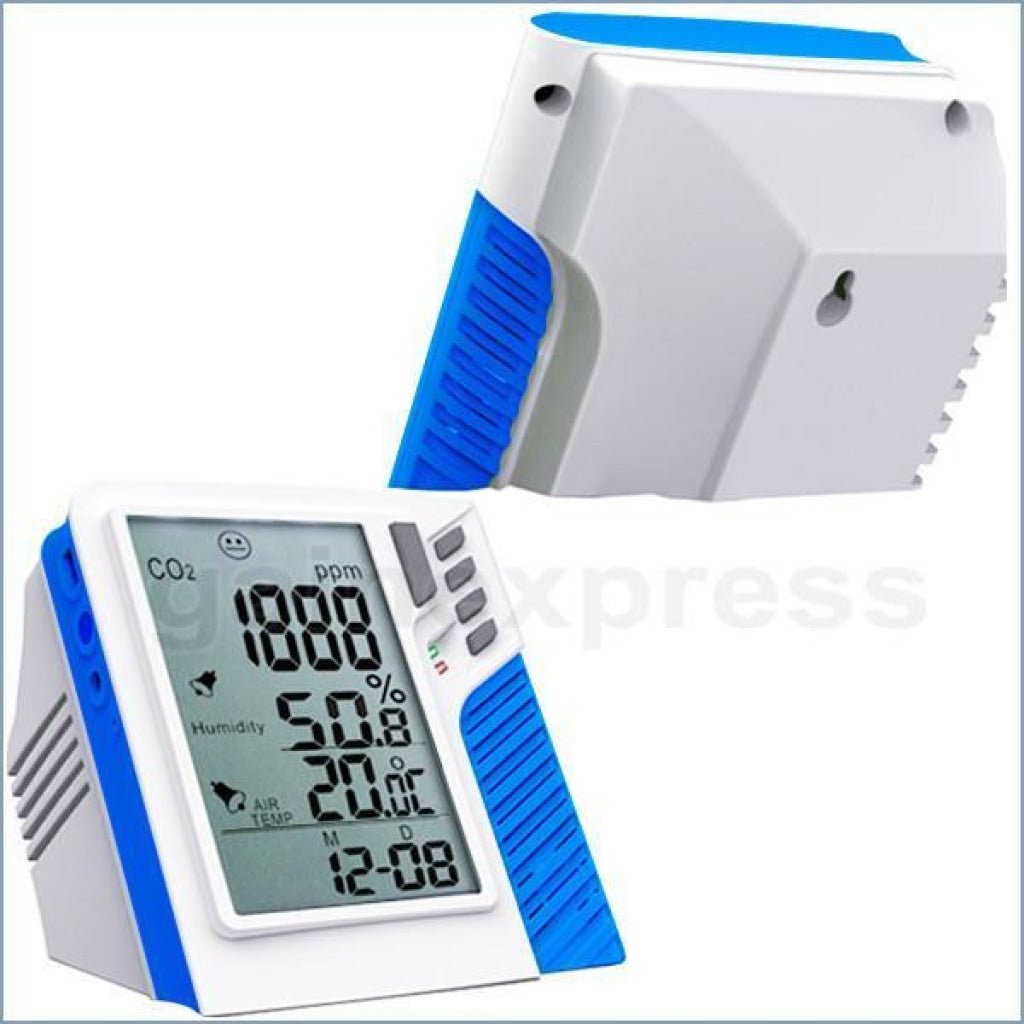

• Can be wall-mount or desktop position
• Comes with Power Adaptor (choose one from the available plug US/ UK/ AU/ EUR)
• Made in Taiwan


Specifications:

• Large LCD Display : 85 x 56mm jumbo size with backlight

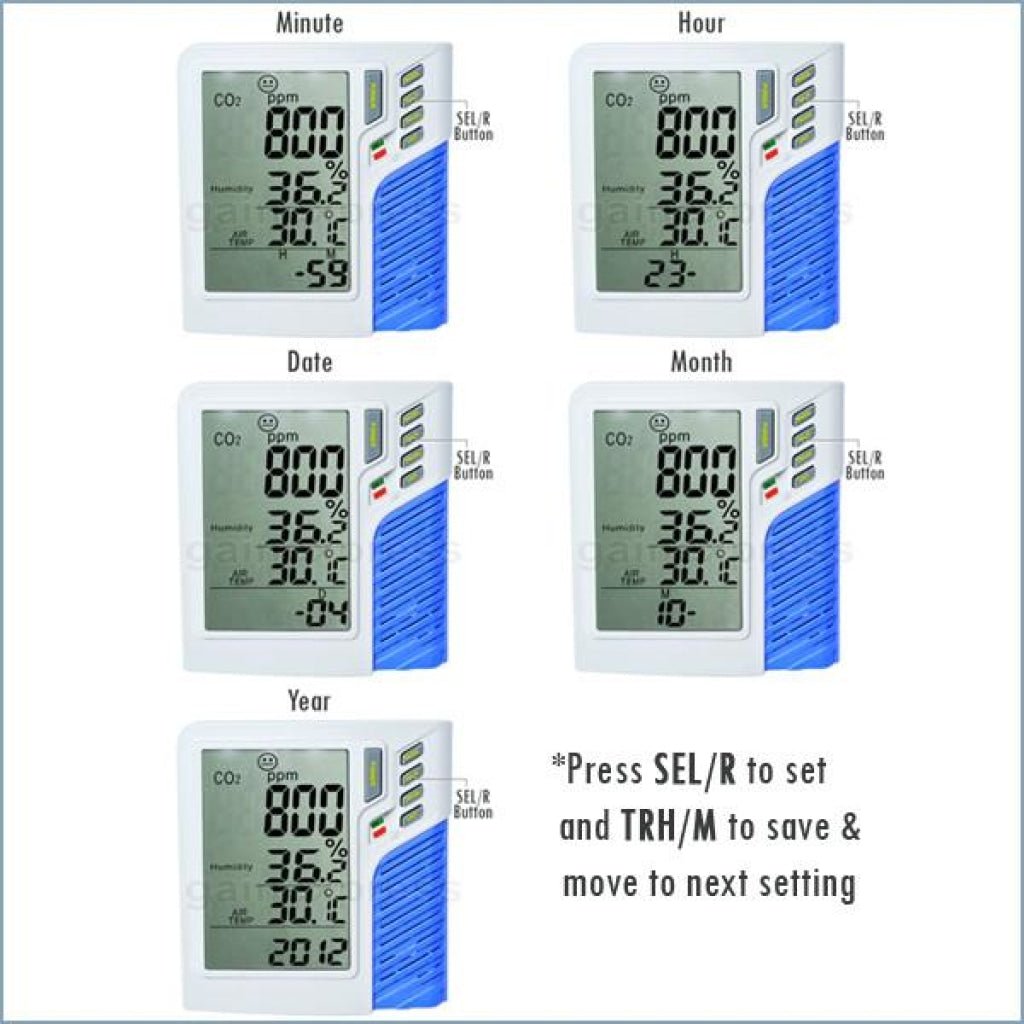

• Time interval selection : Hour (1~6), minute (0~59), second (0~59)
• Logger mode : Key start/ stop, Immediately, Schedule, Real-time & Roll-over
• CO₂ Range : 0~9999ppm
• C0₂ Accuracy : ±75ppm + 5% of rdg (C0₂) 0~2000ppm, others out of scale range
• Response time
  • C0₂ : 10sec
  • Relative humidity : 2 sec
  • >>Note : If the operation environment changes (ex. From high to low temp.),it takes approx.30 sec. for C02 sensor to response and approx.30 minutes for RH into stable measurement.
• Logging Memory : 32000
• Wall mount / desktop : YES
• Temp. range : -10~50°C (14~122°F)
• Temp. Resolution : 0.1°C/°F
• Temp. Accuracy : ±0.6°C (-10~50°C / -4~122°F), others ±1.2°F
• RH Range : 0.1% ~ 99.9%RH
• RH Accuracy : ±5%RH (at 25°C, 10~90%RH, others ±7%RH)
• Operating Environment
  • Temperature : 0~50°C(32~122°F)
  • Relative Humidity : <80% RH
• Sensor life : 15 years in normal comm. Environments with ABC on
• Storage Temp : -40~70°C (-40~158°F)

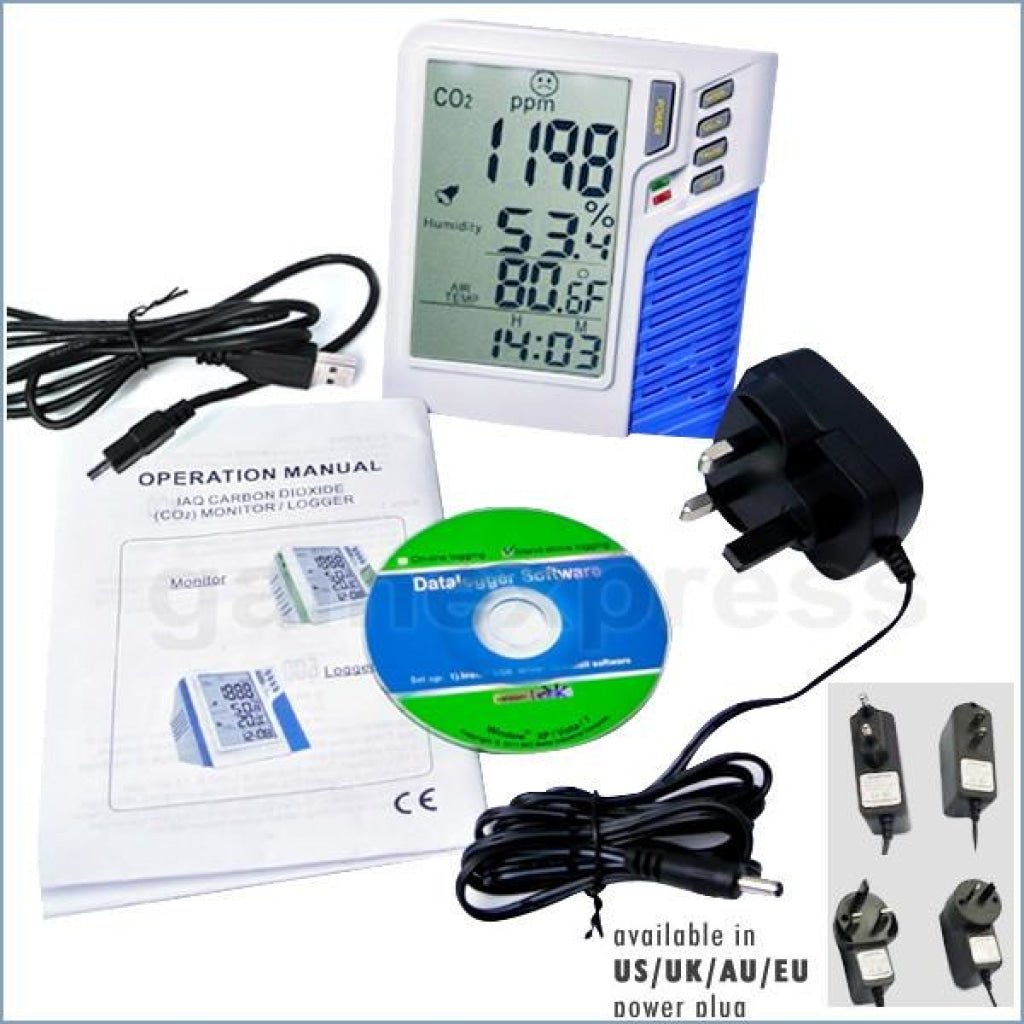

Set Includes :

• 1 x IAQ Carbon Dioxide (C0₂) Datalogger Monitor
• 1 x Power Adaptor (choose one from the available plug US/ UK/ AU/ EUR)

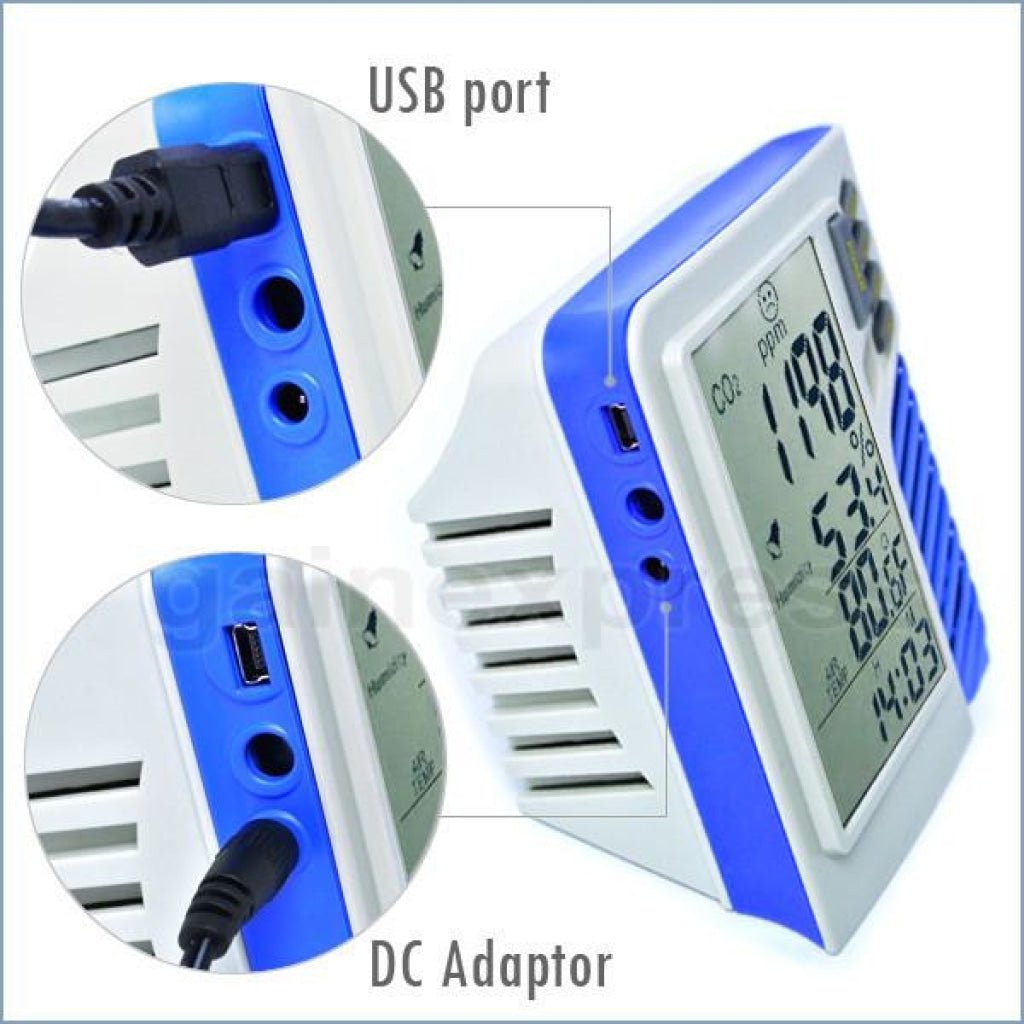

• 1 x USB cable
• 1 x CD Software
• 1 x English Operation Manual
• 1 x Standard Packaging Box with colored Sleeve
