Presenting the Carbon Dioxide Monitor featuring a spacious LED screen display that offers clear visibility. Equipped with a CO2 chart trend display, it provides valuable insights into CO2 levels over time. The monitor's brightness is easily adjustable to suit your preferences. Utilizing a dual-beam NDIR sensor, it ensures accurate and reliable measurements. This desktop CO2 monitor not only offers precise functionality but also boasts a stylish design that enhances any workspace aesthetic.
Features:
- Wide LED Digital screen display
- Three-colored LED indicator

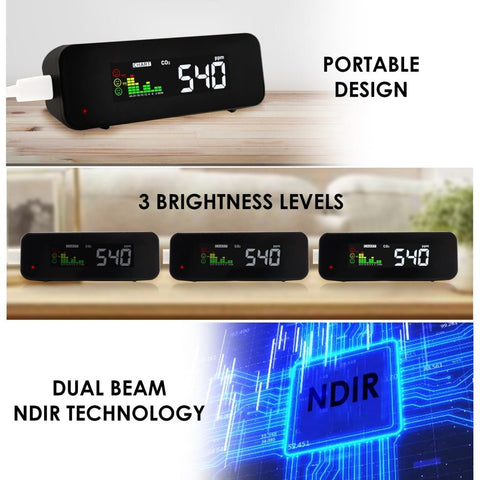

- Adjustable brightness level
- Dual-beam NDIR technology CO2 sensor
- Stylish mini desktop monitor
- Ambient temperature reading

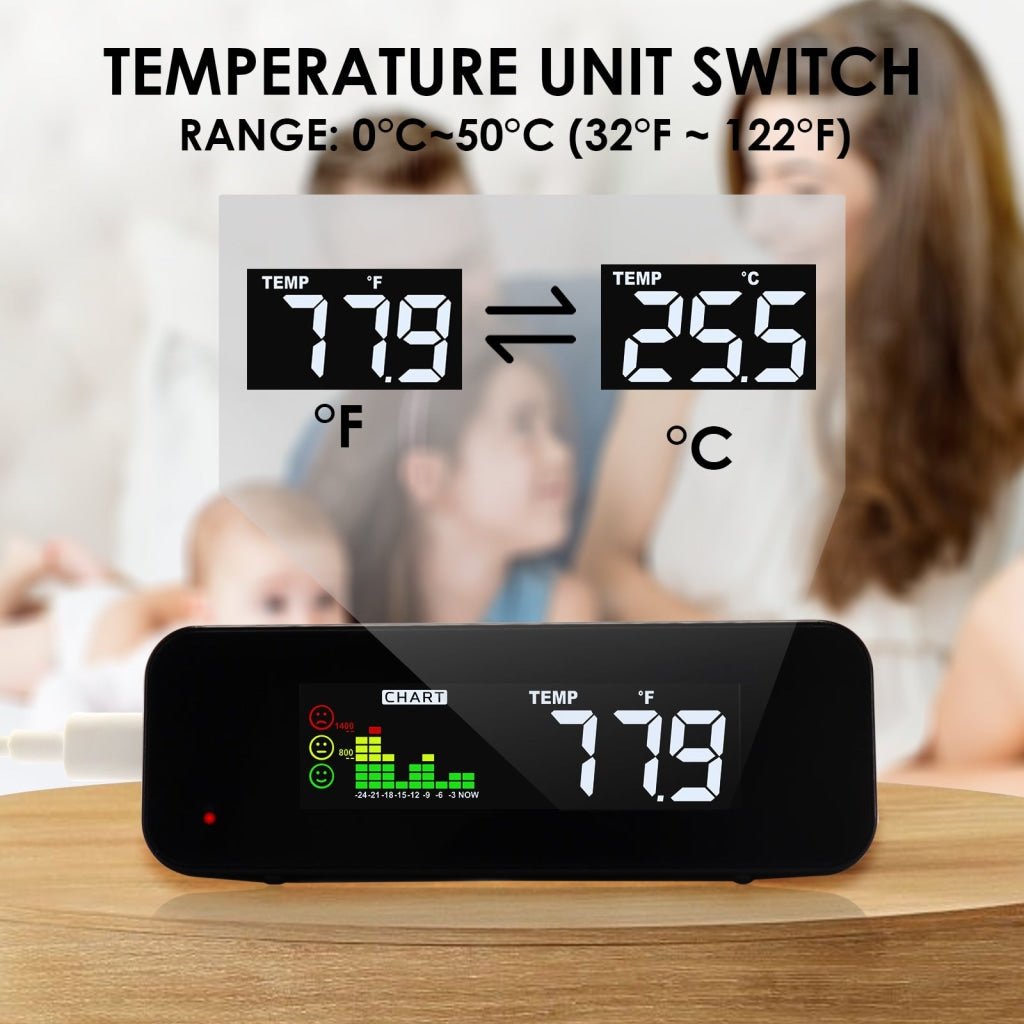

- °F/°C switchable temperature unit

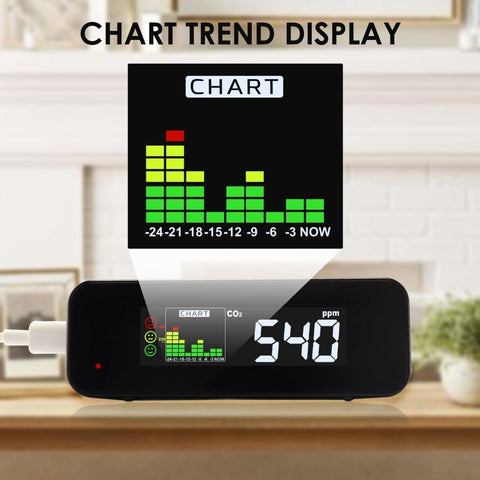

- CO2 chart trend display
- Simple and easy calibration function
Specifications:
- CO2 Measurement
- Range: 0~5000ppm
- Accuracy:
- @0~3000ppm: ±50ppm or ±5% of reading, whichever is greater
- over 3000ppm: ±7%
- Repeatability: 20ppm @40ppm (standard dev of 10 readings in 1 minute)
- Resolution: 1ppm (0~1000); 5ppm (1000~2000); 10ppm (>2000)
- Temp Dependence: ±0.2% or reading per °C or ±2ppm per °C. whichever is greater, reference to 25°C

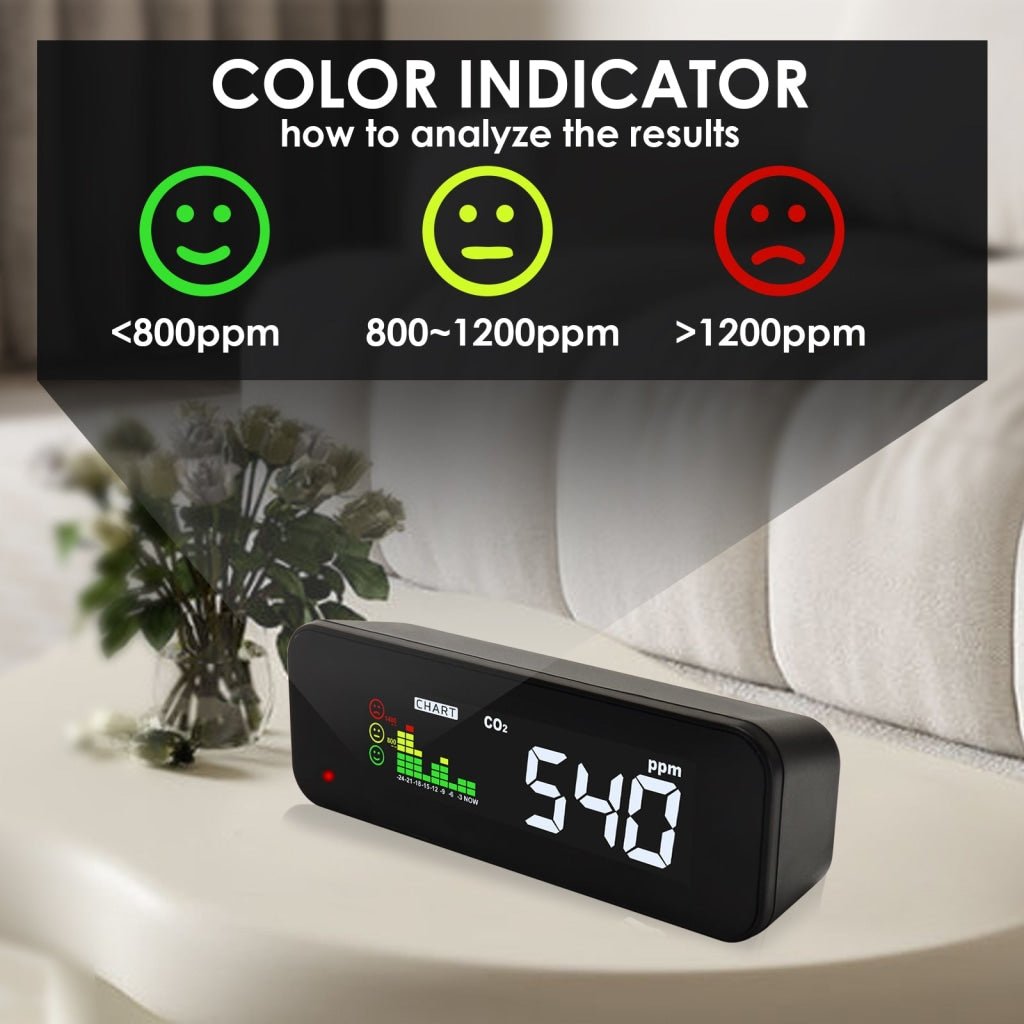

- LED Color Indicator:
- Green LED: <800ppm CO2 concentration
- Yellow LED: 801~1200ppm CO2 concentration
- Red LED: >1200ppm CO2 concentration
- Temperature Measurement:
- Range: 0~50°C (32~122°F)
- Resolution: 0.1°C (0.1°F)
- Accuracy: ±1°C (±1.8°F)
- Operating Environment: 0~50°C (32~122°F); 0~95% RH, non condensing
- Storage Environment: -20~60°C (-4~140°F); 0~95% RH, non condensing
- Response time: <2min for 63% of step change or <4.6min for 90% step change
- Warm-up Time: 15sec
- Power requirements: 160mA Peak, 15mA average at 5.0V

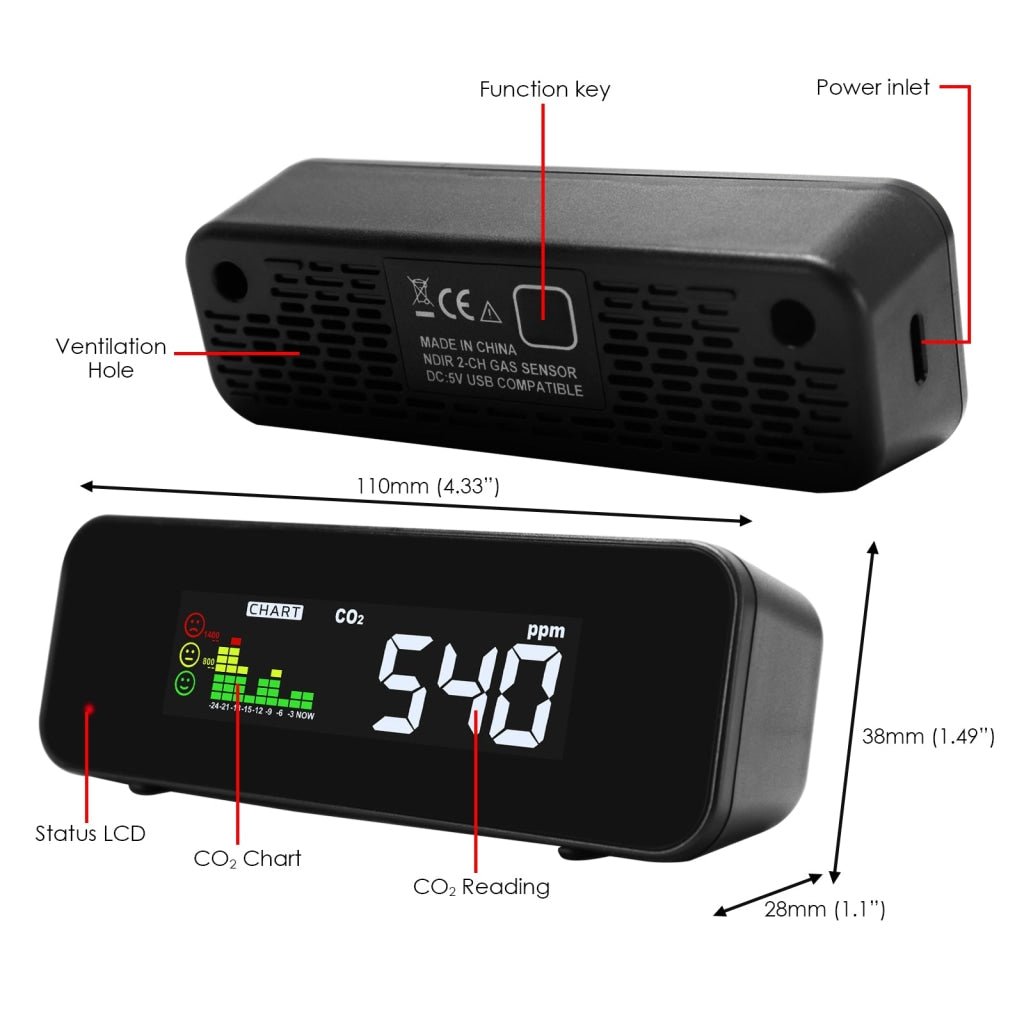

- Dimension: 110 x 38 x 28mm
- Weight: approx. 103gms
Set Includes:
- 1 x CO2 Monitor
- 1 x USB Type-C Power Cable
- English Manual
- Standard Factory Packaging
