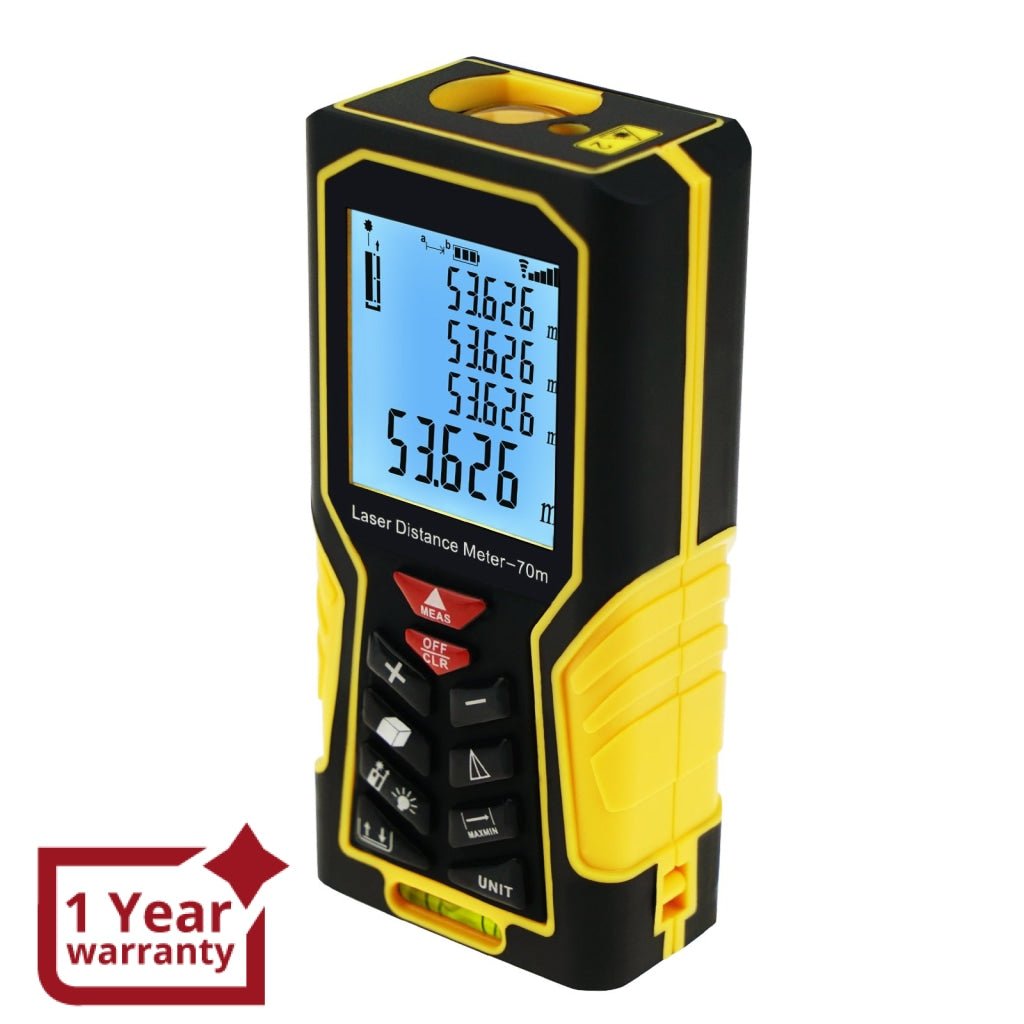

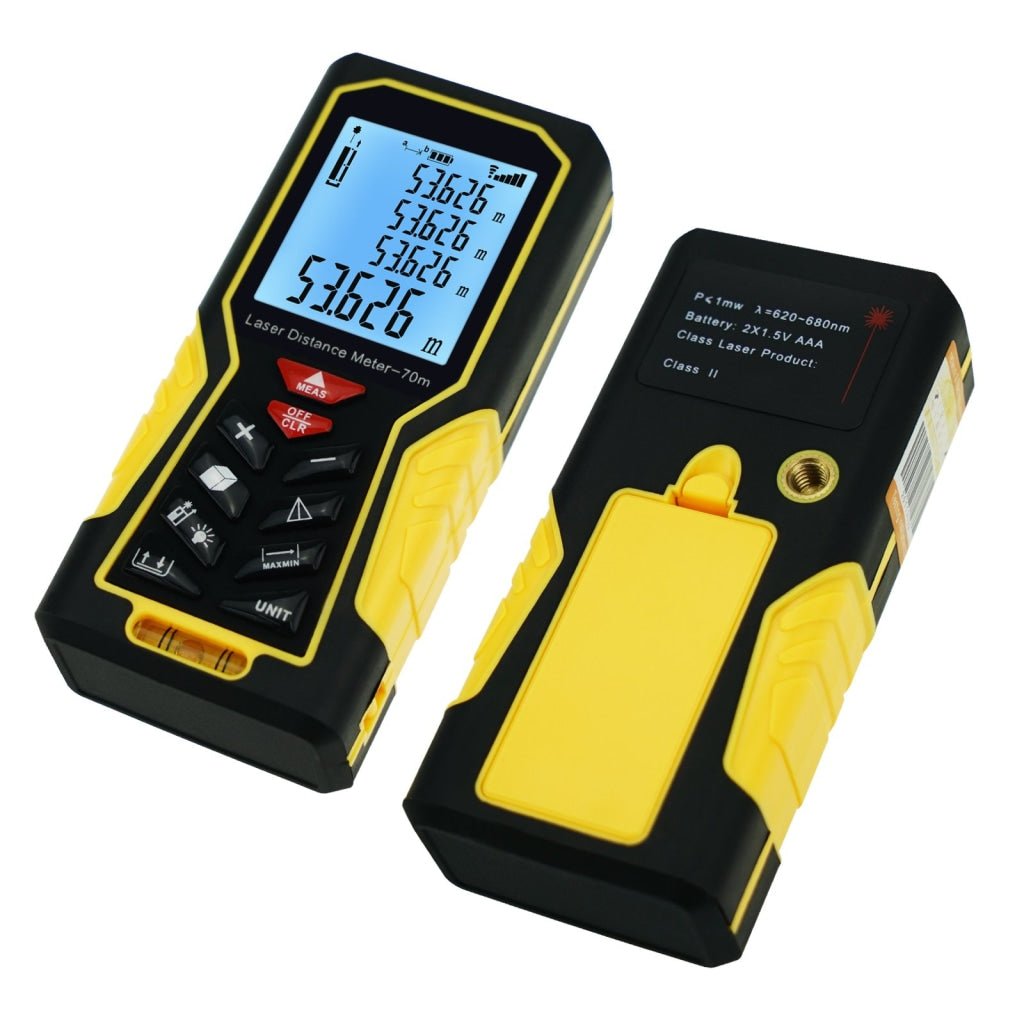

Model: DIS-61

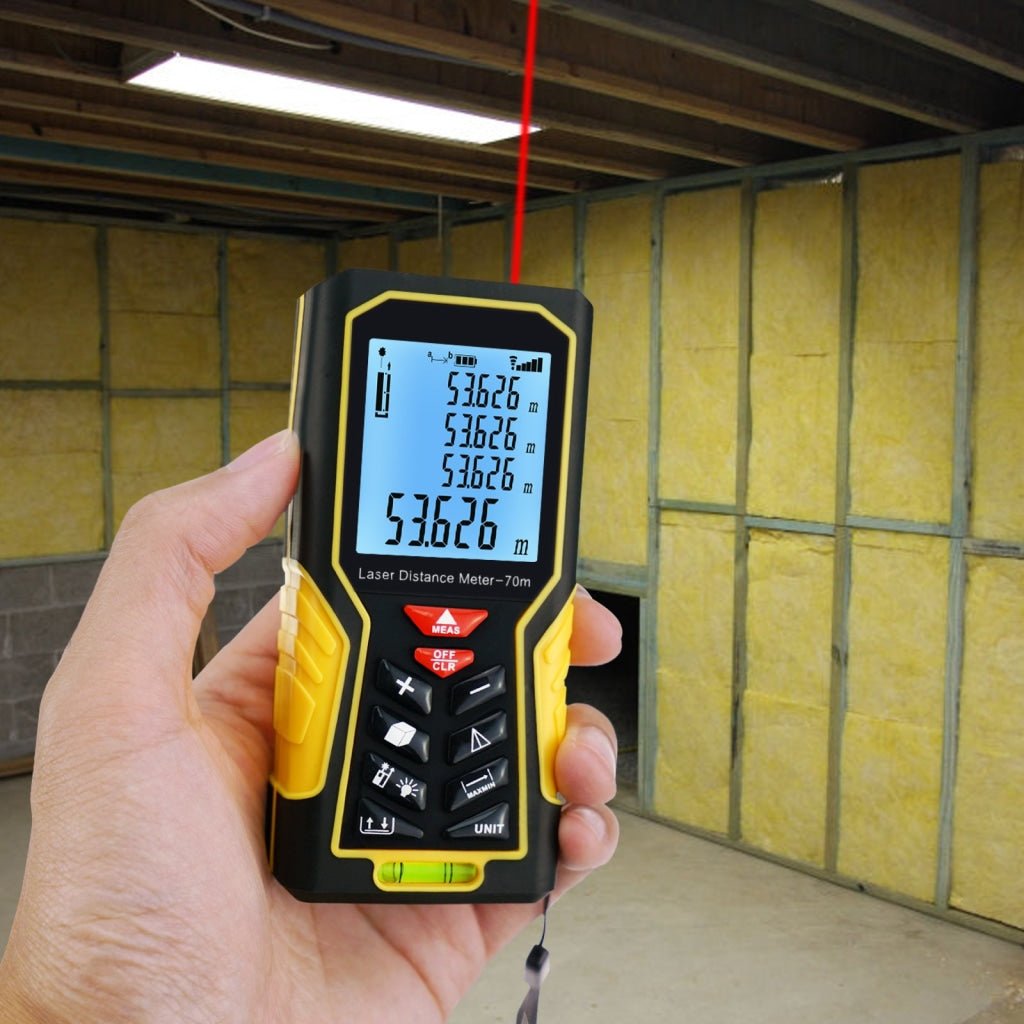

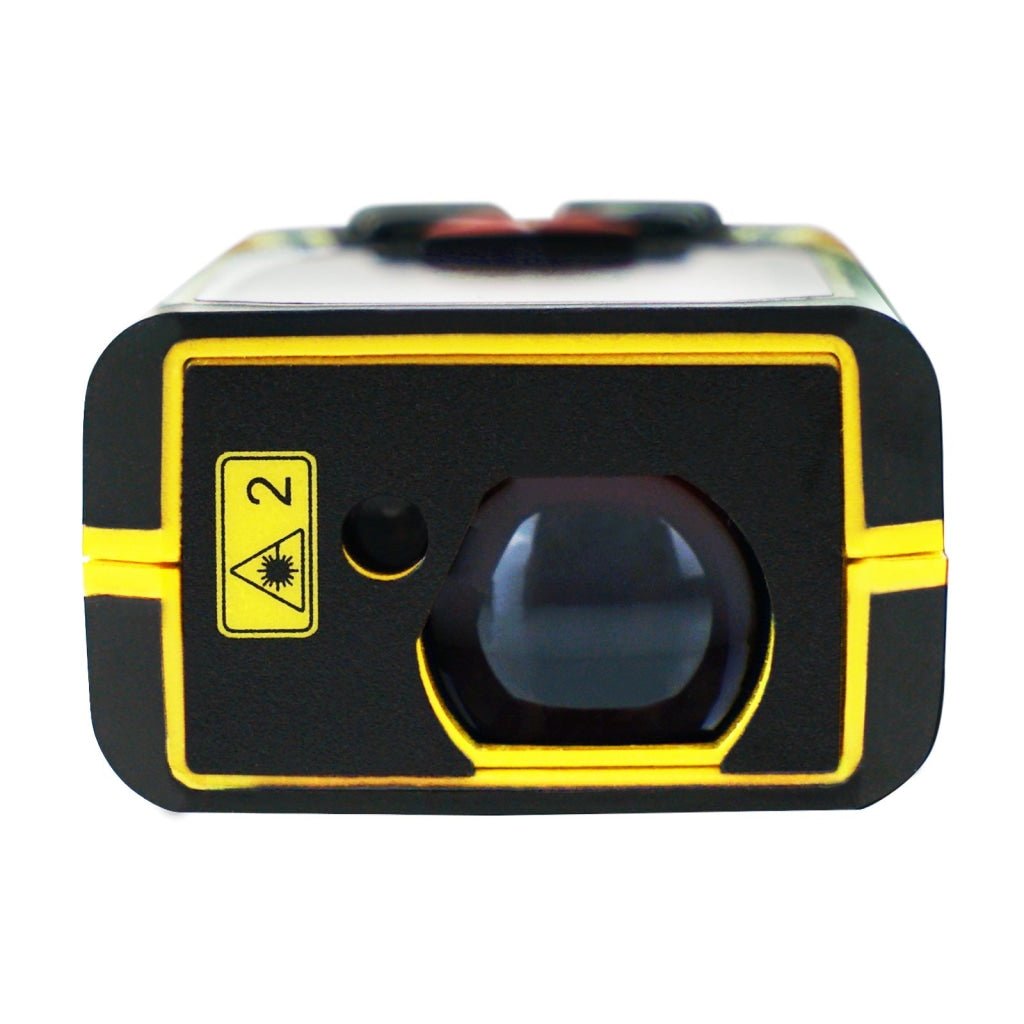

This 70M laser distance meter; Can also do area/volume and Pythagorean calculation and Add/Subtract(Length & Area & Volume) measurement. Comes with a 635nm Class 2 laser and bubble level. It is CE approved. The distance meter is ideal to be used for applications such as:
- Interior decoration & design, and construction technology
- Construction project supervision & on-site inspection
- Real estate development and evaluation, fire evaluation
- Public facilities planning, landscaping planning and application in telecommunications industry
FEATURES:
- Measure distances up to 70m (229ft) with high level of precision (±1mm)
- Small, compact and lightweight. Anti-slip rubber grip lines the sides of the meter for a more secure and comfortable grip

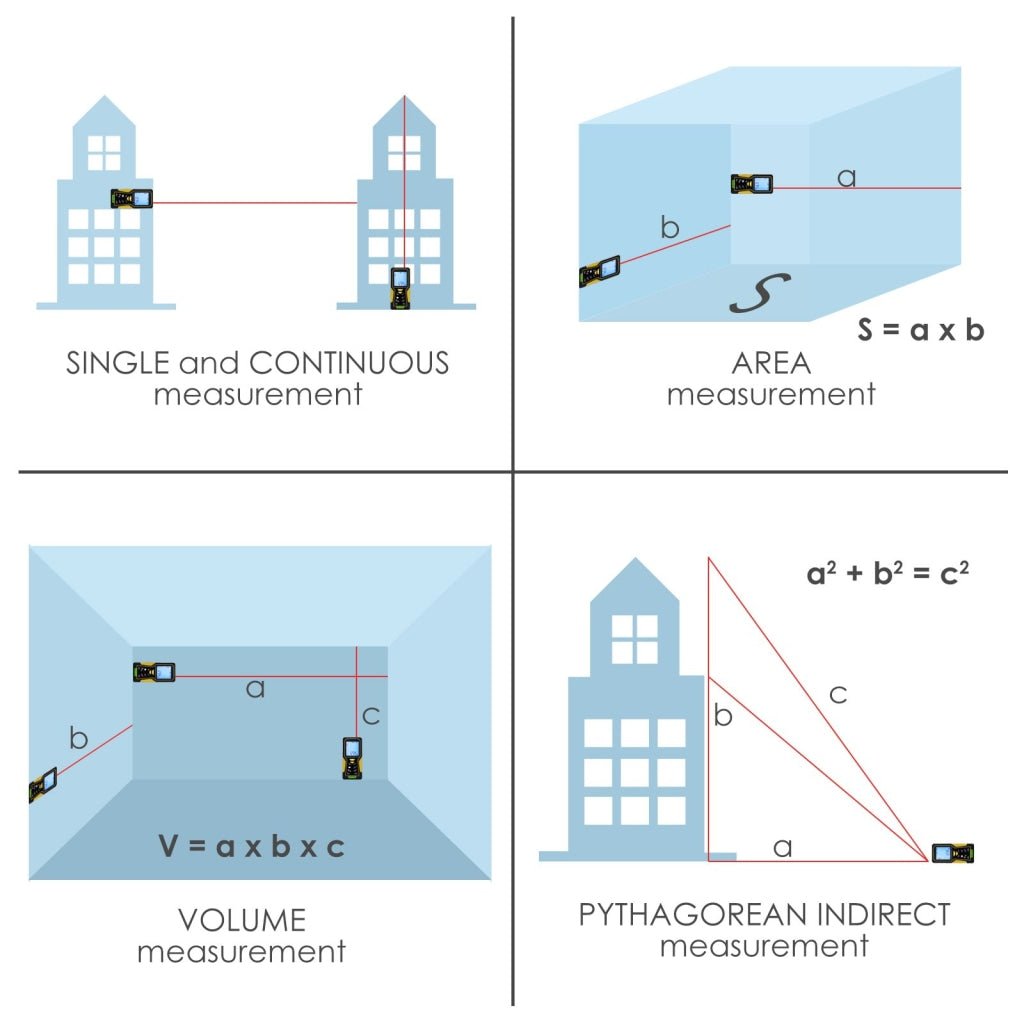

- Has multiple measurement modes: single measurement; continuous measurement; area measurement; volume measurement; Pythagorean Theorem indirect measurement; add/subtract(Length & Area & Volume) measurement

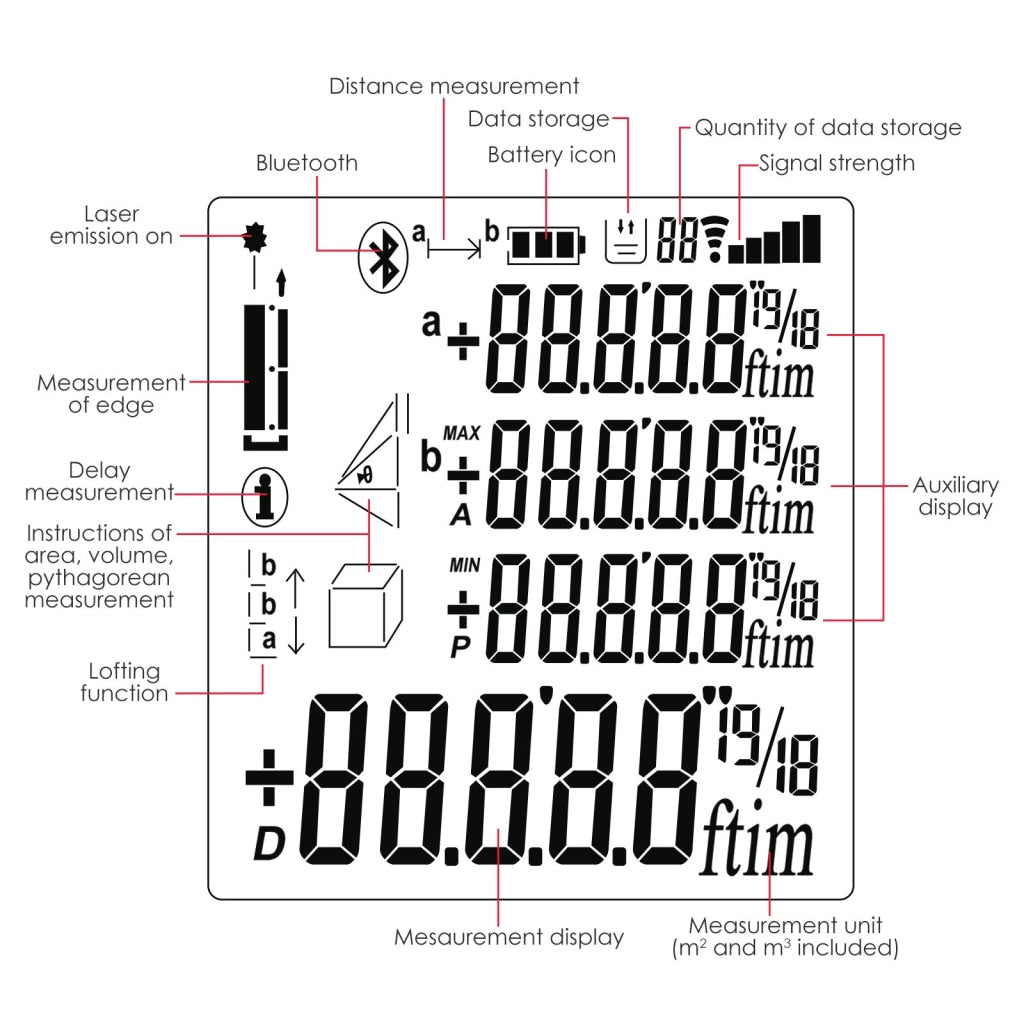

- Meter is able to show instant value, maximum value and minimum value simultaneously under continuous measurement

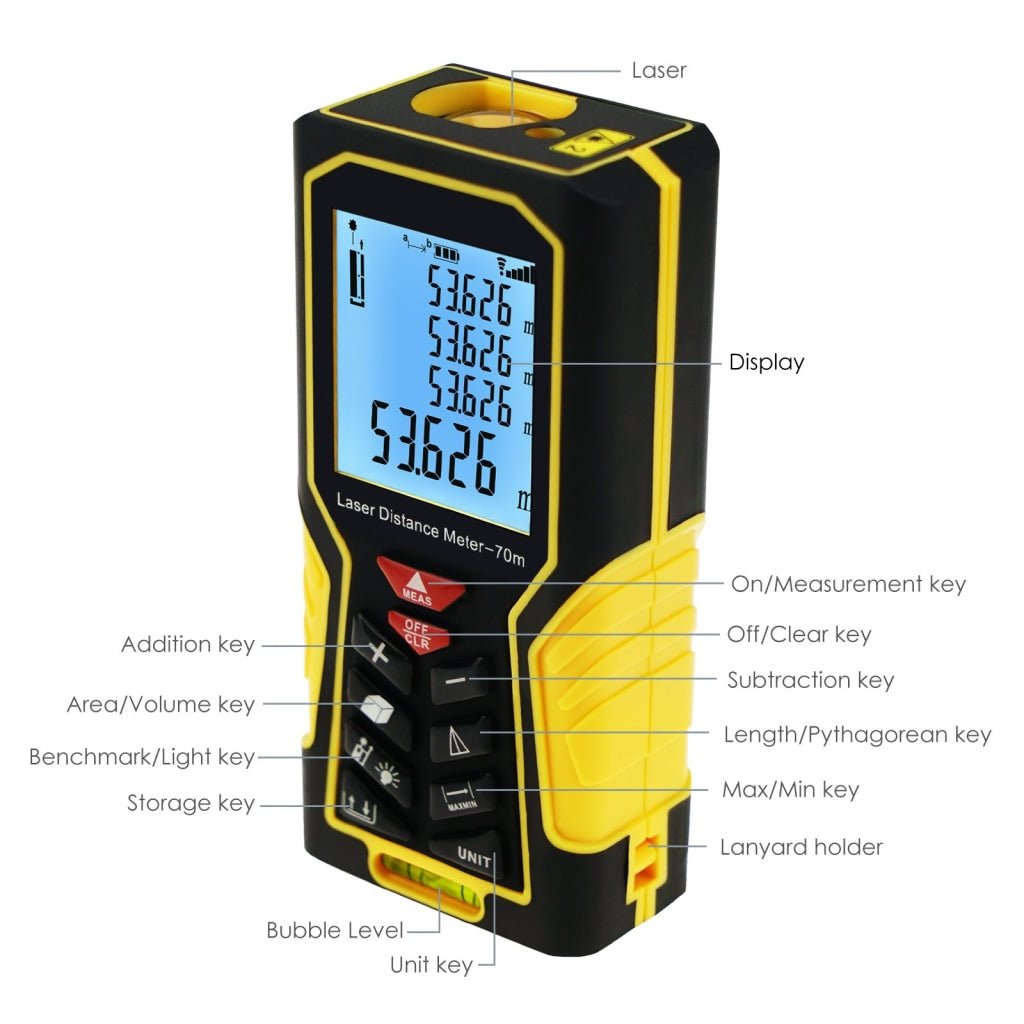

- Contains a hanging rope, tripod mounting screw, auto power/laser/backlight off function and lofting function, backlight display, battery condition display, and a spirit level
SPECIFICATIONS:
- Measurement distance: 70m(229ft)
- Measurement accuracy: ±1mm
- Minimum display: 1mm
- Unit types: 0.000m; 0.00m; 0.00ft; 0’0’’1/16; 0.0in; 01/16in (including m2 and ft2 for area and m3 and ft3 for volume)
- Test time: 0.1~3 sec
- Laser type: II&635nm&<1mw
- Automated calibration precision
- Automated data storage: the last 20 groups of data
- Measurements: single measurement; continuous measurement; area measurement; volume measurement; Pythagorean Theorem indirect measurement; add/subtract(Length&Area&Volume) measurement
- Front benchmark measurement and end benchmark measurement switchable
- Display Max/ Min value
- Battery condition indication
- Signal indication
- Backlight display and auto off (13 seconds)
- Auto power off (130 seconds)
- Auto laser off (28 seconds)
- Key tone: Yes
- Lofting function: Yes
- The level of bubble: Yes
- Power supply: 2 pieces x 1.5V AAA Alkaline battery
- Working temperature: 0-40°C
- Storage temperature: -25-60°C
- LCD Screen Size: 31 x35mm

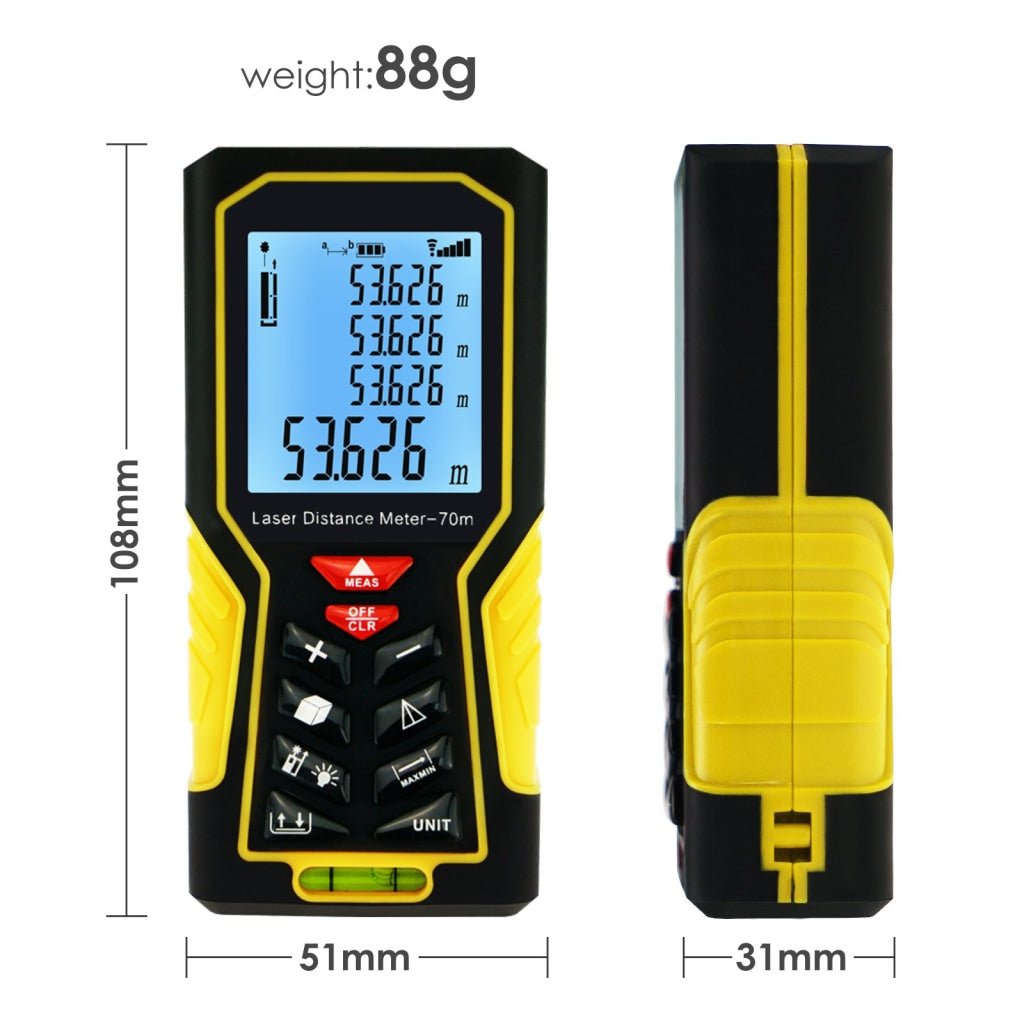

- Meter weight: 88g
- Meter size: 108(L) x 51(W) x 31(H)mm

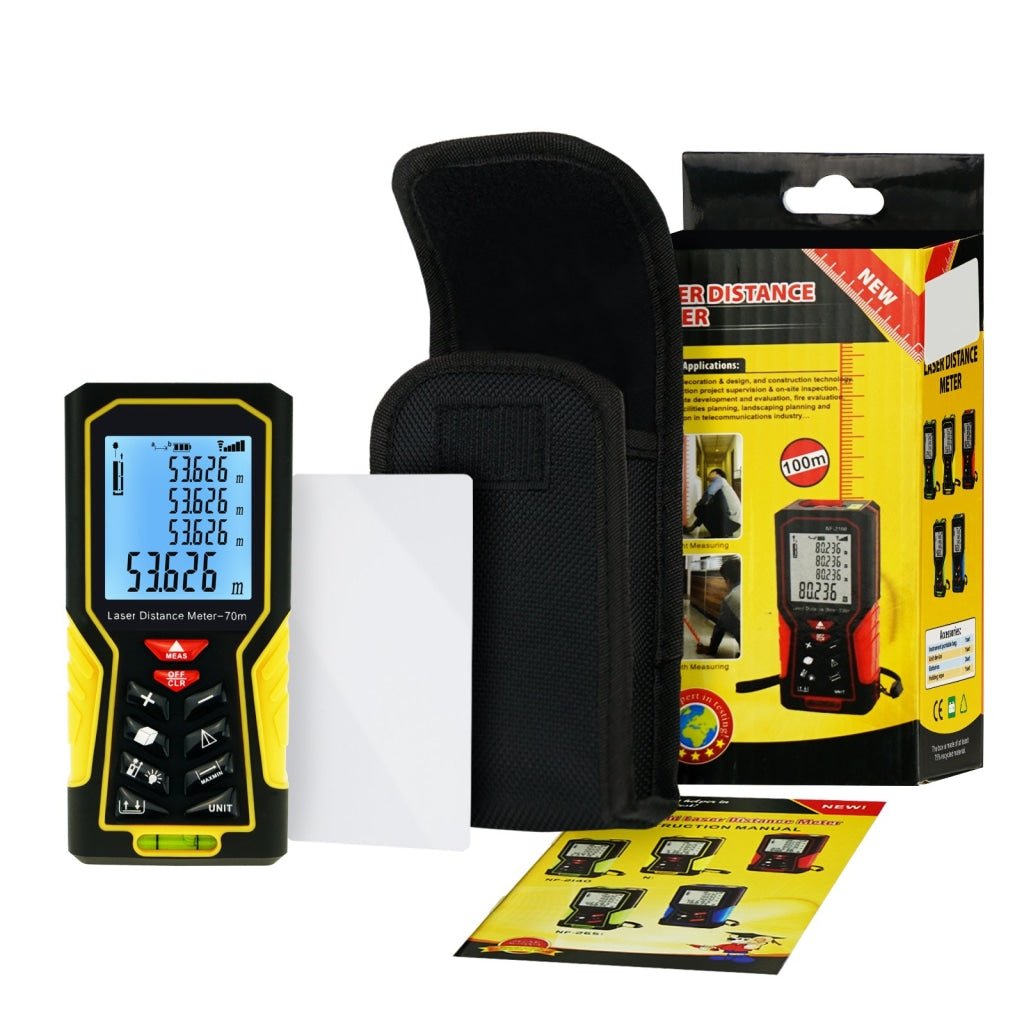

SET INCLUDES:
- 1 x Distance meter

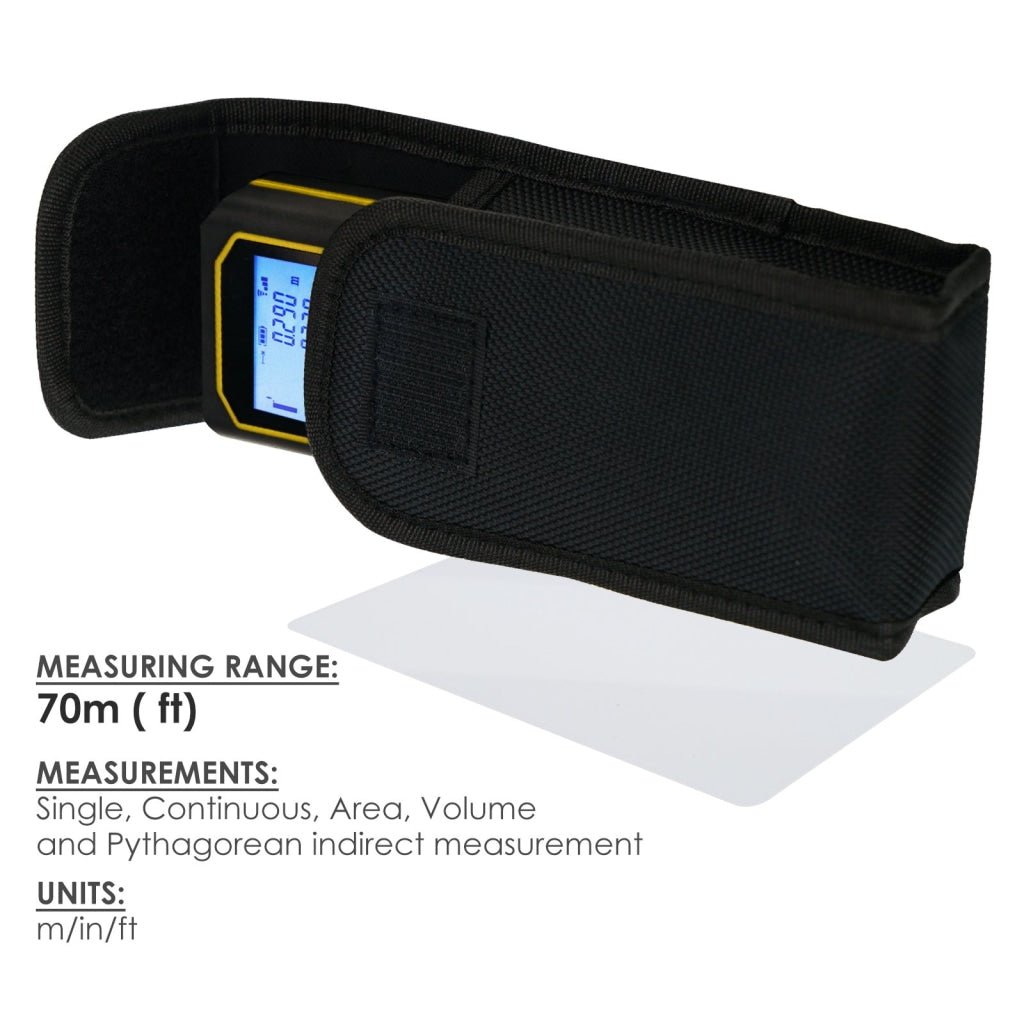

- 1 x Carry Pouch
- 1 x Wrist Lanyard/ Lace
- 1 x English Manual
- 1 x Reflector board
- 2 x AAA battery
