This compact & handy Professional Gauge is designed for non-destructive, fast and highly accurate/precise coating thickness measurement.
It stores 400 memory values and displays 5 statistics ( AVG, MAX, MIN, S.DEV and Number of reading in work mode). It comes with software CD and USB cable for transferring collected data to computer for later analysis or data printing.
DT-156 is ideal for manufacturer, offices & specialist advisers, paint shops & electroplaters, chemical, automobile, shipbuilding and aircraft industries including light & heavy engineering.
Features:
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint, anodizing coatings) on no-ferrous metals
- No-ferrous metals coatings on insulating substrates
- Blue backlight display
- One-point calibrating and two-point calibrating independently for each working mode
- Zero calibration
- 400 Memory readings
- Delete functions
- High alarm and Error indication
- V-Groove on probe for small cylindrical parts
- Disable Auto-Power-Off function
- USB interface for PC software
- Conforms to the following industrial standards:
- GB/T 4956-1985
- GB/T 4957-1985
- JB/T 8393-1996
- JJG 889-95
- JJG 818-9
Specifications :
- Sensor Probe: F & NF
- Working Principle: Magnetic Induction / Eddy Current Principle
- Range: 0~1250µm / 0~49.2mils
- Two measuring mode : CONTINUOUS and SINGLE mode
- Two Operating/working mode: DIRECT and GROUP mode
- Guaranteed Tolerance :
- 0~850 µm (±3% + 1µm) ; 850 ~ 1250µm (±5%)
- 0 ~ 33.46 mils (±3% + 0.039mils) 33.46~49.21mils (±5%)
- Accuracy :
- 0.50um(0.1µm) 50~850µm(1µm) 850~1250µm(0.01mm)
- 0~1.968mils(0.001mils) 1.968~33.46mils(0.01mils) 33.46~49.21mils (0.1mils)
- Min. Curvature Radius: 1.5mm / 3mm
- Diameter of Min. Area: 7mm / 5mm
- Min. Thickness of Substrate: 0.5mm / 0.3mm
- Low range Precision: 0.1µm / 0.1µm
- Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode
- Memory readings: 80 DIRECT and 320 GROUP readings
- Software Compatibility: windows 98/2000/xp/Vista/Win7, 8, 10
- Working Temperature: 0~40°C (32~104°F)
- Working Relative Humidity: 20~90% RH
- Size: 110 x 50 x 23mm
- Weight: 100g

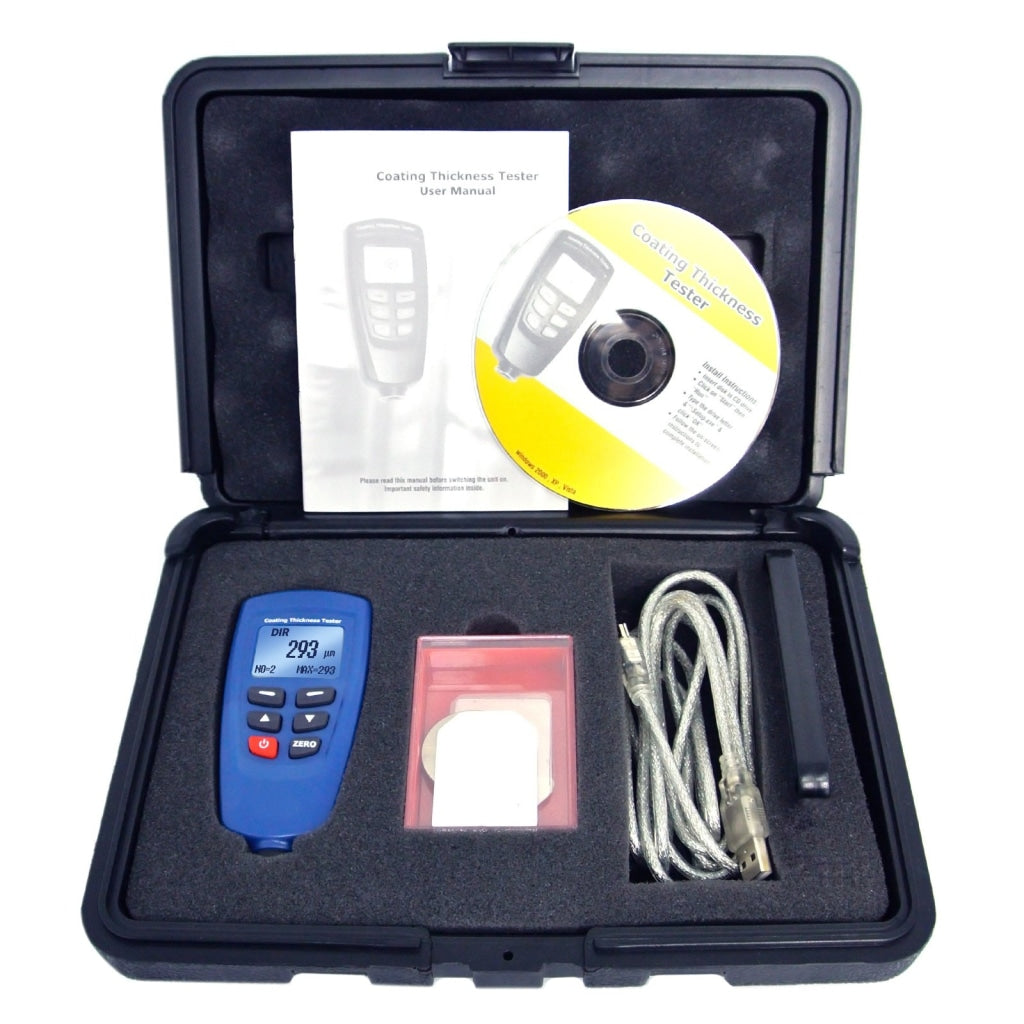

Set Includes:
- 1 x Paint Coating Thickness Tester
- 5 x Calibration Foil
- 1 x Iron Substrate
- 1 x Aluminum Substrate
- 1 x Protective Carrying Case
- 1 x USB cable
- 1 x CD Software
- 2 x 1.5V AAA Battery
- English Instruction Manual
