Model: ENG-216

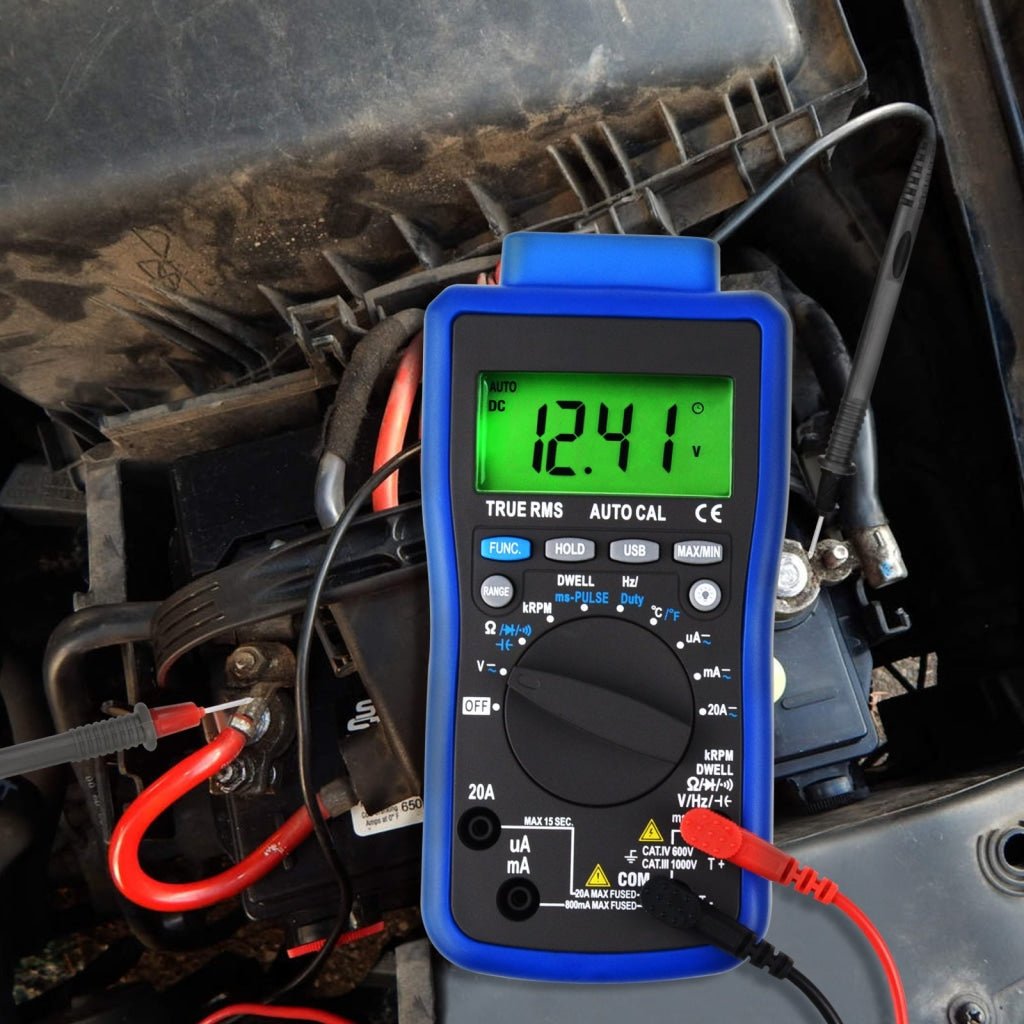

New generation of Auto-ranging Automotive Diagnostic Multimeter with 14-function. Workshop-tough, with high-speed processing circuitry ideal for testing fuel injection systems.
FEATURES:

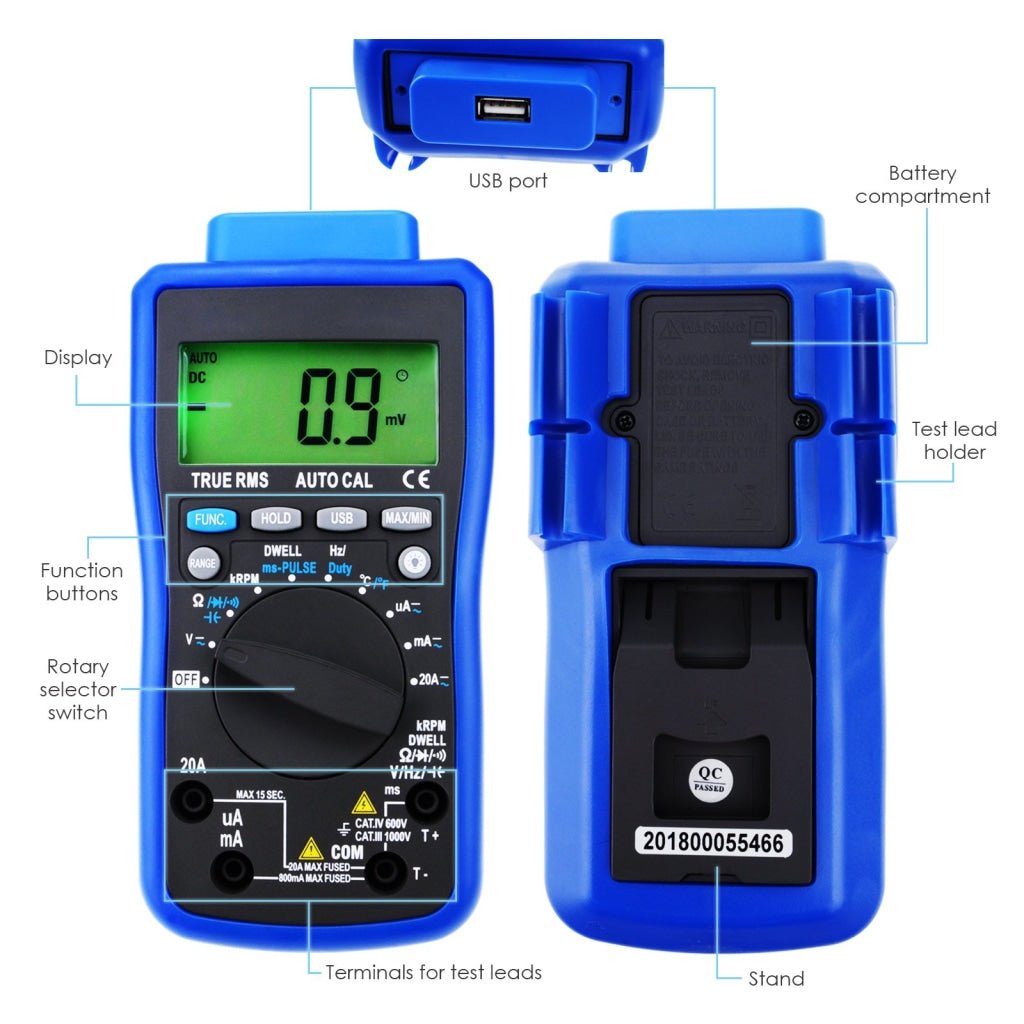

- Large, easy to read high contrast display with bright, white backlight
- Durable bi-composite case with integral stand
- Manual / Auto-ranging
- Max / Min / Peak Hold and Data Hold Function
- Overload Protection on all ranges
- Selectable Temperature Unit (°C/°F)
- Auto power shut-off
- Low battery indication
- Reads standard automotive parameters including duty cycle and pulse width

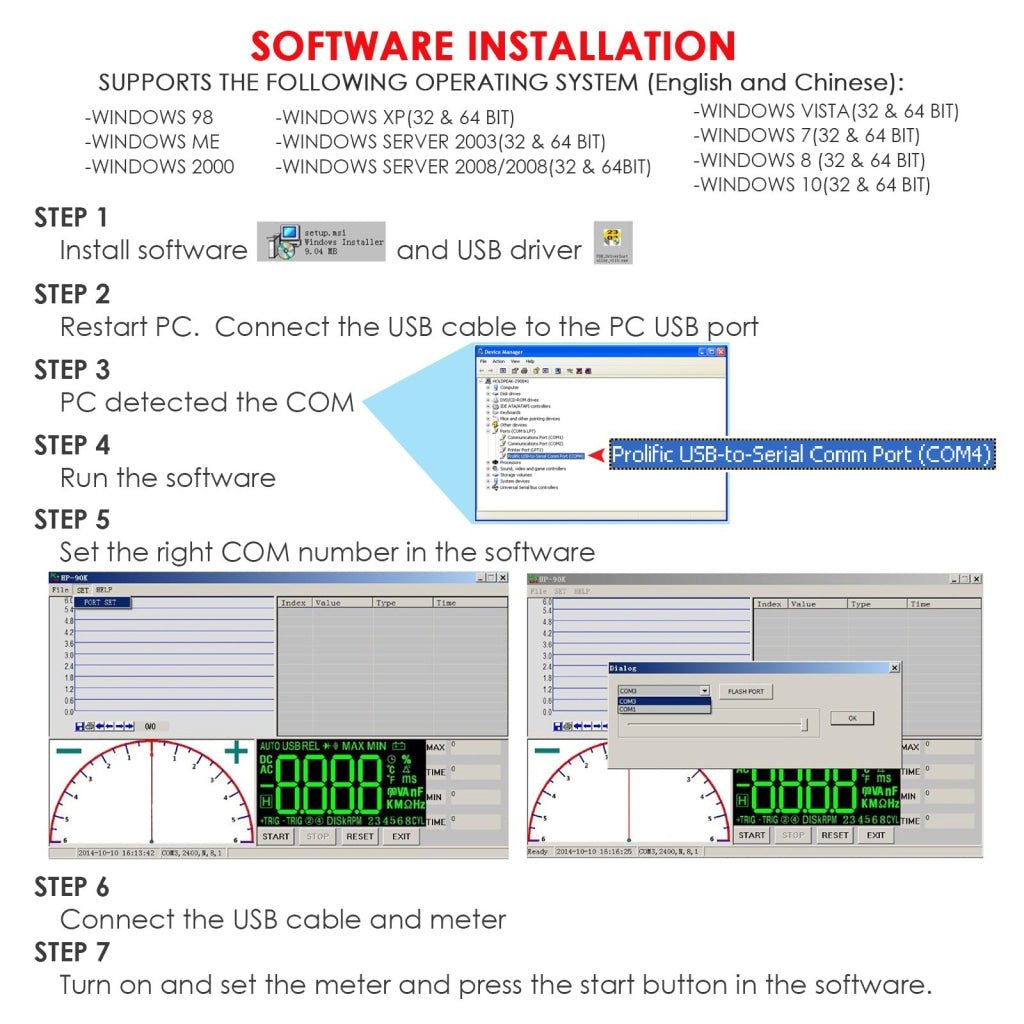

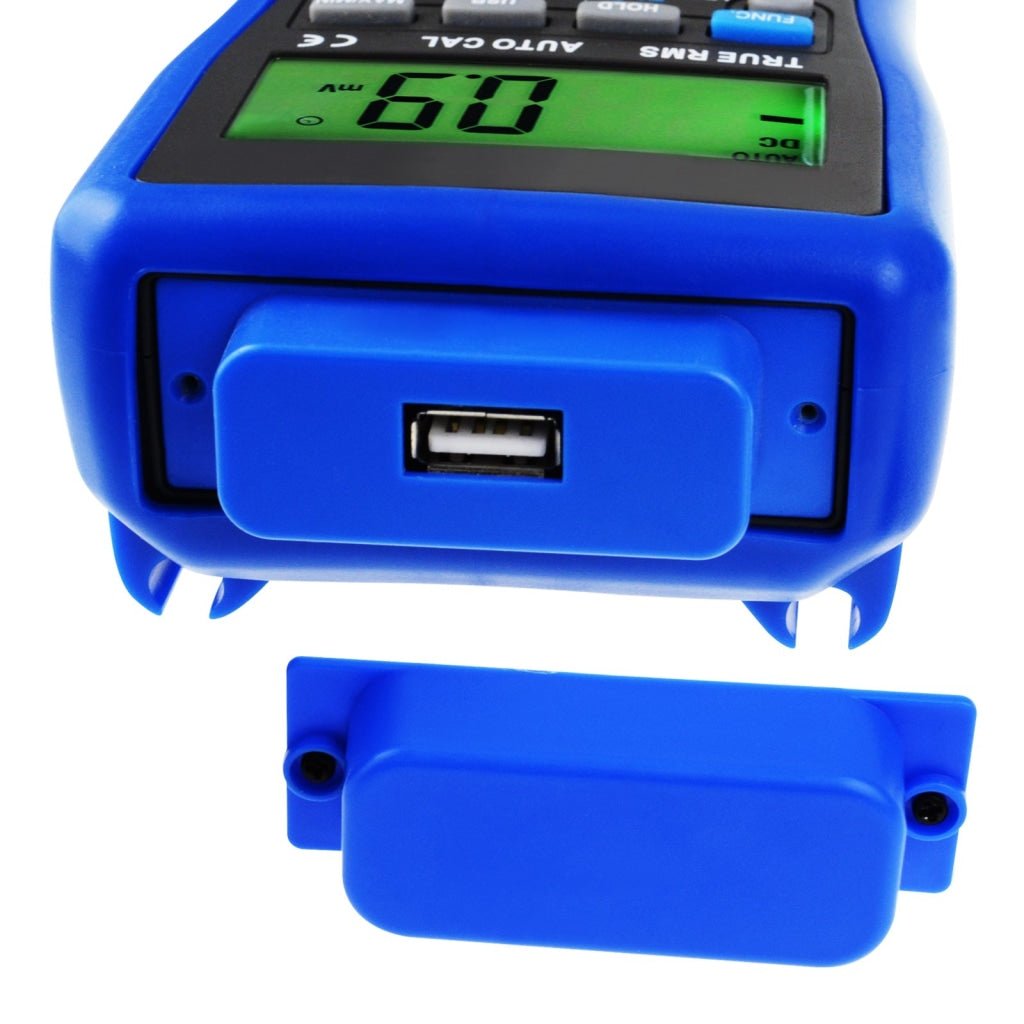

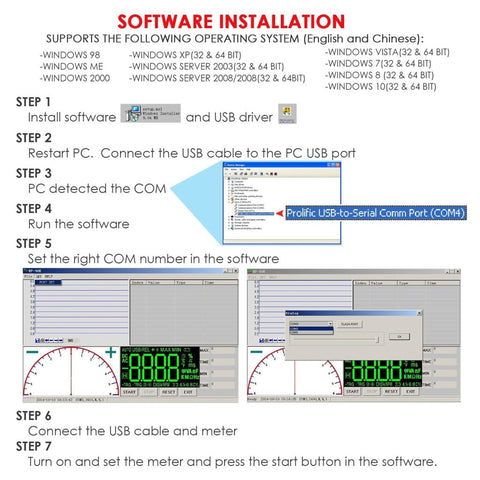

- USB Function allows the meter serial data output to PC by the USB Transmission
SPECIFICATIONS:

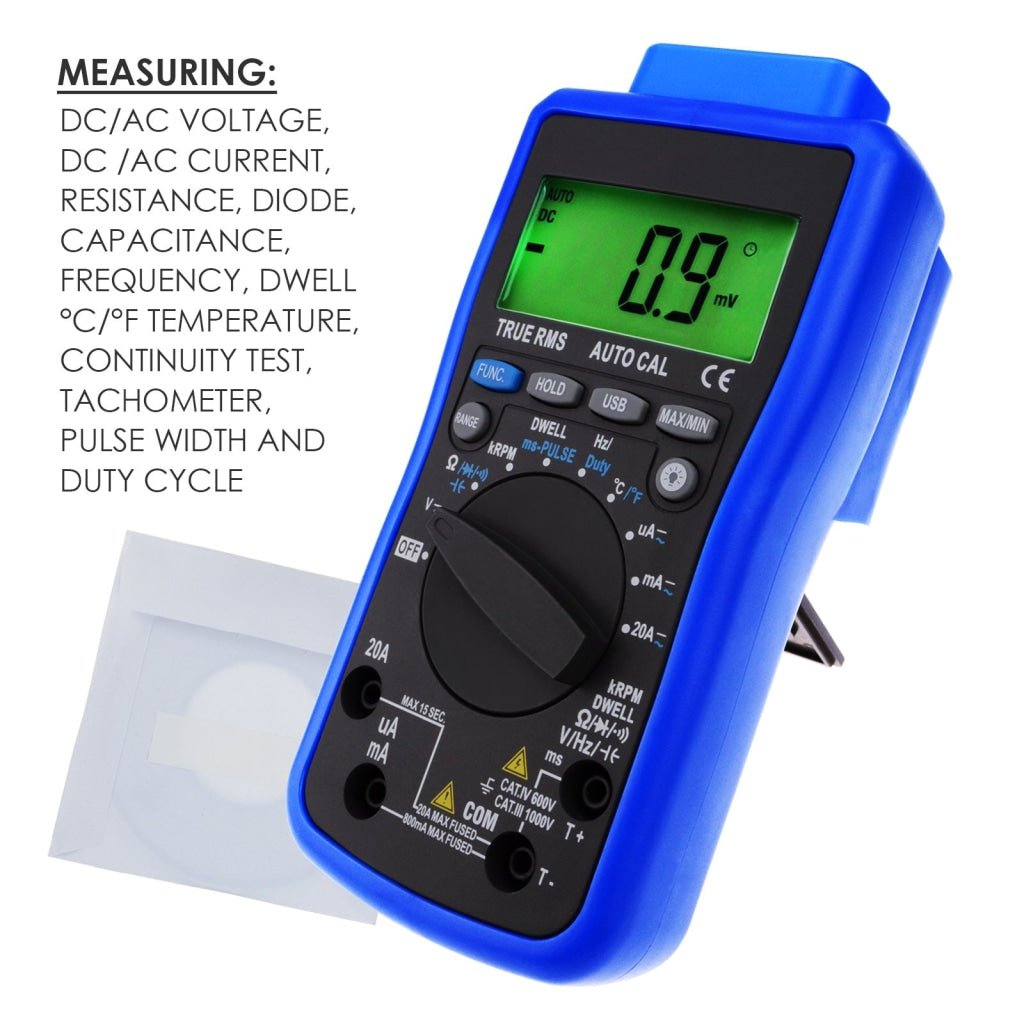

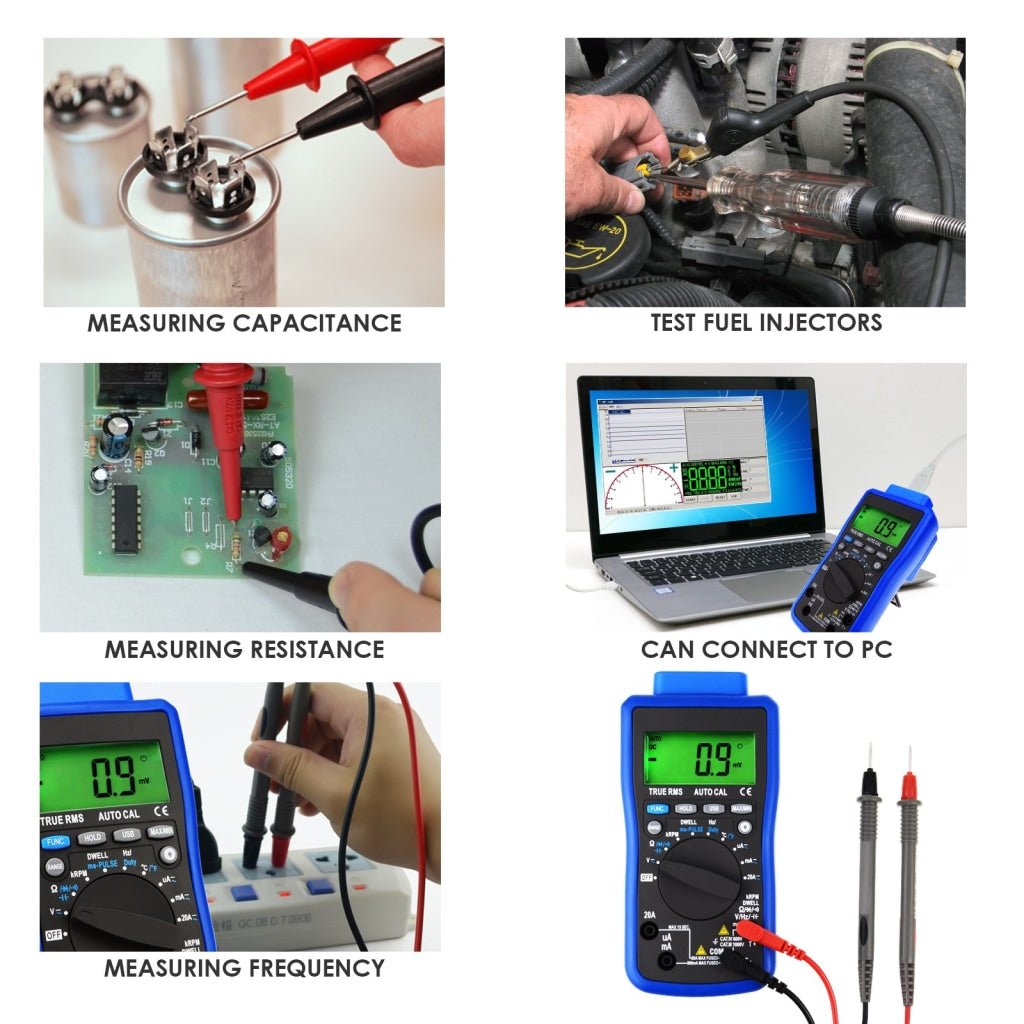

- Measurement: DC & AC Voltage, DC & AC Current, Capacitance, Resistance, Diode Check, Temperature, Frequency, Dwell Angle, Duty Cycle, Pulse Width, RPM (Tach) , and Audible Continuity Test

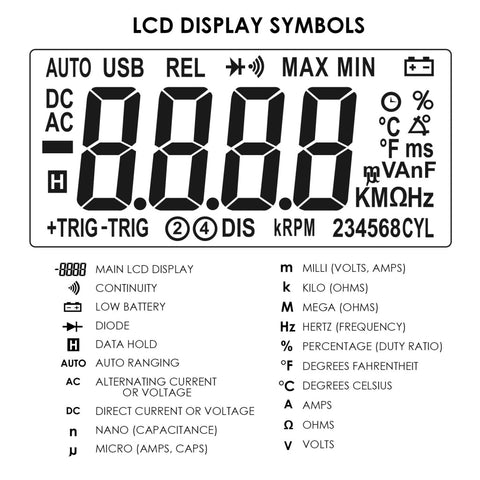

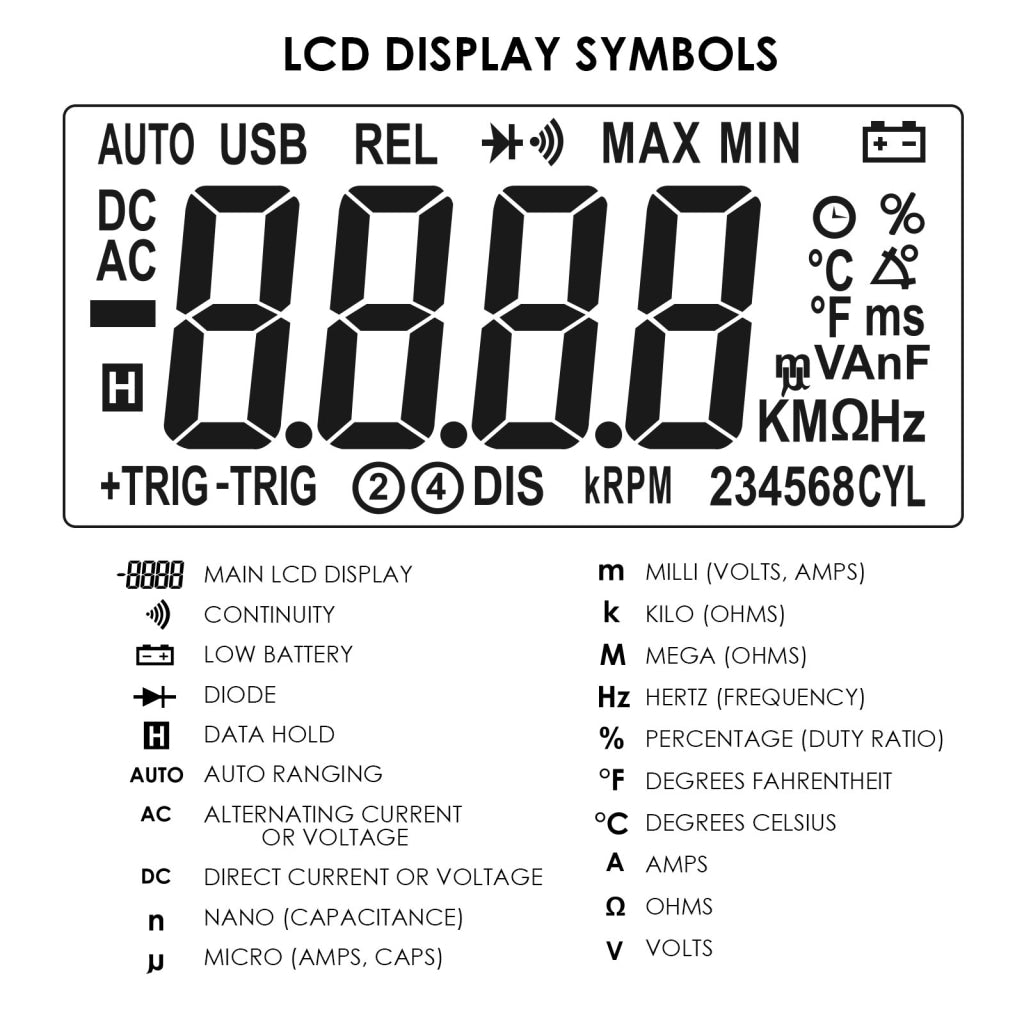

- Display: 6000 counts LCD Display with function Indication
- Insulation: Class 2, Double Insulation
- Overvoltage Category: CAT III1000V/CATIV600V
- Measurement rate: 3 times per second, nominal
- Polarity: Autimatic, (-) negative polarity indication
- OS Compatibility: Windows 98SE, ME, 2000, XP, 2003, 2008, Vista, 7, 8 & 10
- Probe Operating range: -50~250°C (-58~482°F)
- Operating environment: 0~50°C (32~122°F) at <70% relative humidity
- Storage environment: -20~60°C (-4~140°F) at <80% relative humidiy

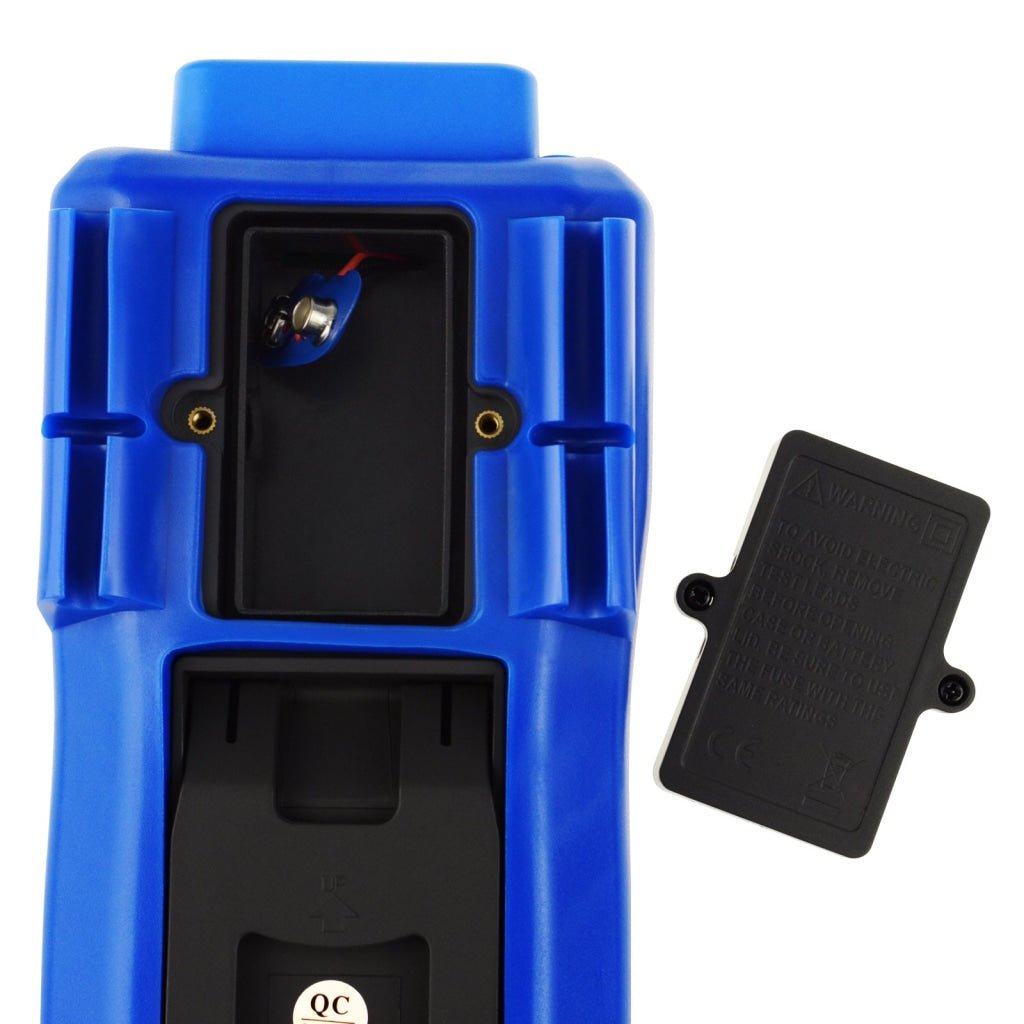

- Power: One 9V battery (PP9)
- Safety Standards: IEC1010-1EN61010-1

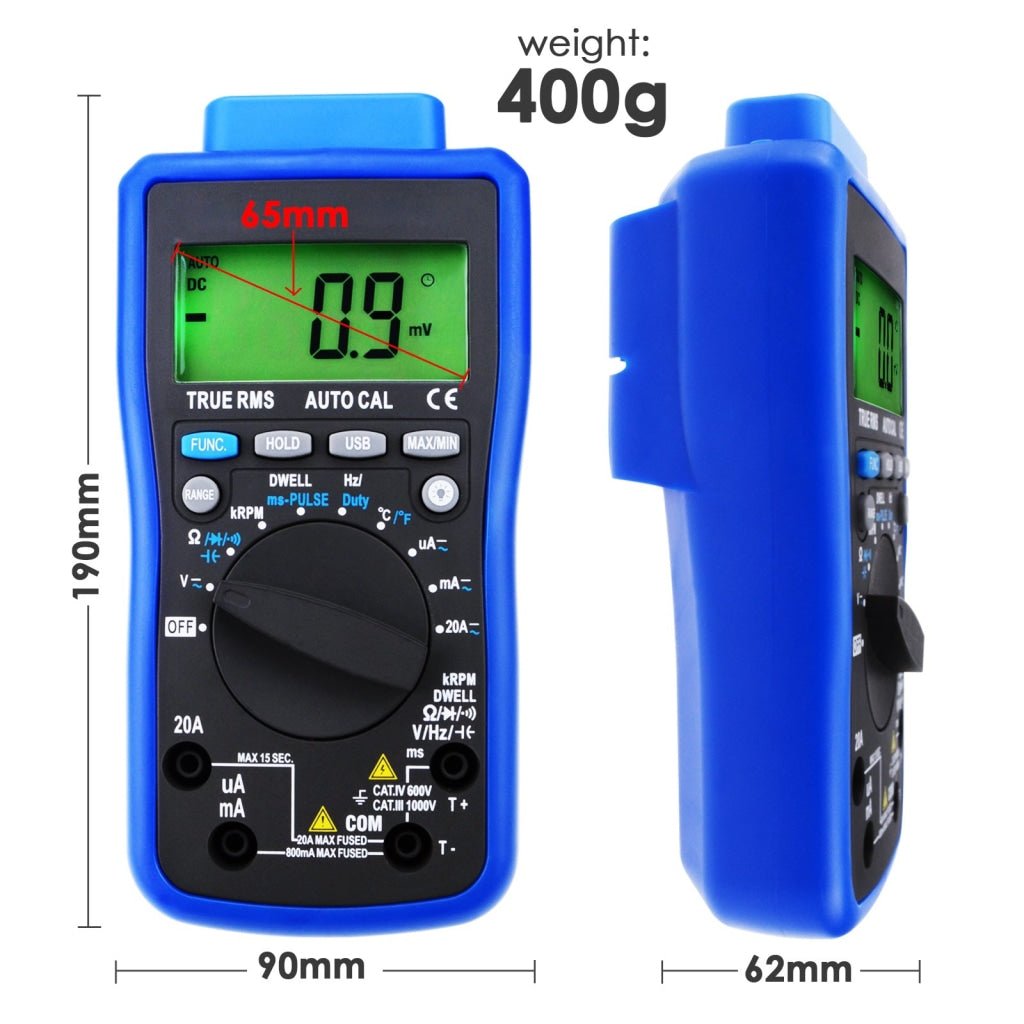

- Dimension: 166 x 88 x 51mm
- Weight: approx. 320g (include battery)

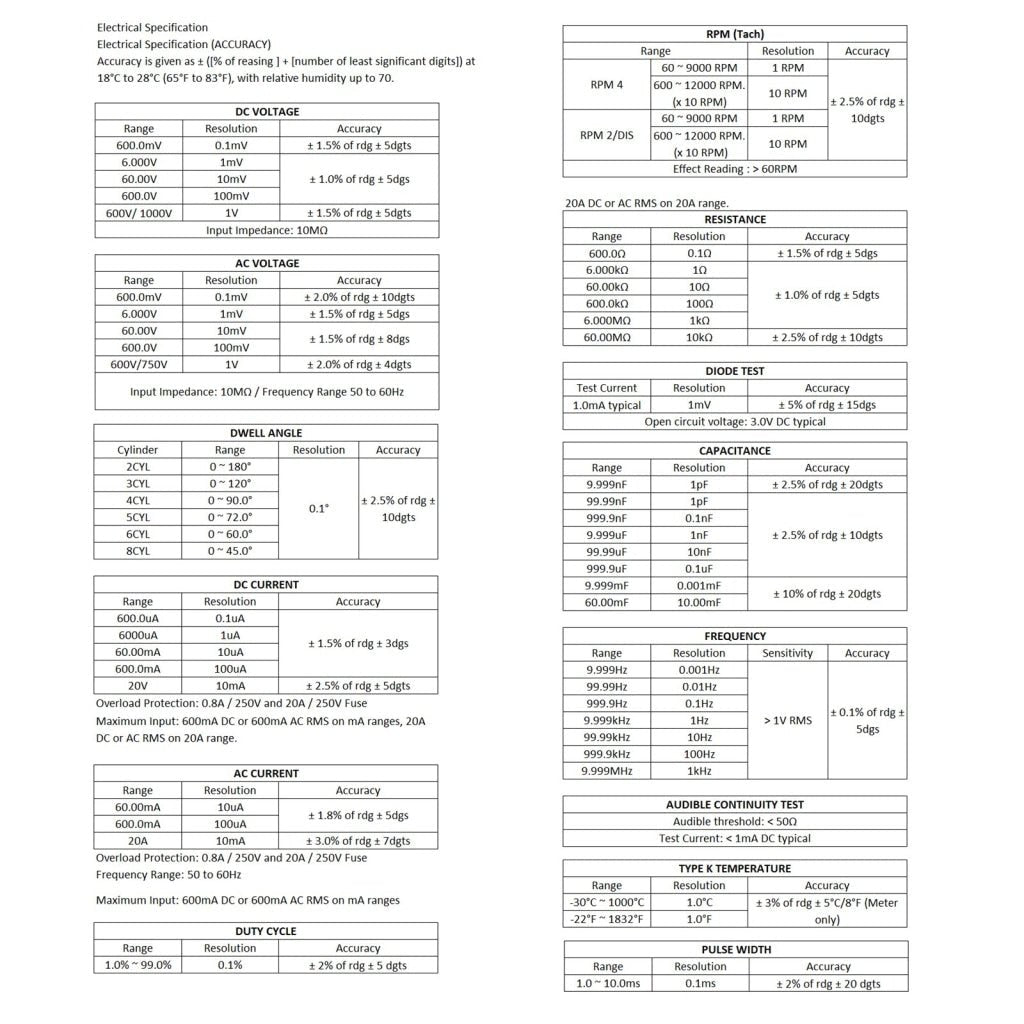

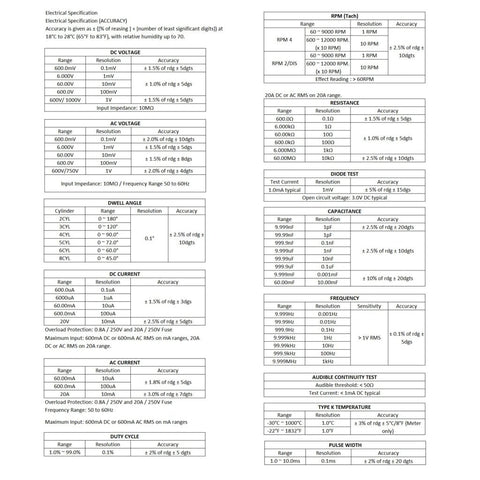

(see pictures for Technical Index Specifications)

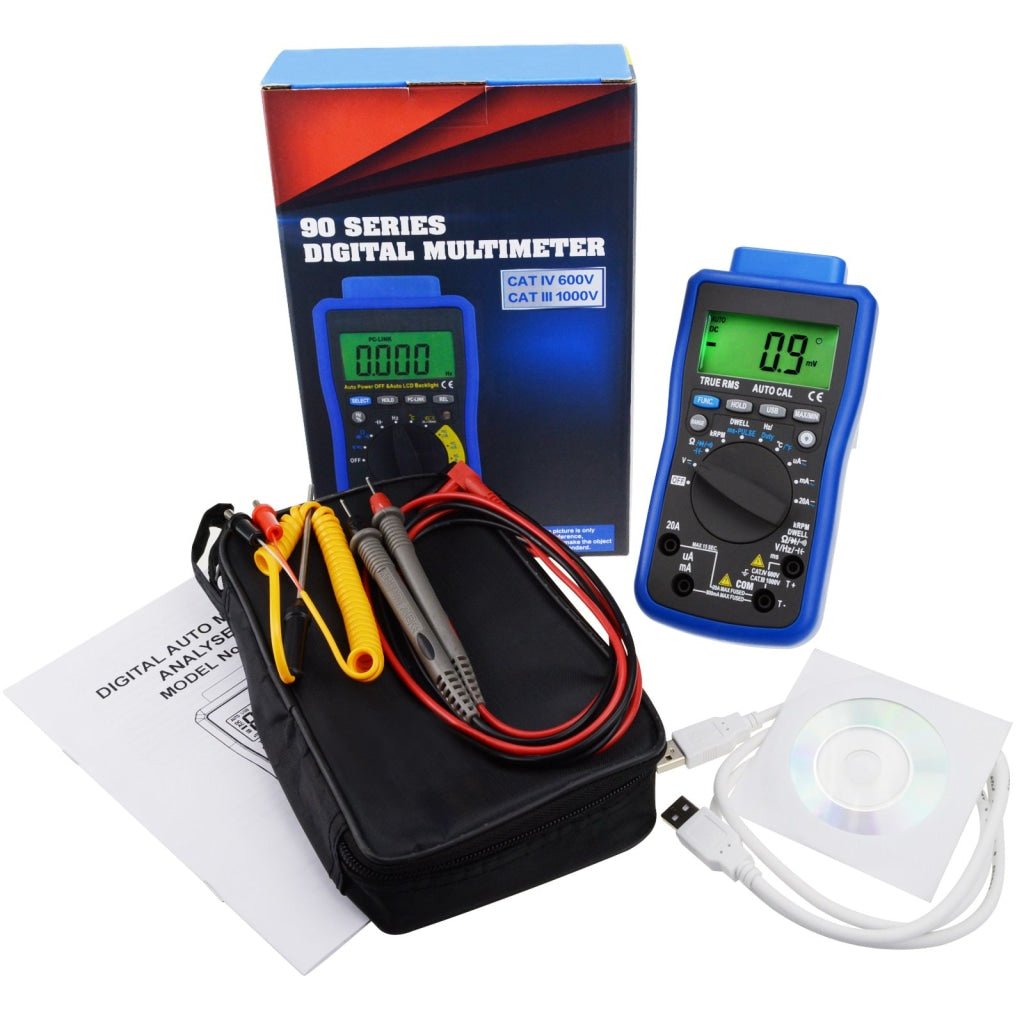

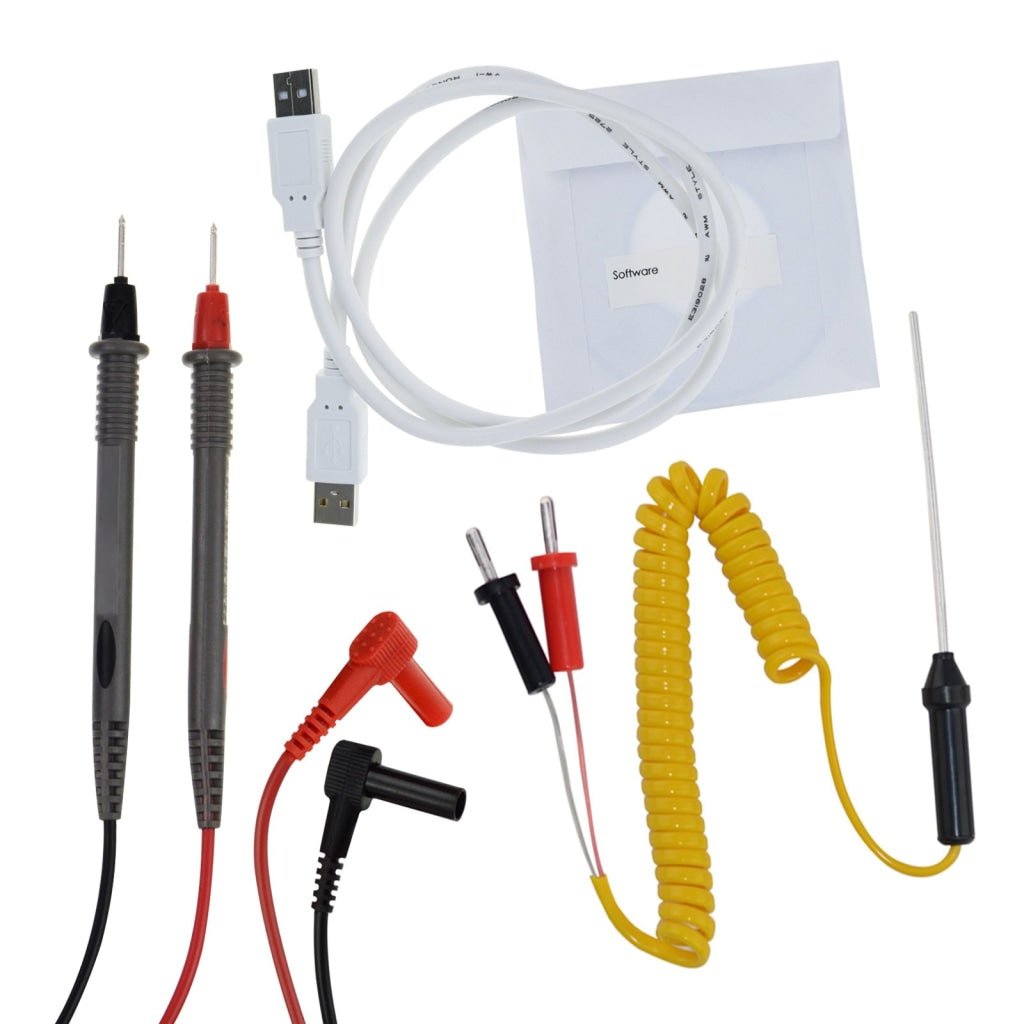

SET INCLUDES:
- 1 x Main Unit Multimeter
- 1 x pair of Test lead

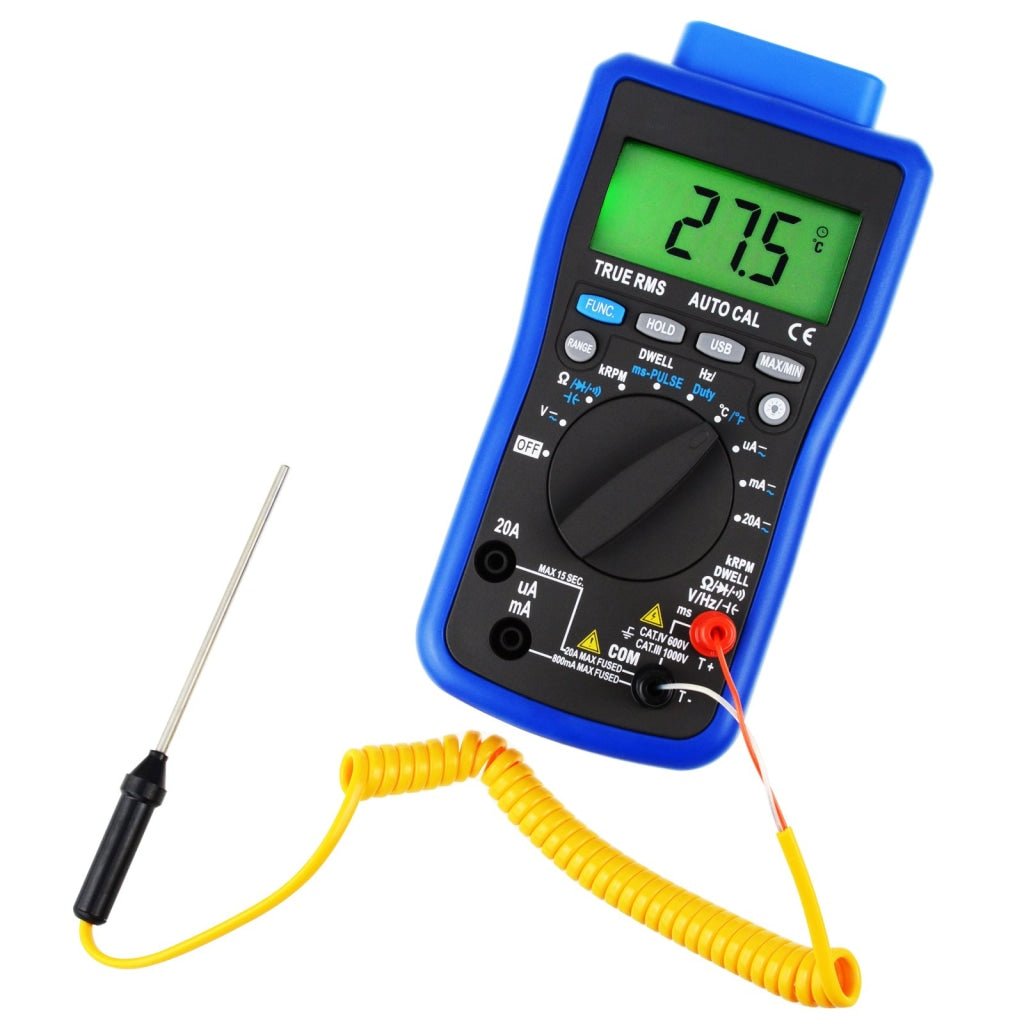

- 1 x Temperature Probe
- 1 x CD Software and Cable

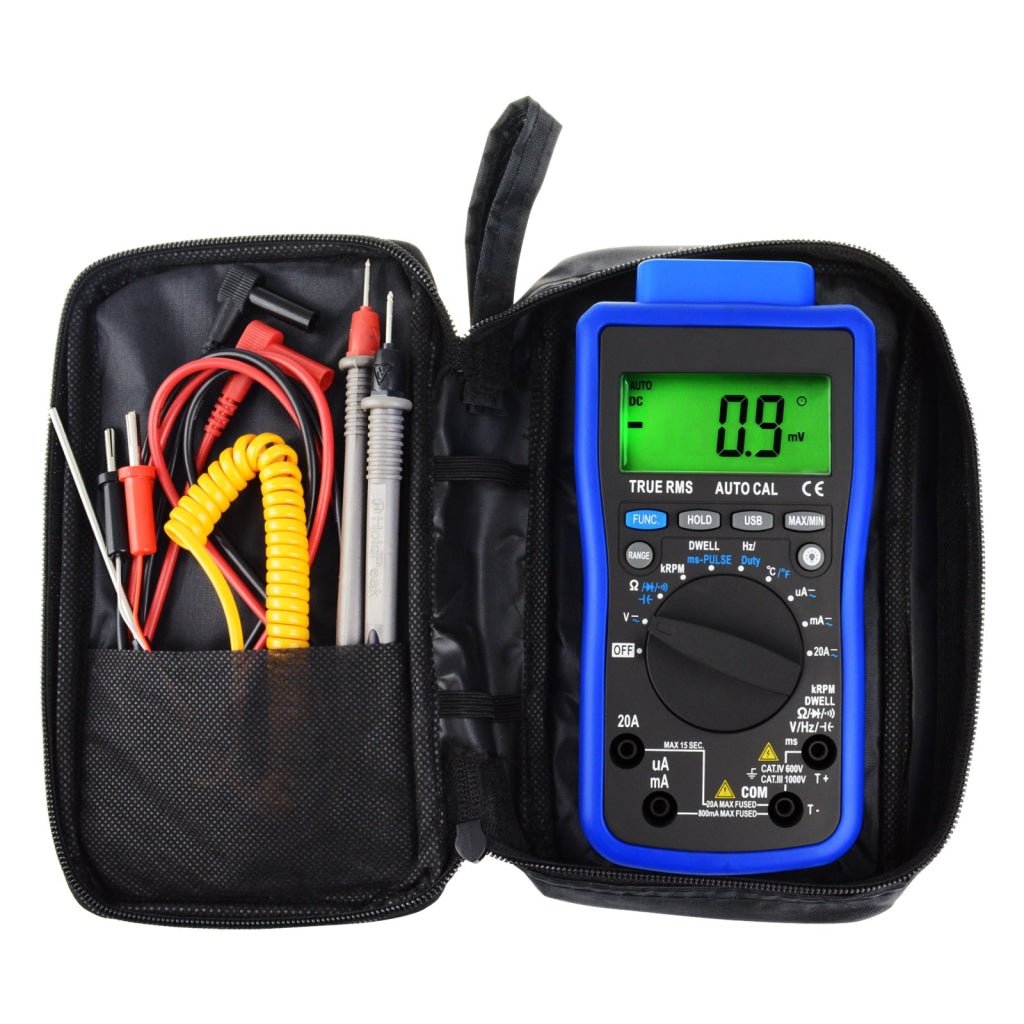

- 1 x Carrying pouch
- 1 x 9V Battery
- Standard factory packaging
