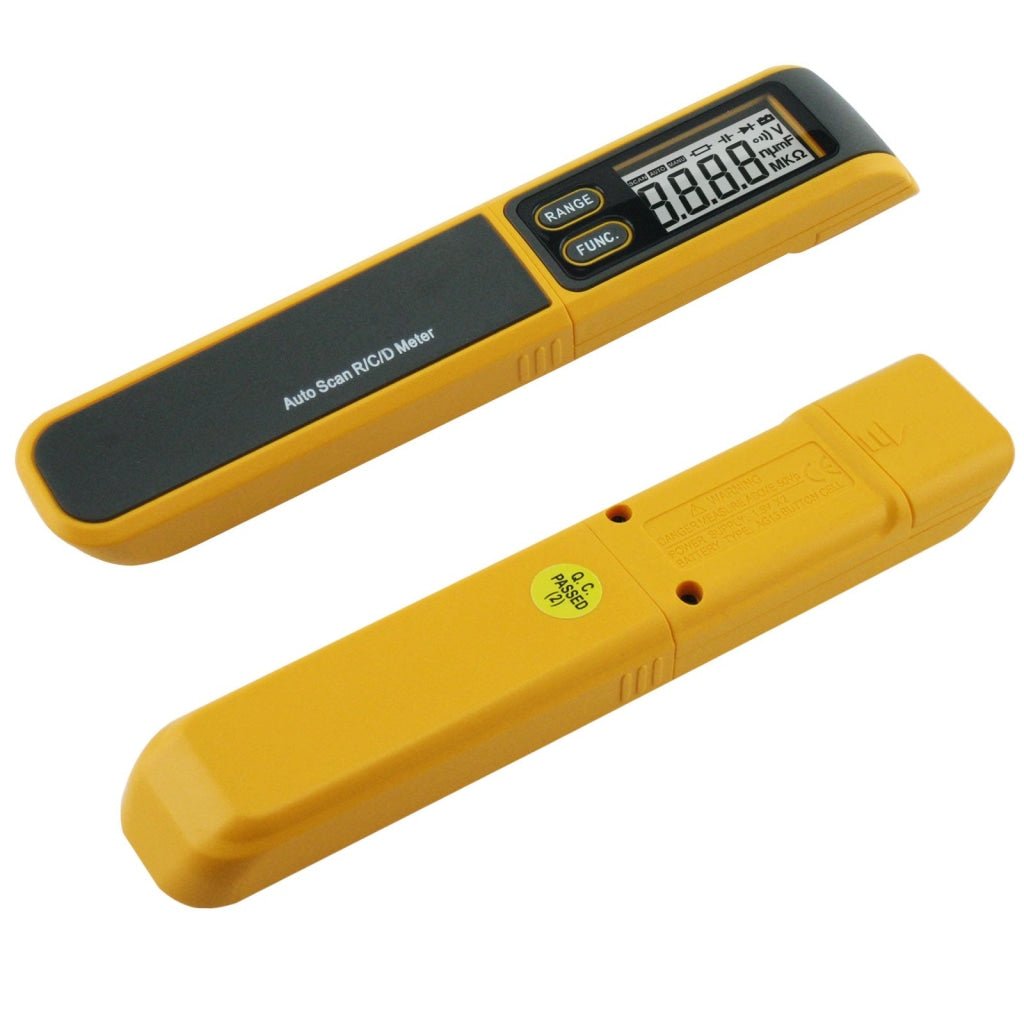

Model: GVA-505B
This auto-scan Resistance and Capacitance Tester for SMD precisely & quickly measure small chip components. Capable for manual & automatic ranging system with full-scale range, over range and low battery indicators, diode test, auto power off with last state auto-save and large LCD display with 5999 Max. display.

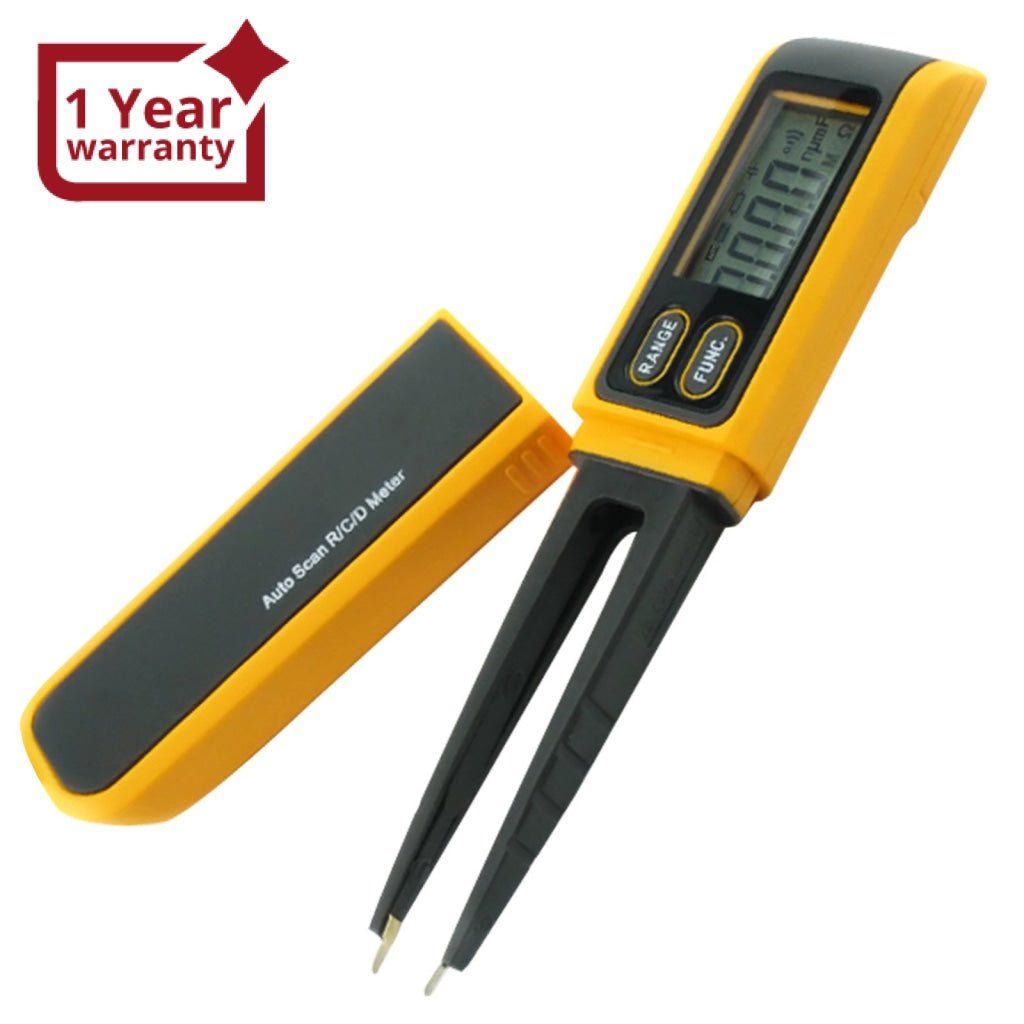

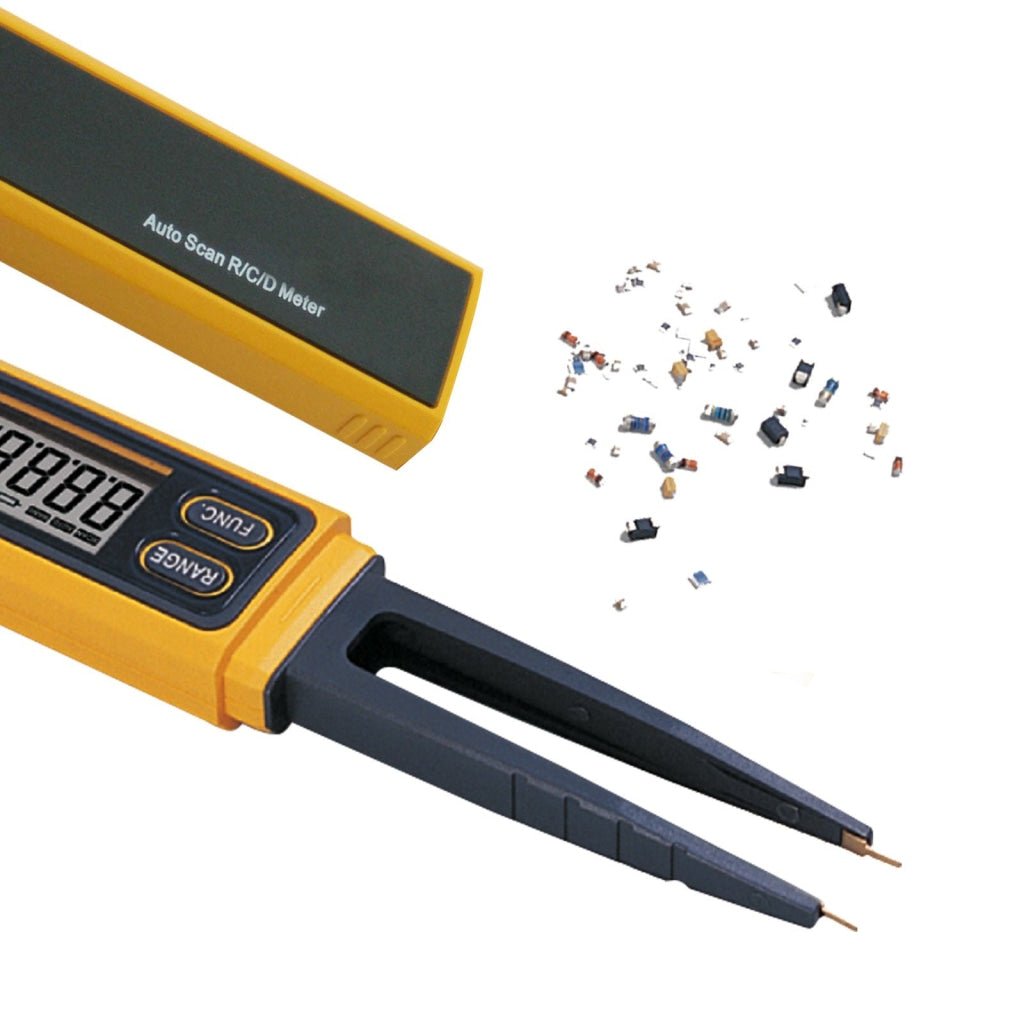

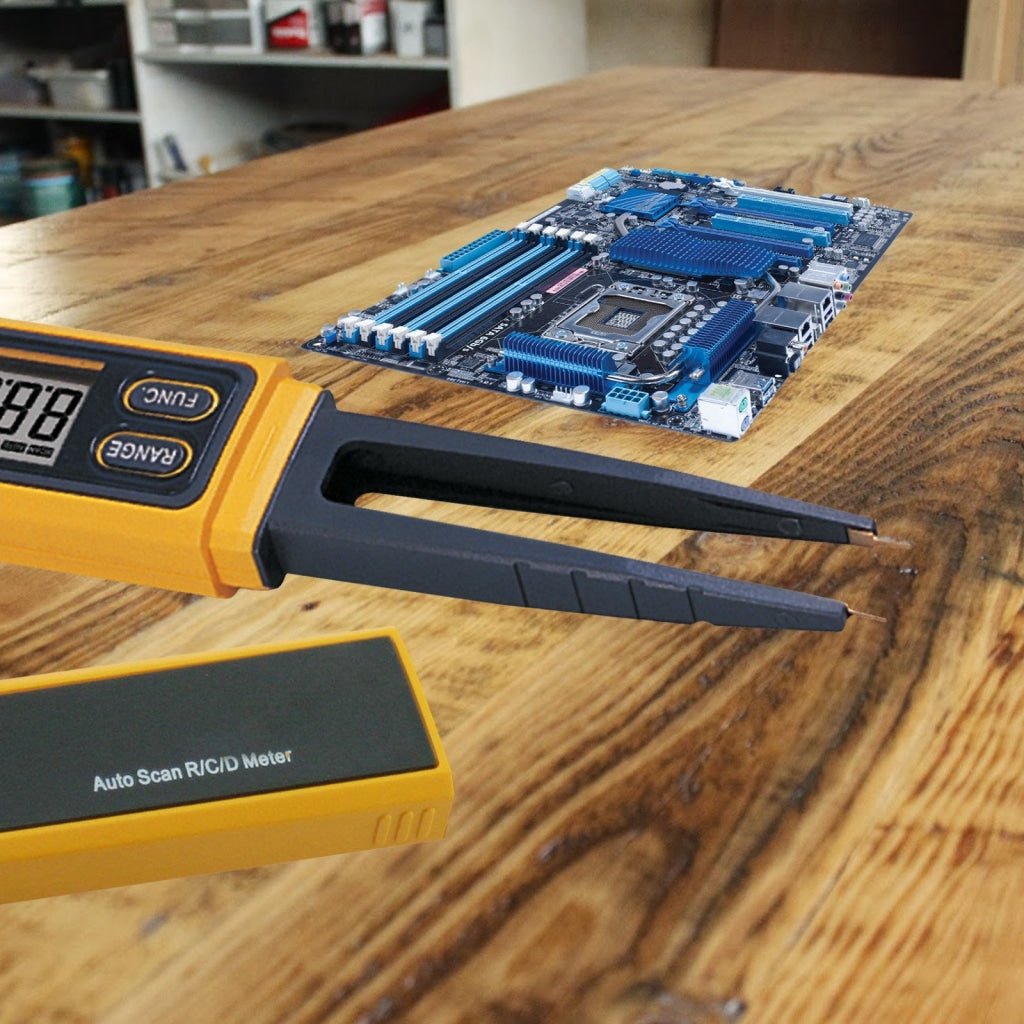

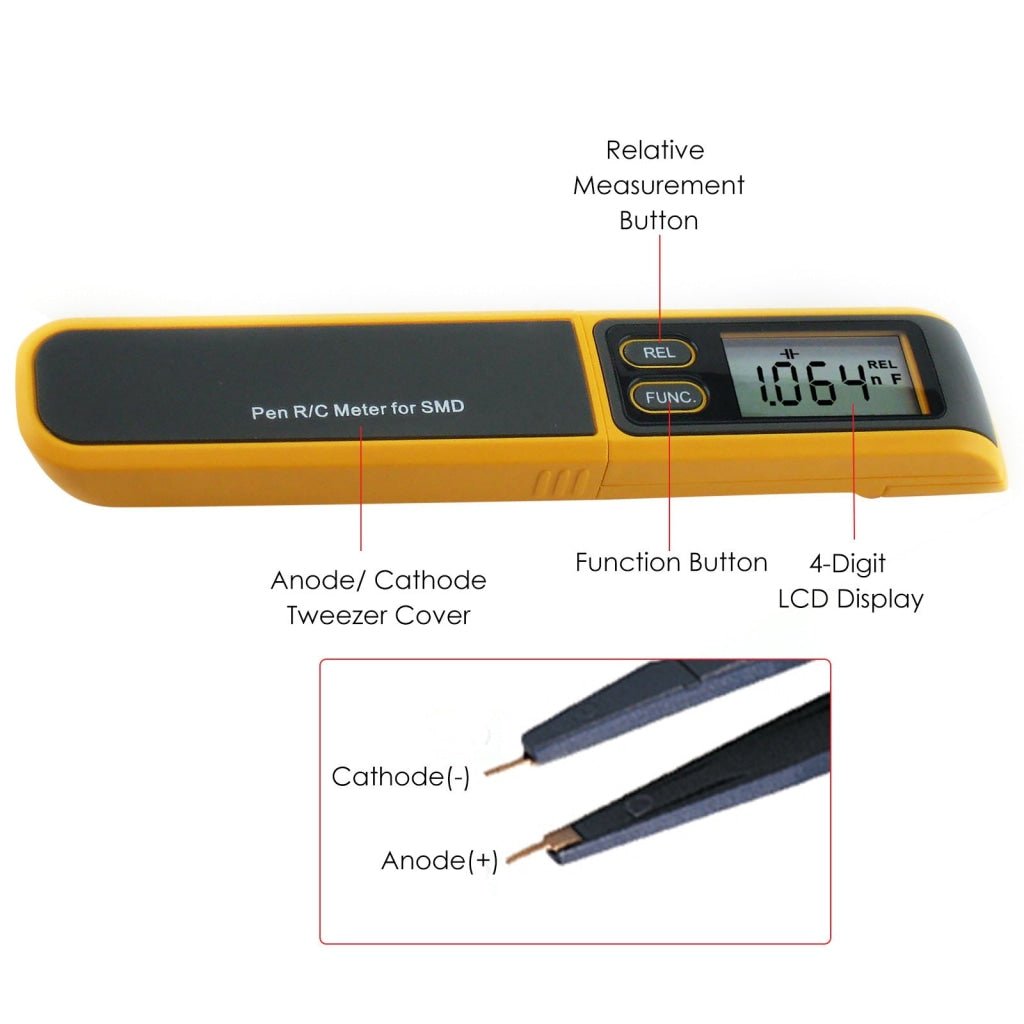

The precise non-magnetic steel tips can pick, hold and make reliable contact even smallest SMD components and devices already mounted on a board. The probe can also be used to test conventional components with too short wire leads to insert into the test terminals.
Features

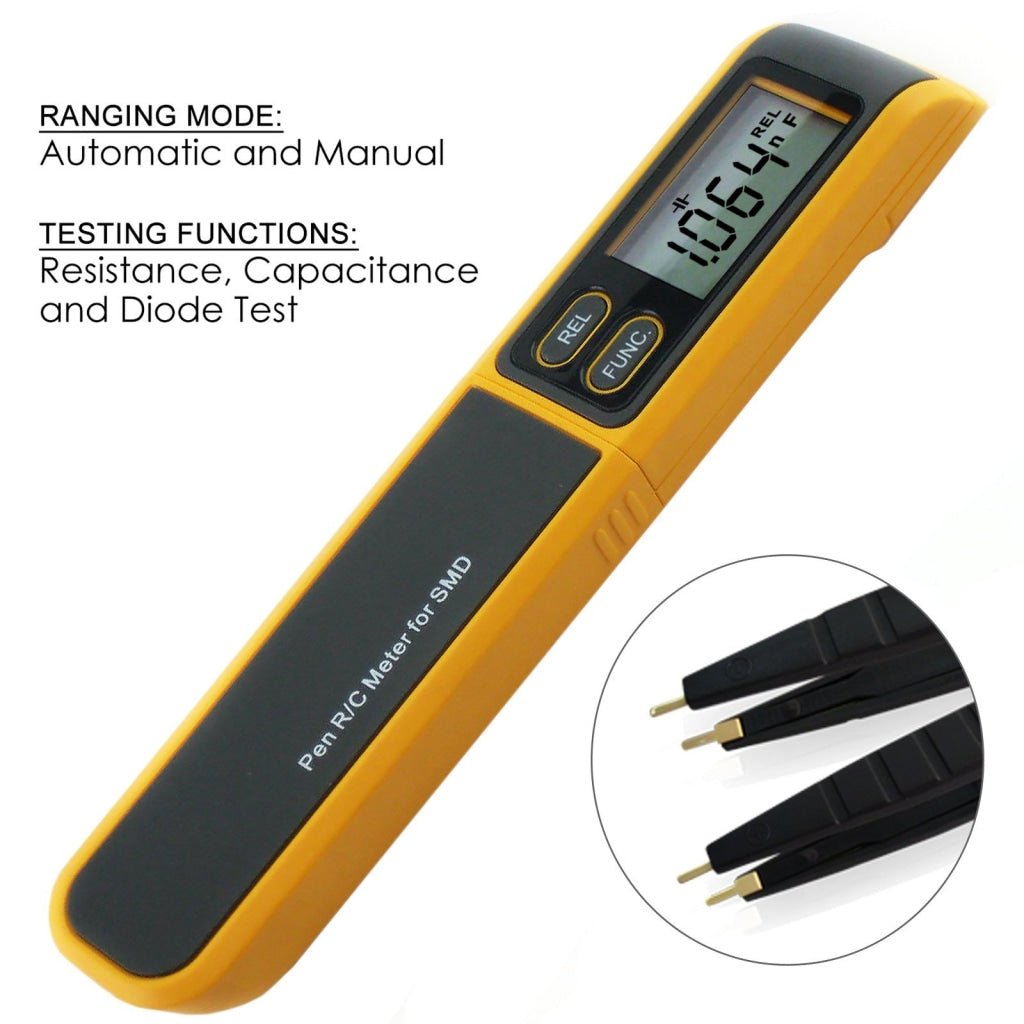

- Auto and Manual scan mode for Resistance, Capacitance and Diode Test
- Continuity check
- High precision Resistance and Capacitance probe
- Precise tips for small-size devices
- With sampling rate of 3 times per second
- Over range and Low battery indication
- Auto Power off function with last state auto-save
- Large LCD display with Maximum reading up to 5999
- Ideal tool for Surface Mount Devices (SMD)
- Ergonomic design with one-hand operation
- Tested according to European international guidelines and standards (CE marking)
-
Passed IEC1010 set standards with Pollution Degree 2 & Altitude <2000m

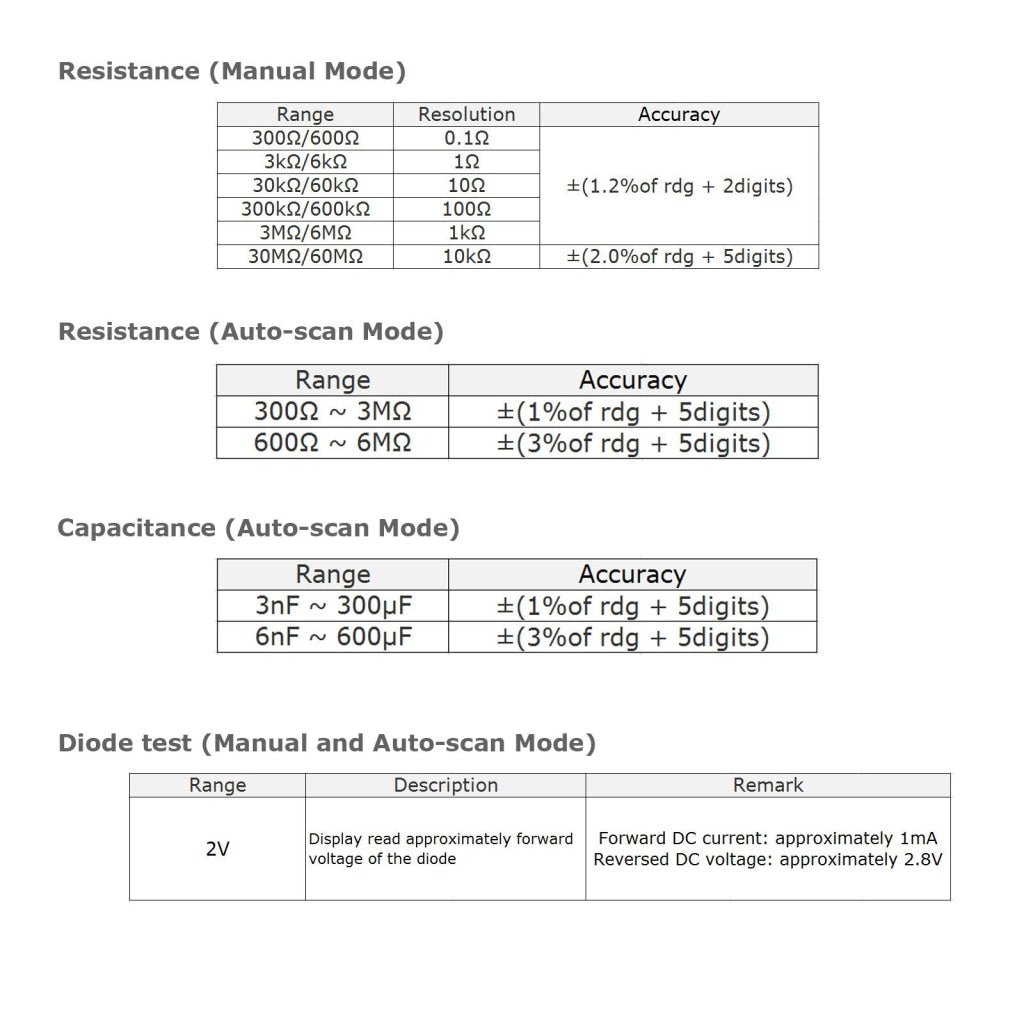

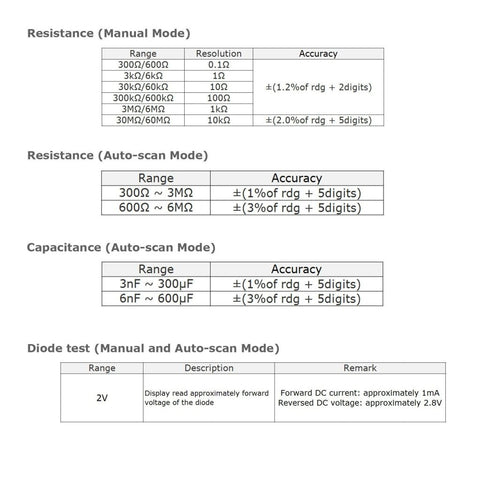

Specifications
-
Environment conditions
- Pollution degree: 2
- Altitude < 2000m
- Operating temperature: 0~40°C, (<80% RH, non-condensing)
- Storage temperature: -10~60°C, (<70% RH, battery removed)
- Temperature Coefficient: 0.1 x (specified accuracy) / °C (<18°C or >28°C)
- MAX. Voltage between terminals and earth ground: 50V DC or 36V AC rms

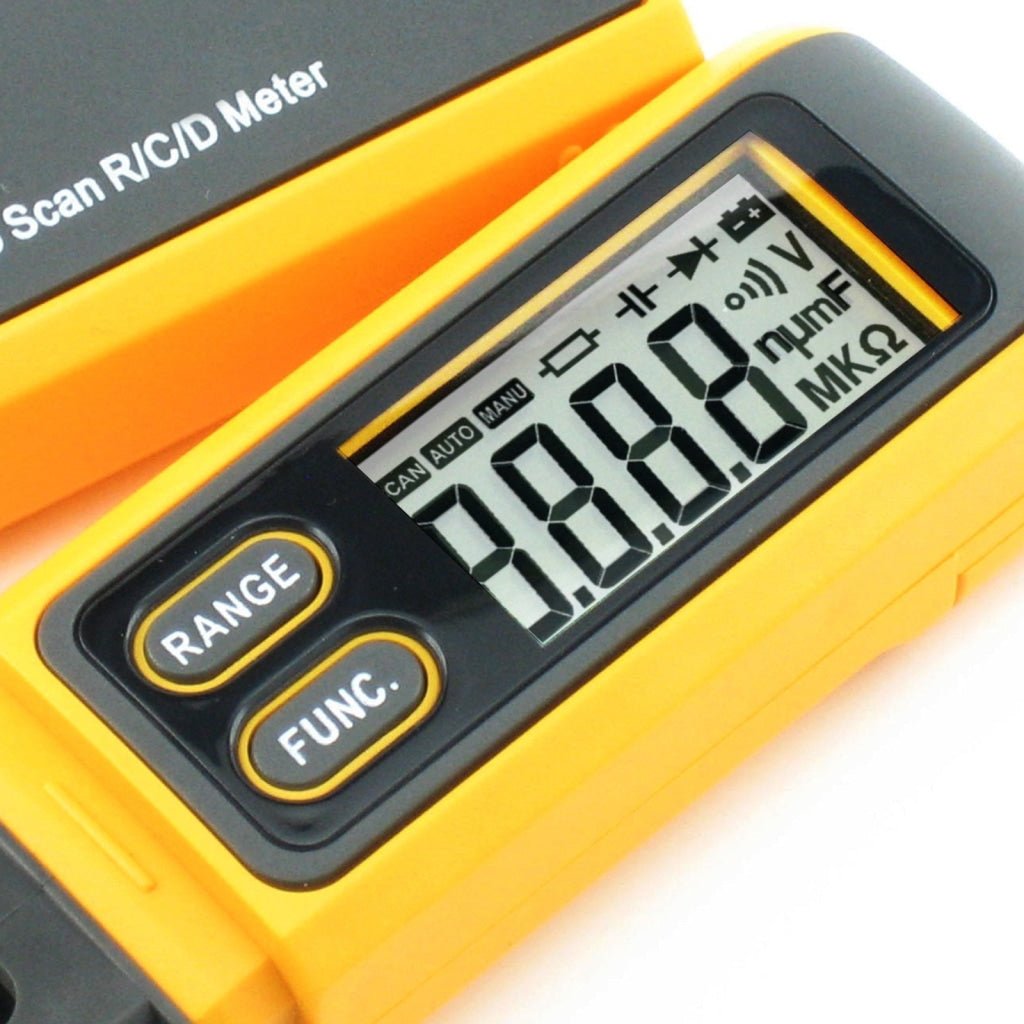

- Display: 5 5/6 digits LCD display with max. reading 5999
- Over Range indication: LCD will display "OL"
- Low battery indication
- Auto power off if idle for 10min
- Power supply: 1.5V battery x 2 (included)

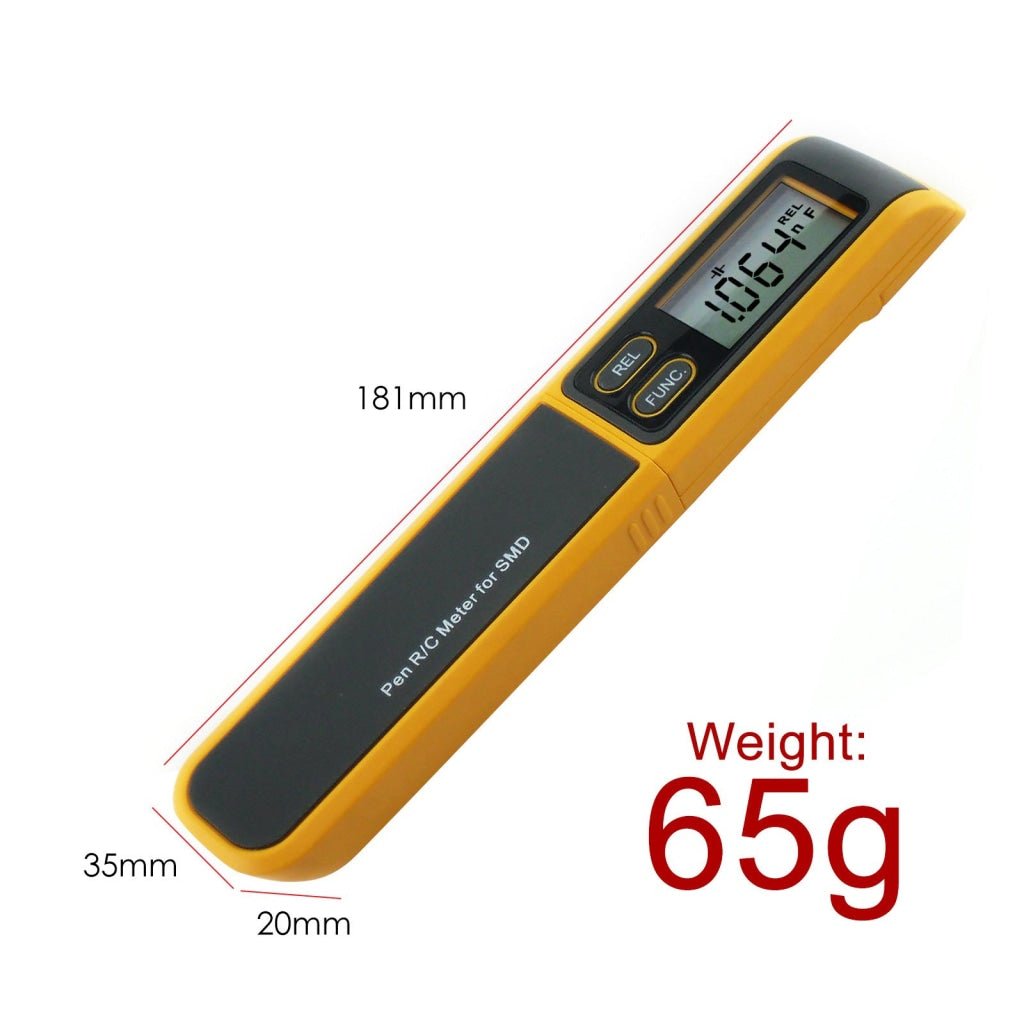

- Dimensions: 181 x 35 x 20mm (L x W x H)
- Weight: approx. 65g (battery included)

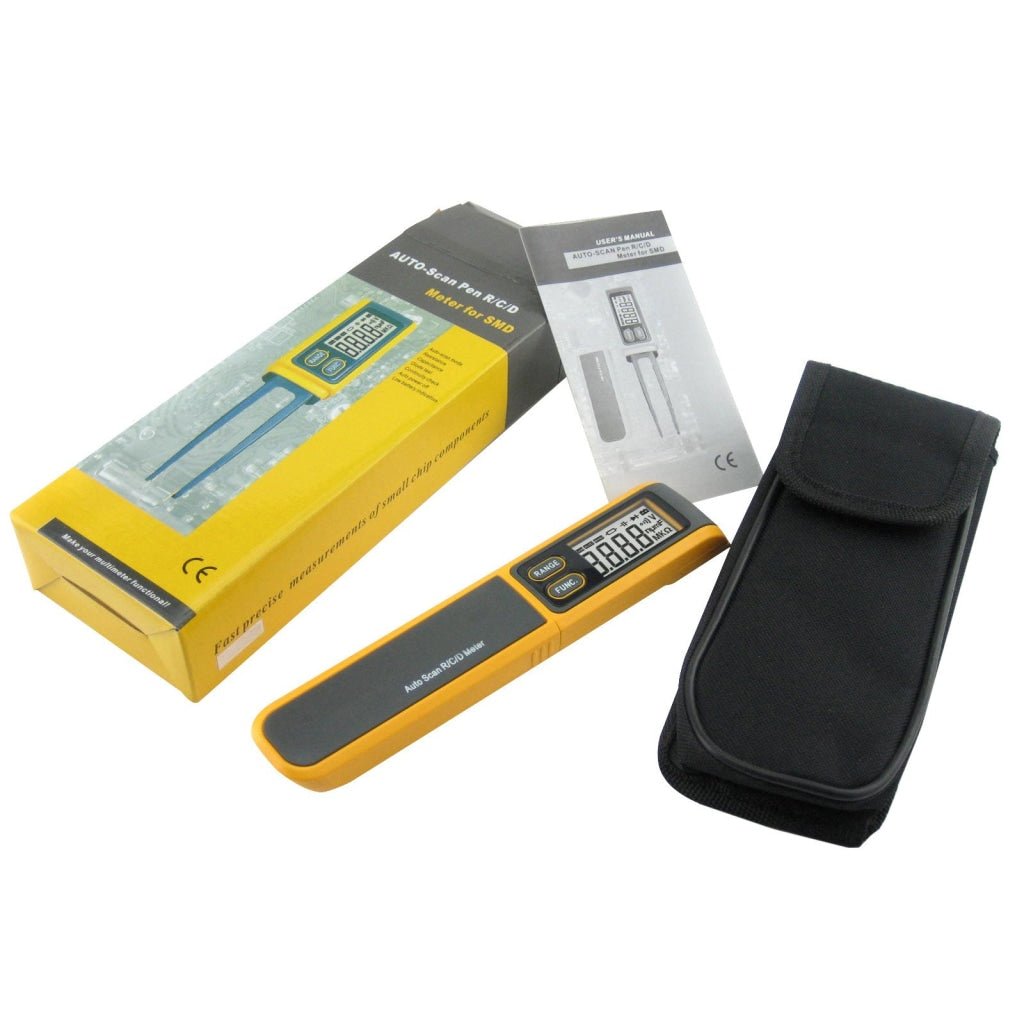

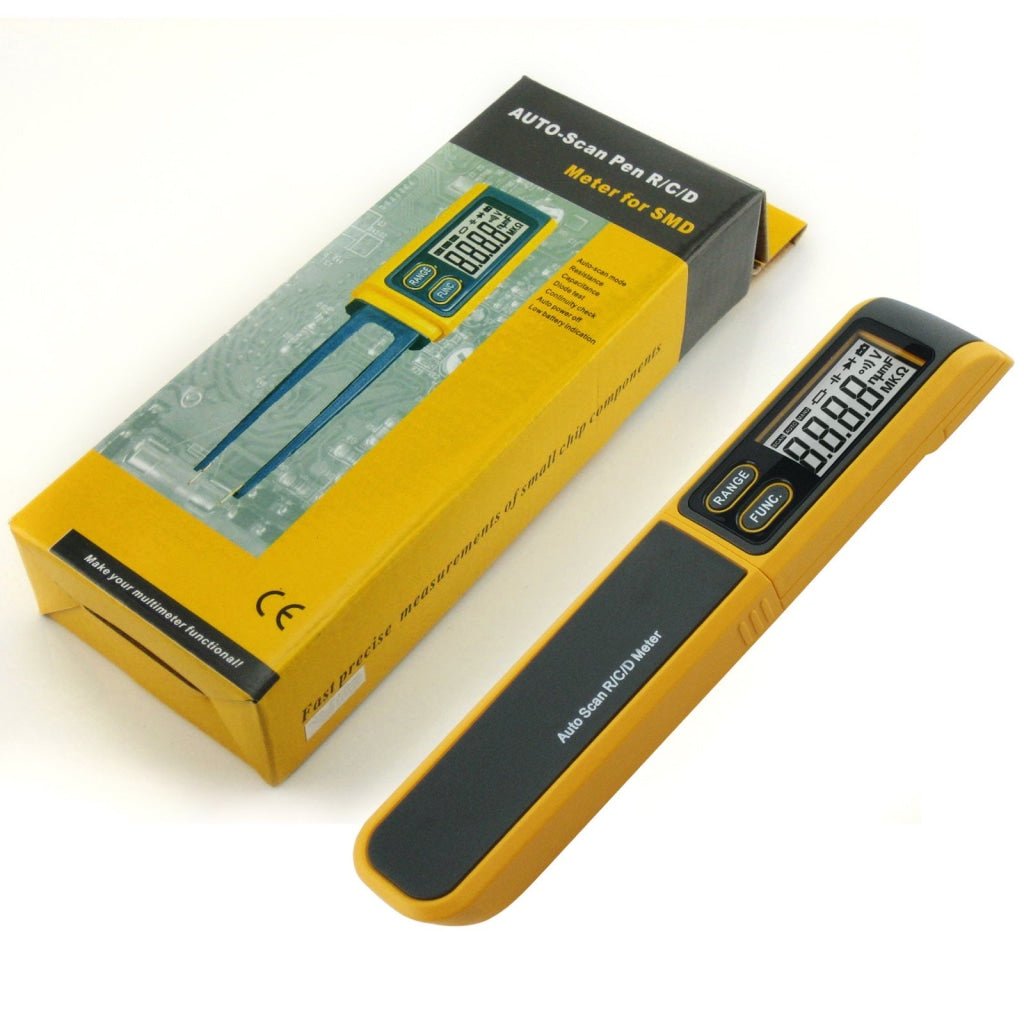

Set Includes
- 1 x Auto & Manual RC Pen-Type Multimeter
- 2 x 1.5V Button Battery (FREE)
- English Quick Start Guide
