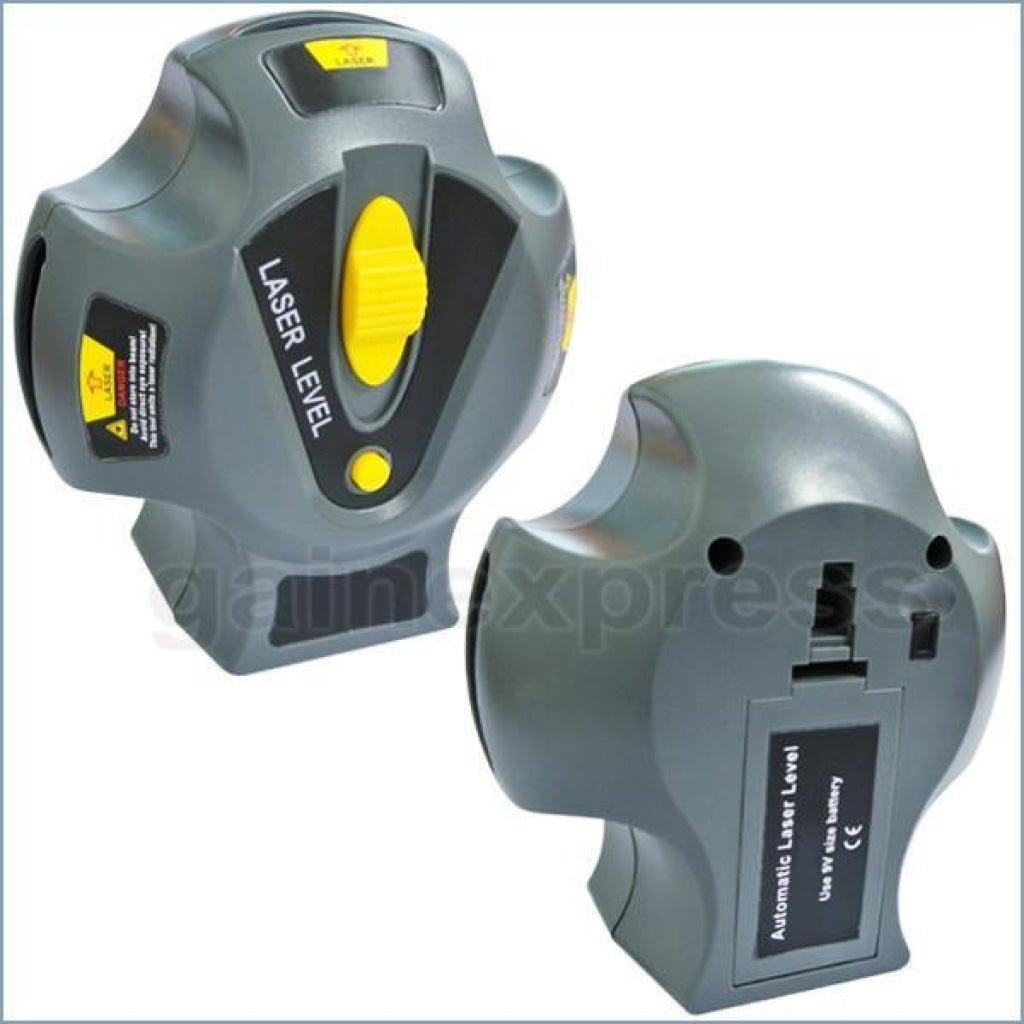

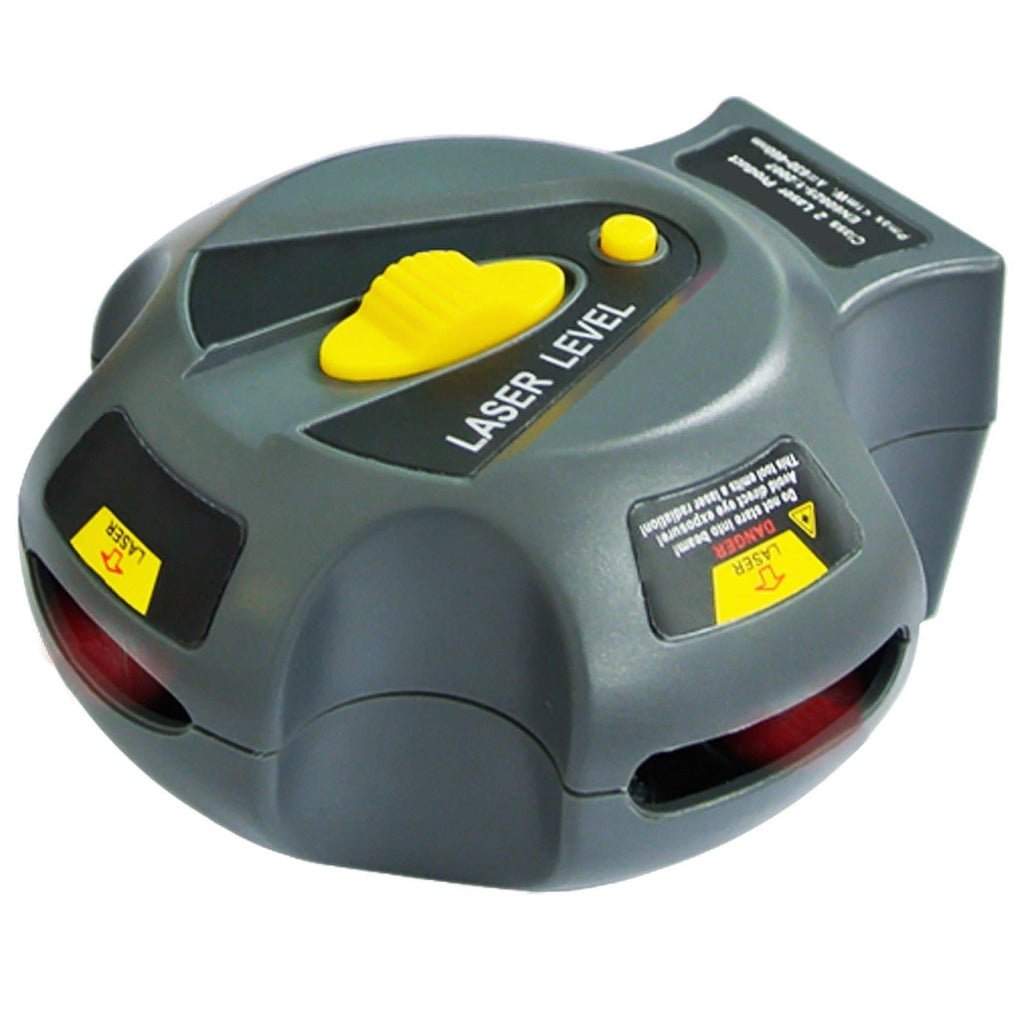

Model : K01CK-0048G

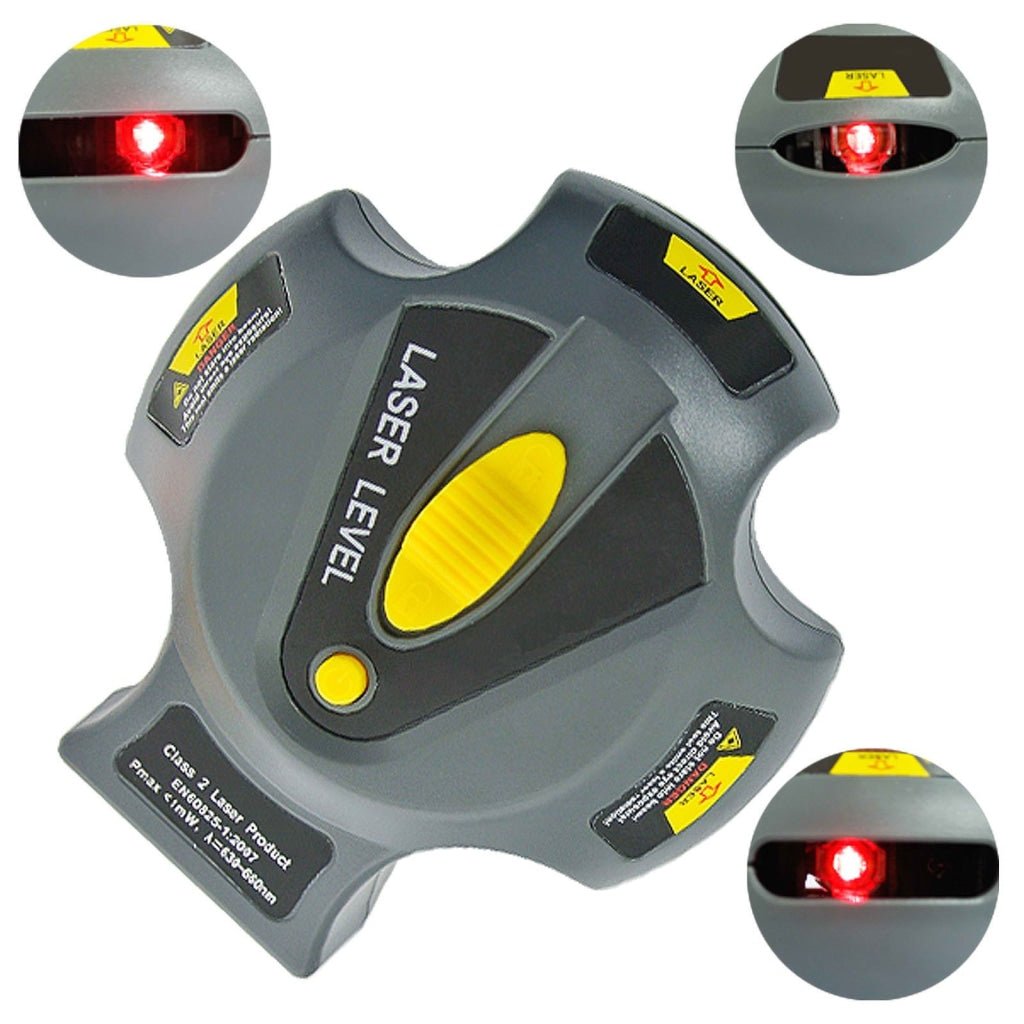

This new-generation self-leveling laser marker emit 3 beams, 2 horizontal and 1 vertical red beams. Suitable for use in construction and indoor decoration, manufacturing of doors and windows, machining on wood and stone materials, installation of pipeslines and machines to provide various basis and necessary detecting and lofting tools.
The mini tool has the ability to self-adjust its laser projection distance by using ±8° automatic leveling function. Because the tool has push pins fixation and butyl rubber tape fixing function, you can use this instrument on the surface of any kind of wall. It saves time, energy, easy to operate and of high efficiency and assures quality of construction.
This mini Auto Level Laser Marker is a Class 2 product conforming to EN 60825-1.
Features:

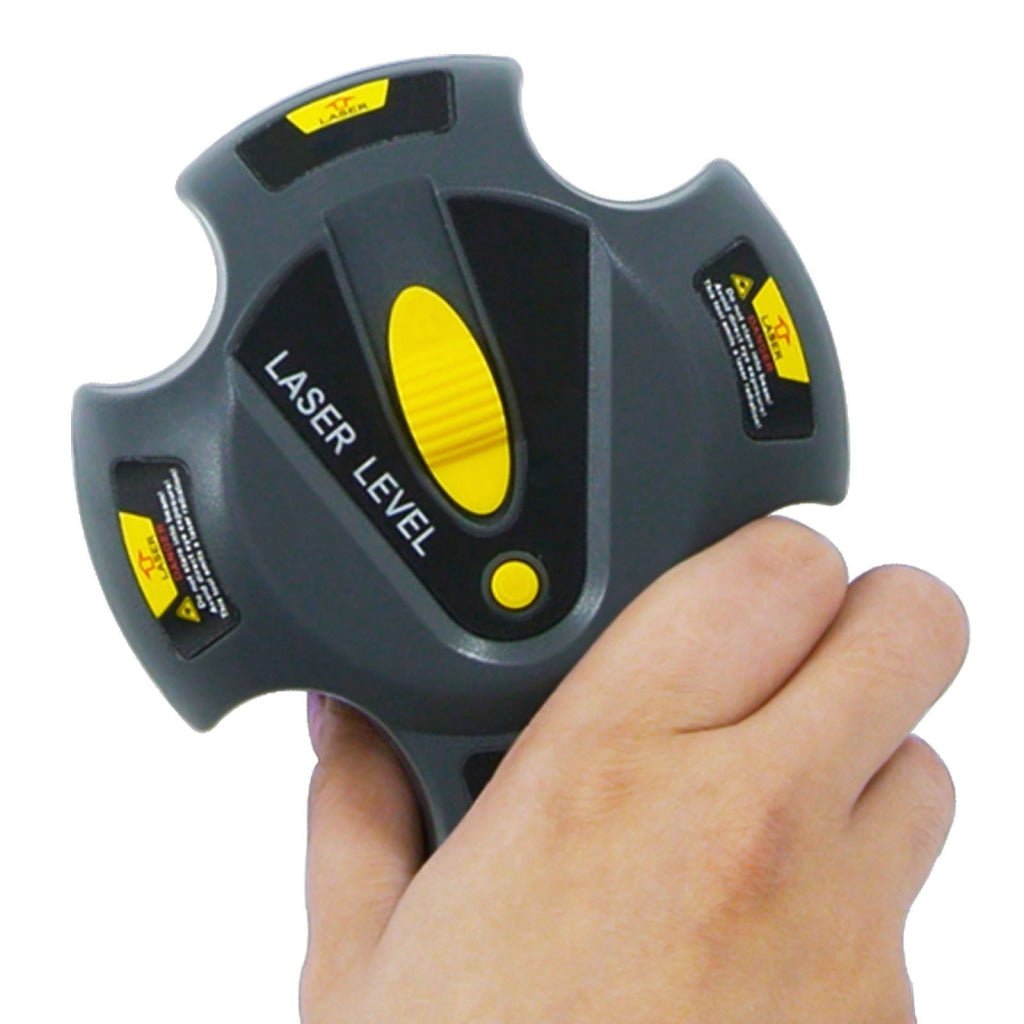

- Small and handy
-

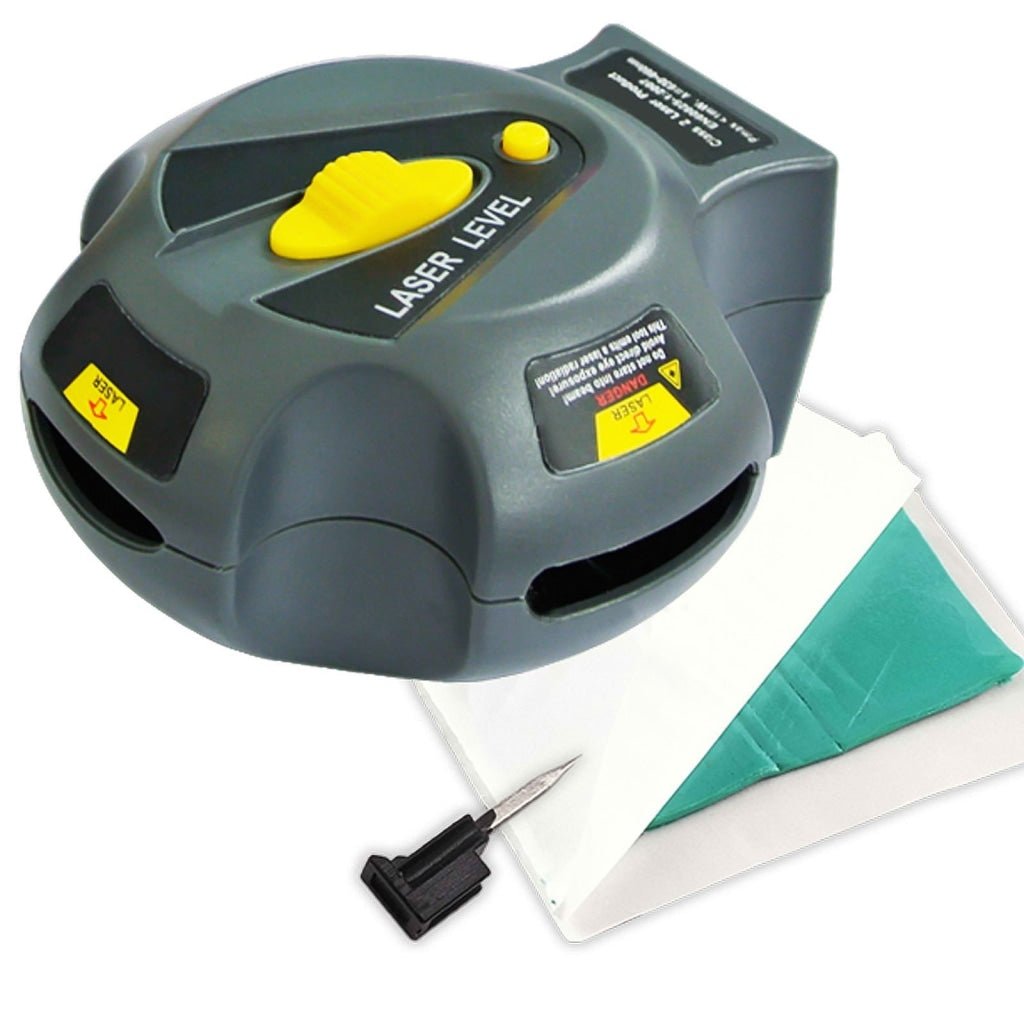

Diverse fixation:

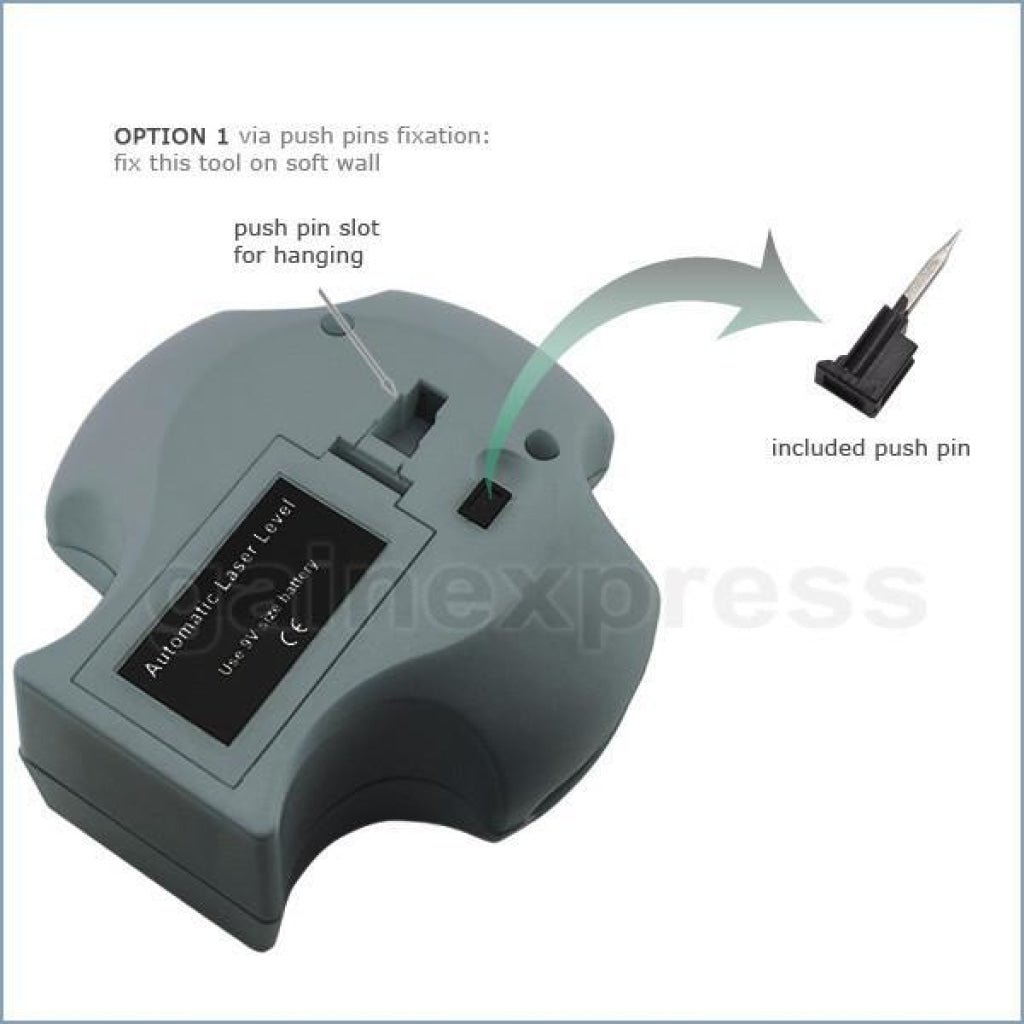

- Easily use for wall-hanging via push pin
- Sticking it on the wall via butyl rubber fixation

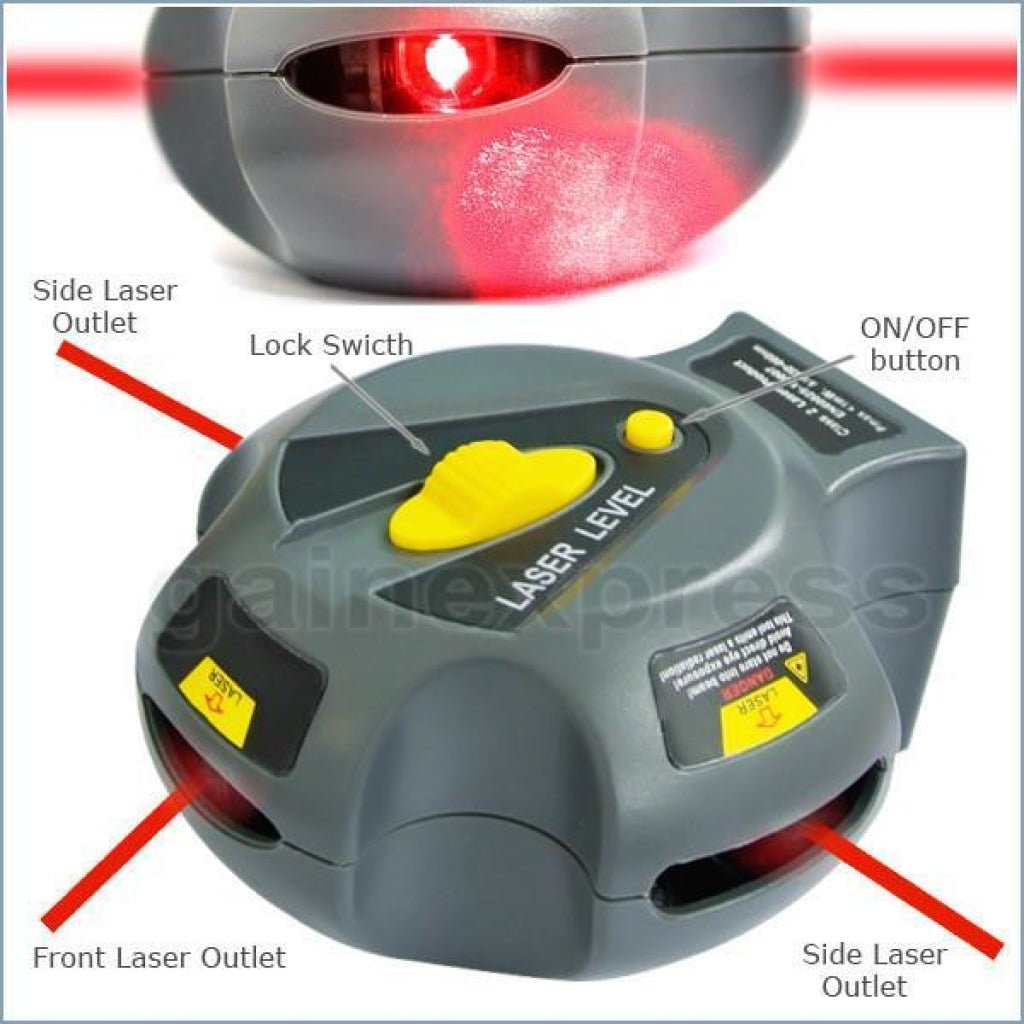

- Able to instantly project: 2 horizontal and 1 vertical

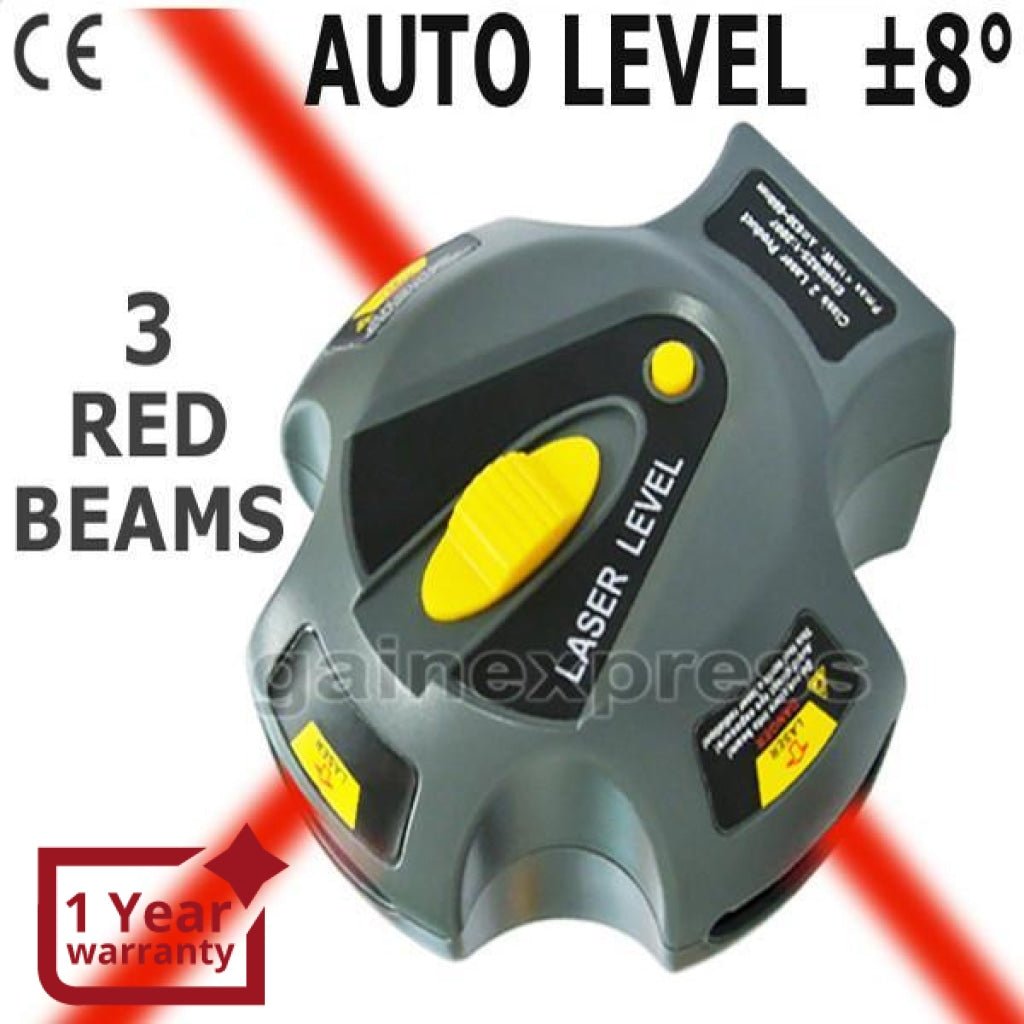

- Self-leveling function, ±8° auto leveling function
- Class II laser diode, max. power
- Comply with EN 60825-1

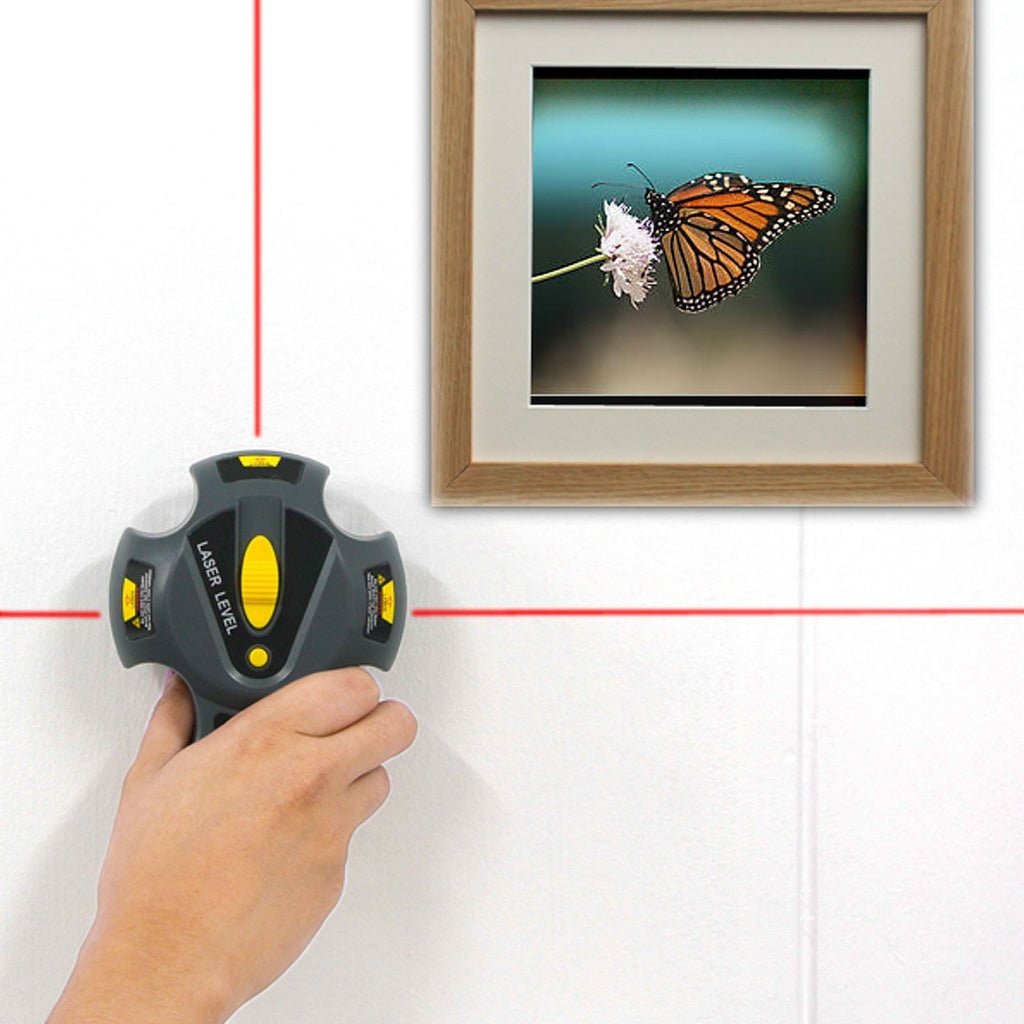

- 3 straight laser lines on the floor or on the wall
- ±1mm/m accuracy
- Very easy to operate
- Excellent applications of laser technology and mechanical tools

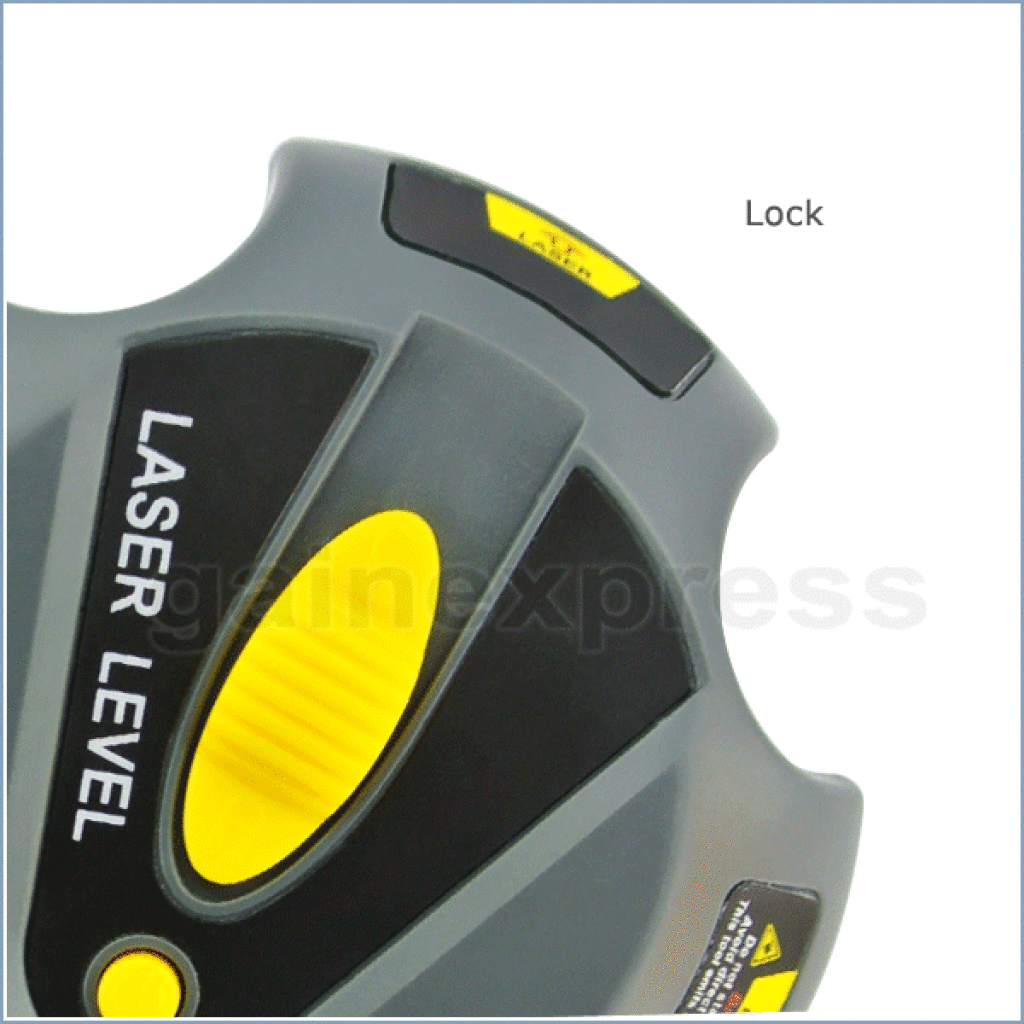

- Quick and easy locking mechanism
-
Application:
- Indoor decoration or construction
- Manufacturing doors and windows
- Installation of mechanical or electrical equipment
- Quality inspection of construction projects
- Machining on wood and stone materials
- Installation of pipelines and machines to provide various basis and necessary detecting and lofting tools
Specifications:
- Recommended for indoor or indirect sunlight
- Length of laser line: 2m
- Width of laser: <5mm
- Accuracy: ±1mm/m
- Power of Laser: <1mW
- Laser Wavelength: 630~660nm
- Laser Class: Class II

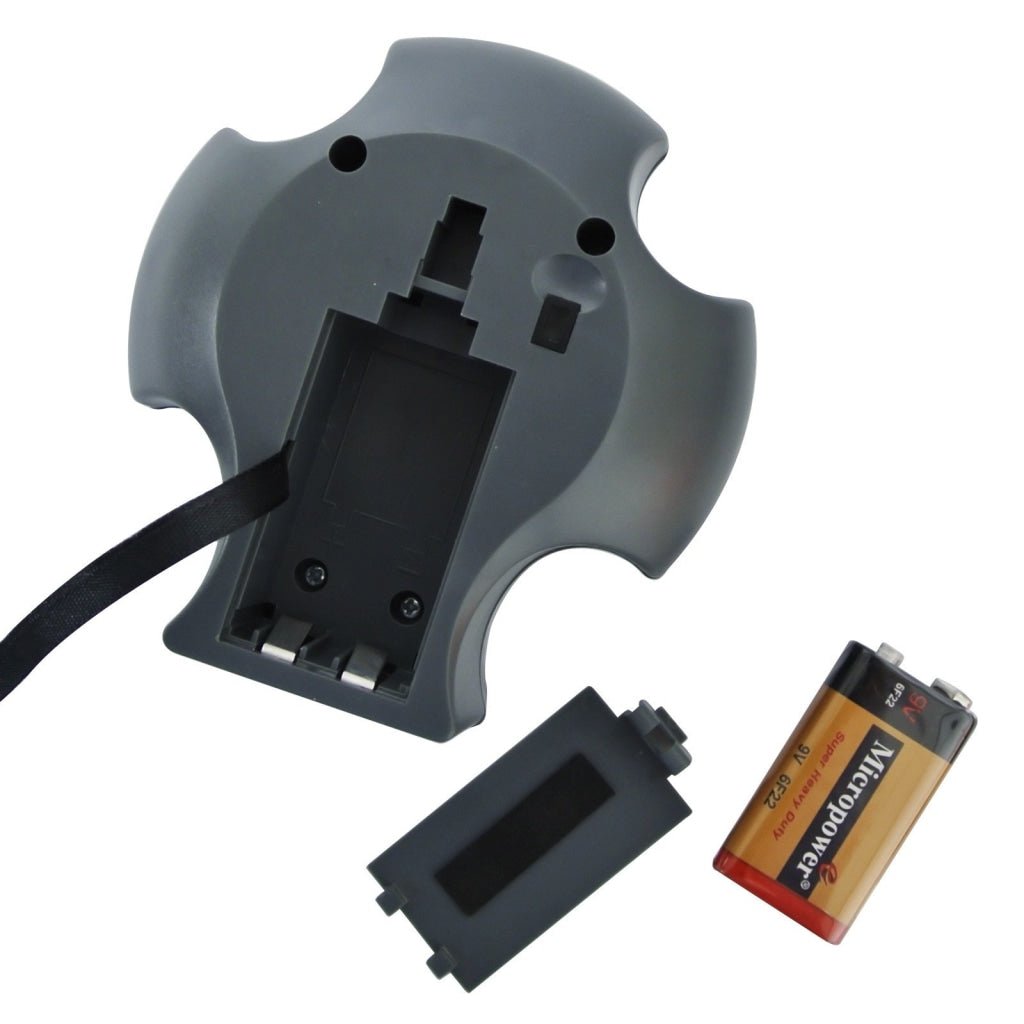

- Power Supply: 1 x 9V Battery
- Operating Temperature: -1~40°C
- Dimension: 105 x 100 x 55mm
- Weight: about 180g (battery not included)

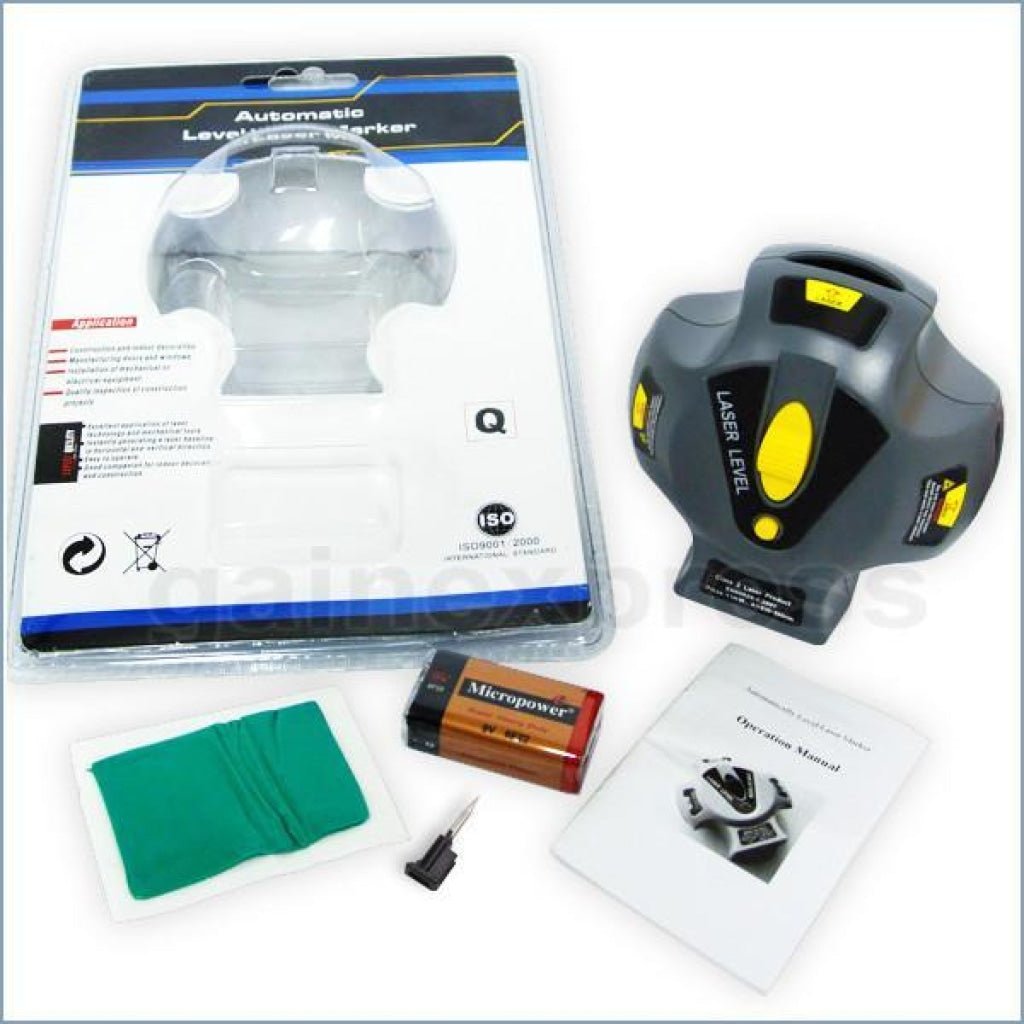

Set Includes:
- 1 x Laser Level Marker
- 1 x FREE 9V Battery
- 1 x FREE Butyl rubber fixation
- 1 x FREE Black push pin (stored in the main unit)
- Instruction Manual

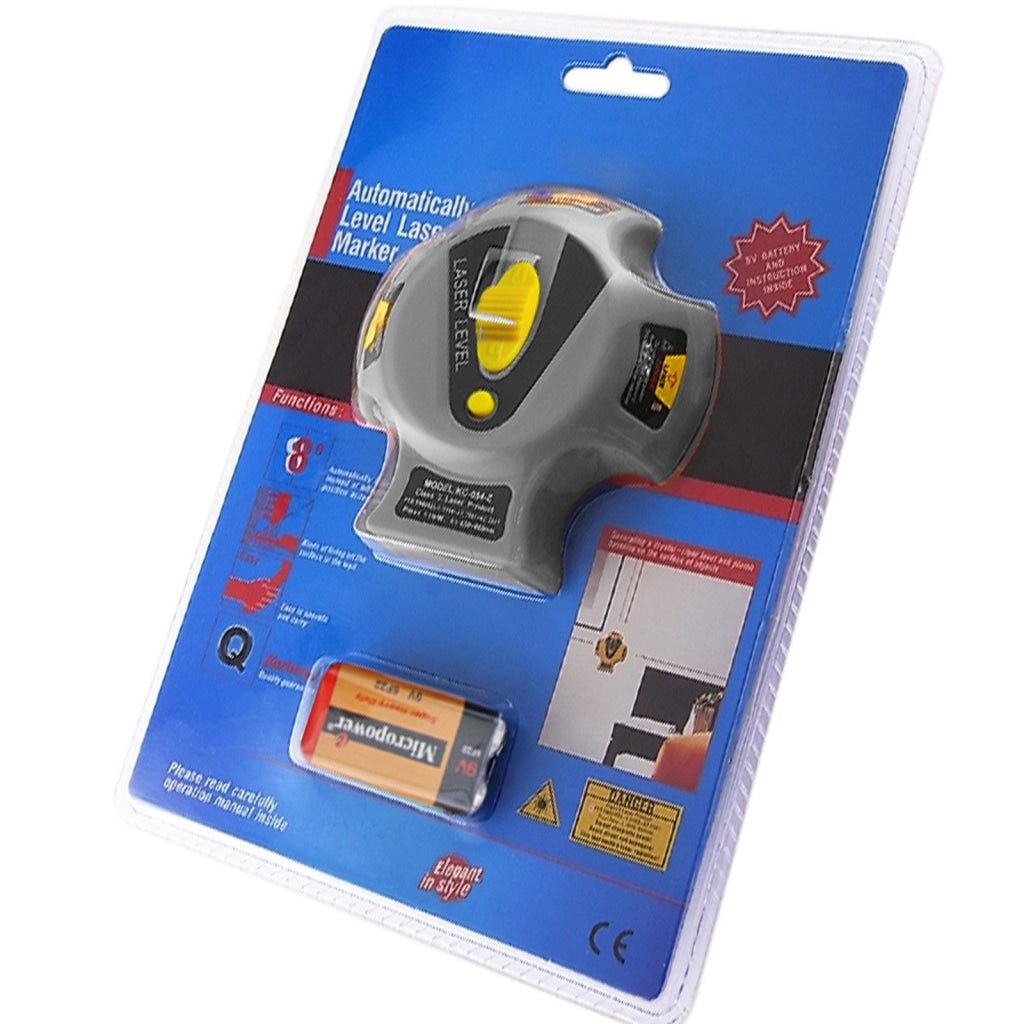

- Blister type packaging
