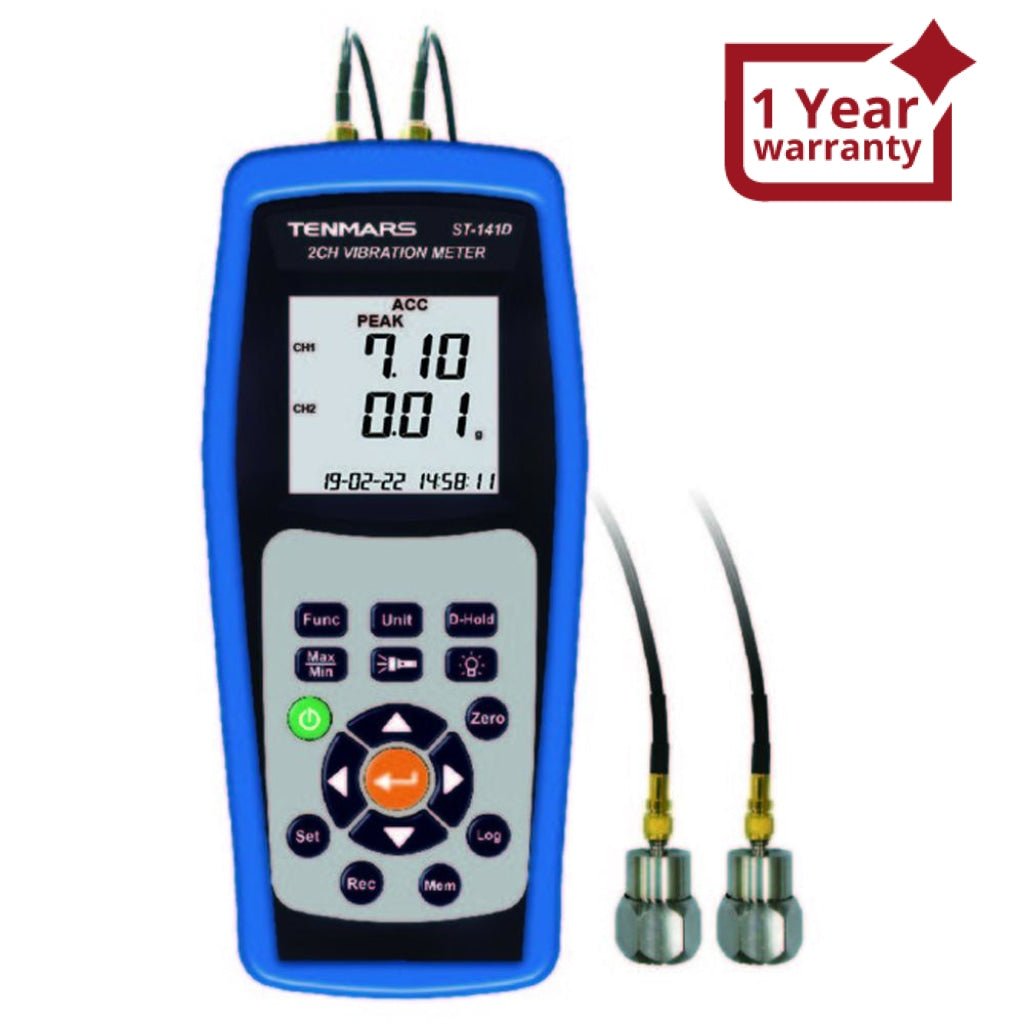

This meter is used to measure the vibration of the rotator and the reciprocator, and damage of bearings. It includes acceleration, velocity, and displacement. By using this meter you can determine if need to repair or renew the machines.
Features:
- Backlight function
- ON/OFF LED light indicator (meter is working)
- Maximum / Minimum value
- Data HOLD function
- Zero setting function
- Automatic recording
- Auto/manual shutdown
- Over load indicator "OL" sign
- Calendar setting (year, month, date, and time)
- Low battery indicator
- Meter to PC data transfer via USB cable and CD software (compatible with XP/ Windows 7 / 8.1/ 10
Specifications:
- LCD Display: up to 1999
- Measurement items: VEL (velocity) / ACC (acceleration) / DISP (displacement)
- Functions:
- Acceleration (RMS, PEAK, MAX, MIN)
- Velocity (RMS, PEAK, MAX, MIN).
- Displacement (P-P, MAX, MIN, P-P)
- Unit:
- Acceleration: m/s², g, ft/s²
- Velocity: mm/s, cm/s, inch/s
- Displacement: mm, inch
- Frequency characteristics:
- LO range: 10hz~1khz meets the international standard ISO 2954-2012
- HI range: 10hz~5khz
- Power Source: 6 x LR6 AA 1.5V or 9V AC to DC Adaptor
- Battery life: about 80 hours (alkaline battery)
- Operating consumption current: less than 30mA @ 9V
- Operating temperature of the accelerometer: -20~70°C
- Operating Environment:-10~50°C, less than 80% RH
- Storage Environment: -10~60ºC (14~140ºF),<70%RH
- Weight: approx. 730g (including protective cover and accelerometer)
- Dimension: approx. 240 x 100 x 45mm
Set Includes:
- 1 x Vibration Tester
- 2 x Accelerometer
- 2 x Low noise cable
- 2 x Magnetic base
- 1 x Handheld probe + round probe + pointed probe
- 6 x 1.5V LR6/AA battery
- 1 x 9V AC to DC Adaptor
- 1 x USB cable and Installation disk
- English Instruction Manual
- Carrying Case
