Model: VC-99

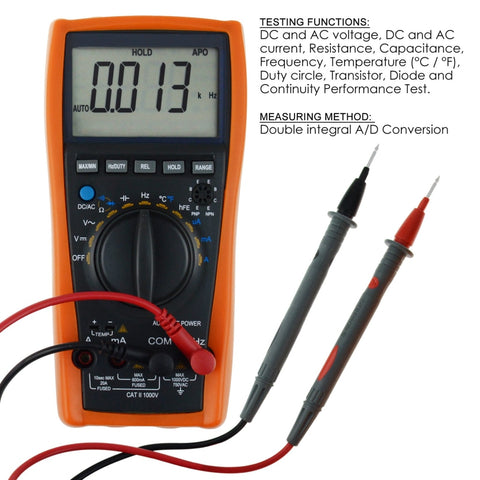

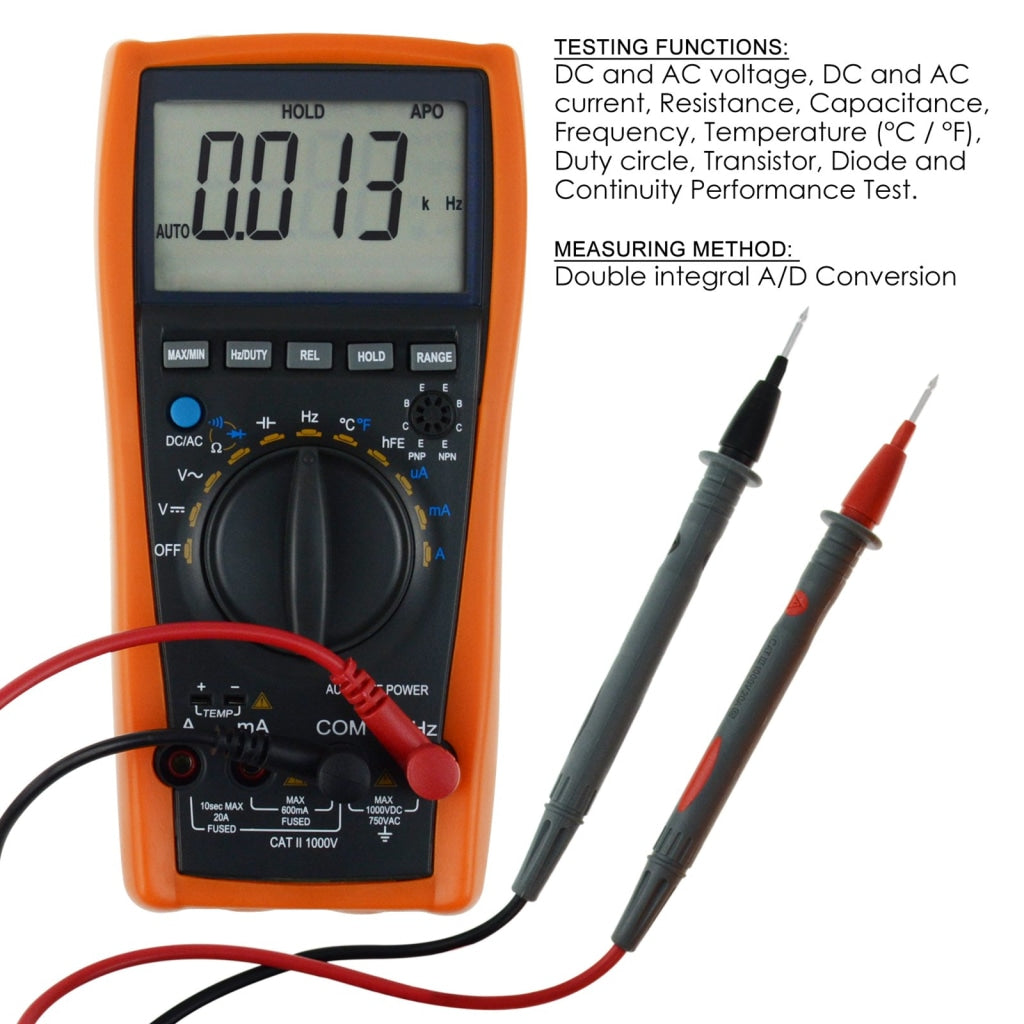

The designed parameter has the function of measuring DC and AC voltage, DC and AC current, Resistance, Capacitance, Frequency, Temperature (°C / °F), Duty circle, Transistor, Diode and Continuity Performance Test.
Features includes: analog bar and unit symbol display, data holding, relative value measuring, maximal / minimal value measuring, auto / manual range switching (RANGE), auto power off and warning function. Plus, it adopts double integral A / D converter as its core.

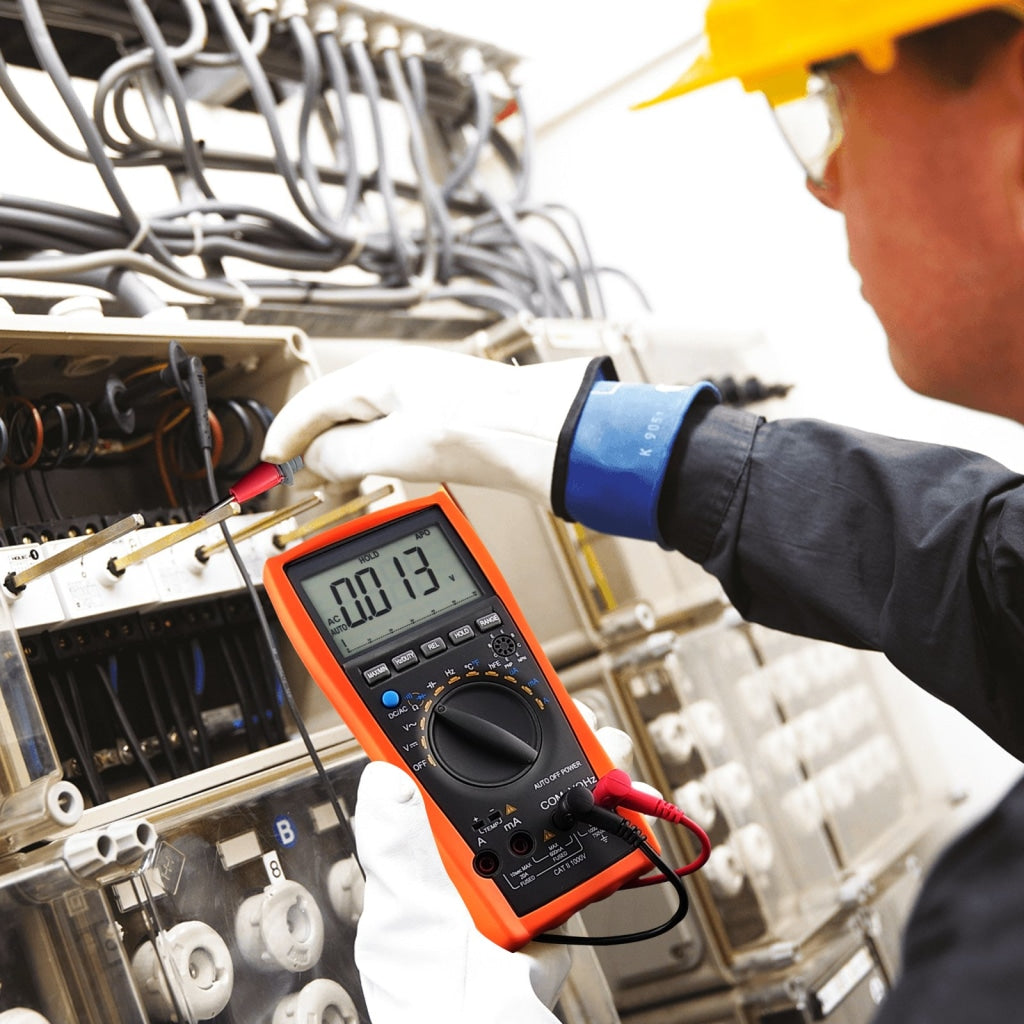

It is an ideal tool for labs, factories and radio-technology.It is designed according to IEC1010 standard ( safety standard issued by International Electro technical Committee.)
Features:
- Double integral A/D conversion
- Designed for field professionals
- Full overload protection
- 6000 counts (3 6/7 digits) Large LCD Display
- Full function protection, anti-high voltage circuit design.
- Low battery display indication

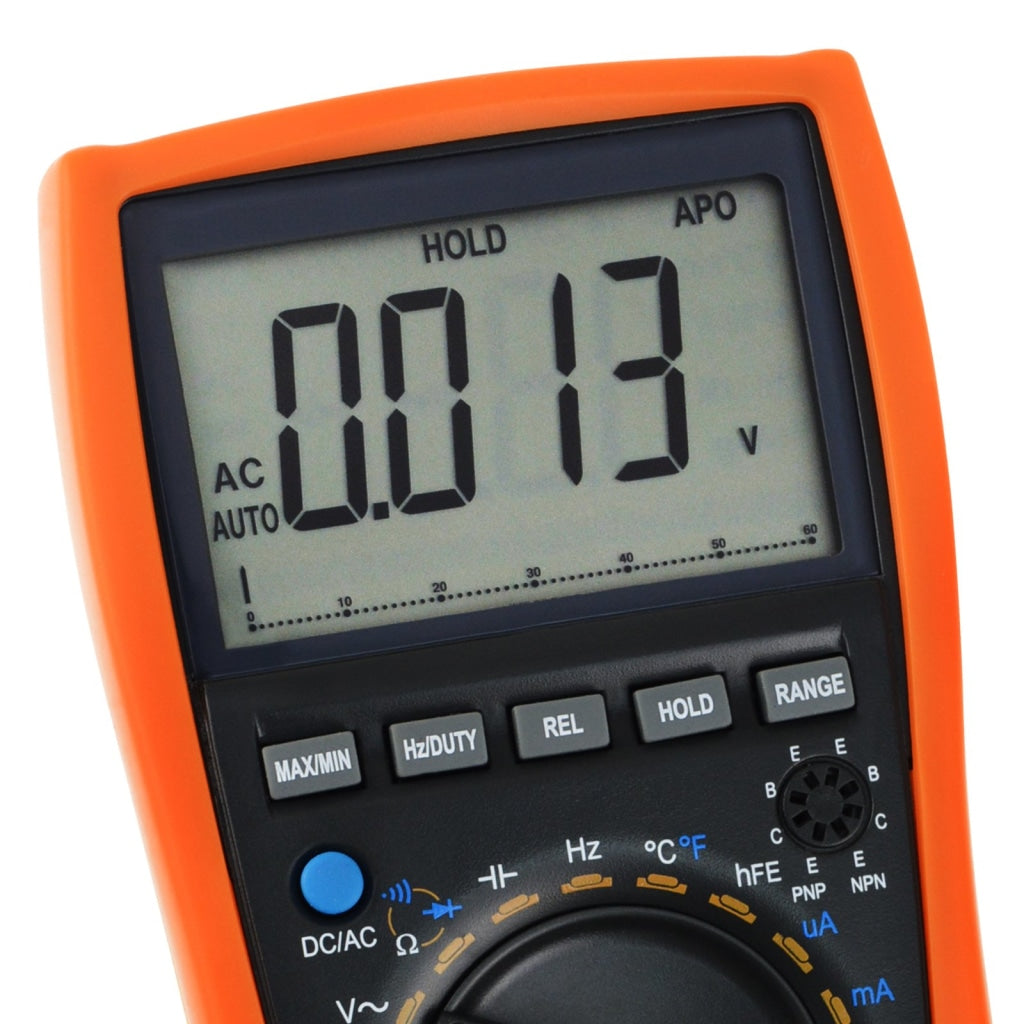

- Unit symbol display and 61 selection analog bar display
- With automatic polarity
- Selectable between °C and °F
- Relative Value, Frequency/Duty cycle, transistor measuring and data hold

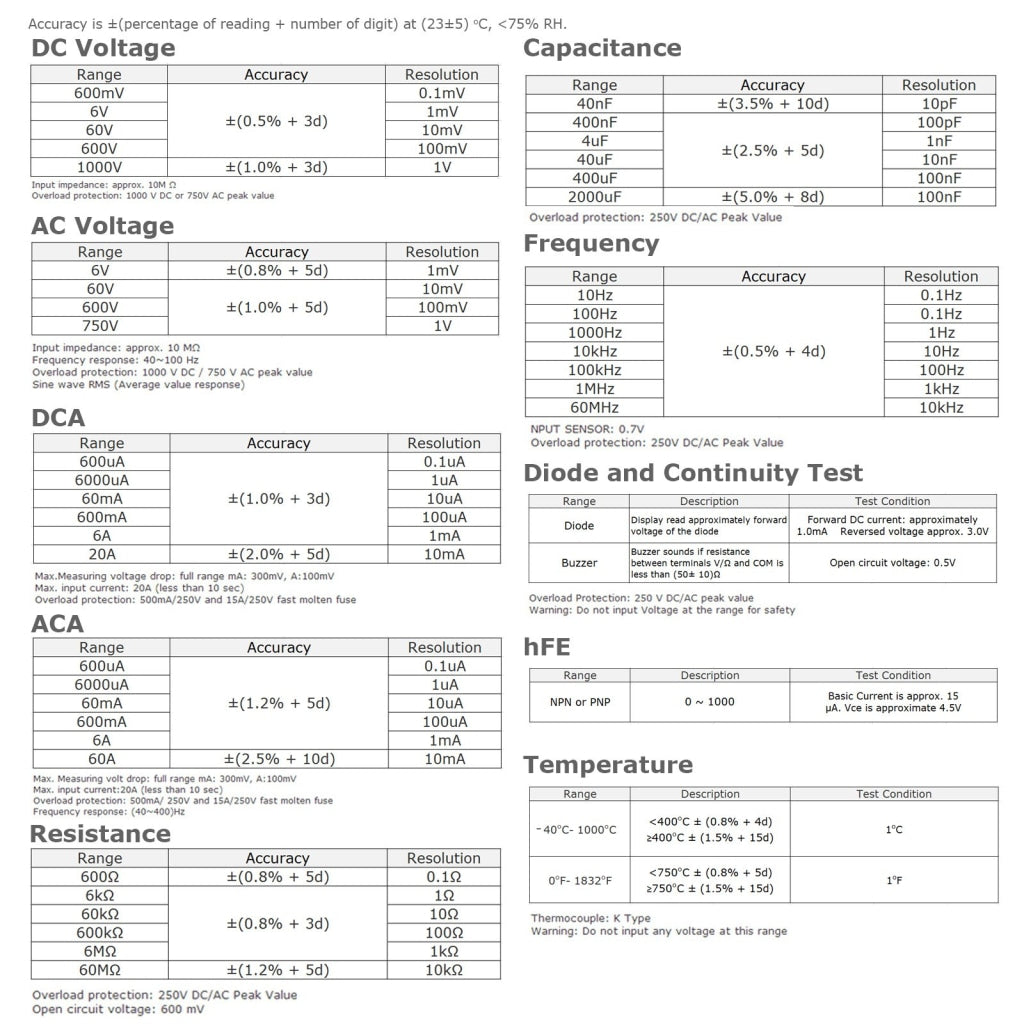

Specifications:
- Display: 6000 (3 6/7) digits Large LCD with automatic polarity, unit symbol and 61 selection analog display
- Measuring method: double integral A/D Conversion
- Sampling Rate: approx. 3 Times / Second
- Over range indication: "OL" displayed in the highest digit
- Low battery display symbol
- Operating Temperature: 0 ~ 40 °C; Operating Humidity: <80% RH
- Storage Temperature: -10 ~ 40 °C; Storage Humidity: below 80% RH
- Safety Standards: CE, IEC1010, double insulation II

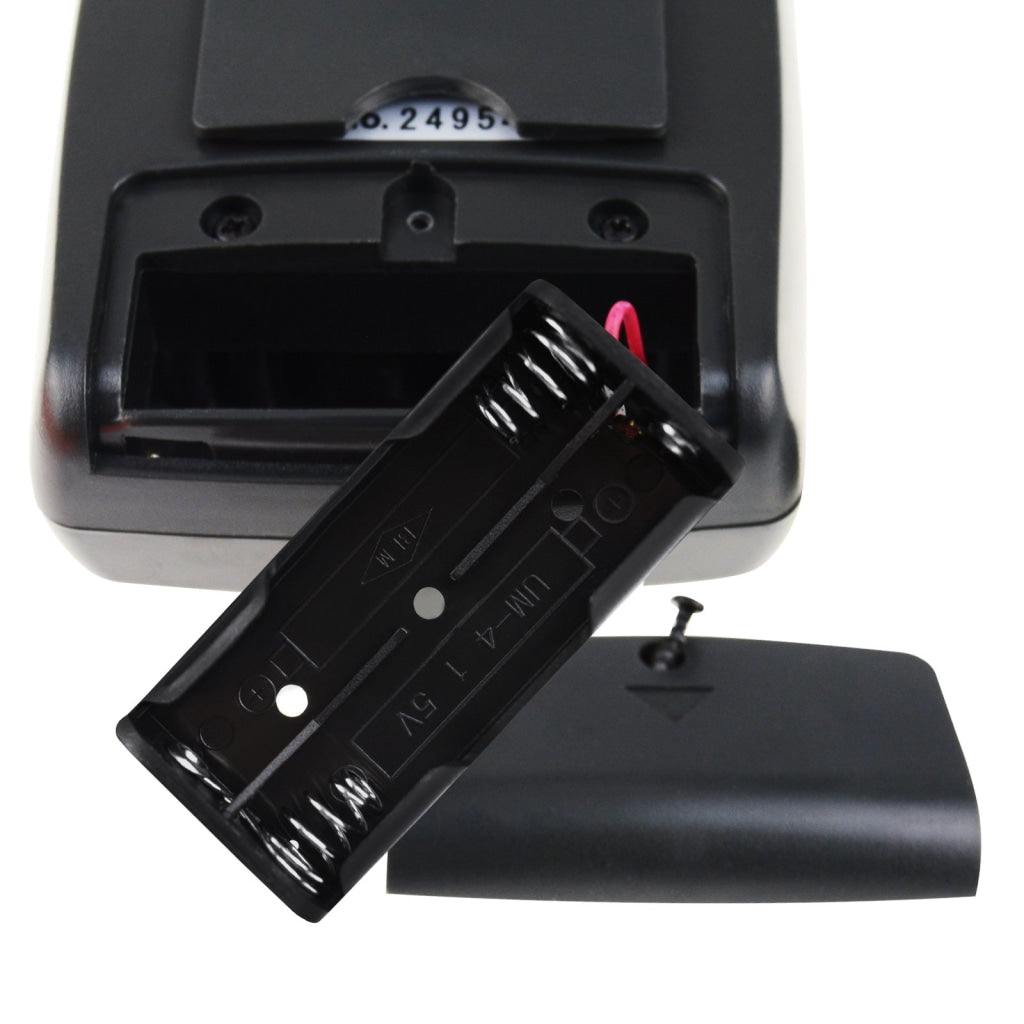

- Power: 2 x 1.5 V AAA batteries (included)

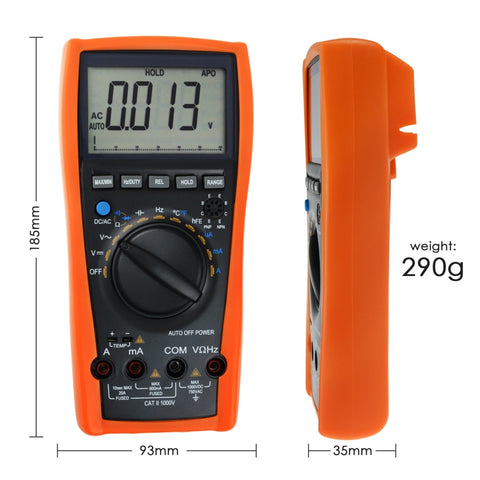

- Dimensions: 185 (L) x 93 (W) x 35 (H) mm
- Weight: approx. 290g (batteries included)

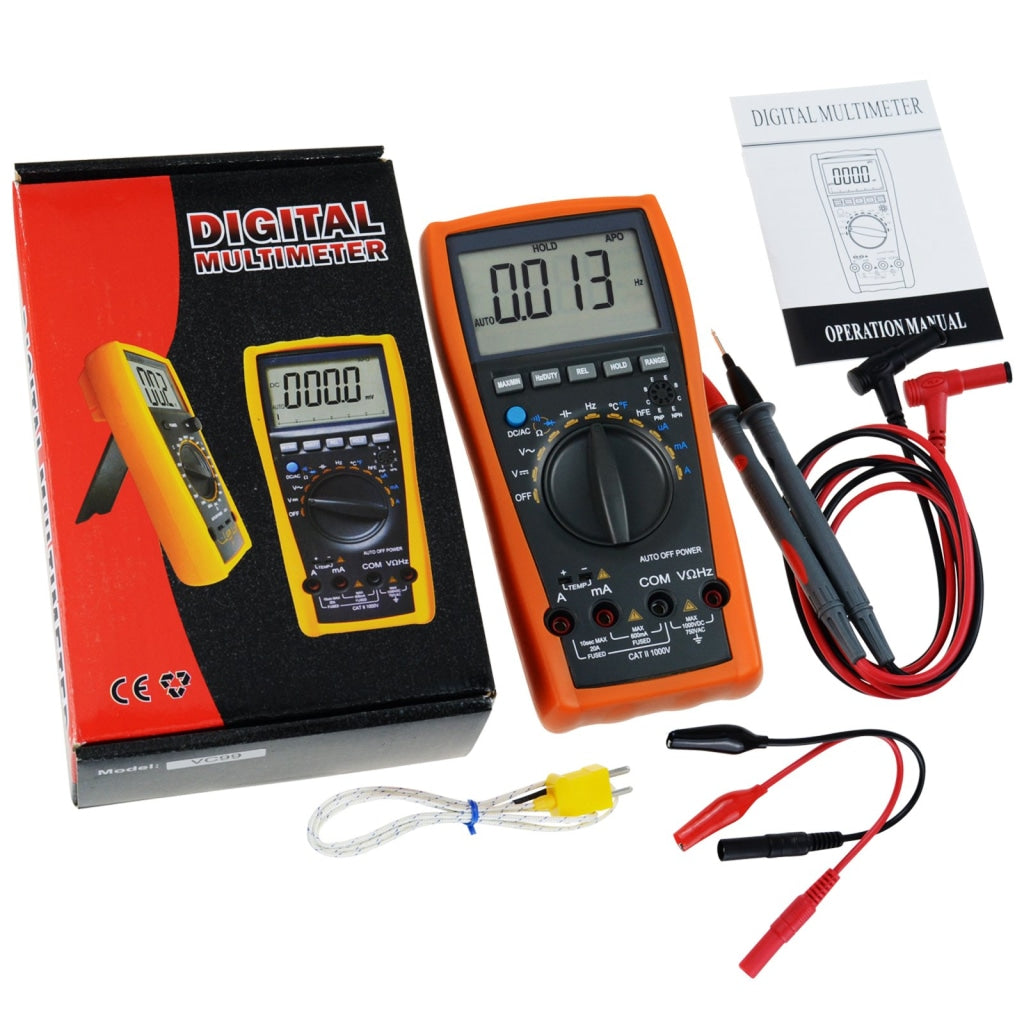

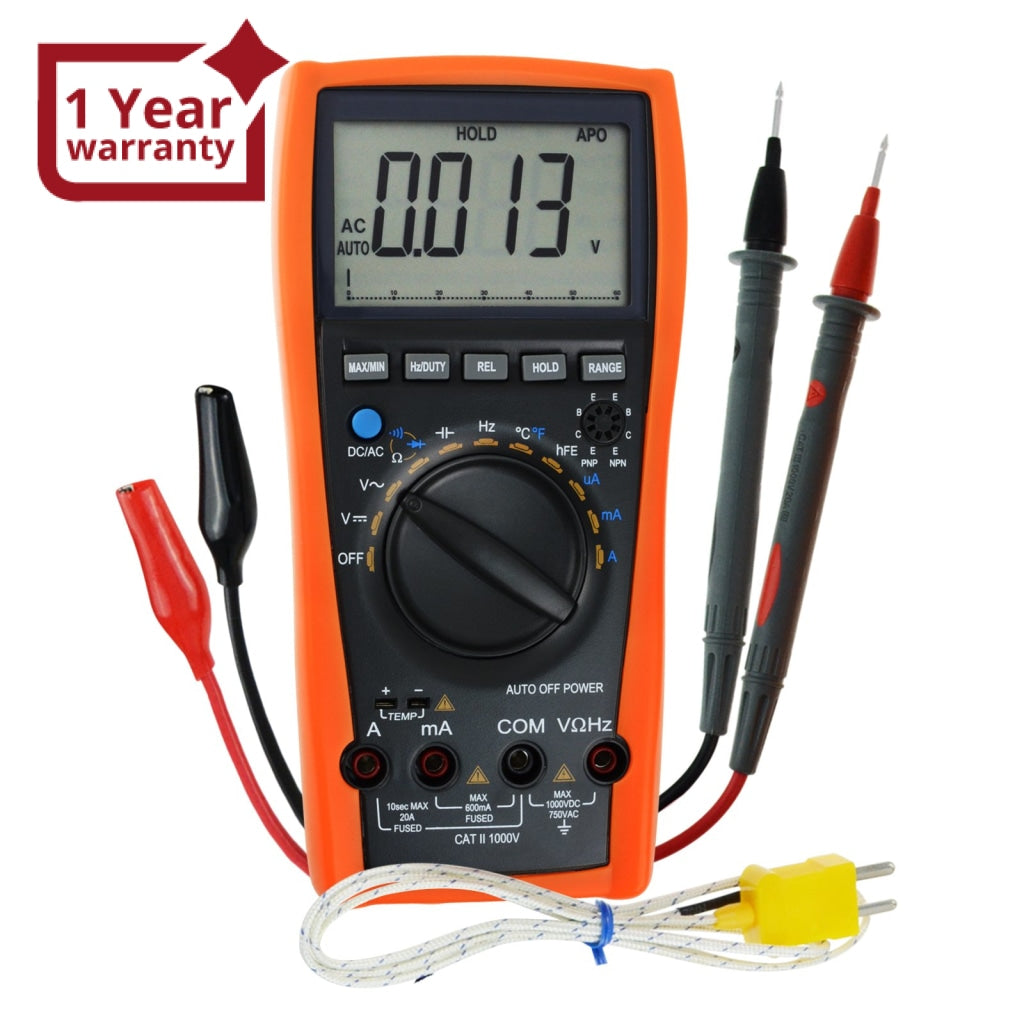

Set Includes:
- 1 x Auto Range Digital Multimeter

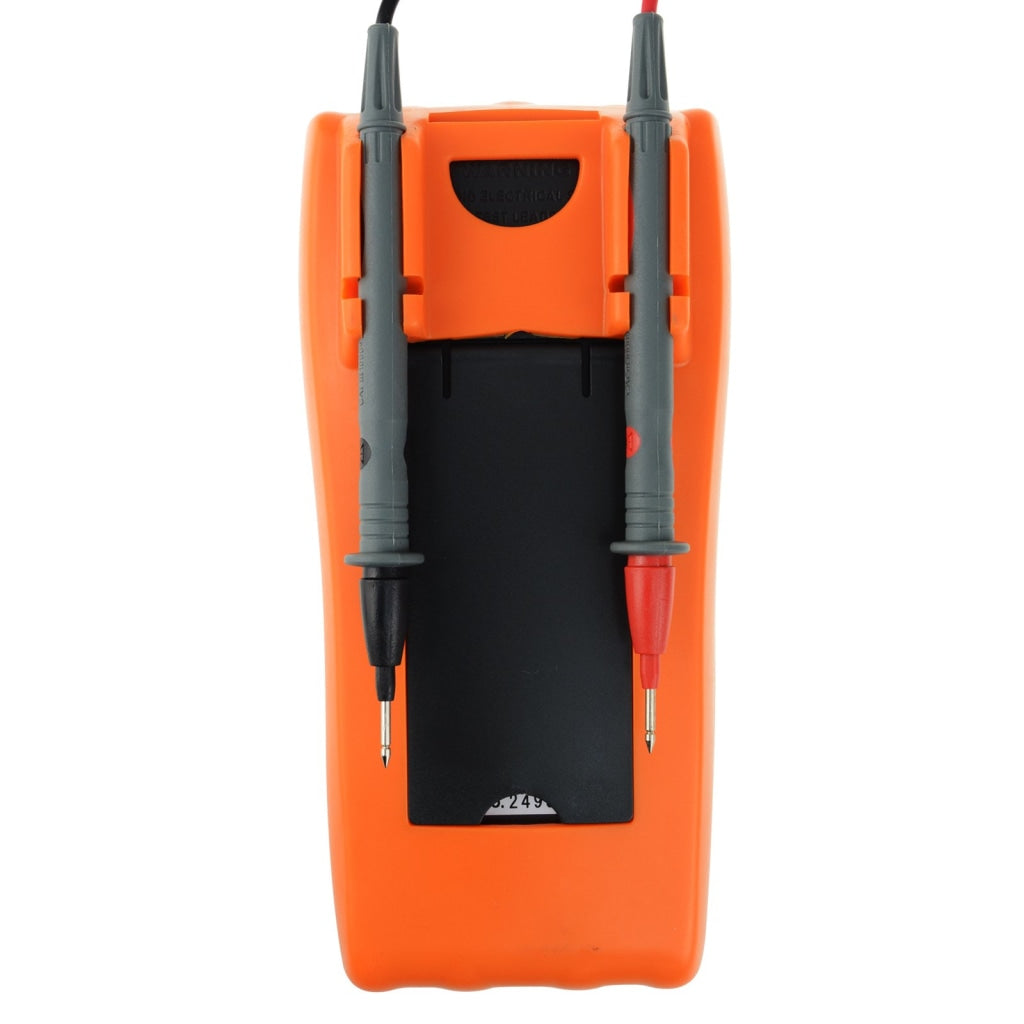

- 2 x Silicone Test Leads
- 2 x Alligator Clip Test Leads

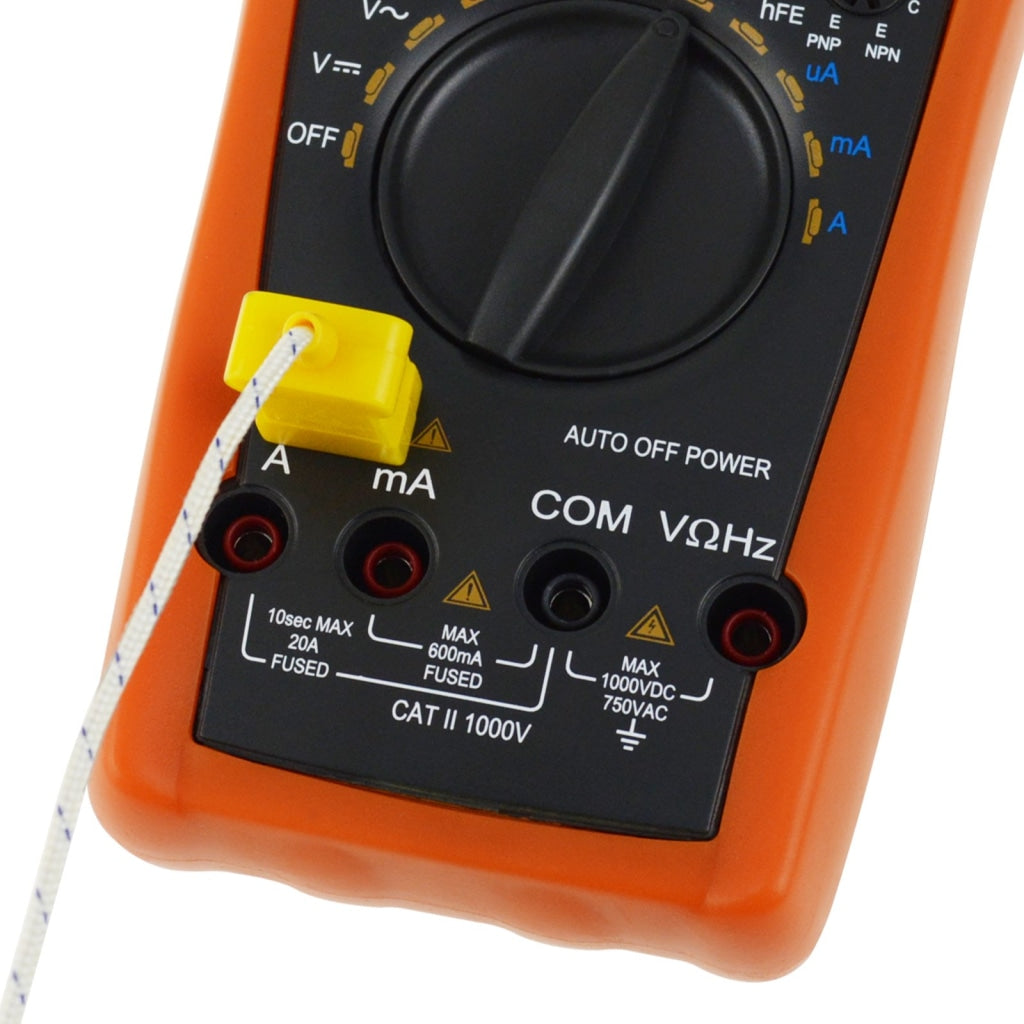

- 1 x K-Type Thermocouple Wire

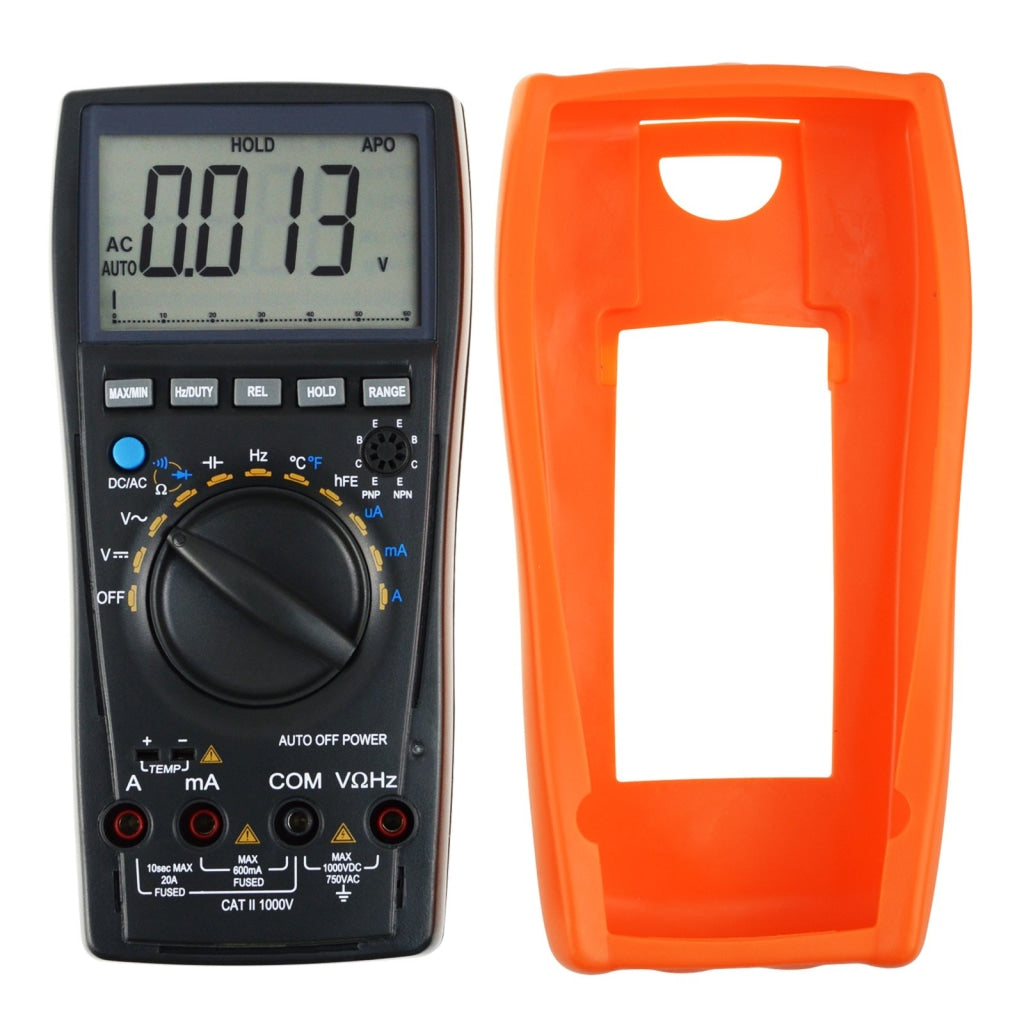

- 1 x Non-slip Rubber Protection Cover
- 2 x 1.5 V AAA batteries (installed)
- 1 x English Instruction Manual
- Standard Factory Package
