This reliable, handy & ergonomically designed economic tool has an intuitive operation, requires no expensive training. Because the cables are generic or standard you can find a pair of cables quickly. The function of speed regulating provides choice speed on testing. The function of speed and frequency changing provides choice speed on testing and choice frequency on looking.
It comes with RJ45 to BNC converter and Earphone used in a very noisy environment. You are always safe and secured when using the probe with direct contact on the bare gold line.
Ideal for Telecom post bureau, Net Bar, Telecom Engineering Companies, Network Engineering Companies, Power Supply Army and other departments requiring wire.
Features:
-

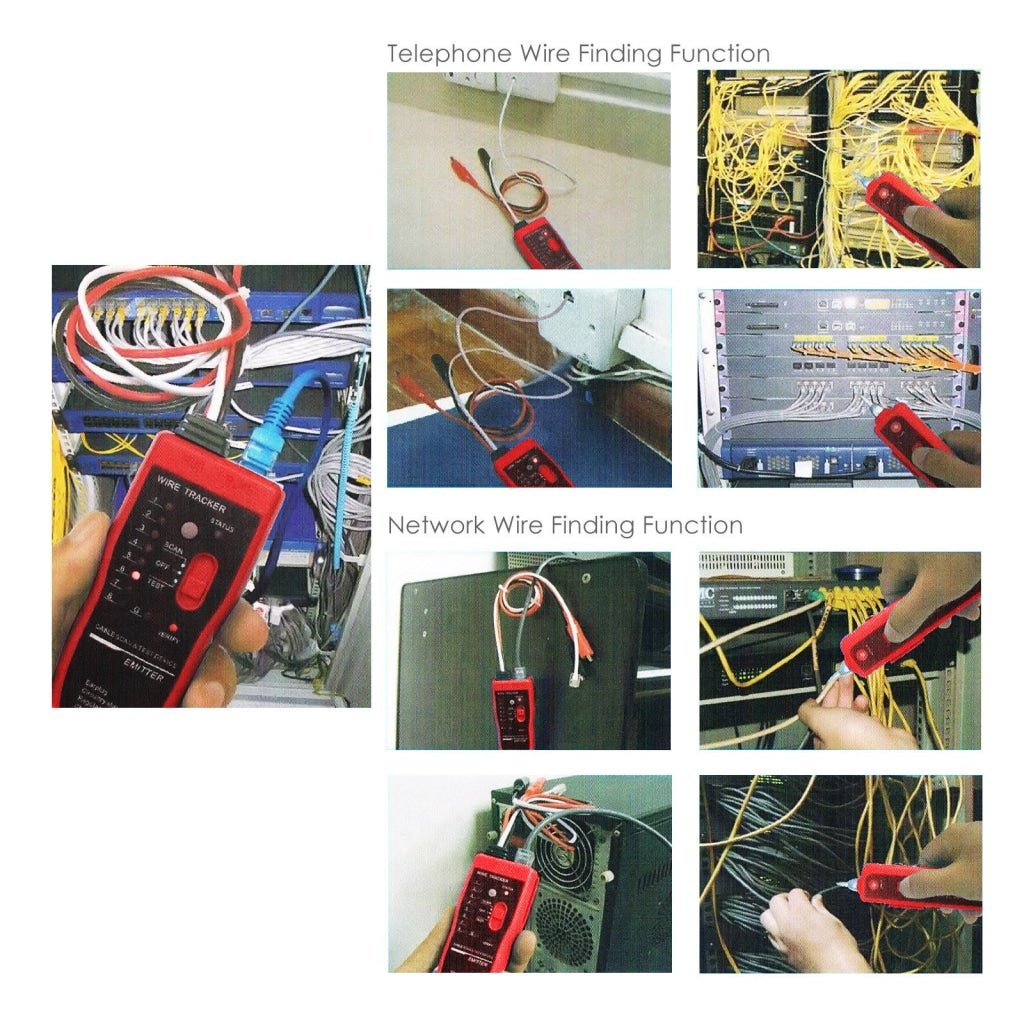

Finds Telephone wire target in a bunch of cables in no time, find the wire on a switch or on a patch panel
-
Finds the target Network wire in groups of cables in second, find the wire on a net bar or on router
-
Find the target Electric Wire quickly, no electric drill is required
-
Network Wire Collation Function, according to 16 wire sequences, you can judge the characteristics of short-circuit, breaking the circuit, open circuit, and crossing
-
Auto Scan Mode rapidly test correspondingly double-twisted cables (1,2,3,4,5,6,7,8 and G) while judging a wrong connection (short circuit and/or open circuit)
-
Network wire sequence collation, support direct wire collation of operating switch
-
Trace telephone wire/LAN cable
-
Trace wire in an electrical system
-
Verify LAN cable condition
-
Continuity test
-
Offers other functions such as
-
>>Open Circuit or Short circuit Testing
-
>>DC Level Testing
-
>>Low Voltage Alarm Function
-

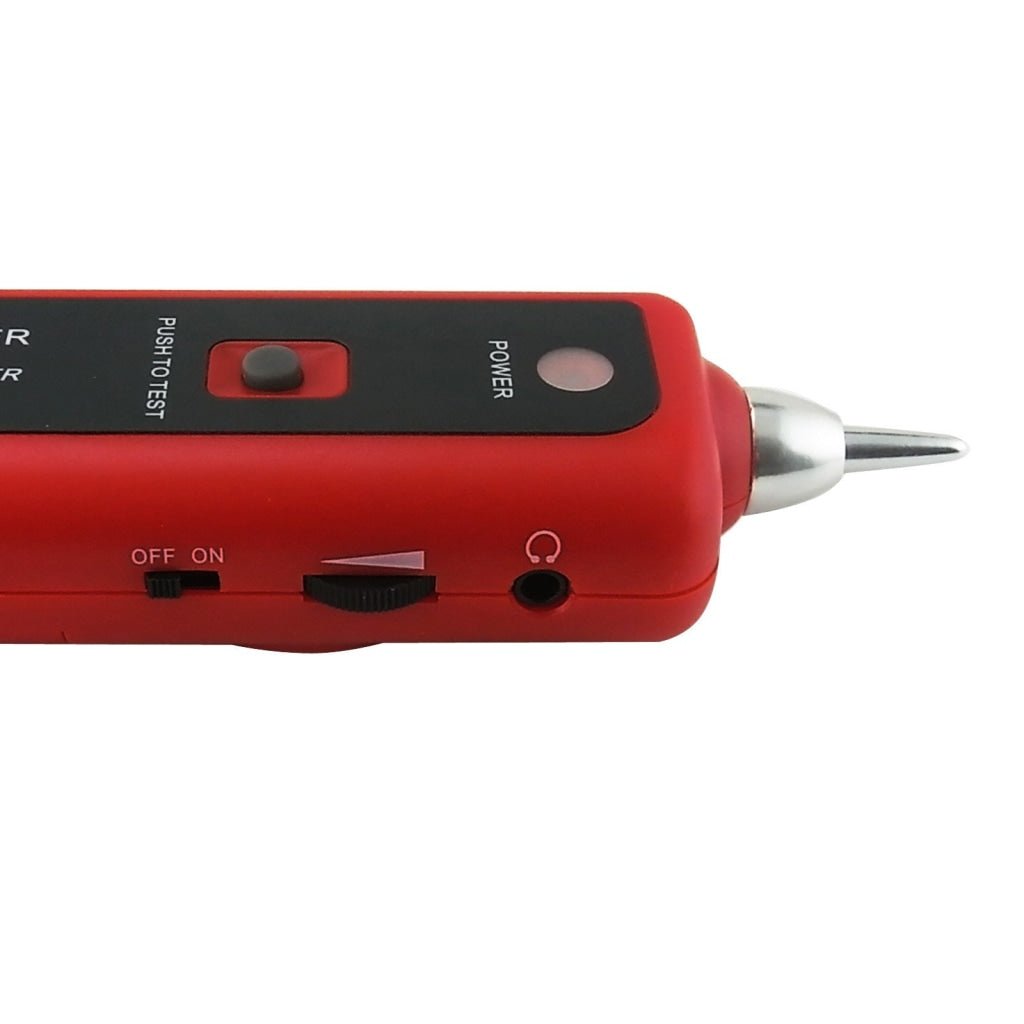

>>Volume adjustment, moderate/adjust level of sound via the volume knob
-
>>Spotlight or Flashlight Function for night testing or dark areas
-
>>Energy saving, Inching Switch can be used to automatically delay power-off
-
-
Low battery indication
-
With bright white LED flashlight
-
Cable assignment test
-
>>Open
-
>>short
-
>>cross of LAN cable
-
-
2-wire (RJ11)/4-wire (RJ45)telephone cable
-
Comes with RJ45 to BNC converter
-
Cable state testing (2-wire)
-
>>Line DC detecting, anode & cathode determination
-
>>Ringing signal detecting
-
>>Open, short and cross tests
-
-
Best for telecom network wire engineers and regular maintenance work, network line computer engineer, and other wire engineering and maintenance.
Specifications:
-

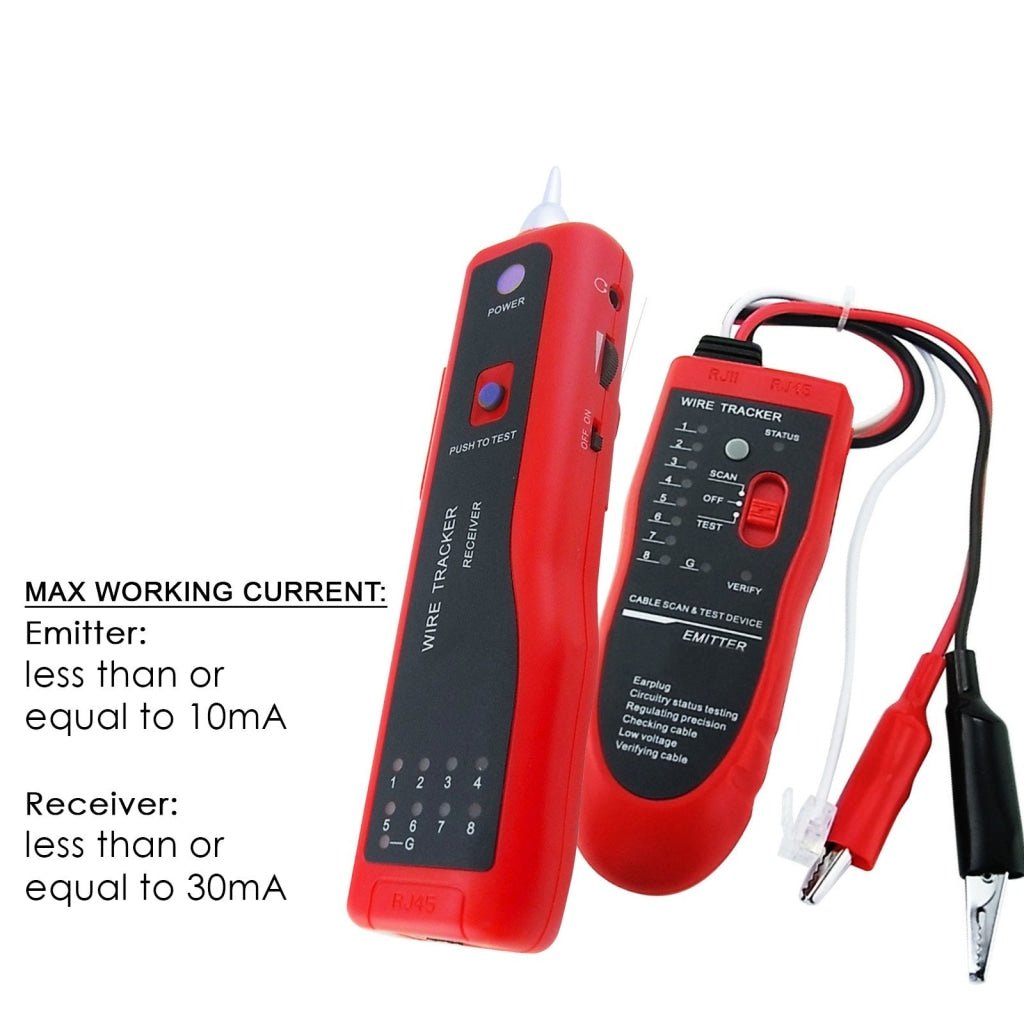

Max working current:
-
>>Emitter: less than or equal to 10mA
-
>>Receiver: less than or equal to 30mA
-
-
Signal transmission format : Multi-frequency impulse
-
Signal output electric status: 8Vp-p
-
Distance of signal transmission: more than or equal to 3Km
-
Volume Regulate Function: Yes
-
Earphone for noise environment: Yes
-
RJ45 to BNC Converter: Yes
-
Sensitivity : induction distance less than 20mm, strong anti-jamming ability
-
Storage Temperature: -20 ~ 50°C
-
Operation Temperature: -10 ~ 40°C
-
Power Supply : DC 9V Battery
-
Battery life time: >50hrs continuous use
-

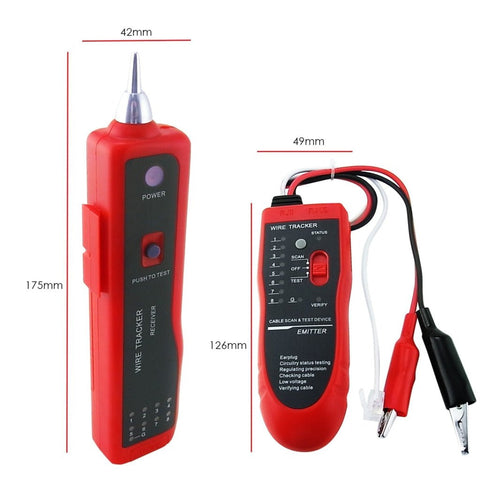

Size & Weight:
-

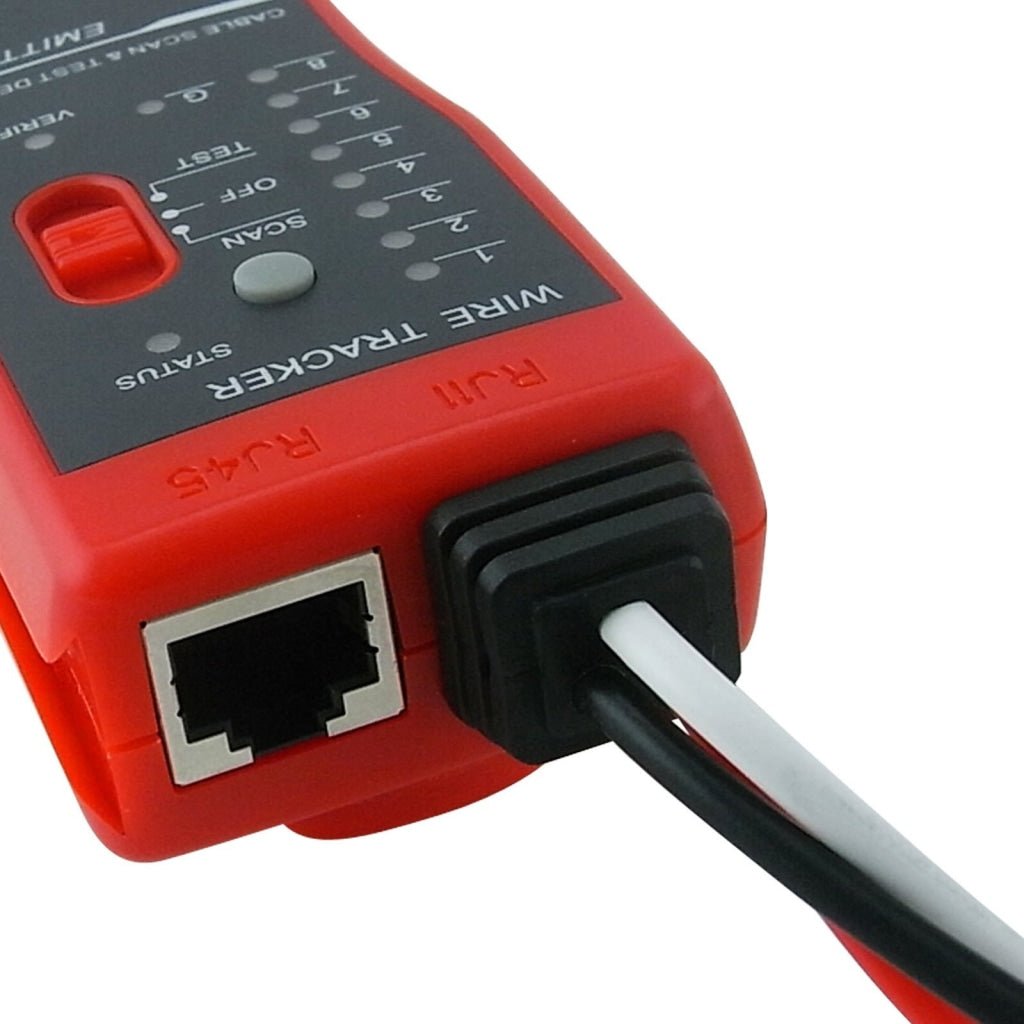

>>Emitter: 126 x 49 x 34mm ; 0.060kg
-
>>Receiver: 175 x 42 x 27mm ; 0.072kg
-
>>Whole Set: 270 x 165 x 45mm ; 0.420kg
-
Set includes:

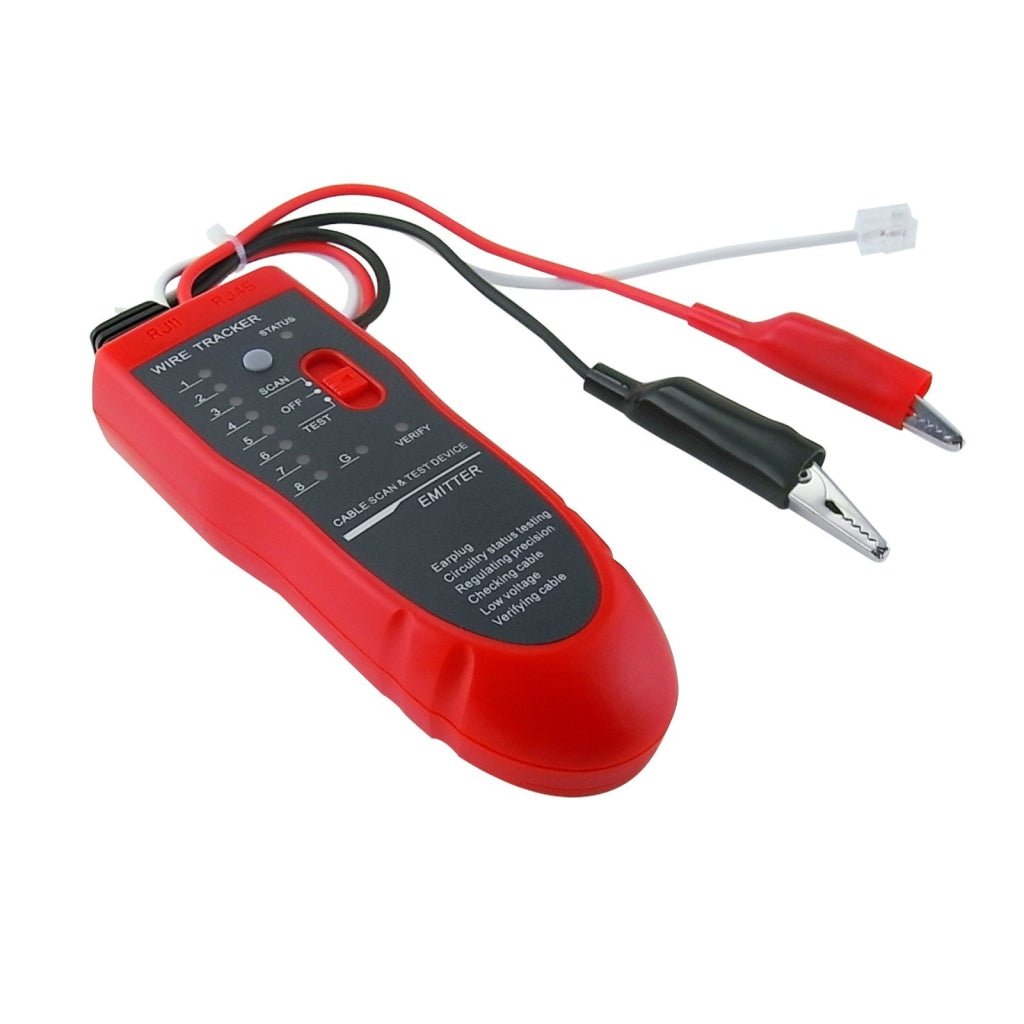

- 1 x Emitter

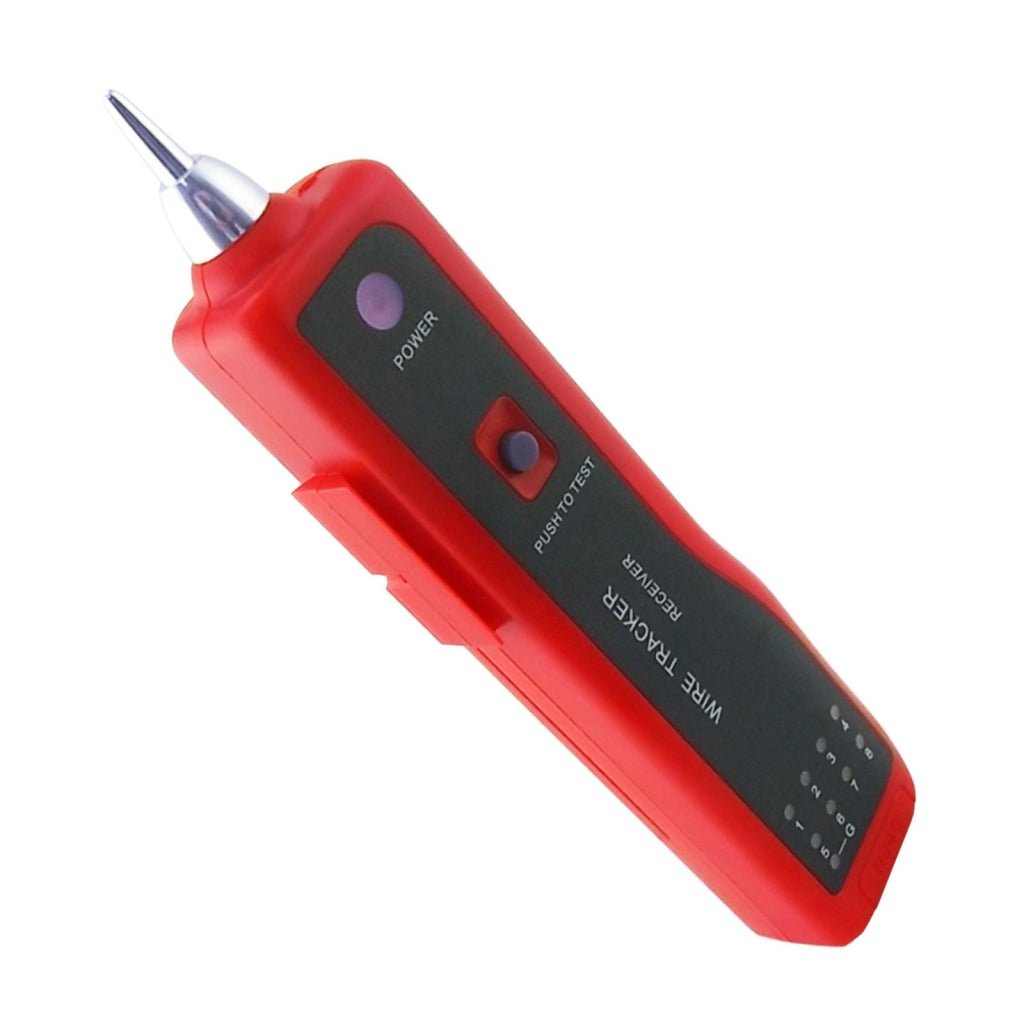

- 1 x Receiver
- 1 x RJ45 Network Cable
- 1 x RJ45 to BNC Converter
- 1 x Earphone

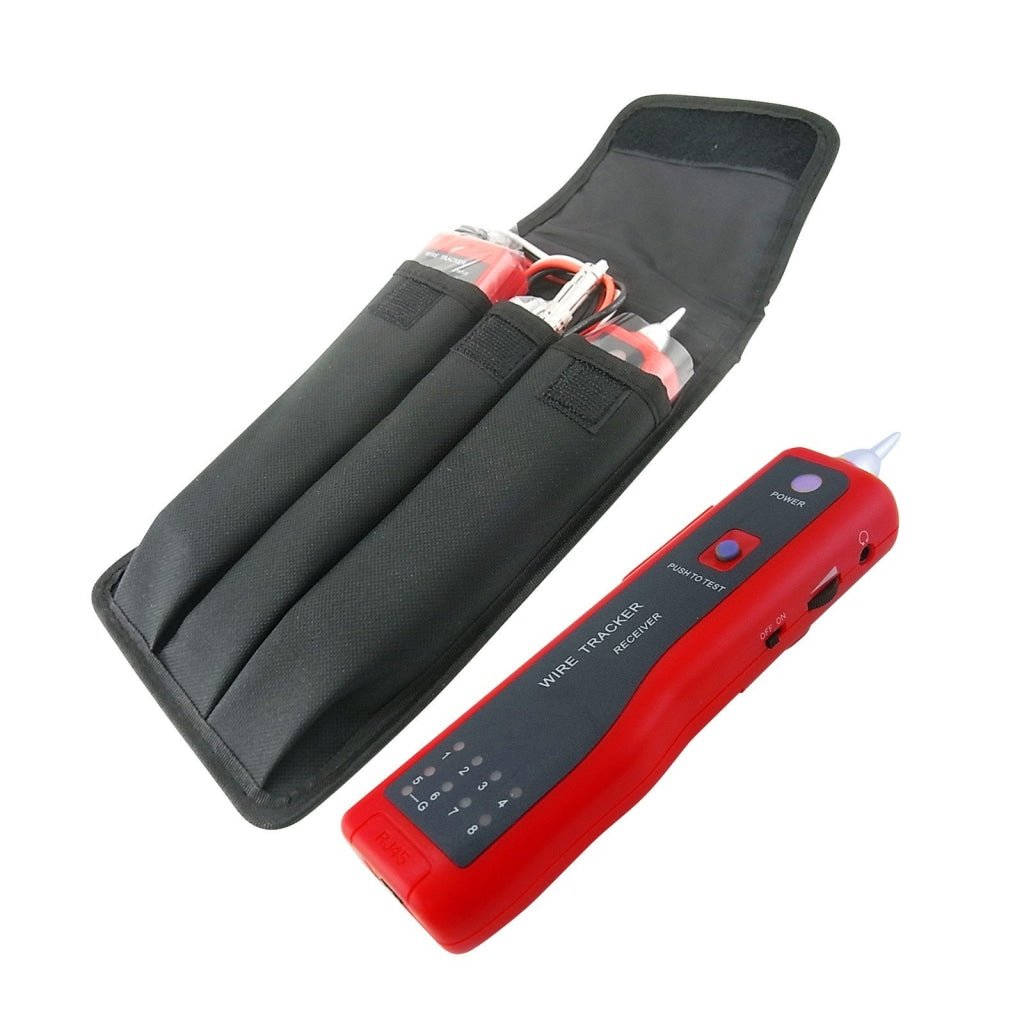

- 1 x Toolkit Bag
- 2 x 9V Battery
- English Instruction Manual
- Colored Packaging Box
